B335HH00S01 - Siemens 35A 3-Pole 120/240V AC Shunt Trip Miniature Circuit Breaker BL Series

B335HH00S01

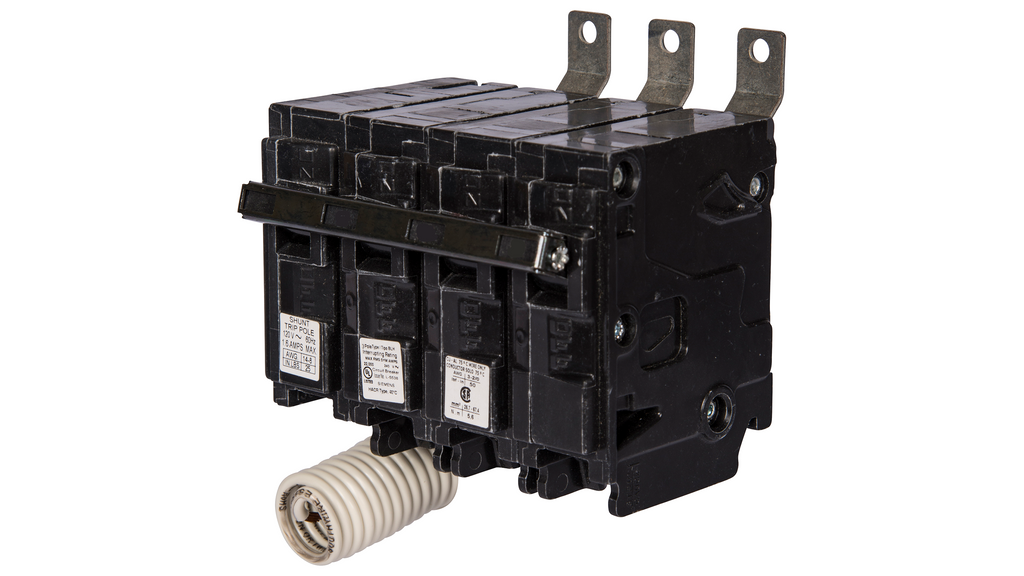

B335HH00S01 is a Siemens BL Series miniature circuit breaker with a 35 amp rating and 3 poles designed for 120/240V AC applications.

This circuit breaker features a shunt trip mechanism and is panelboard mountable. It has an interrupt rating of 65kA at 240V AC and is part of Siemens' low voltage molded case circuit breakers, Type BL. The breaker is suitable for three-phase systems and provides reliable protection with a compact design.

• Amperage: 35 A
• Voltage Rating: 120/240V AC
• Number of Poles: 3
• Interrupt Rating: 65kA at 240V AC
• Series/Frame: BL Series
• Circuit Breaker Type: Shunt Trip
• Mounting Type: Panelboard Mounting

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with 120V shunt trip

Specifications

• Part Number: B335HH00S01
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : HBL
• Voltage : 240
• Amperage : 35
• Phase : 3
• Poles : 3
• AIC rating : 65kA@240V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 125A/BL
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
• Breaker Type : Shunt Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 783643529632
• GTIN : 00783643529632
• Country of Origin : Mexico
• Dimensions : 3 in x 3 in x 3 in
• Weight : 2.205
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
