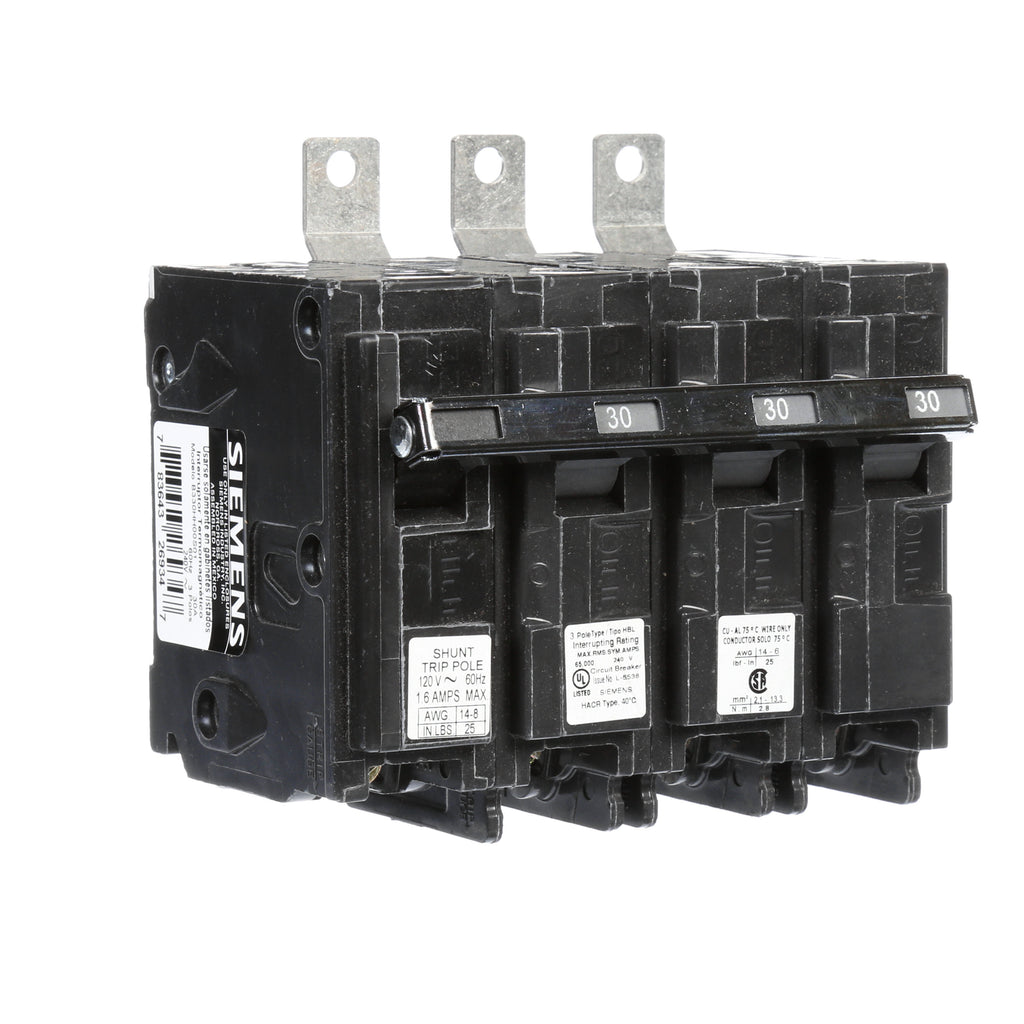

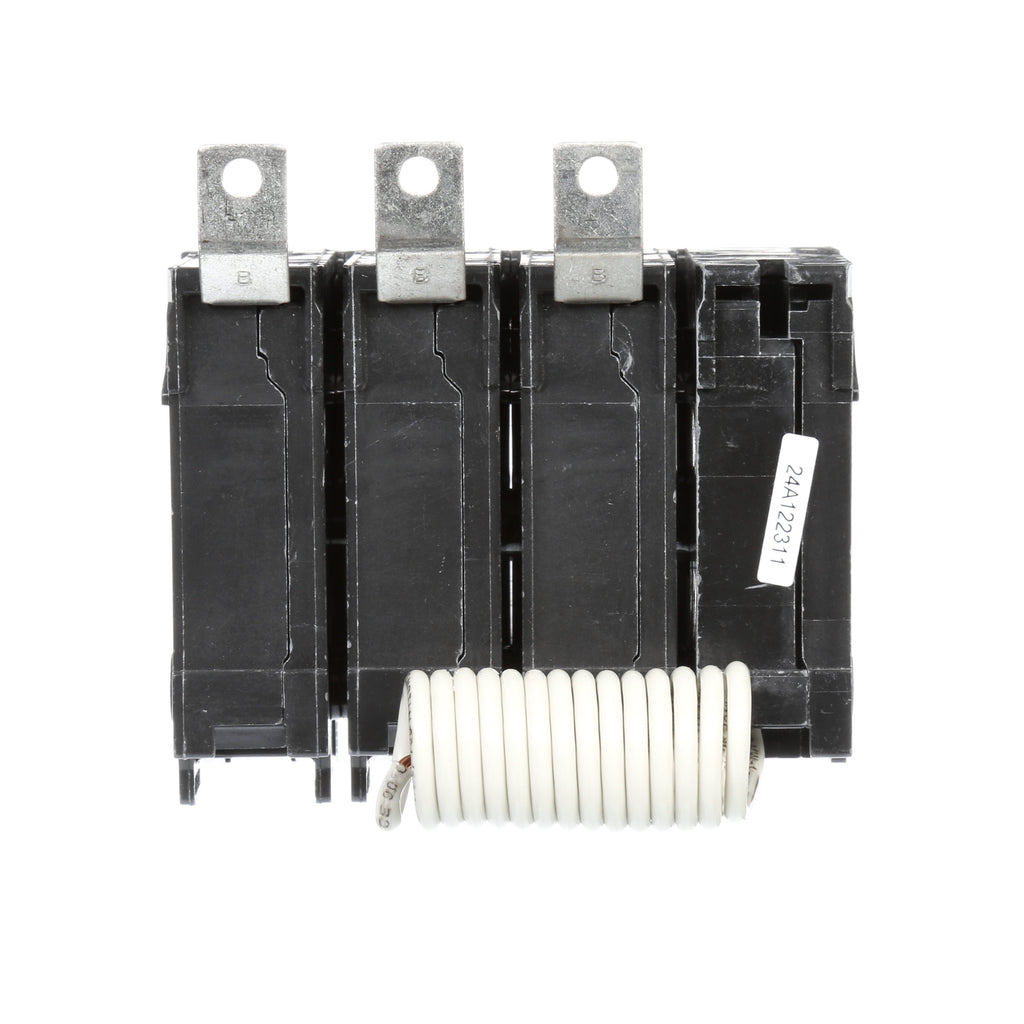

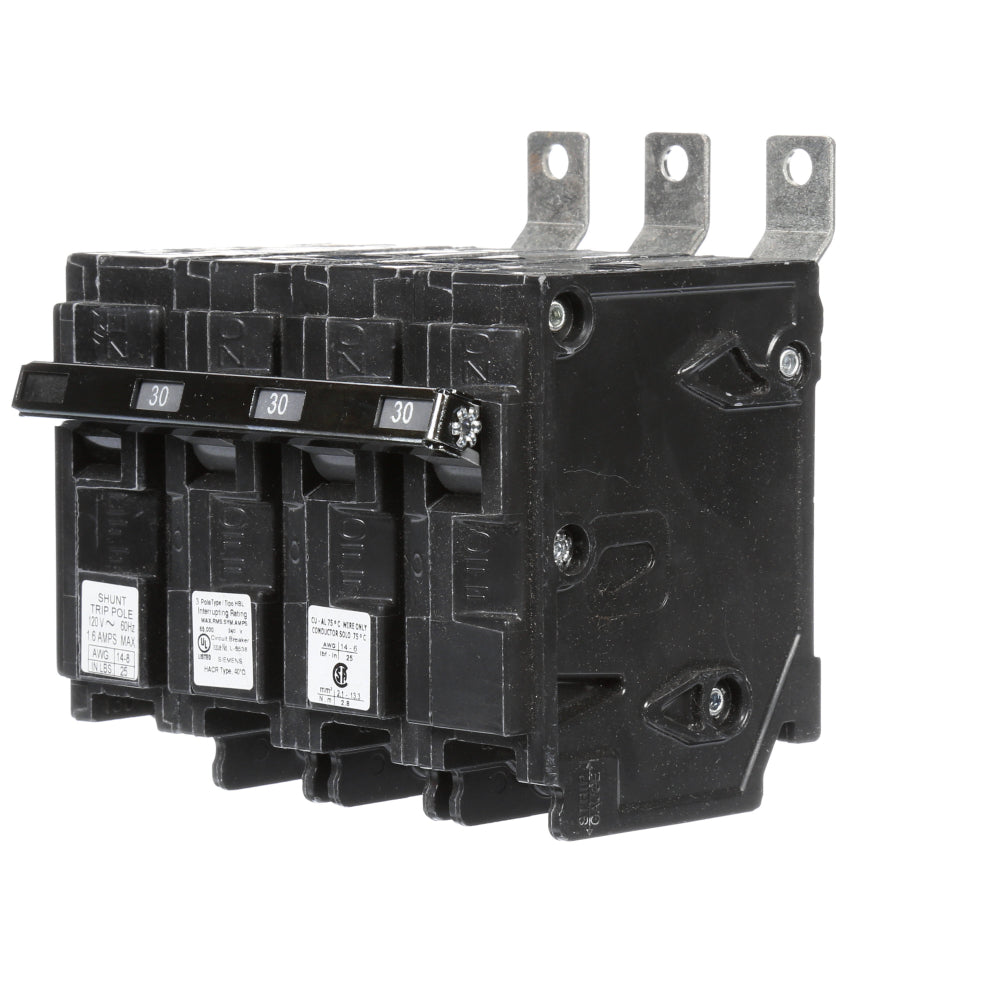

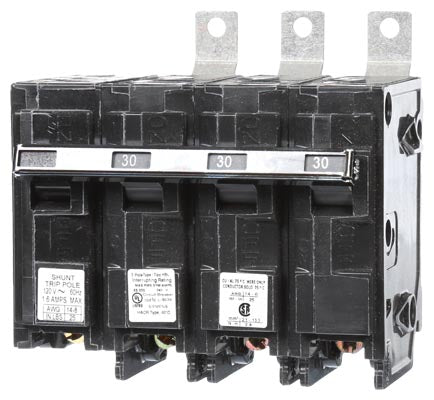

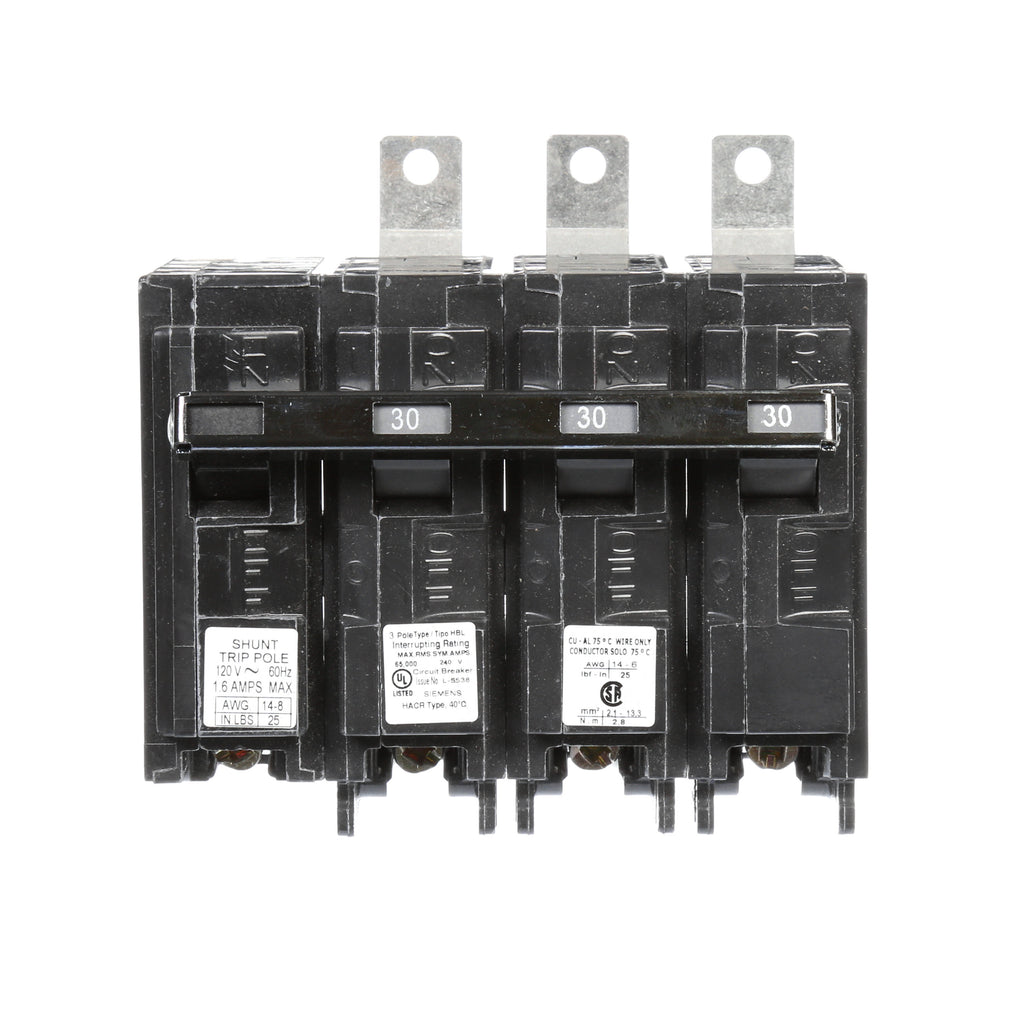

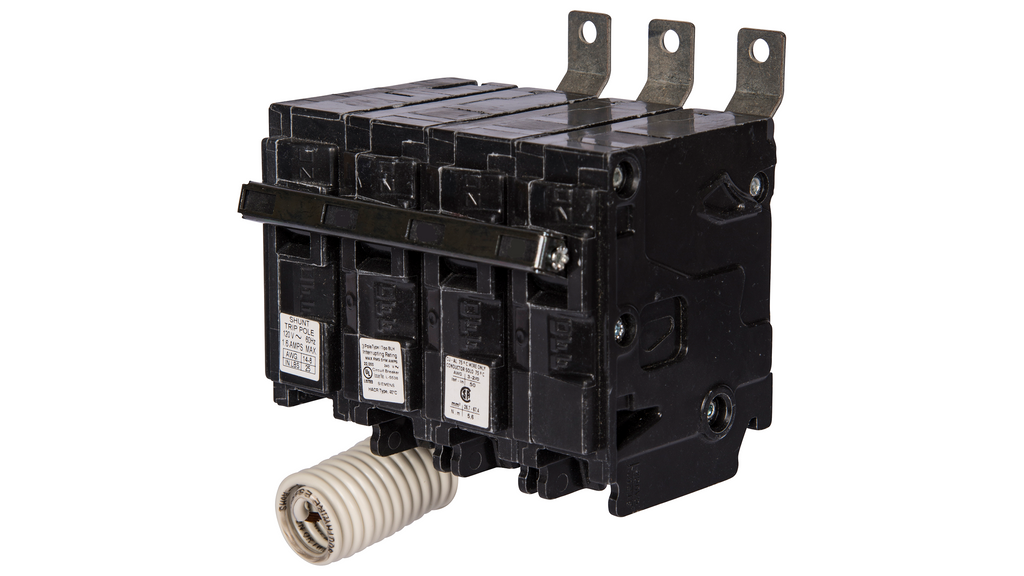

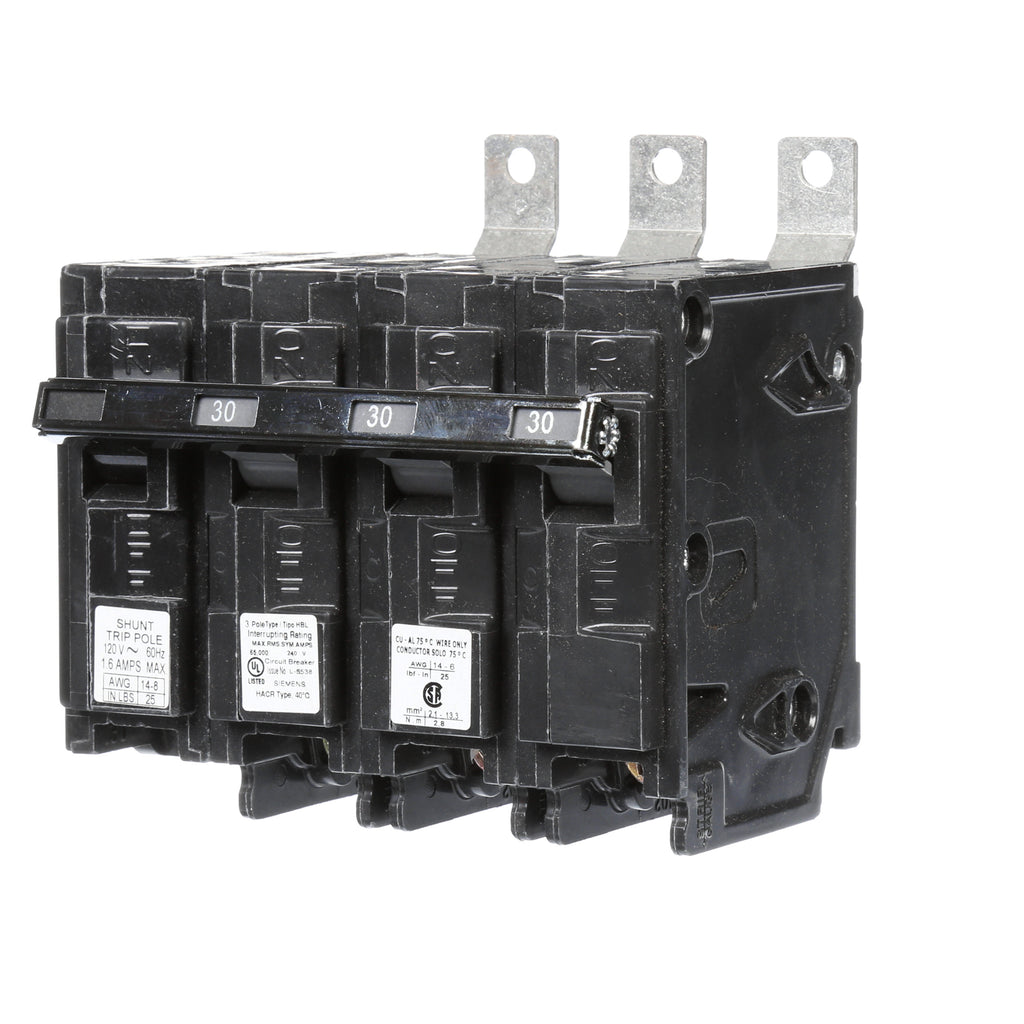

B330HH00S01 - Siemens 30 Amp 240V 3 Pole Molded Case Circuit Breaker BL Series Bolt-On

B330HH00S01

B330HH00S01 is a Siemens 3 pole, 30 amp, 240 volt molded case circuit breaker from the BL Series with bolt-on mounting.This Siemens B330HH00S01 circuit breaker features a 65kA interrupt rating at 240V AC, designed for 3-phase applications. It has a bolt-on mounting type and is part of the BL Series frame type. The breaker is suitable for panel mounting with busbar line side and lug load side terminations.

• Manufacturer: Siemens
• Part Number: B330HH00S01
• Amperage: 30 Amp
• Voltage: 240 VAC
• Poles: 3
• Series/Frame: BL Series
• Mounting Type: Bolt-On
• Interrupt Rating: 65kA @ 240V
• Phase: 3
• Line Side Termination: Busbar
• Load Side Termination: Lug (included)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with 120V shunt trip

Specifications

• Part Number: B330HH00S01
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : HBL
• Voltage : 240
• Amperage : 30
• Phase : 3
• Poles : 3
• AIC rating : 65kA@240V
• Connection : Bolt-on
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/BL
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
• Breaker Type : Shunt Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 783643269347
• GTIN : 00783643269347
• Country of Origin : Mexico
• Dimensions : 2.563 x 4.00 x 3.122 inch
• Weight : 1.259
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
