2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
B325

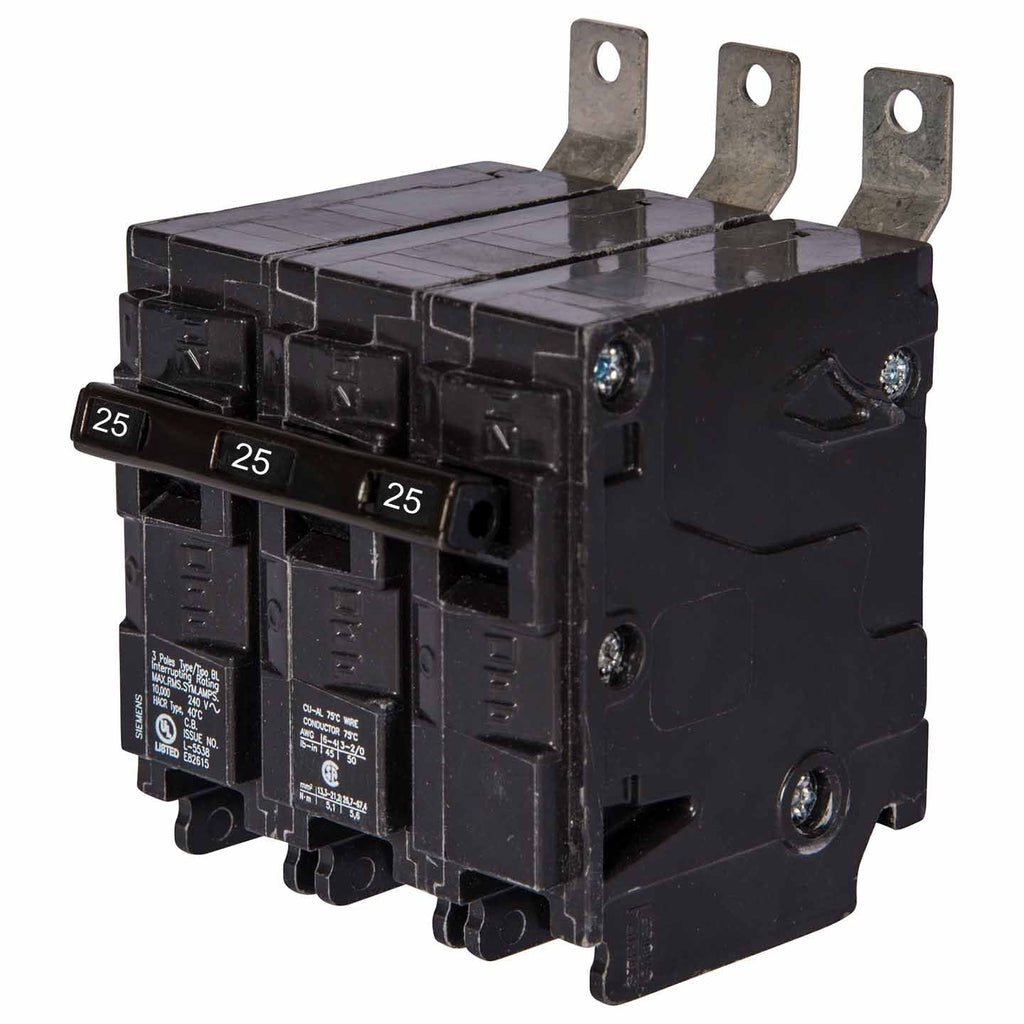

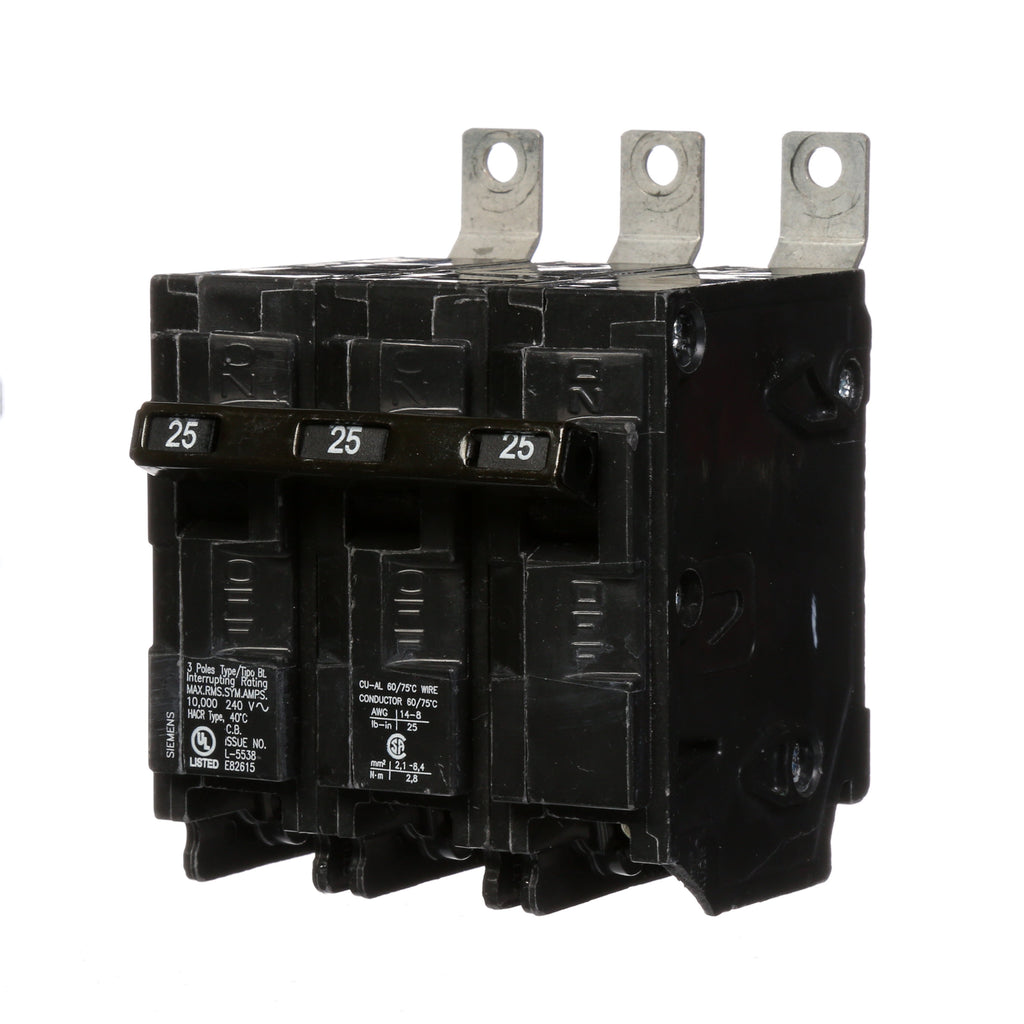

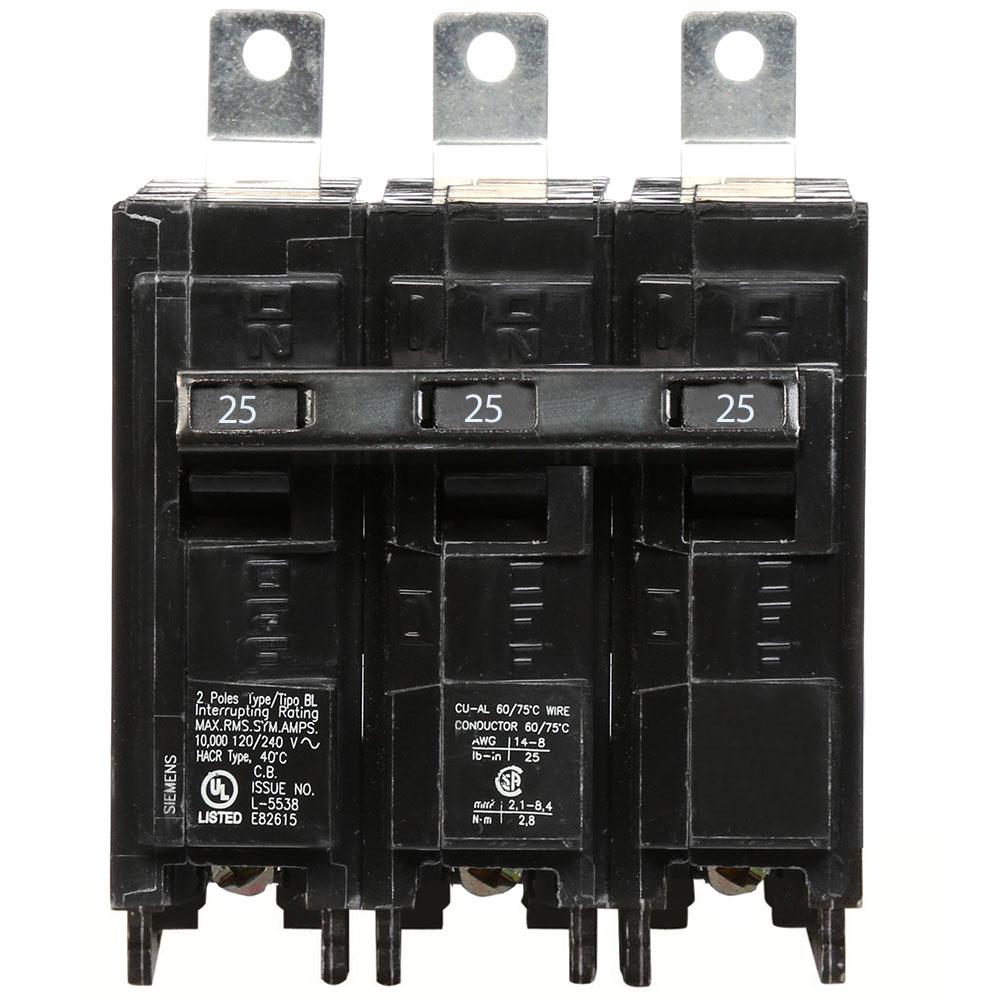

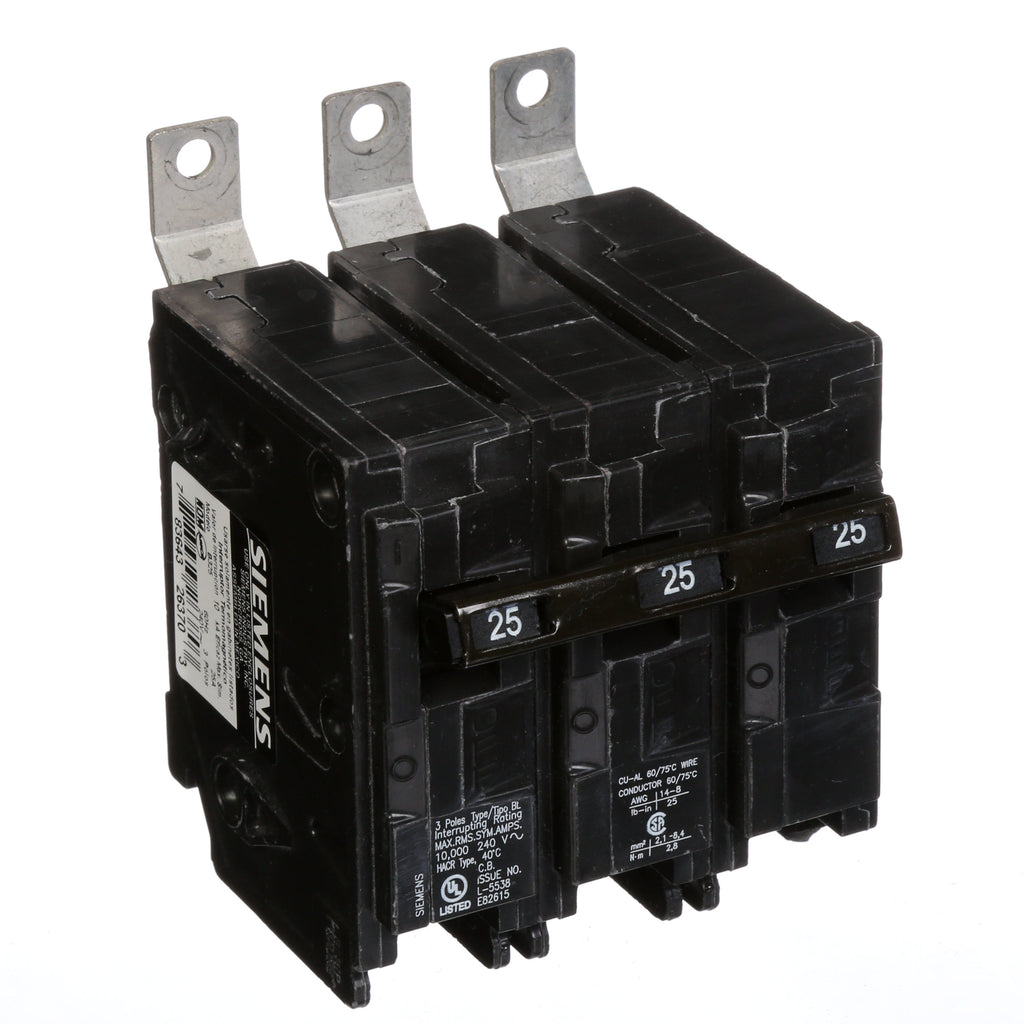

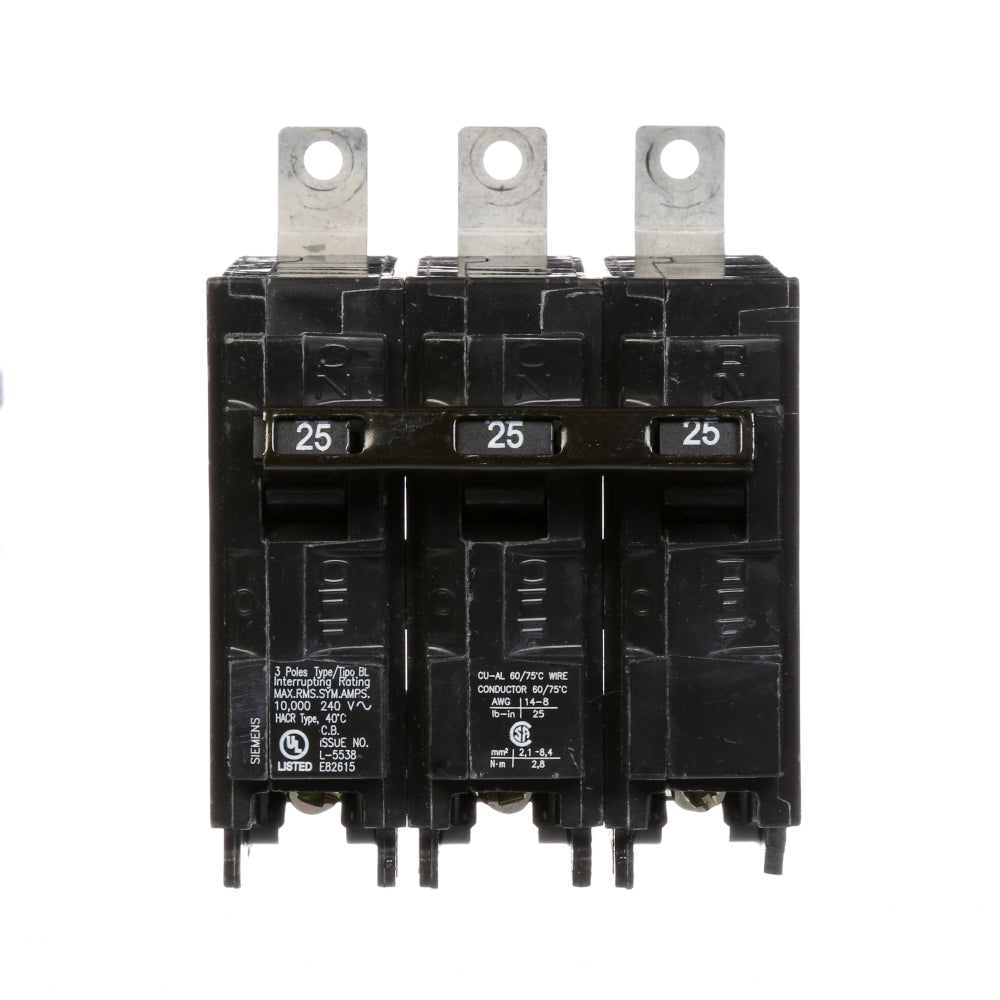

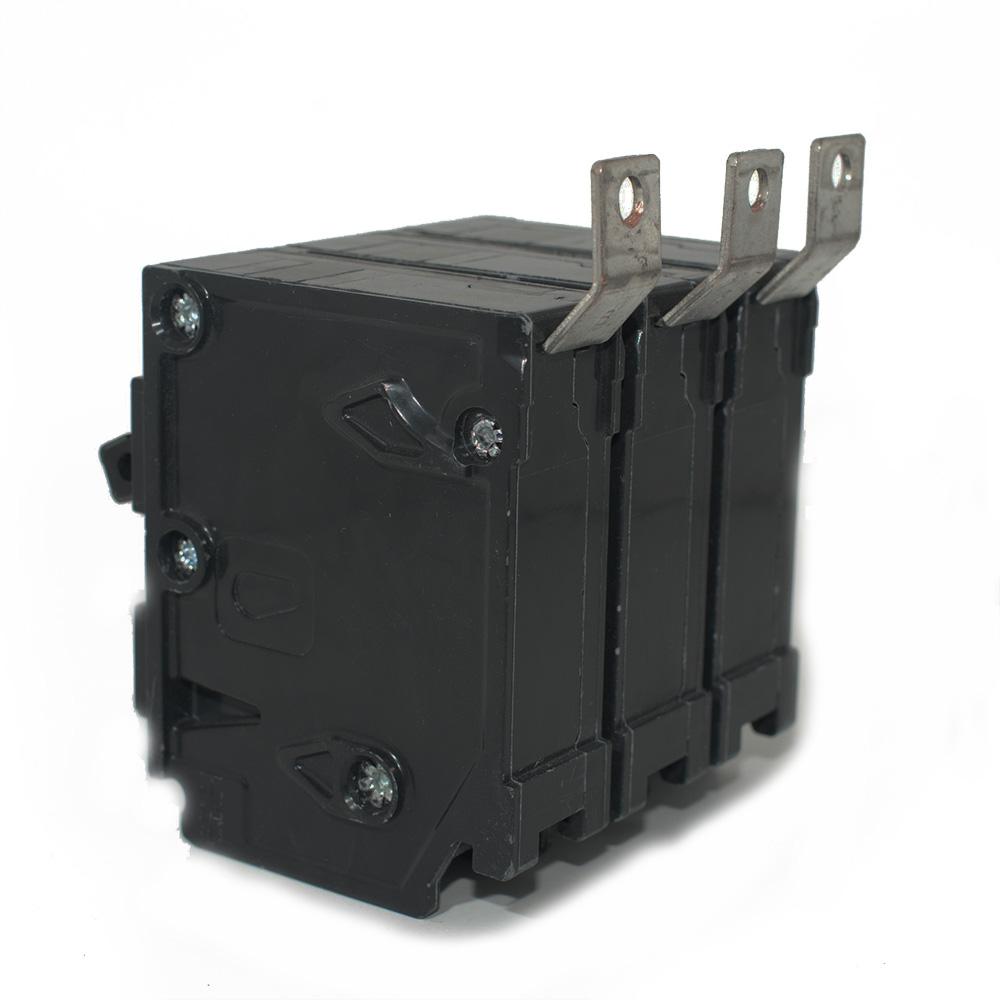

B325 is a Siemens 3-pole, 25 amp, 240 volt molded case circuit breaker designed for bolt-on panelboard mounting. B325 features a thermal/magnetic trip unit with a 10,000 amp interrupt rating, Type BL frame, and toggle actuator for reliable circuit protection in low voltage applications.
- Key Specifications
- Amperage: 25 Amps
- Voltage: 240 VAC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 10 kA
- Series/Frame: Type BL
- Trip Unit: Thermal/Magnetic
- Actuator Type: Toggle
- Application: Low Voltage Circuit Protection
- Manufacturer: Siemens
- Part Number: B325
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BL Series
- Type : BL
- Voltage : 240
- Amperage : 25
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Bolt-on
- Functions : Long Time and Instantaneous Trip
- Terminal Connection : Lug
- Frame Size : 125A/BL
- MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
- UPC : 783643263703
- GTIN : 00783643263703
- Country of Origin : Mexico
- Dimensions : 2.563 x 3.00 x 3.122 inch
- Weight : 0.948
- Panel Type : Siemens P1 Panelboards
- Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
- Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
