B310000S01 - Siemens 100A 240V 3-Pole Bolt-On Circuit Breaker with 120V Shunt Trip Type BL

B310000S01

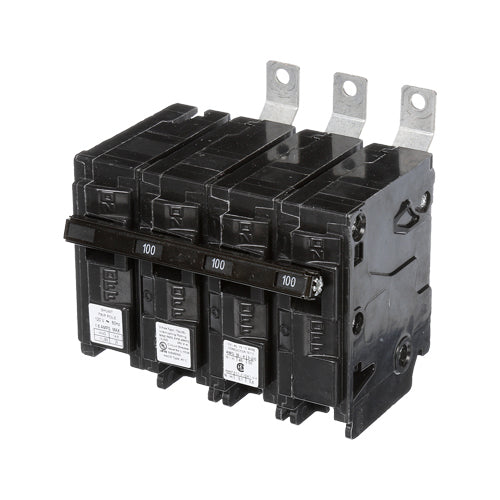

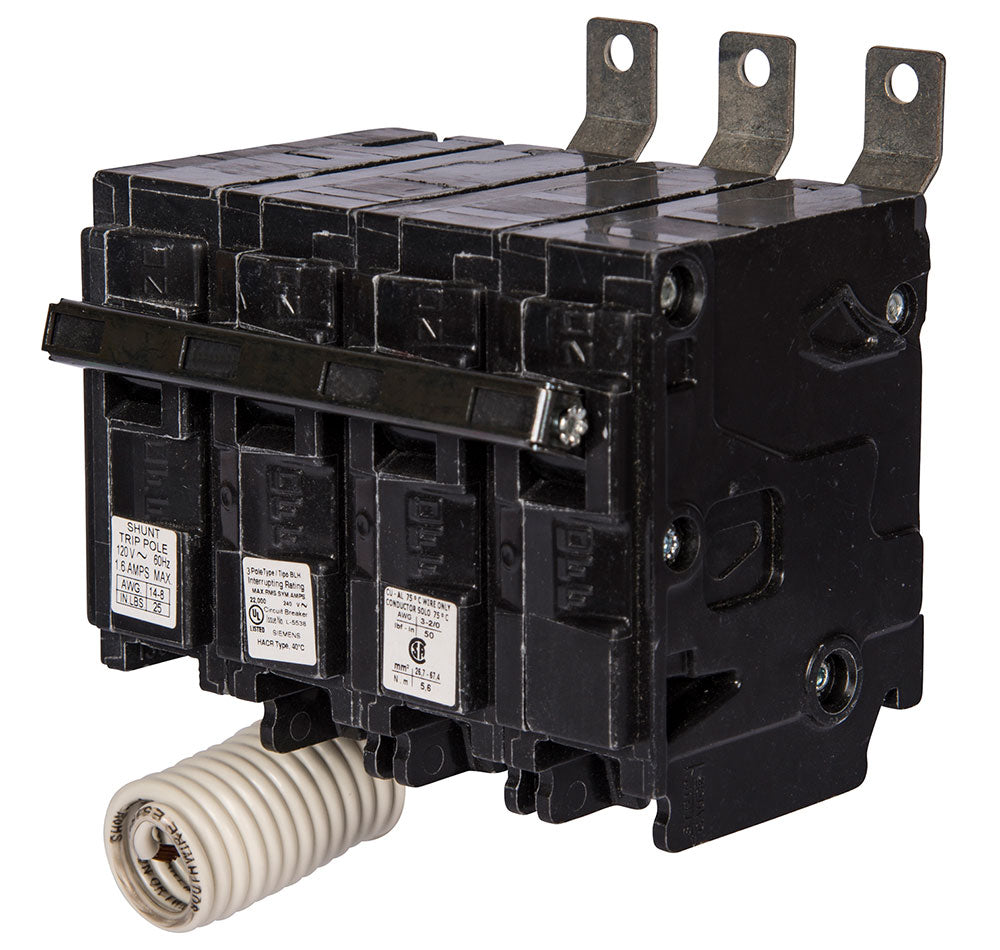

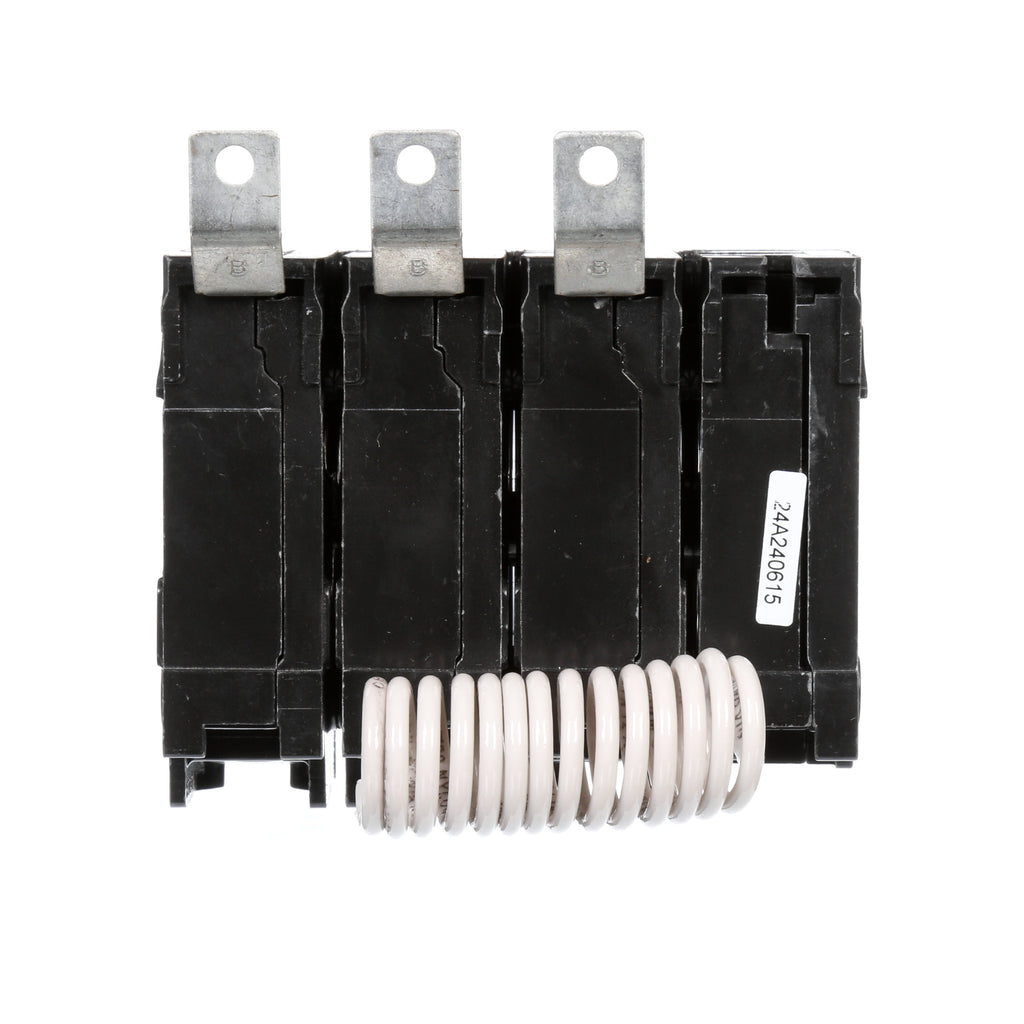

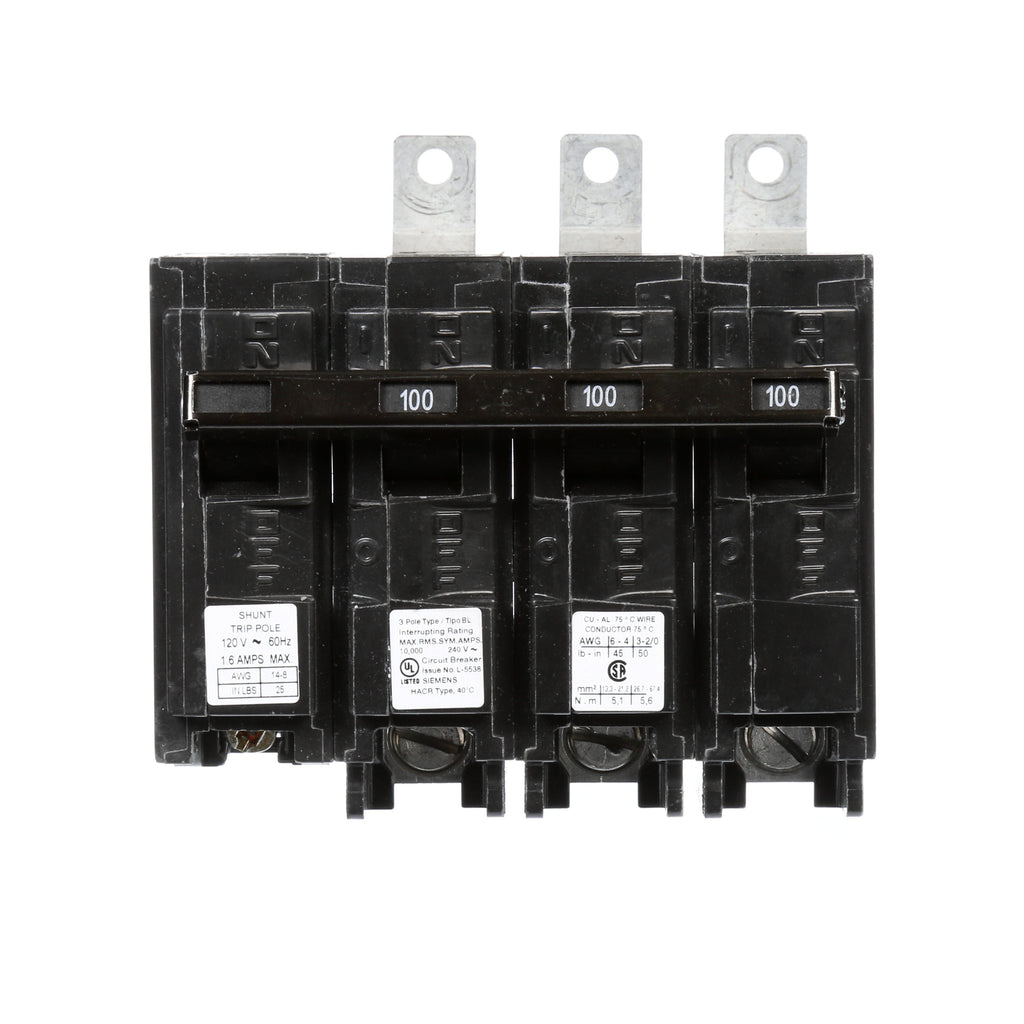

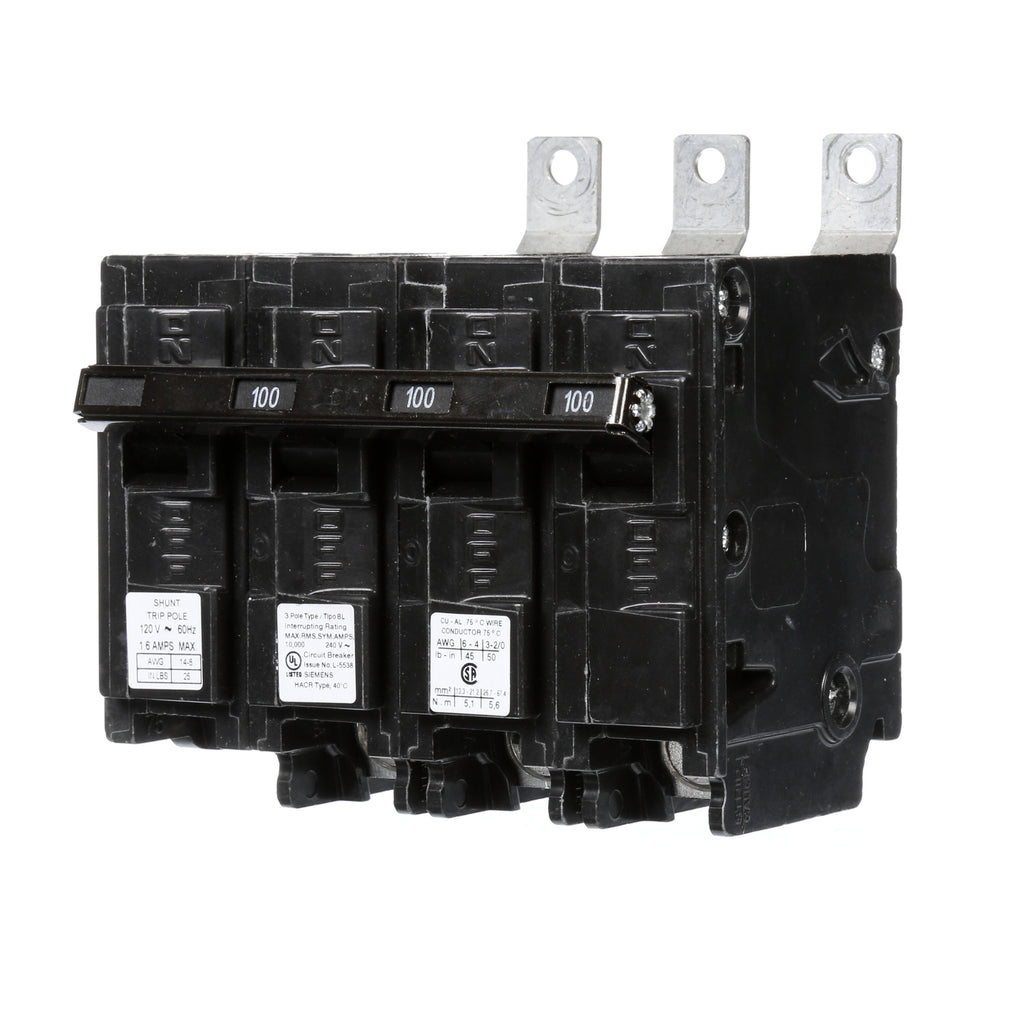

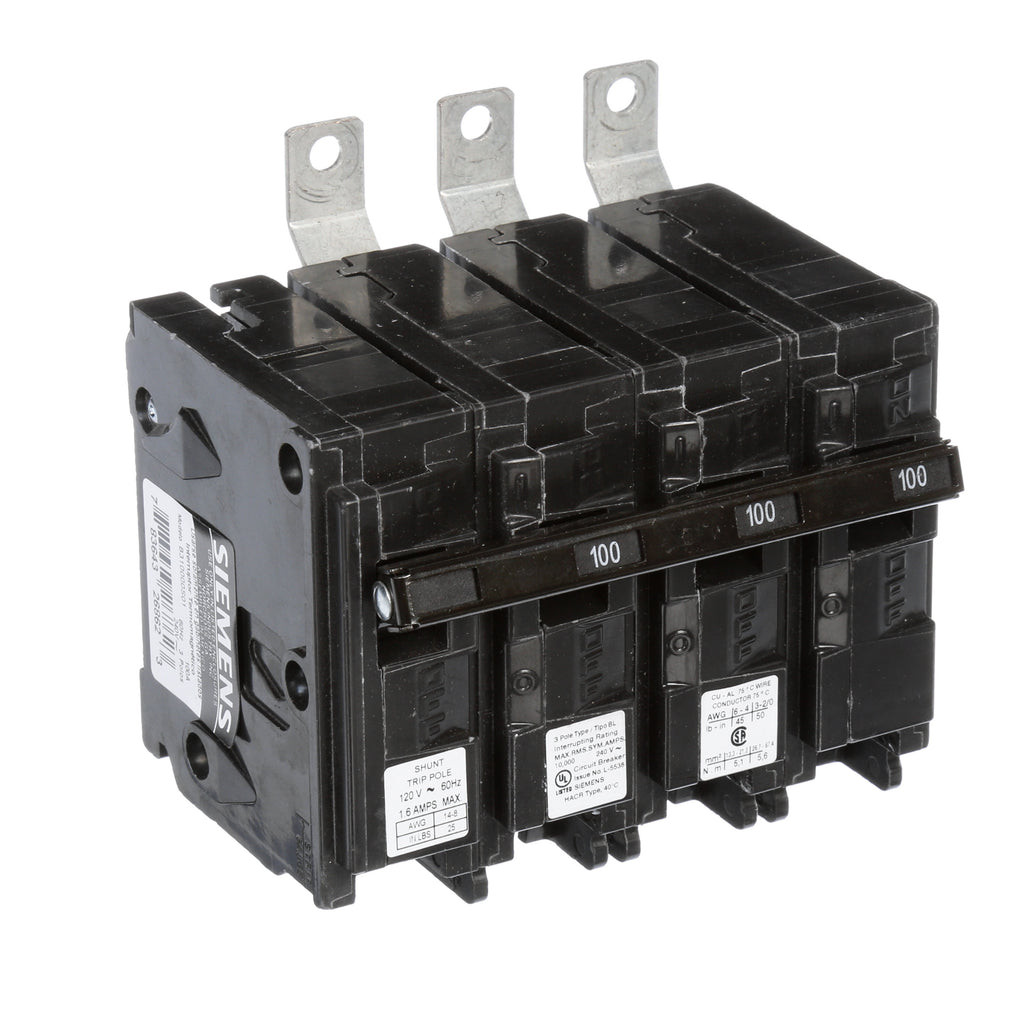

B310000S01 is a Siemens 100 amp, 3-pole, 240 volt bolt-on molded case circuit breaker with a 120V shunt trip feature designed for electrical distribution protection.This Type BL circuit breaker offers reliable thermal magnetic trip protection with a 10 kA interrupt rating at 240VAC. It is UL 489 listed and CSA certified, suitable for panelboard mounting, and HACR rated for HVAC applications. The breaker features a bolt-on mounting type and is part of Siemens' general purpose MCCB product family.

• Amperage Rating: 100A
• Voltage Rating: 120/240V AC
• Number of Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 10 kAIC at 240VAC
• Trip Unit: Thermal Magnetic with 120V Shunt Trip
• Series/Frame: Type BL
• Certifications: UL 489 Listed, CSA Certified, HACR Rated
• Application: Electrical Distribution
• Weight: Approximately 1.26 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: B310000S01
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : BL
• Voltage : 240
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Bolt-on
• Functions : Long Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 125A/BL
• MCM Size : Min. Wire Size 2 AWG (Al), 4 AWG (Cu) Max. Wire Size 1/0 AWG
• Breaker Type : Shunt Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 783643268623
• GTIN : 00783643268623
• Country of Origin : Mexico
• Dimensions : 2.563 x 4.00 x 3.122 inch
• Weight : 1.257
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
