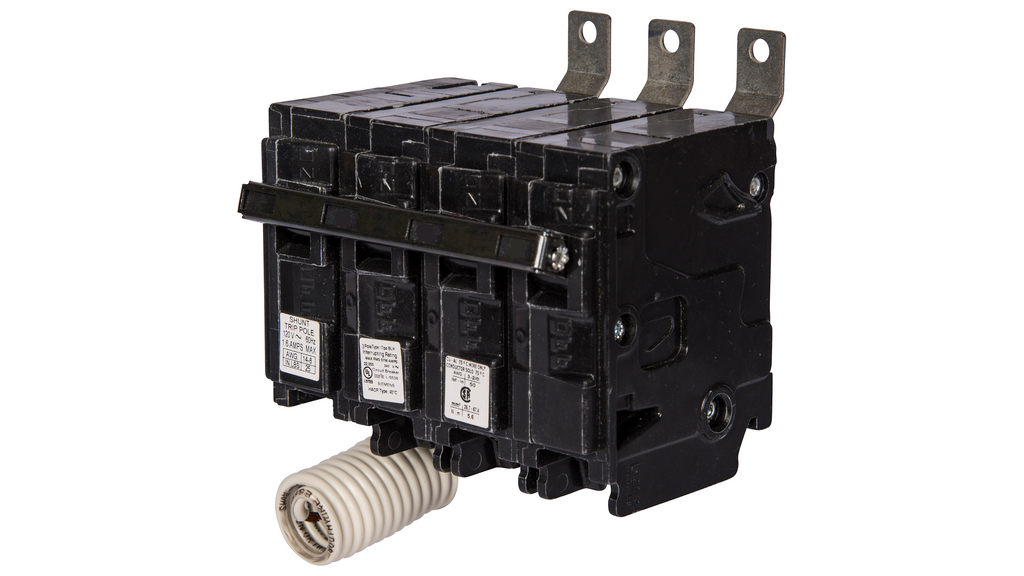

B320HH00S01 - Siemens 20 Amp 240V 3 Pole Molded Case Circuit Breaker, BL Series, Bolt-On, 65kA Interrupt, Thermal Magnetic Trip

B320HH00S01

B320HH00S01 is a Siemens 3-pole molded case circuit breaker designed for reliable circuit protection in commercial and industrial applications.

This thermal magnetic trip unit circuit breaker features a bolt-on mounting style, making it ideal for panelboard installations. It is part of the Siemens BL Series and is suitable for use in three-phase systems requiring robust overcurrent protection.

Key Specifications
• Part Number: B320HH00S01
• Manufacturer: Siemens
• Amperage: 20A
• Voltage: 240V AC
• Poles: 3
• Mounting Type: Bolt-on
• Interrupt Rating: 65kA at 240V
• Series/Frame: BL Series
• Trip Unit: Thermal magnetic
• Certifications: Not specified in available data

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with 120V shunt trip

Specifications

• Part Number: B320HH00S01
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : HBL
• Voltage : 240
• Amperage : 20
• Phase : 3
• Poles : 3
• AIC rating : 65kA@240V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 125A/BL
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
• Breaker Type : Shunt Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 783643269323
• GTIN : 00783643269323
• Country of Origin : Mexico
• Dimensions : 5.906 x 3.937 x 3.937 inch
• Weight : 2.998
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
