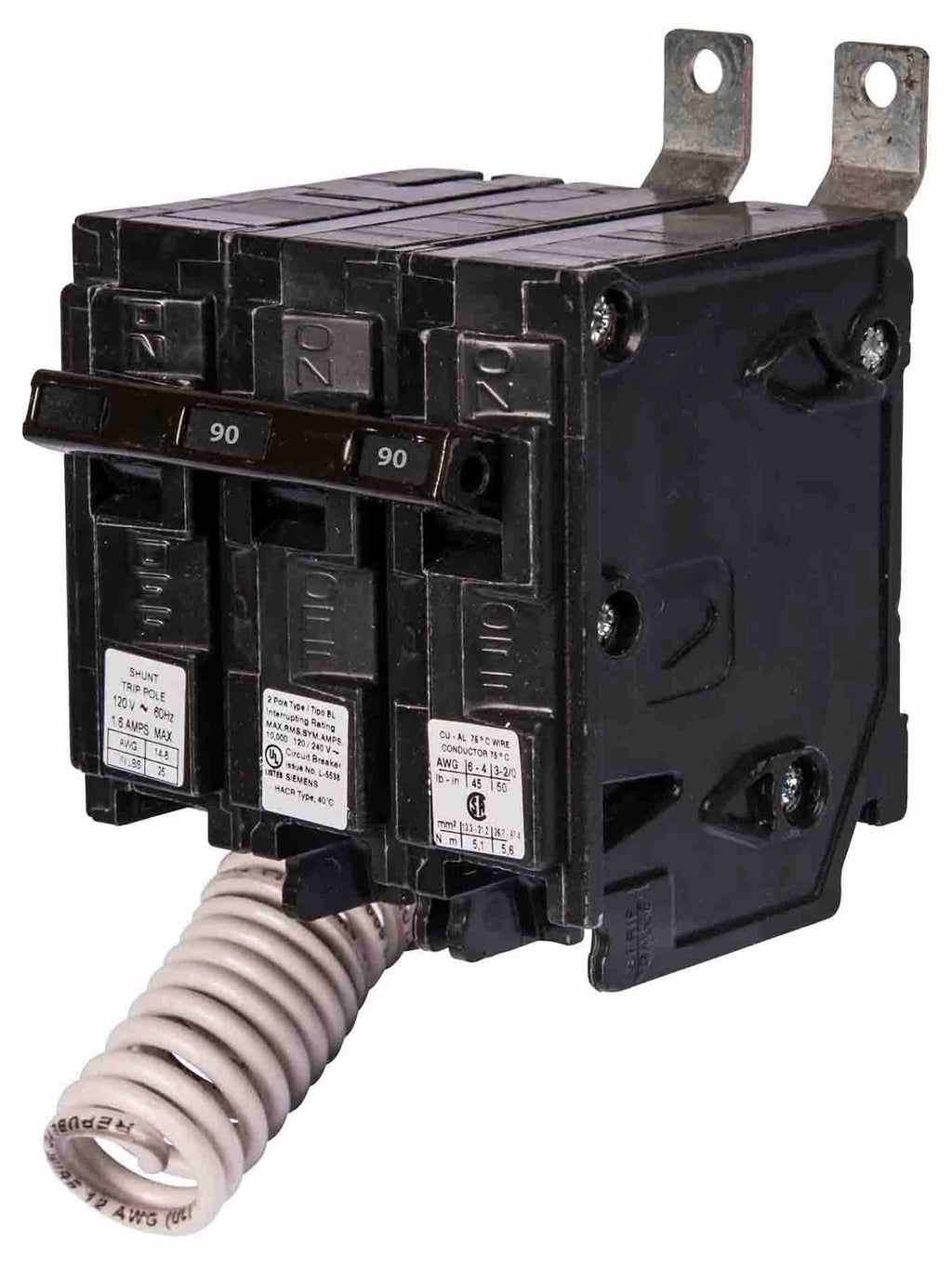

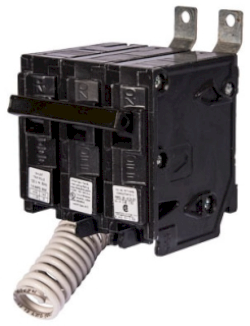

B29000S01 - Siemens 90 Amp 2 Pole 120/240V Bolt-On Circuit Breaker with 120V Shunt Trip, 10kA Interrupt Rating, BL Series

B29000S01

B29000S01 is a Siemens 90 Amp, 2 Pole, 120/240 Volt bolt-on circuit breaker featuring a 120V shunt trip and a 10,000 A interrupting rating.This BL Series molded case circuit breaker is designed for panelboard mounting with thermal magnetic trip functions including long-time and instantaneous protection. It supports 1 phase operation and meets UL, CSA, and HACR standards. The breaker has a bolt-on mounting type and is suitable for use in demanding electrical distribution applications.

Key Specifications
• Amperage: 90 Amp
• Voltage: 120/240 Volt AC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupting Rating: 10,000 A at 240V
• Series/Frame: BL Series, Frame B
• Trip Unit: Thermal Magnetic with 120V Shunt Trip
• Phase: 1
• Certifications: UL Listed, CSA, HACR Compliant
• Load Side Lug Terminals
• Application: Panelboard Mounted

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: B29000S01
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : BL
• Voltage : 120/240
• Amperage : 90
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 125A/BL
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
• Breaker Type : Shunt Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 783643268456
• GTIN : 00783643268456
• Country of Origin : Mexico
• Dimensions : 5.906 x 3.937 x 3.937 inch
• Weight : 1.213
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Wire Size : 4 AWG (Cu), 2 AWG (Al) Min, 1/0 AWG Max
