B28000S01 - Siemens 80A 2P 120/240V Bolt-On Molded Case Circuit Breaker, BL Series, Shunt Trip, 10kAIC

B28000S01

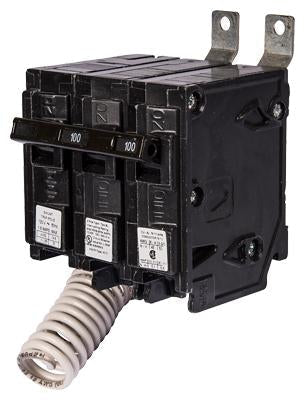

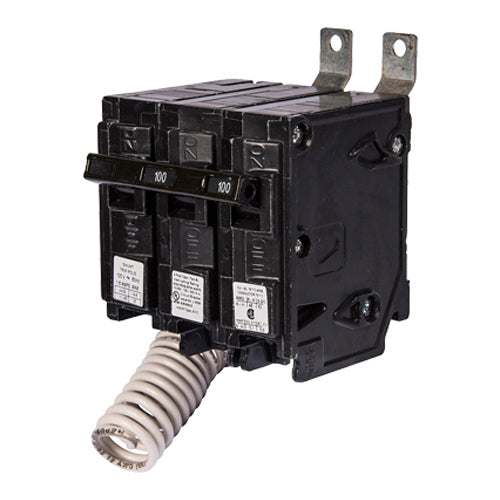

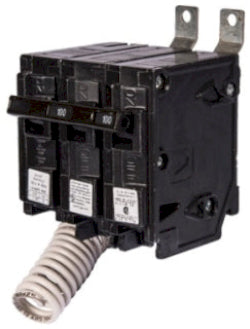

B28000S01 is a Siemens 80 Amp, 2-pole, 120/240V molded case circuit breaker with a factory-installed shunt trip unit.

This thermal magnetic circuit breaker is part of the Siemens BL Series, designed for bolt-on mounting and reliable protection in commercial and industrial applications. It features a robust B frame, 10,000 Amp interrupting rating at 240V, and is suitable for use in panelboards and switchboards requiring remote tripping capability.

Key Specifications
• Amperage: 80A
• Voltage: 120/240V AC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 10,000A at 240V
• Series/Frame: BL Series, B Frame
• Trip Unit: Thermal Magnetic with 120V Shunt Trip (factory installed)
• Certifications: Not specified in available data

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: B28000S01
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : BL
• Voltage : 120/240
• Amperage : 80
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 125A/BL
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
• Breaker Type : Shunt Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 783643268449
• GTIN : 00783643268449
• Country of Origin : Mexico
• Dimensions : 2.563 x 3.00 x 3.122 inch
• Weight : 0.926
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
