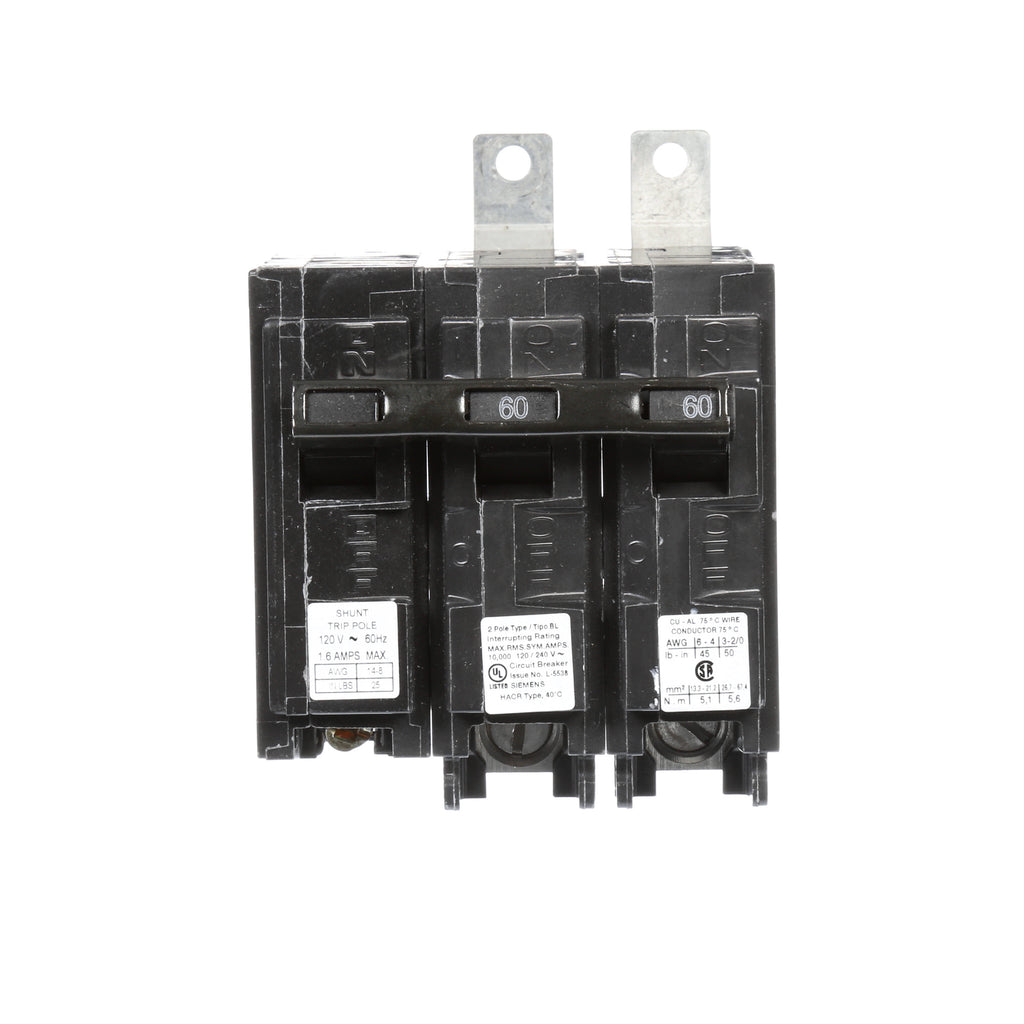

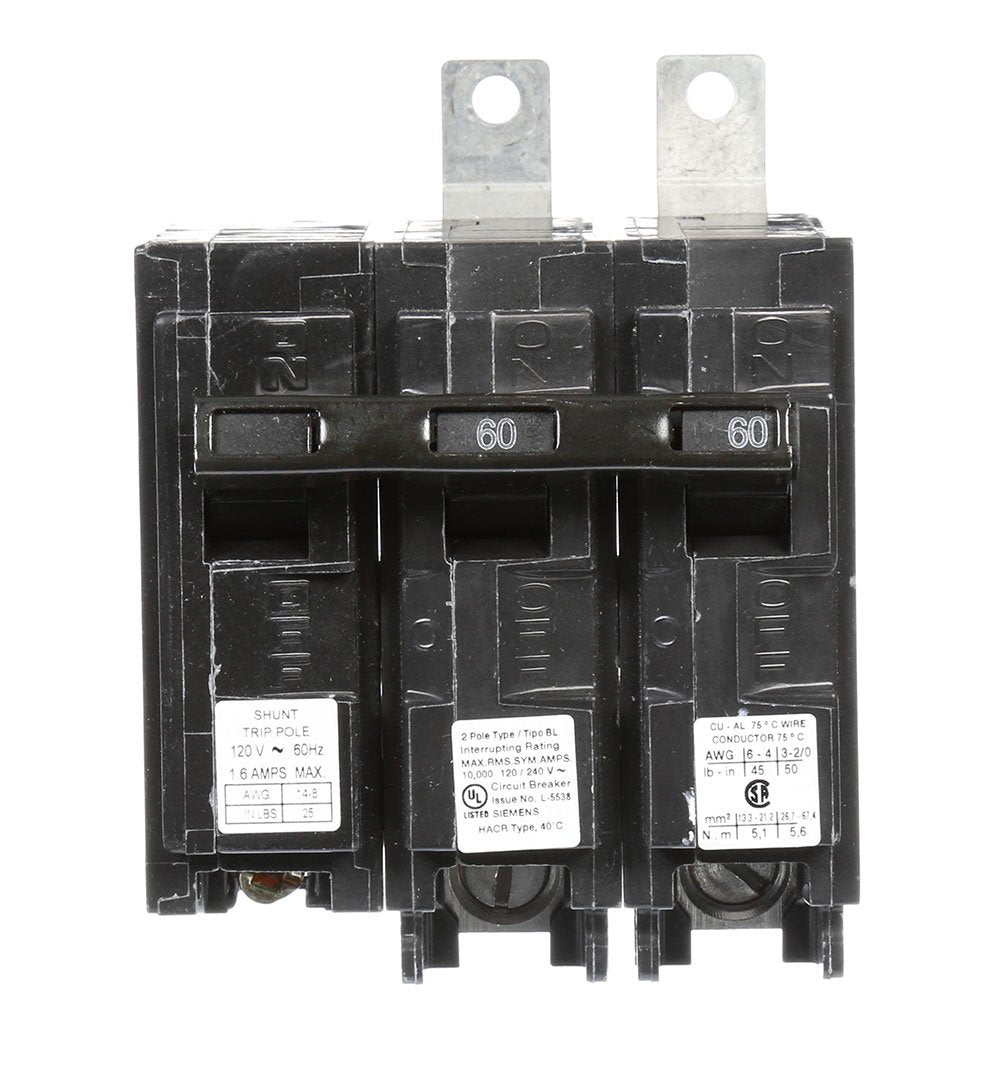

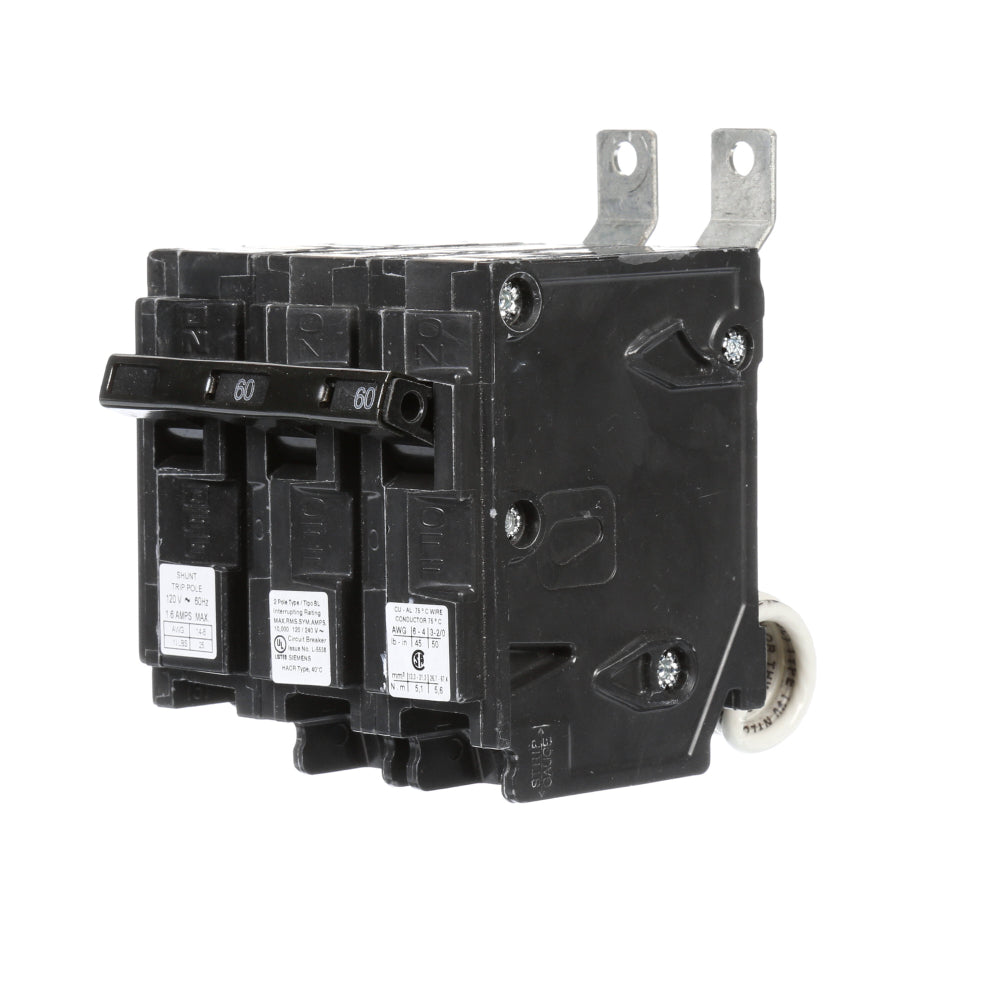

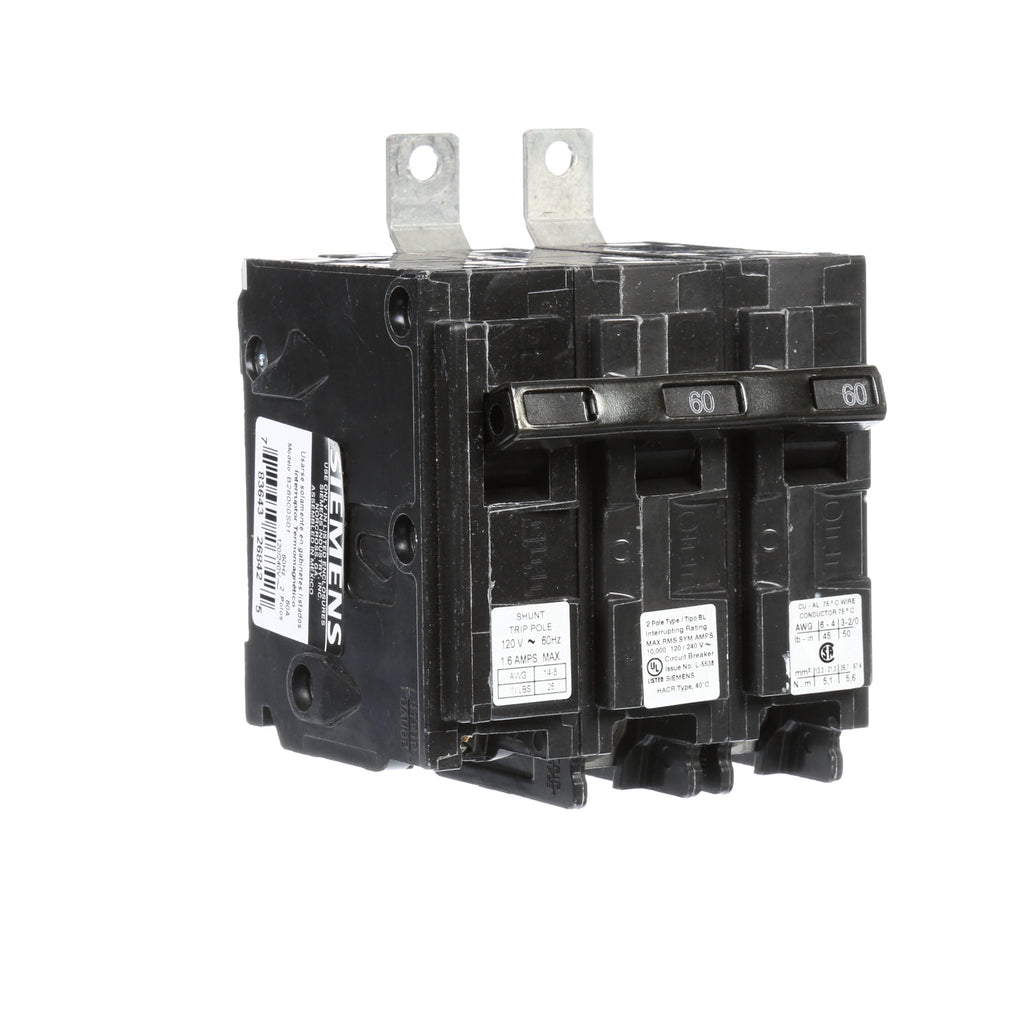

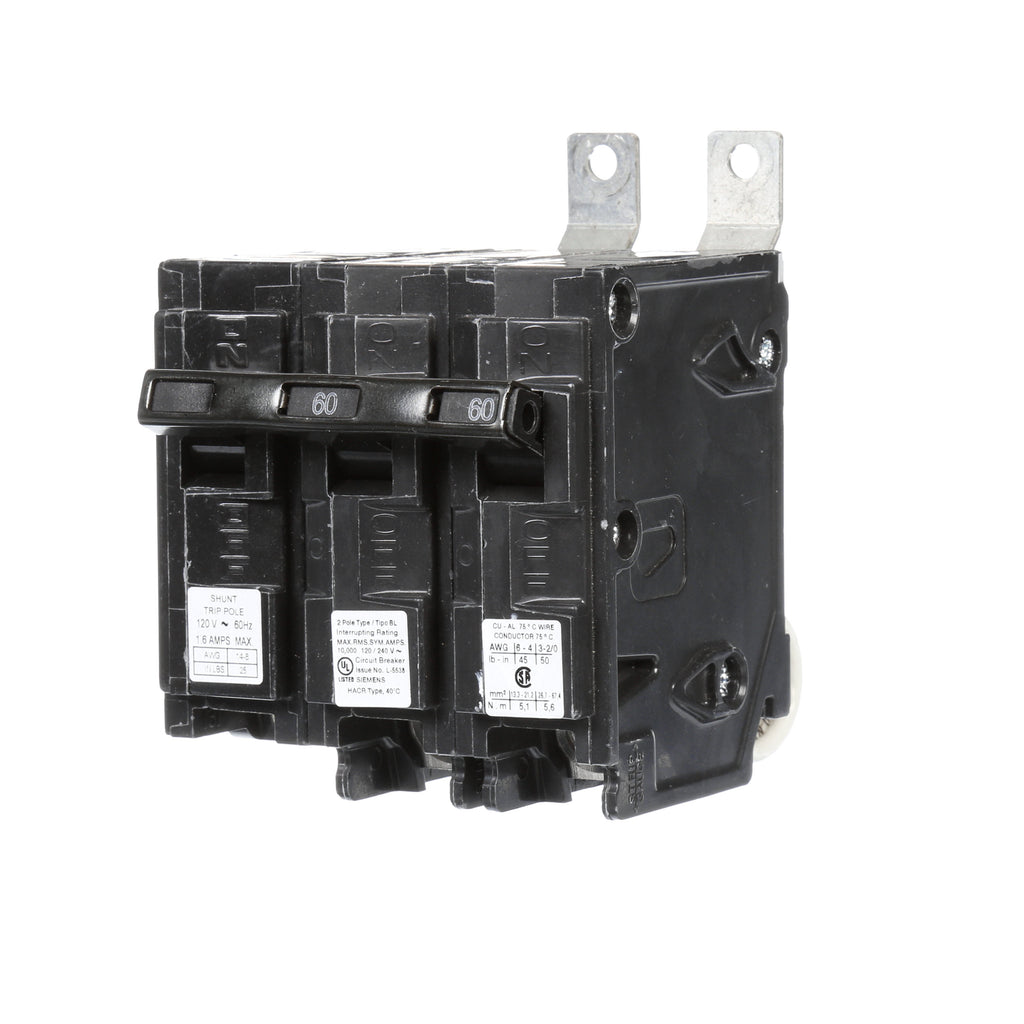

B26000S01 - Siemens 60 Amp 2-Pole 120/240V 10kA Shunt Trip Bolt-On Molded Case Circuit Breaker

B26000S01

B26000S01 is a Siemens 2-pole, 60 amp molded case circuit breaker with shunt trip, designed for reliable circuit protection in commercial and industrial applications.

This bolt-on circuit breaker features a 120/240V voltage rating, 10kA interrupting capacity, and a 120V shunt trip for remote operation. It is engineered for panelboard installations requiring robust performance and easy maintenance.

Key Specifications
• Part Number: B26000S01
• Manufacturer: Siemens
• Amperage: 60A
• Voltage: 120/240V
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 10kA
• Series/Frame: BL
• Trip Unit: Shunt Trip (120V)
• Actuator Type: Toggle
• Termination: Busbar (line), Lug (load)
• Certifications: Not specified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: B26000S01
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : BL
• Voltage : 120/240
• Amperage : 60
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/BL
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
• Breaker Type : Shunt Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 783643268425
• GTIN : 00783643268425
• Country of Origin : Mexico
• Dimensions : 4.724 x 3.937 x 3.937 inch
• Weight : 1.257
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
