B240H00S01 - Siemens 40 Amp 240V 2-Pole Bolt-On Type BLH Circuit Breaker with 120V Shunt Trip, 22kA Interrupt Rating, B Series Frame, Thermal Magnetic Trip

Name: B240H00S01 - Siemens 40 Amp 240V 2-Pole Bolt-On Type BLH Circuit Breaker with 120V Shunt Trip, 22kA Interrupt Rating, B Series Frame, Thermal Magnetic Trip
Brand: Siemens
SKU: B240H00S01-New
Price: 156.78 USD
Availability: InStock

Save $659.22

SKU: B240H00S01-New

Condition: New

Variant

Price:

$156.78 $816.00

Stock:

46 In stock, ready to be shipped

Quantity:

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

Enter your ZIP code:

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Manufacturer:Siemens
Sub-Category:Molded Case

B240H00S01 Siemens Molded Case Circuit Breaker BL Series 40A 240V - Essential Electric Supply

B240H00S01 - Siemens 40 Amp 240V 2-Pole Bolt-On Type BLH Circuit Breaker with 120V Shunt Trip, 22kA Interrupt Rating, B Series Frame, Thermal Magnetic Trip - Essential Electric Supply

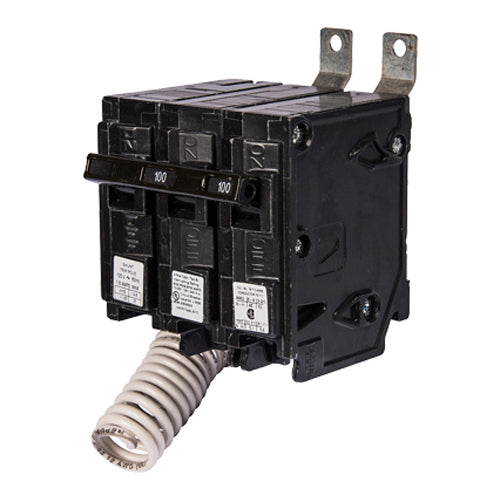

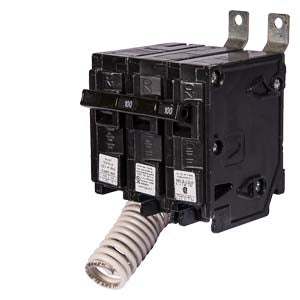

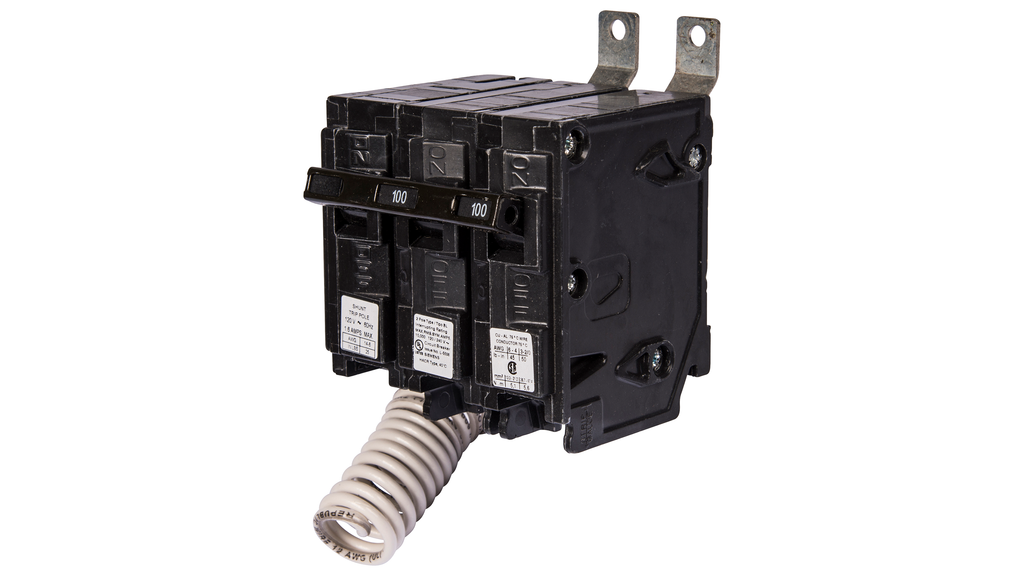

Roll over image to zoom in Click on image to zoom Images are for reference only

B240H00S01

B240H00S01 is a Siemens molded case circuit breaker designed for 240 Volt AC applications with a 40 amp rating and 2-pole configuration.

This Type BLH circuit breaker from the BL Series features a 120 Volt shunt trip, thermal magnetic trip unit, and bolt-on mounting for easy installation. The breaker provides long-time and instantaneous trip functions with a high interrupting capacity of 22,000 amps at 240V AC. It is suitable for use in Siemens P1 panelboards and meets CSA, HACR, and UL standards.

Amperage: 40A
Voltage: 240V AC
Poles: 2
Phase: 1
Type: BLH
Series: BL Series
Frame Size: 125A/BLH
Mounting: Bolt-on
Interrupt Rating: 22kA at 240V AC
Trip Functions: Long-Time and Instantaneous
Shunt Trip: 120V
Terminal Connection: Lug
Wire Size: 12 AWG (Al) to 6 AWG minimum/maximum
Certifications: CSA, HACR, UL

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with 120V shunt trip

Specifications

Part Number: B240H00S01
Manufacturer : Siemens
Brand : Siemens
Category : Circuit Breaker
Item Subcategory : Molded Case
Family : BL Series
Type : BLH
Voltage : 240
Amperage : 40
Phase : 1
Poles : 2
AIC rating : 22kA@240V
Connection : Bolt-on
Functions : LI - Long-Time and Instantaneous
Terminal Connection : Lug
Frame Size : 125A/BLH
MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
Breaker Type : Shunt Trip
Protection : Thermal Magnetic

Product Data

UPC : 783643268791
GTIN : 00783643268791
Country of Origin : Mexico
Dimensions : 5.906 x 3.937 x 3.937 inch
Weight : 0.705
Panel Type : Siemens P1 Panelboards
Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
Wire Size : 8 AWG Min, 6 AWG (Cu), 4 AWG (Al) Max

Accesories

Part	Manufacture	Sub Category
SBLBD	Siemens	Mounting Hardware
TA1Q1	Siemens	Lug Terminal Kit

Related Products

Part	Manufacture	Voltage	Amperage	Phase	AIC	Connection	Poles	Functions
b240h00s01	Siemens	240V	40	1	22kA@240V	Bolt-on	2	LI - Long-Time and Instantaneous
b240h	Siemens	120/240V	40	1	22kA@240V	Bolt-on	2	LI - Long-Time and Instantaneous Trip
