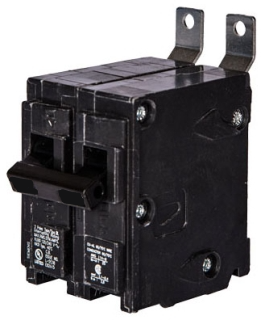

B23500S01 - Siemens 35 Amp 2 Pole 120/240V Bolt-On Molded Case Circuit Breaker B Series

B23500S01

B23500S01 is a Siemens 35 Amp, 2 Pole molded case circuit breaker designed for bolt-on mounting and rated for 120/240 Volt AC applications.This B Series circuit breaker features a thermal magnetic trip unit with a 10,000 A interrupt rating at 240V, providing reliable protection for electrical circuits. It includes a 120V shunt trip option and is suitable for use in residential, commercial, and industrial power distribution systems.

• Amperage: 35 Amps
• Voltage Rating: 120/240 VAC
• Number of Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 10,000 A at 240V
• Series/Frame: B Series
• Trip Unit: Thermal Magnetic with 120V Shunt Trip
• Certifications: UL Listed
• Dimensions: Approx. 7.62 cm height, 5.08 cm length, 7.62 cm width
• Country of Origin: Mexico

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with 120V shunt trip

Specifications

• Part Number: B23500S01
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : BL
• Voltage : 240
• Amperage : 35
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-on
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/BL
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
• Breaker Type : Shunt Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 783643089303
• GTIN : 00783643089303
• Country of Origin : Mexico
• Weight : 1.08
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
