Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
B235

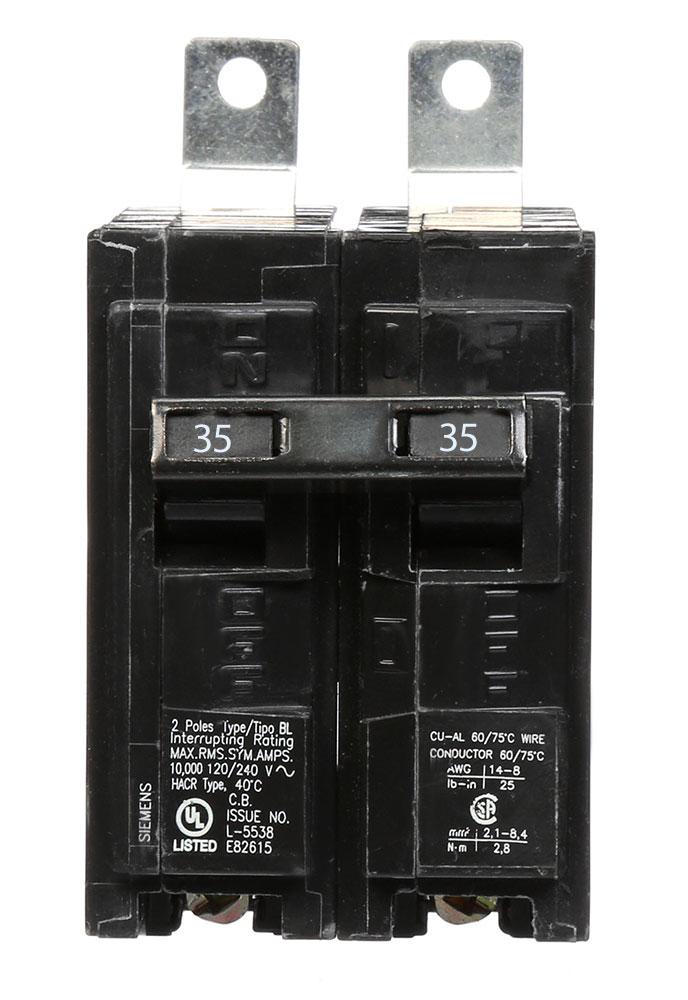

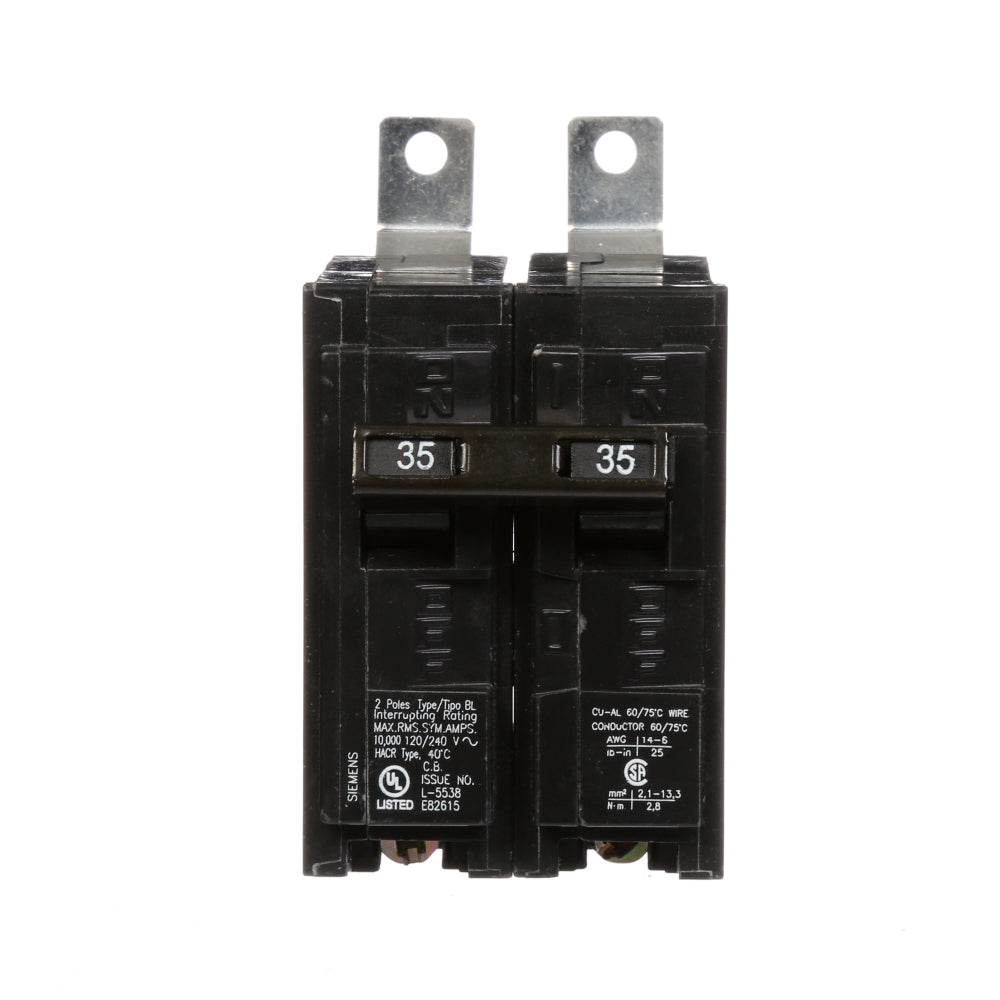

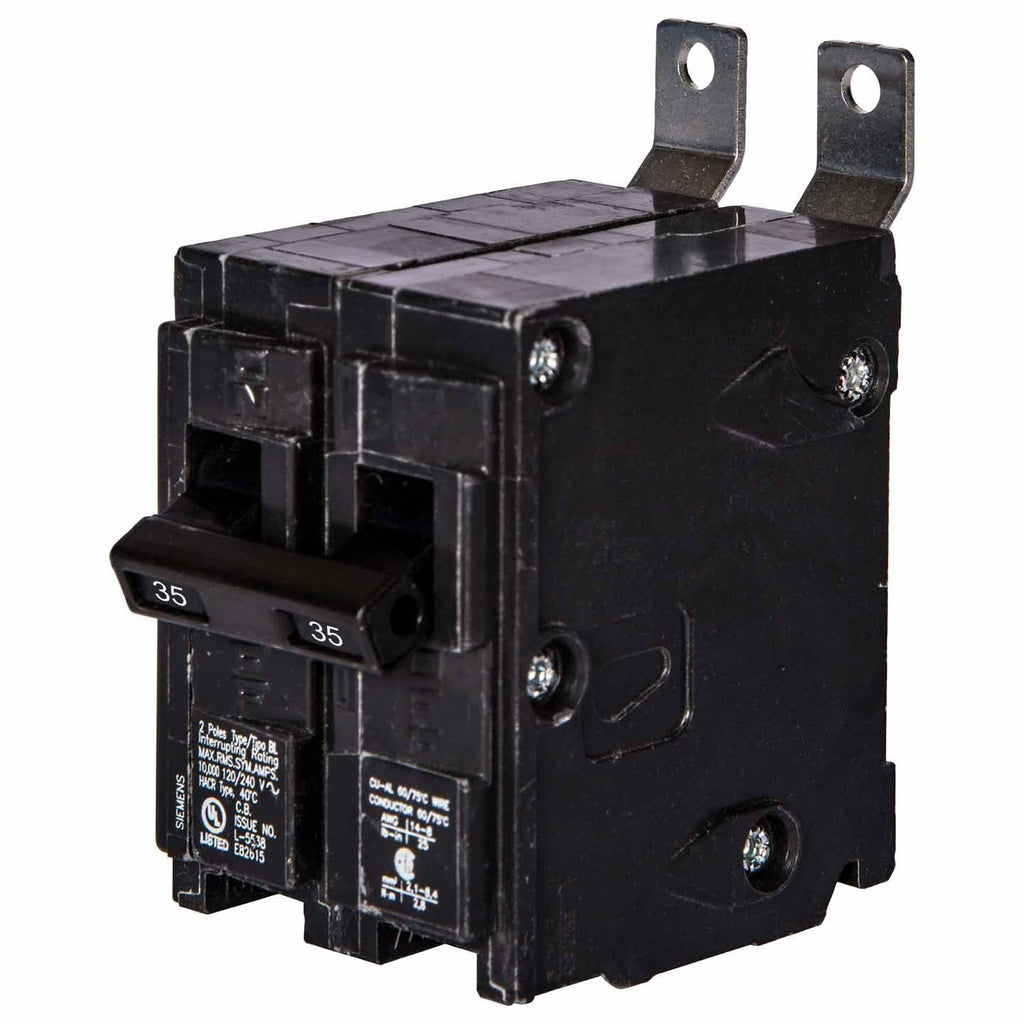

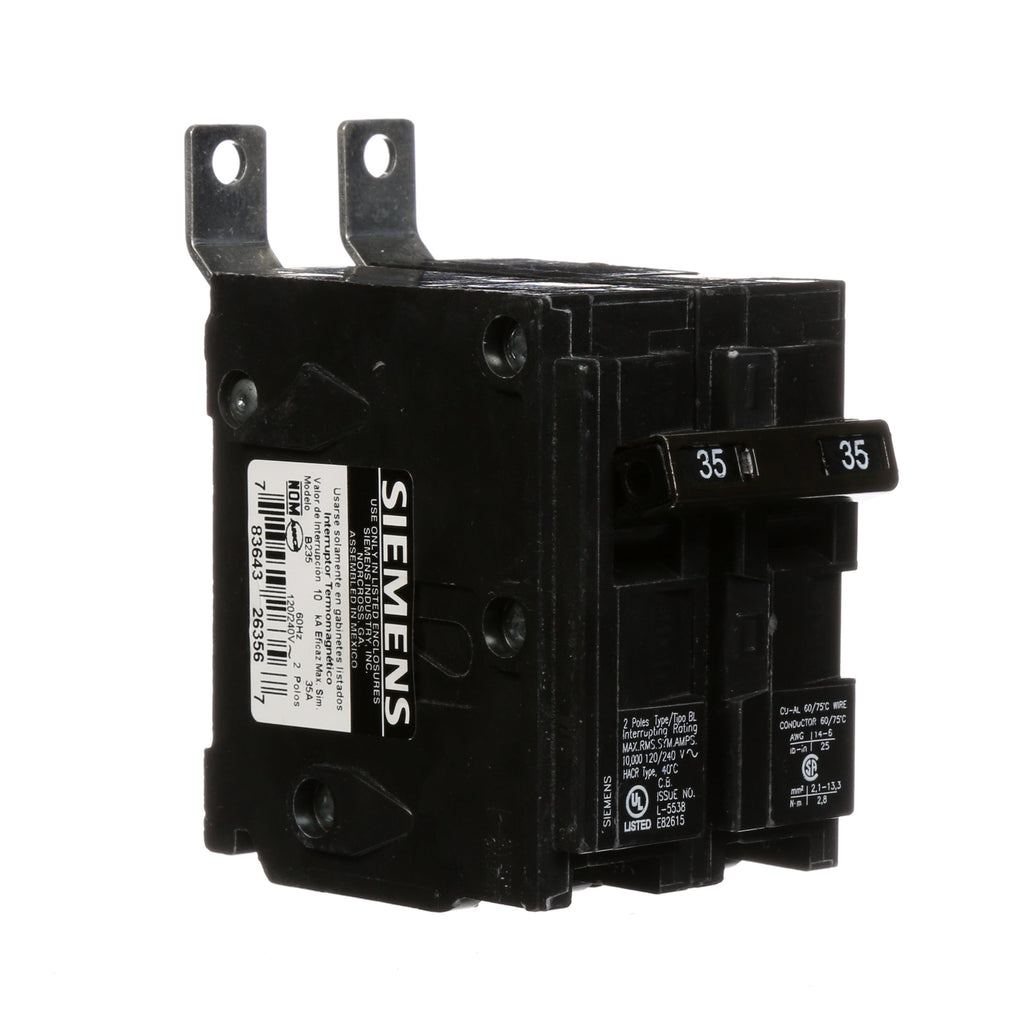

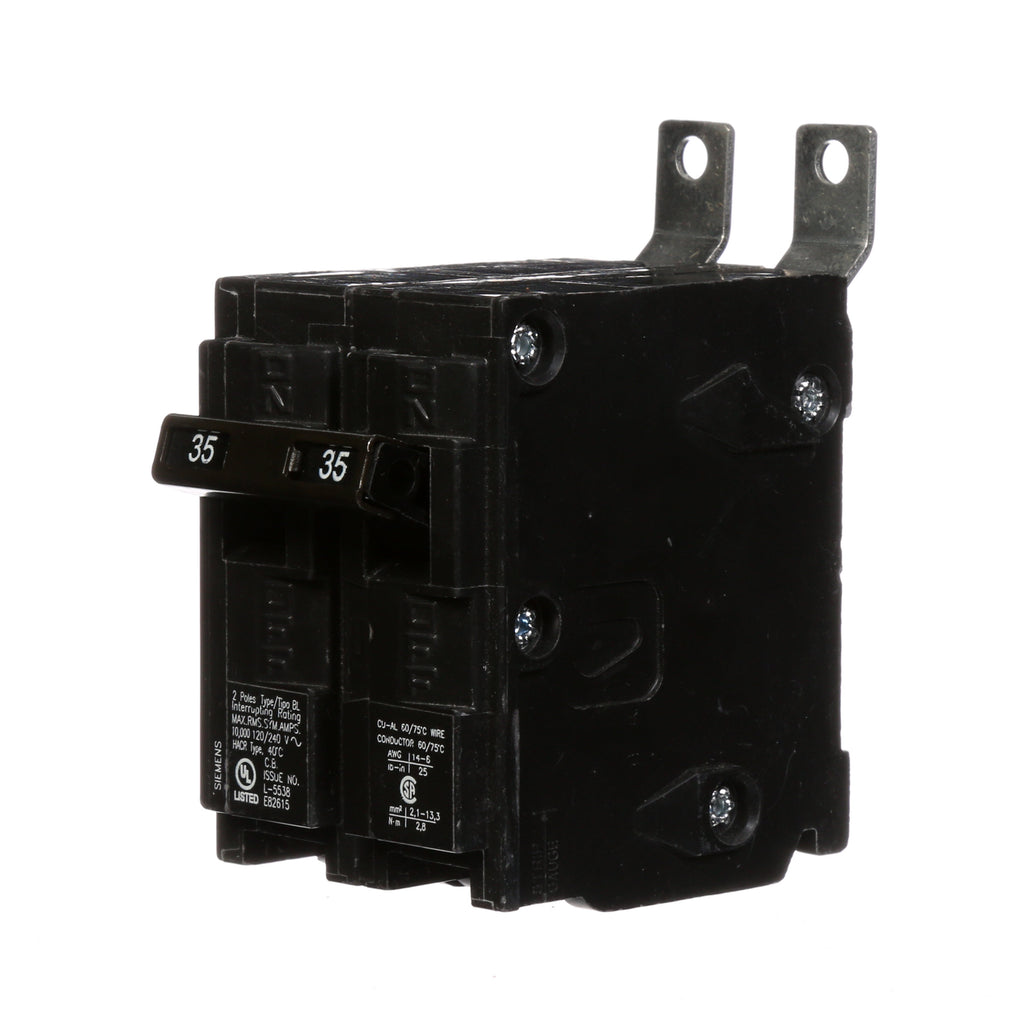

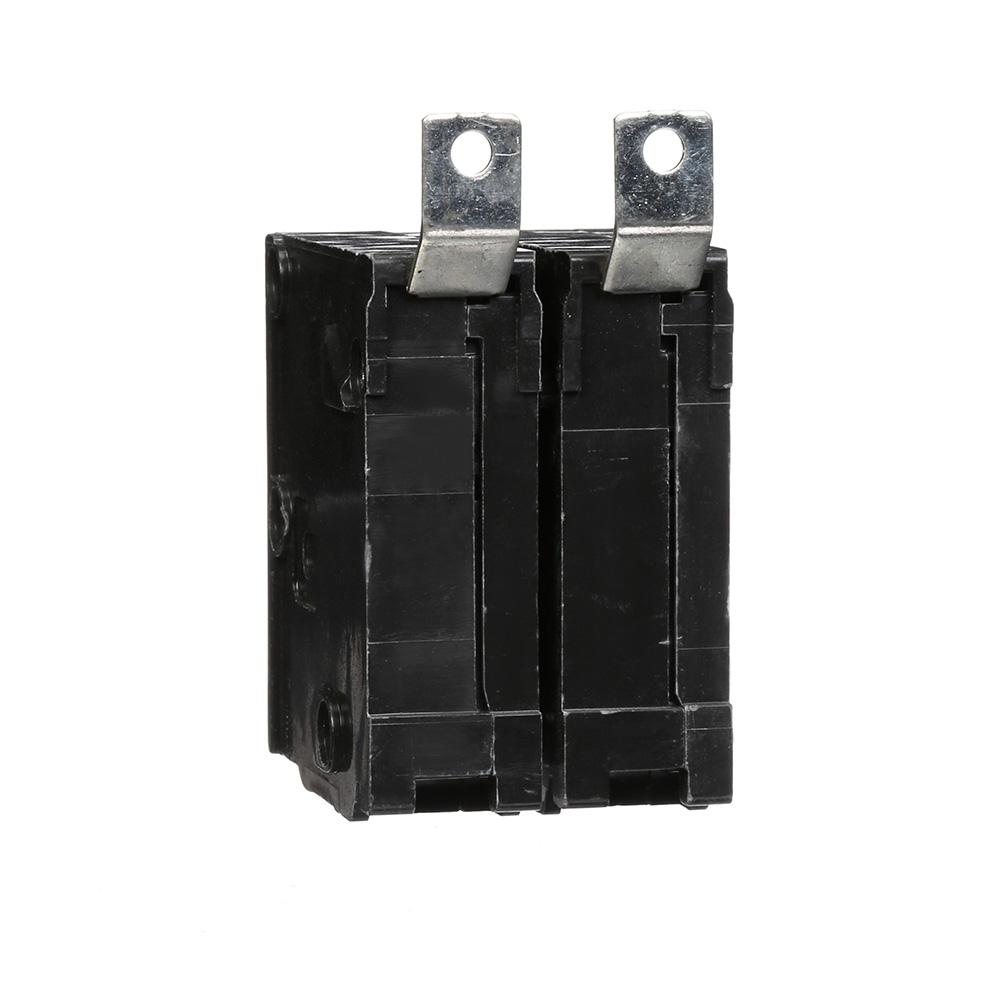

B235 - Siemens 35 Amp 2-Pole Bolt-On Circuit Breaker for panelboard mounting with thermal-magnetic trip protection.The Siemens B235 is a Type BL low voltage molded case circuit breaker designed for electrical distribution applications. It features bolt-on connection, 120/240 VAC rating at 60 Hz, and 10 kA interrupting capacity at 120/240 VAC (UL). This non-interchangeable trip breaker includes a toggle actuator and terminal load lugs.
- Part Number: B235
- Manufacturer: Siemens
- Series/Frame: BL
- Amperage: 35A
- Voltage: 120/240 VAC
- Poles: 2
- Phase: 1
- Mounting Type: Bolt-On
- Trip Unit: Thermal-Magnetic
- Interrupt Rating: 10 kA at 120/240 VAC (UL)
- Certifications: UL Listed, CSA Approved
Specifications
- Part Number: B235
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BL Series
- Type : BL
- Voltage : 120/240
- Amperage : 35
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Bolt-on
- Functions : LI - Long-Time and Instantaneous Trip
- Terminal Connection : Lug
- Frame Size : 125A/BL
- Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
- MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
Product Data
- UPC : 783643263567
- GTIN : 00783643263567
- Country of Origin : Mexico
- Dimensions : 3.937 x 2.756 x 1.969 inch
- Weight : 0.639
- Panel Type : Siemens P1 Panelboards
- Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
- Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
