B230HH - Siemens 30 Amp 120/240 VAC 2-Pole Bolt-On Molded Case Circuit Breaker Type HBL 65 kA Interrupt

B230HH

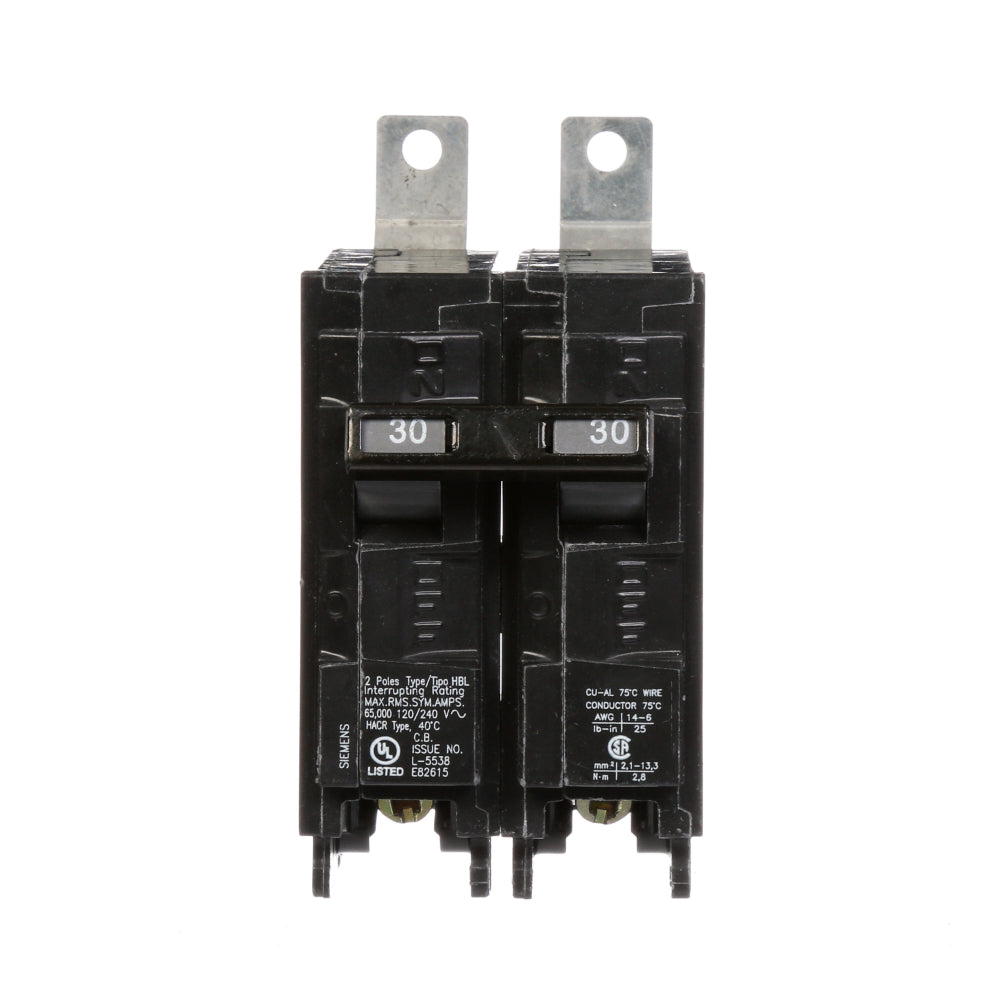

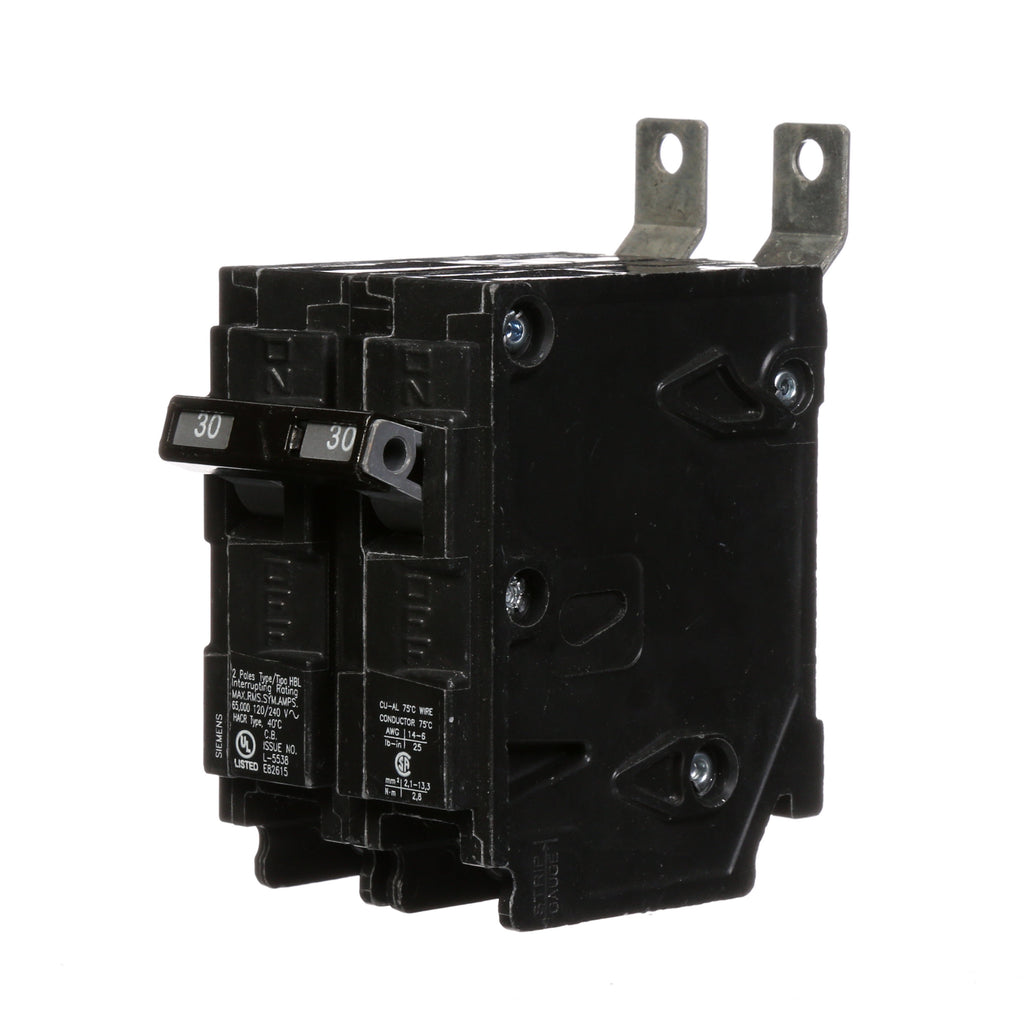

B230HH is a Siemens 2-pole, 30 Amp, 120/240 VAC bolt-on molded case circuit breaker designed for reliable low voltage protection.This Type HBL circuit breaker features a thermal/magnetic trip unit, 65 kA interrupt rating, and bolt-on mounting for secure installation. It supports wire sizes from 14 to 6 AWG and is suitable for panel mounting in residential or commercial applications. The breaker frame is compact with dimensions approximately 4 inches length, 3 inches width, and 2 inches height.

Key Specifications
• Amperage: 30 Amps
• Voltage Rating: 120/240 VAC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 65 kA
• Series/Frame: Type HBL
• Trip Unit: Thermal/Magnetic
• Wire Size Range: 14 to 6 AWG
• Connection Type: Bolt-On
• Dimensions: 4" L x 3" W x 2" H
• Weight: 0.658 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: B230HH
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : HBL
• Voltage : 120/240
• Amperage : 30
• Phase : 1
• Poles : 2
• AIC rating : 65kA@240V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/HBL
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 8 AWG Max. Wire Size 4 AWG (Al), 6 AWG (Cu)
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 783643264151
• GTIN : 00783643264151
• Country of Origin : Mexico
• Dimensions : 2.563 x 2.00 x 3.122 inch
• Weight : 0.639
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
