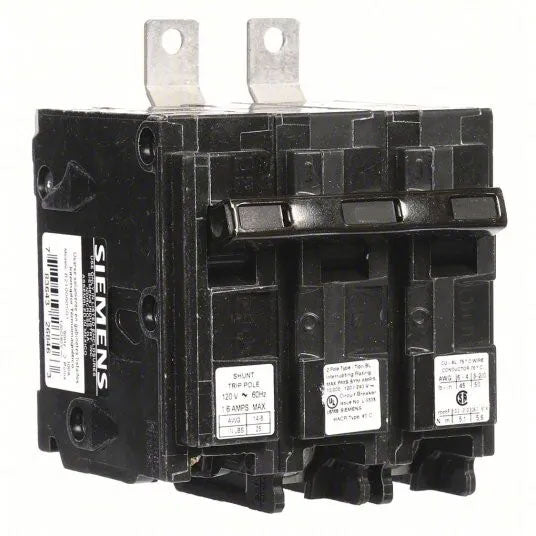

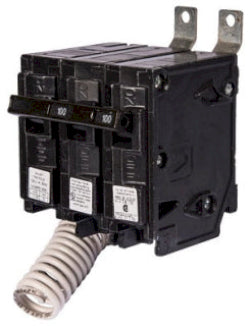

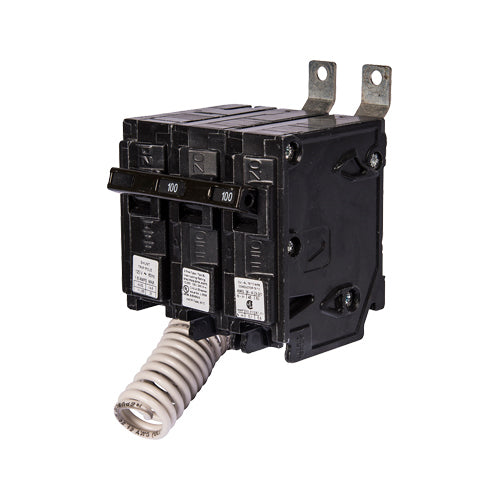

B23000S01 - Siemens 30 Amp 2 Pole 120/240V Bolt-On Circuit Breaker with 120V Shunt Trip

B23000S01

B23000S01 is a Siemens 2 pole, 30 amp circuit breaker designed for 120/240 VAC applications with bolt-on mounting.This Siemens BL Series molded case circuit breaker features thermal magnetic trip units, a 10kA interrupt rating at 120/240 VAC, and includes a 120V shunt trip for remote tripping. It is UL listed and suitable for single-phase electrical distribution systems.

Key Specifications
• Manufacturer: Siemens
• Part Number: B23000S01
• Amperage: 30 Amp
• Voltage: 120/240 VAC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 10,000 AIC (10 kA) at 120/240 VAC
• Series/Frame: BL Series
• Trip Unit: Thermal Magnetic with 120V Shunt Trip
• Phase: Single Phase
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with 120V shunt trip

Specifications

• Part Number: B23000S01
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : BL
• Voltage : 120/240
• Amperage : 30
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/BL
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
• Breaker Type : Shunt Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 783643268364
• GTIN : 00783643268364
• Country of Origin : Mexico
• Dimensions : 2.571 x 3.00 x 2.89 inch
• Weight : 0.926
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
