Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
B230R

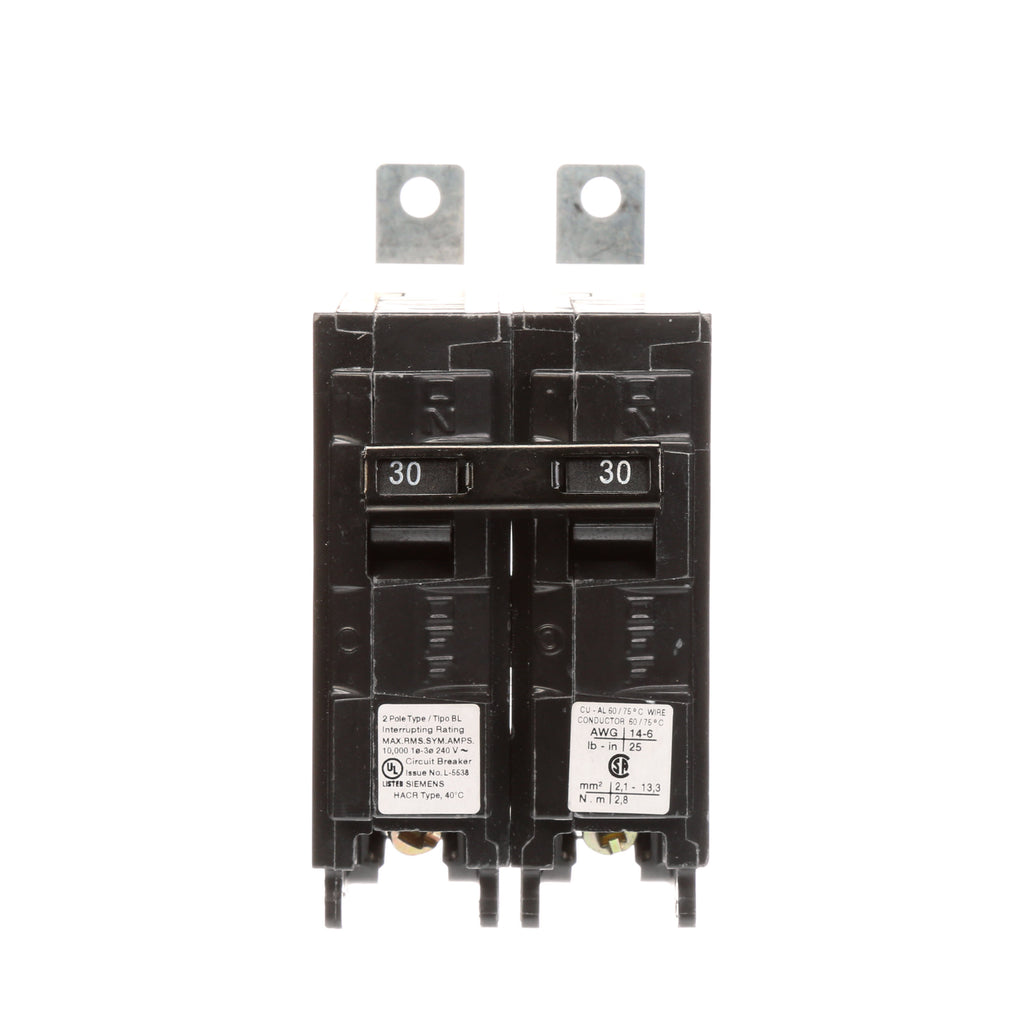

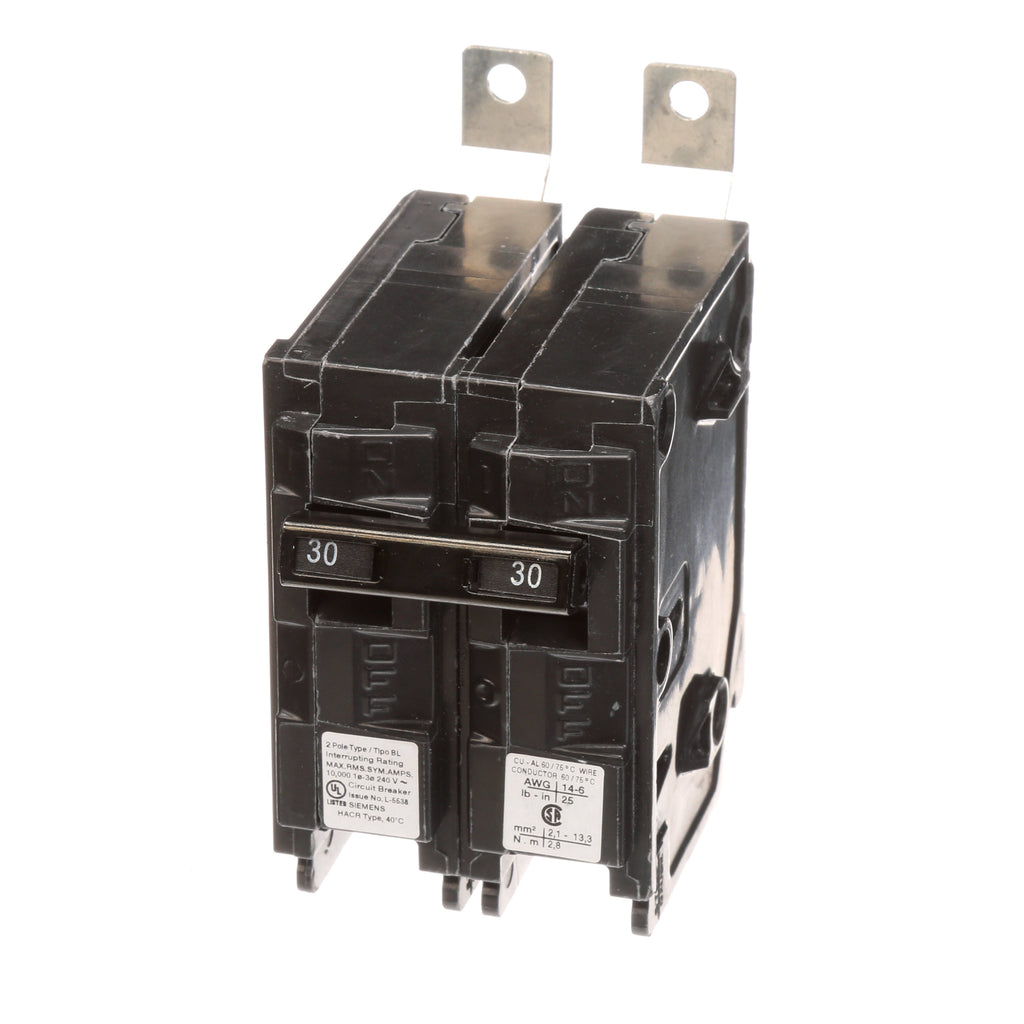

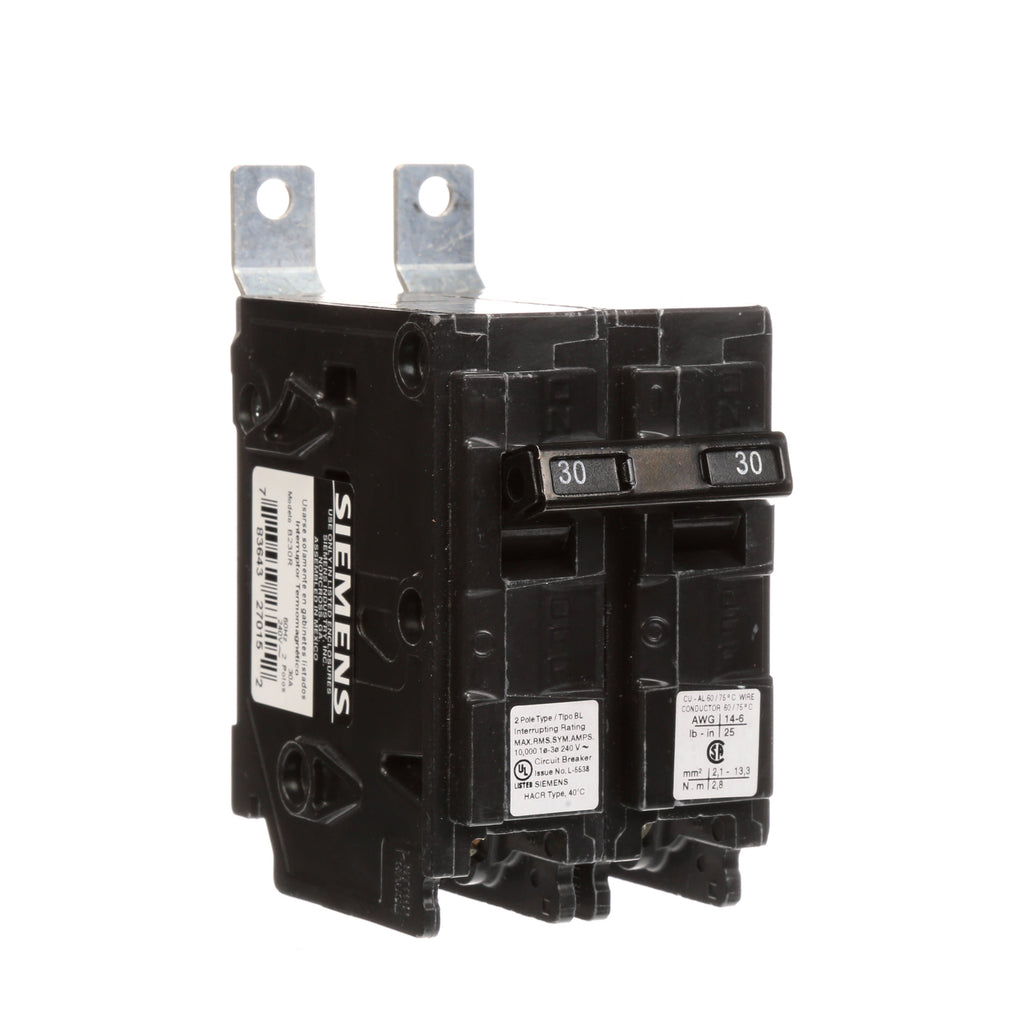

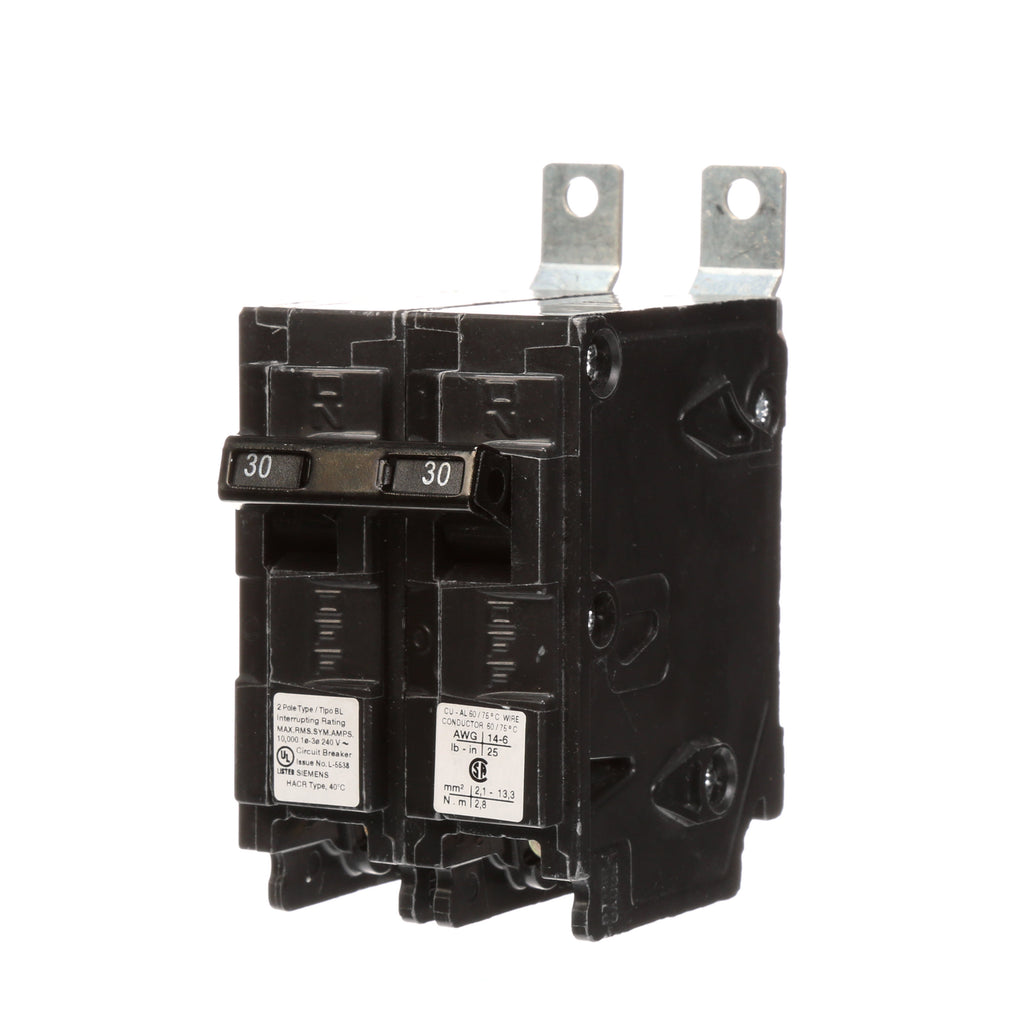

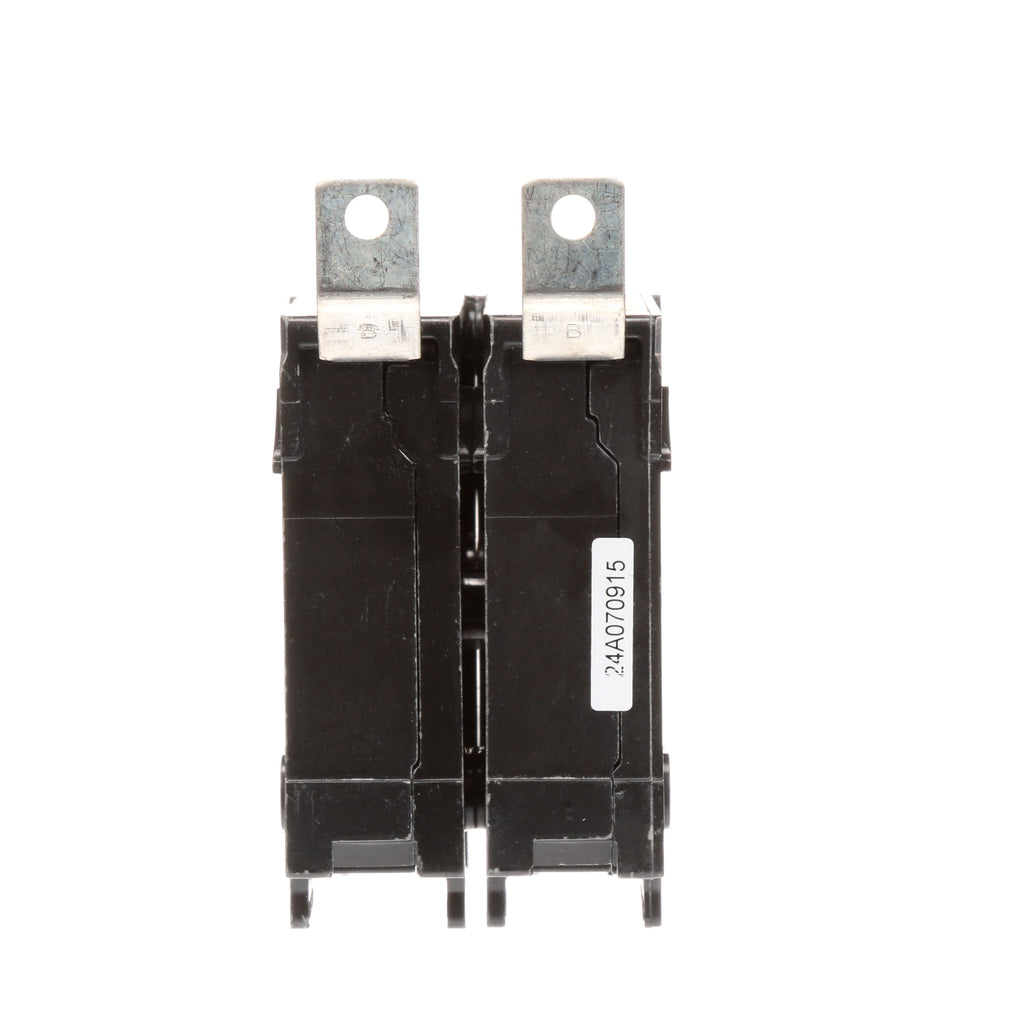

B230R is a Siemens Type BL molded case circuit breaker rated for 30 amperes at 240 volts with 2 poles and a 10 kA interrupt rating. This thermal magnetic breaker features bolt-on connection and long-time and instantaneous trip functions, making it suitable for use in P1 panelboards and general power distribution applications. The B230R delivers reliable overcurrent protection with UL and CSA approvals for residential and light commercial installations.
- Amperage: 30A
- Voltage: 240 VAC
- Poles: 2
- Frame Type: BL
- Mounting Type: Bolt-On
- Interrupt Rating: 10 kAIC at 240 VAC
- Trip Functions: Thermal Magnetic with Long-Time and Instantaneous Trip
- Terminal Connection: Load Side Lug
- Dimensions: 3 in. Length x 3 in. Width x 2 in. Height
- Certifications: UL, CSA
- Panelboard Compatibility: P1
Specifications
- Part Number: B230R
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BL Series
- Type : BL
- Voltage : 240
- Amperage : 30
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 783643270152
- GTIN : 00783643270152
- Country of Origin : Mexico
- Dimensions : 2.756 x 2.756 x 1.969 inch
- Weight : 0.661
- Panel Type : Siemens P1 Panelboards
- Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
- Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
