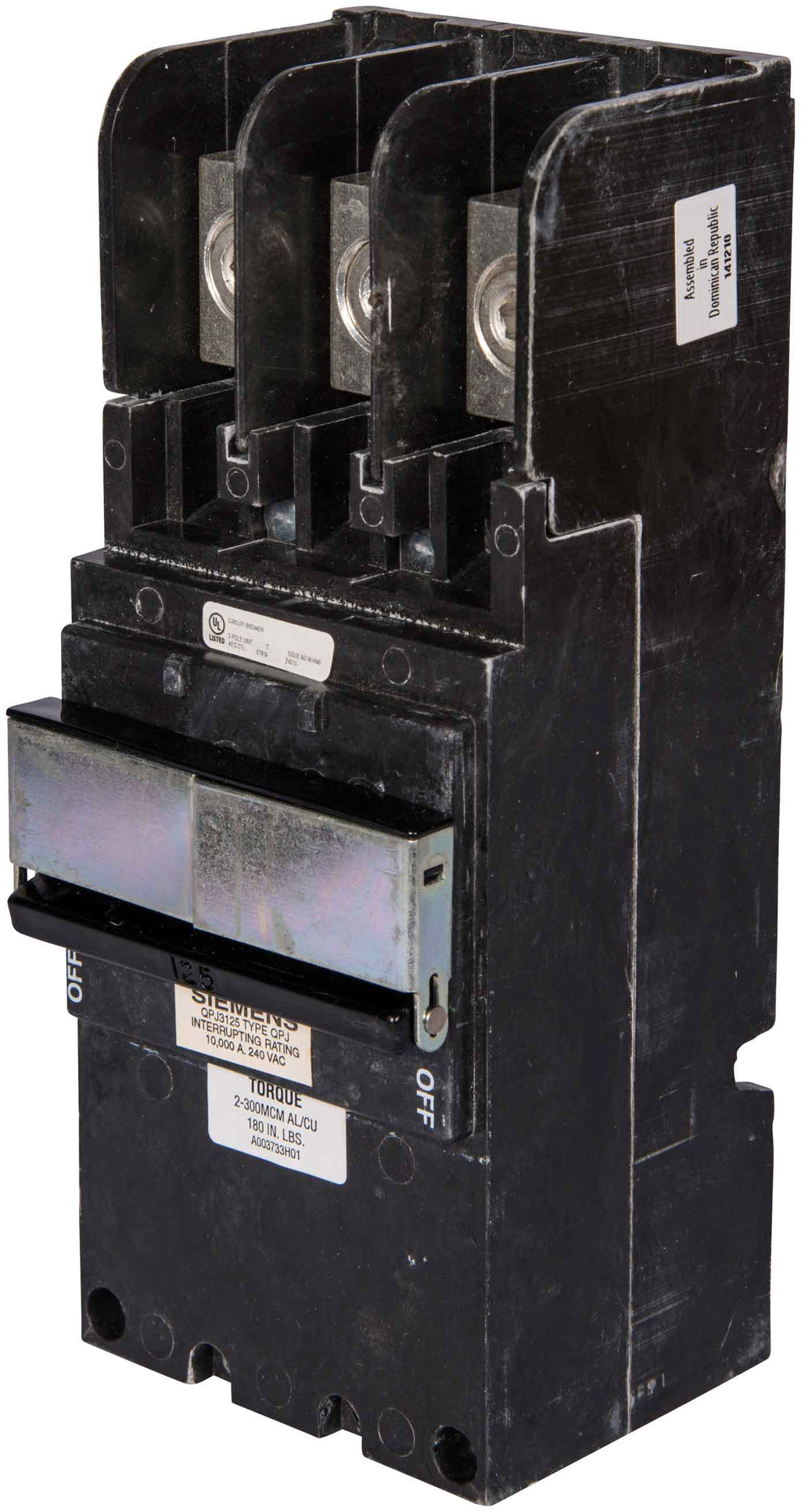

B2100H00S01 - Siemens 100A 240V 2 Pole Molded Case Circuit Breaker BL Series Bolt-On with 120V Shunt Trip

B2100H00S01

B2100H00S01 - Siemens 2-pole molded case circuit breaker with thermal magnetic trip and 120V shunt trip, rated at 100A and 240VAC.This Siemens BL series breaker features bolt-on mounting, long time and instantaneous trip functions, and high interrupting capacity for residential, commercial, and industrial applications. It is compatible with P1 panelboards and provides reliable overcurrent protection.

• Amperage: 100A
• Voltage: 120/240VAC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 22kAIC @ 240V
• Series/Frame: BL
• Trip Unit: Thermal Magnetic
• Shunt Trip: 120V
• Voltage Type: AC
• Phase: Single
• Certifications: UL, CSA, HACR

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with 120V shunt trip

Specifications

• Part Number: B2100H00S01
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : BLH
• Voltage : 120/240
• Amperage : 100
• Phase : 1
• Poles : 2
• AIC rating : 22kA@240V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 125A/BLH
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
• Breaker Type : Shunt Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 783643089426
• GTIN : 00783643089426
• Country of Origin : Mexico
• Dimensions : 3 in x 2 in x 2 in
• Weight : 1.08
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Wire Size : 4 AWG to 1/0 AWG, 2 AWG to 1/0 AWG
