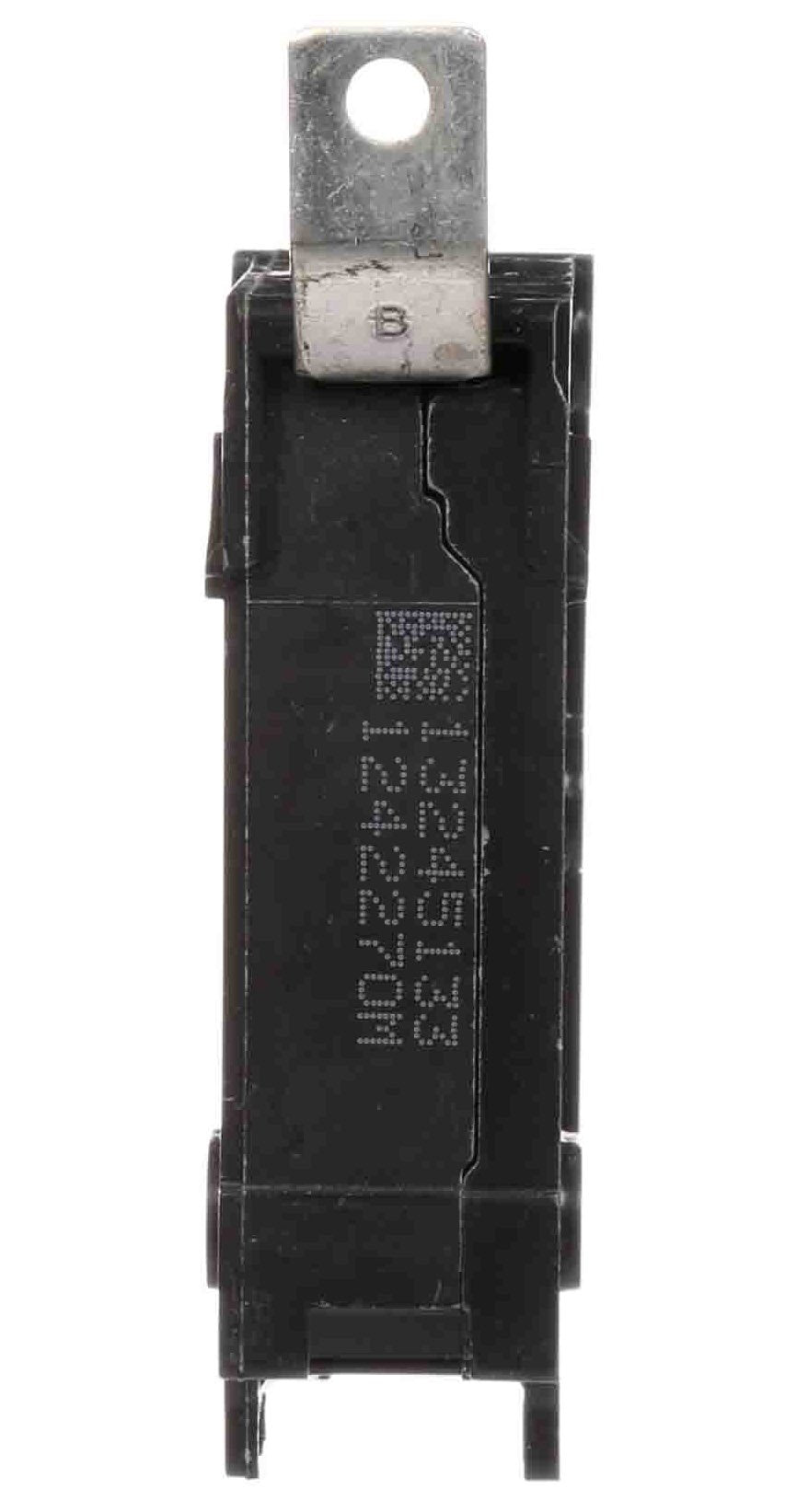

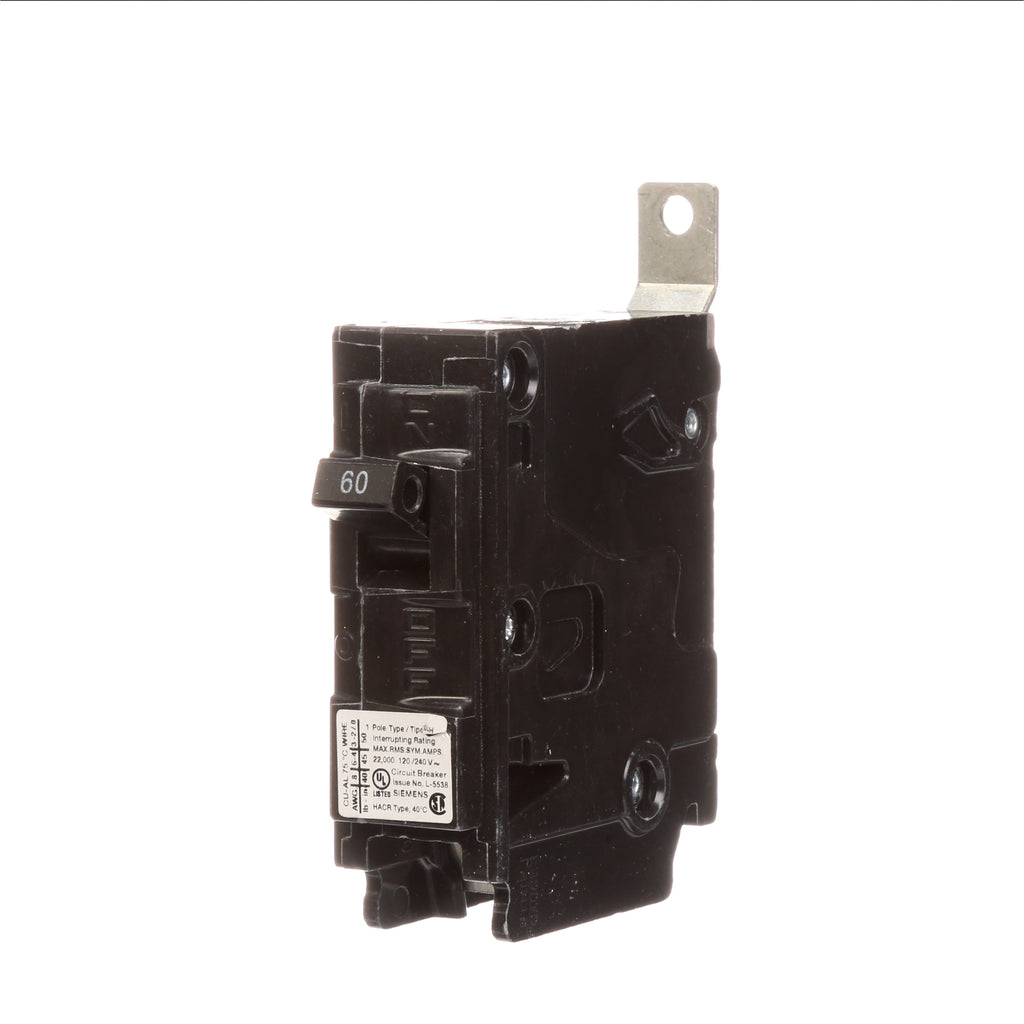

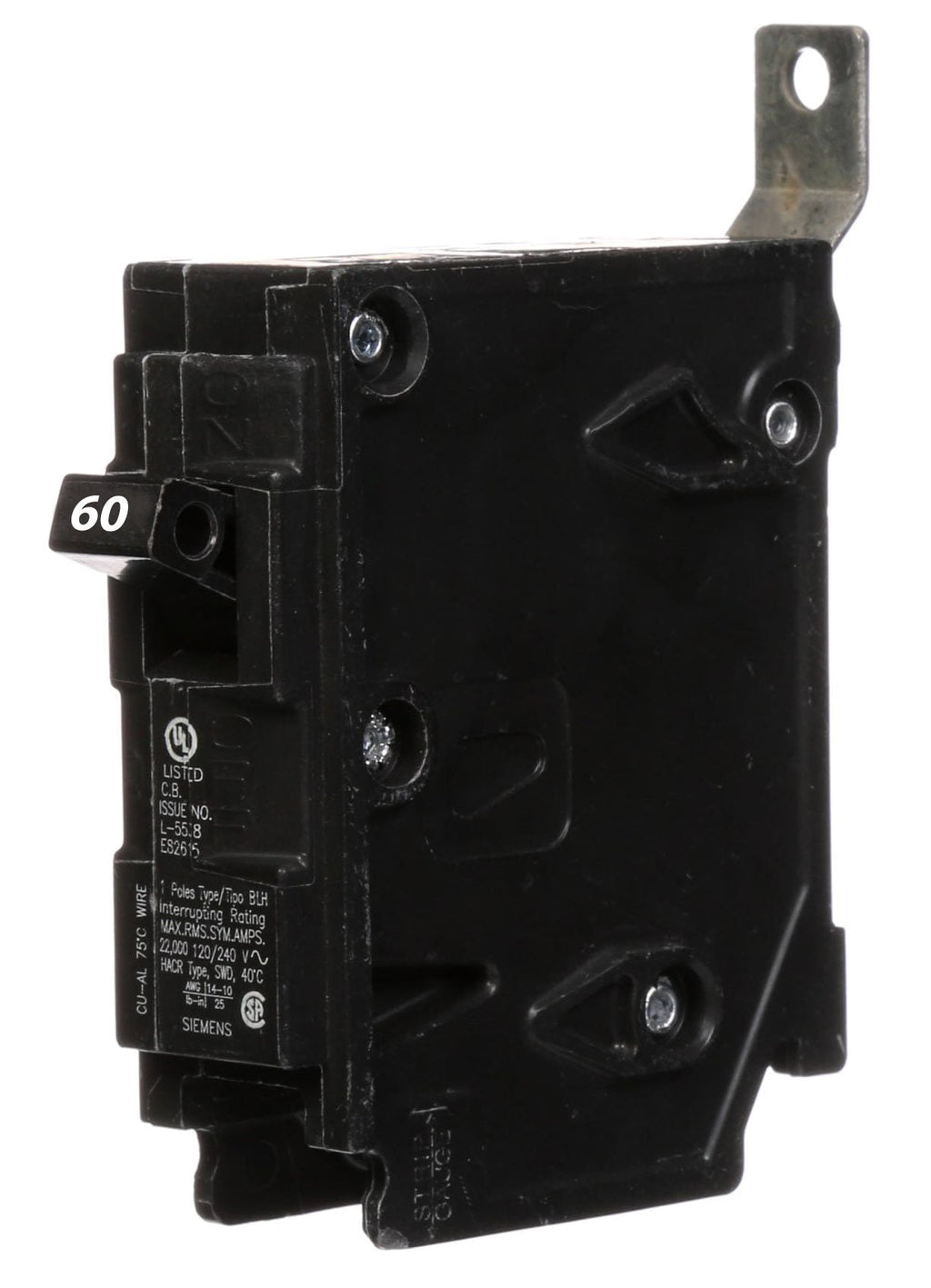

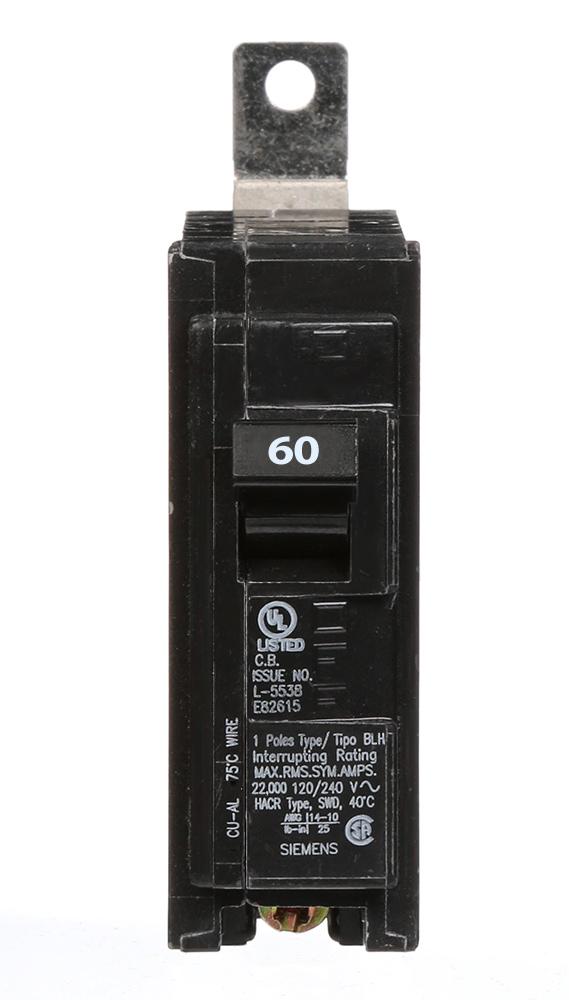

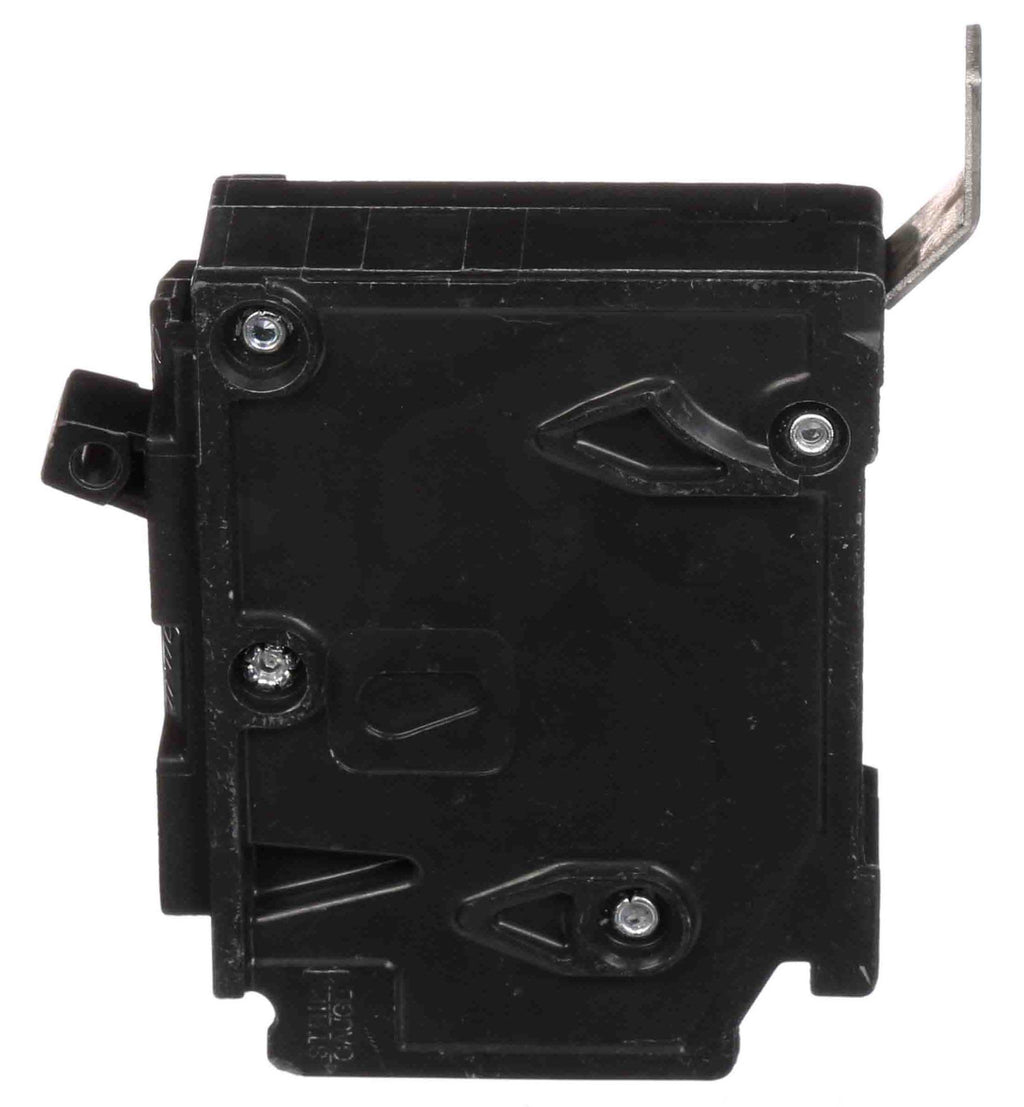

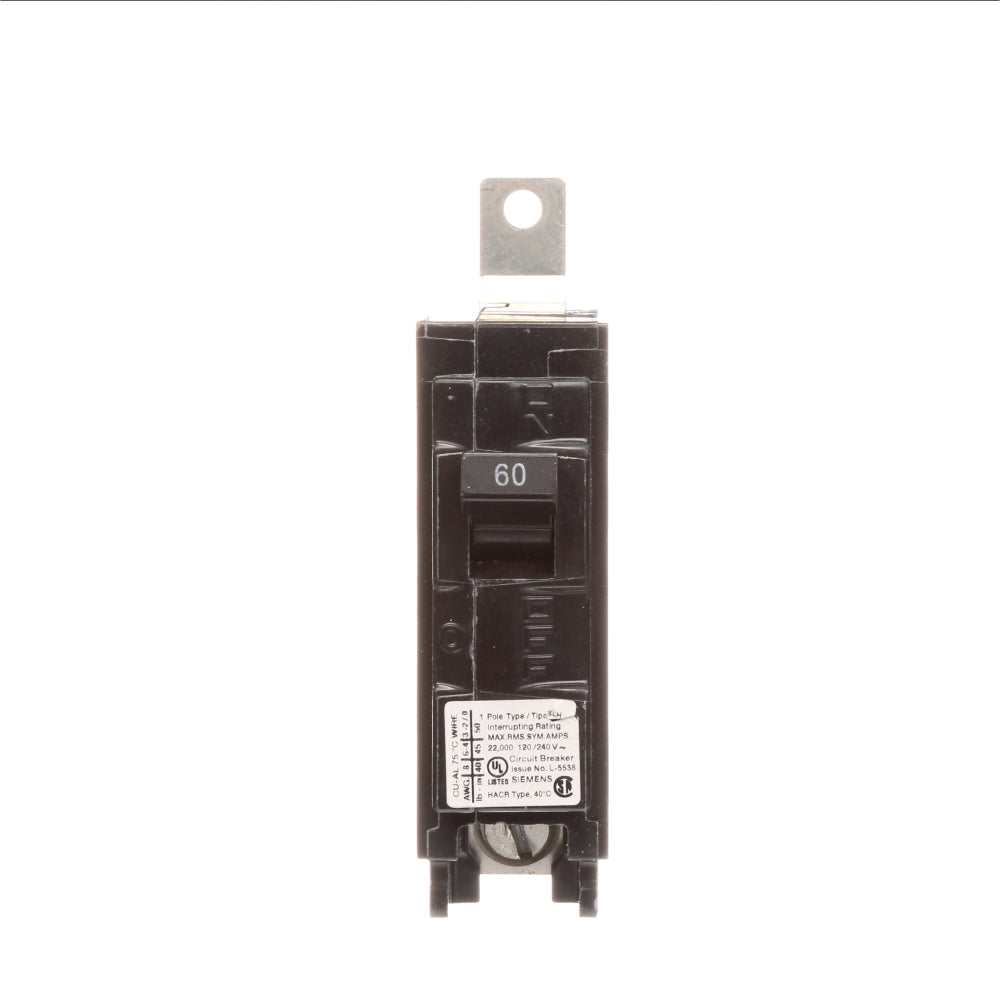

B160H - Siemens 60 Amp 120/240V 1 Pole Bolt-On Circuit Breaker 22kA Interrupt Rating

B160H

B160H is a Siemens 1 pole, 60 amp bolt-on circuit breaker rated for 120/240 volts with a 22kA interrupt rating.B160H features a thermal magnetic trip unit and is designed for panel mounting with busbar line side and lug load side terminations. It meets UL listing and CSA certification standards, including HACR and reverse feed capability.

Key Specifications
• Manufacturer: Siemens
• Part Number: B160H
• Amperage: 60 Amps
• Voltage Rating: 120/240 VAC
• Poles: 1
• Mounting Type: Bolt-On
• Interrupt Rating: 22kA @ 240V
• Trip Unit: Thermal Magnetic
• Certifications: UL Listed, CSA Certified, HACR, Reverse Feed
• Frame/Series: BLH

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: B160H
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : BLH
• Voltage : 120
• Amperage : 60
• Phase : 1
• Poles : 1
• AIC rating : 22kA@240V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/BLH
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 783643263871
• GTIN : 00783643263871
• Country of Origin : Mexico
• Dimensions : 2.756 x 2.756 x 0.787 inch
• Weight : 0.353
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
