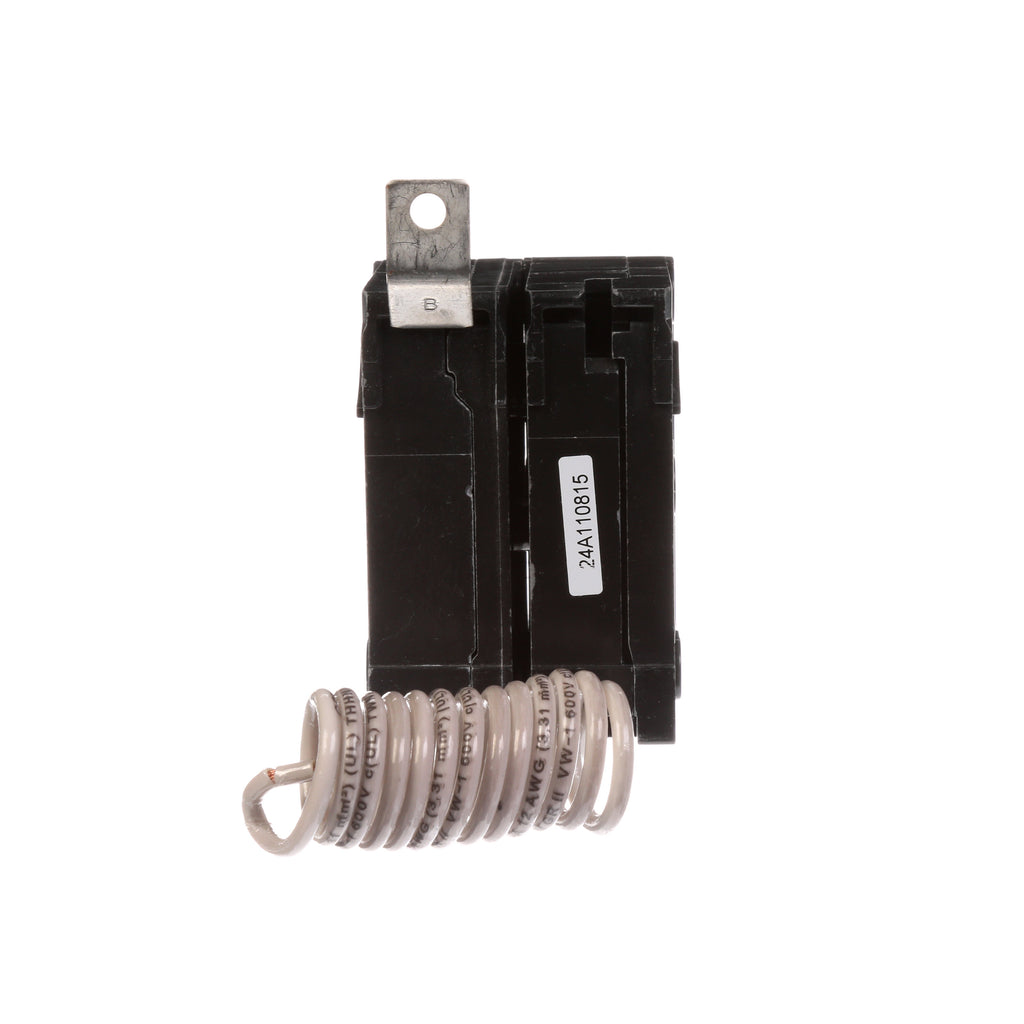

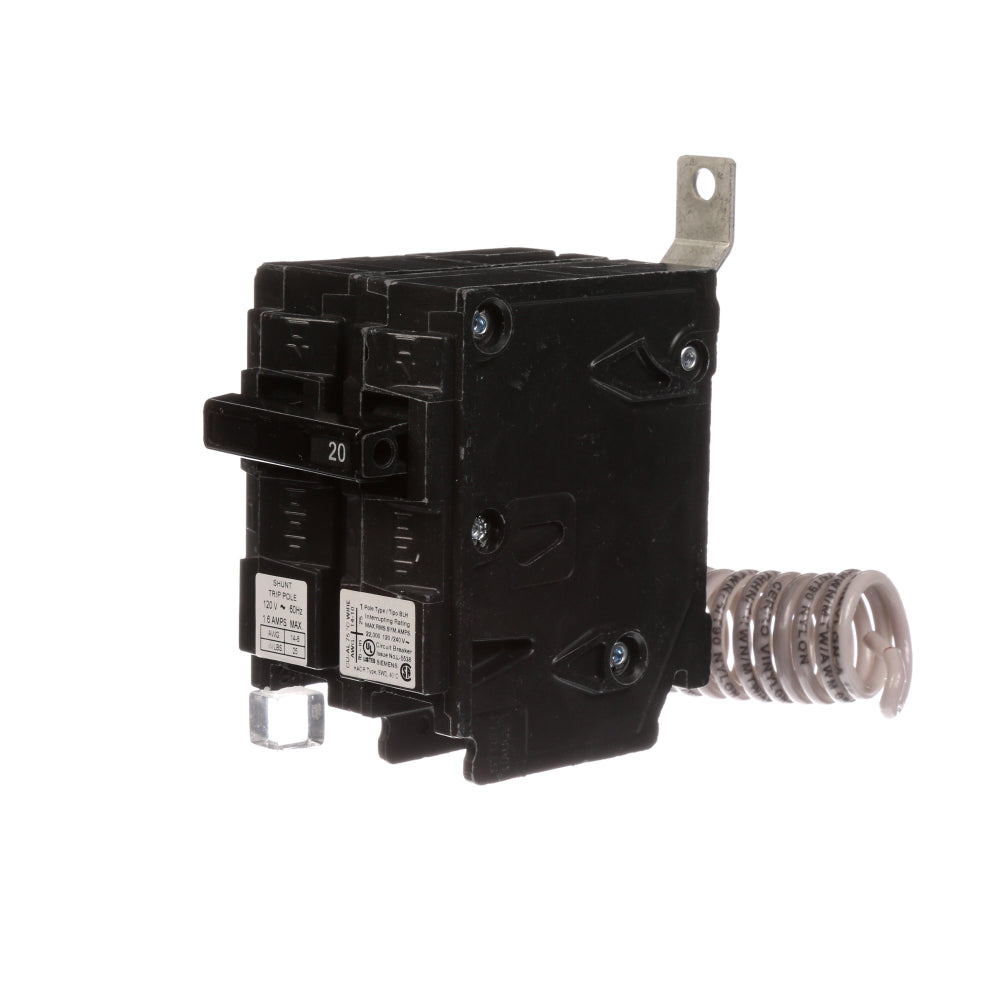

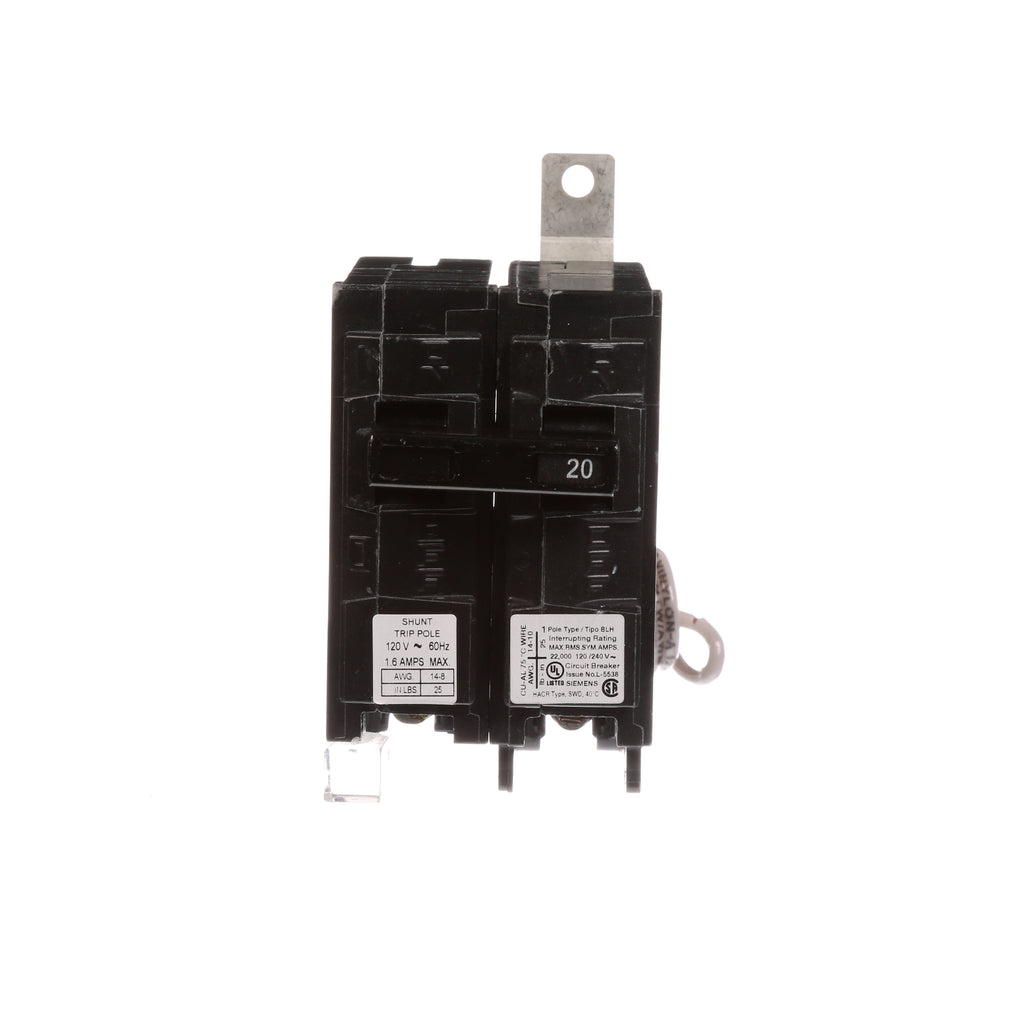

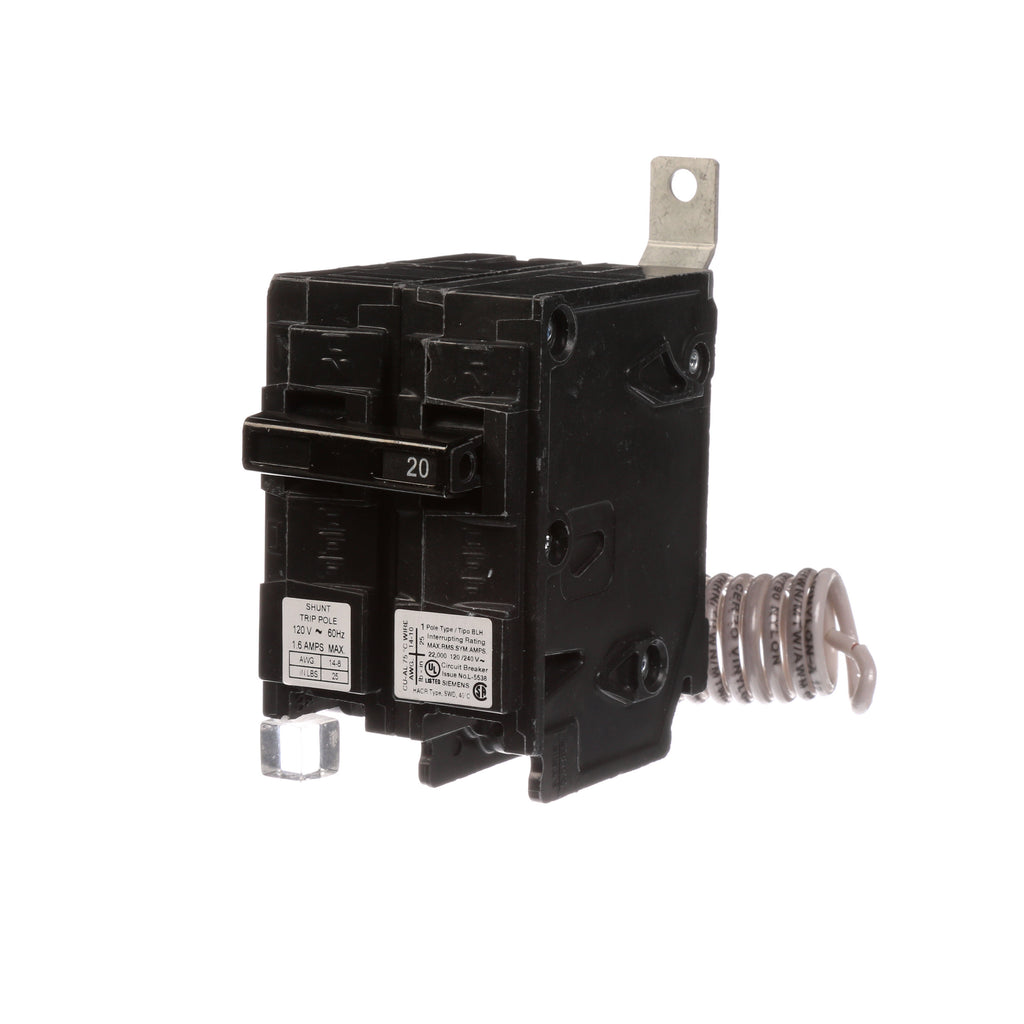

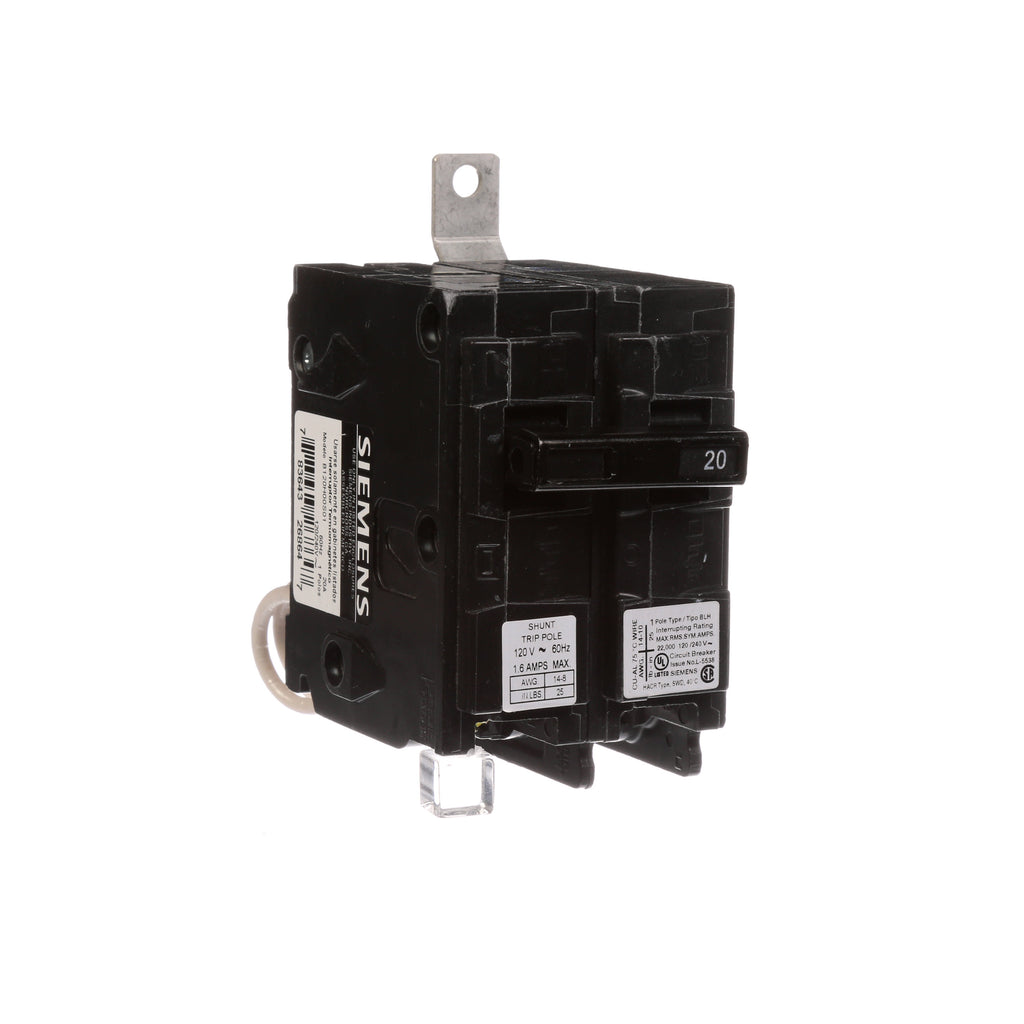

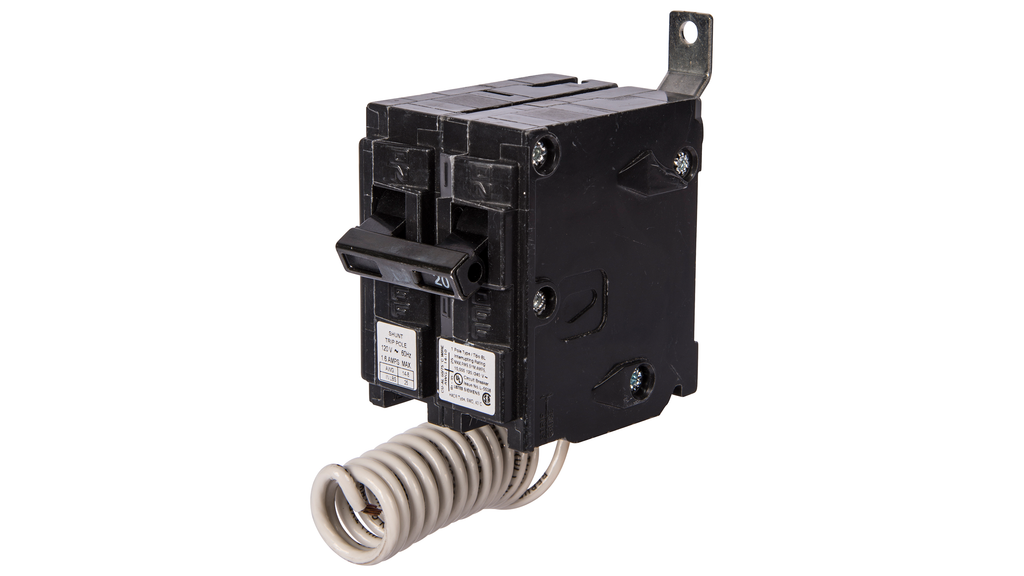

B120H00S01 - Siemens 20 Amp 240V 1-Pole ITE Frame Plug-On Circuit Breaker

B120H00S01

B120H00S01 is a Siemens 20 Amp, 1-pole circuit breaker designed for 240V applications with ITE frame and plug-on mounting.This Siemens B120H00S01 circuit breaker features thermal magnetic trip protection with a 22kA interrupt rating at 240V. It is a single-pole device suitable for panel mounting with plug-on connection type, providing reliable overcurrent protection in residential or commercial electrical systems.

• Manufacturer: Siemens
• Part Number: B120H00S01
• Amperage: 20 Amps
• Voltage: 240 Volts
• Poles: 1
• Frame Type: ITE
• Mounting Type: Plug-On
• Interrupt Rating: 22kA @ 240V
• Trip Unit: Thermal Magnetic
• Certifications: UL Listed (implied standard for Siemens breakers)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: B120H00S01
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : BLH
• Voltage : 120
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 22kA@240V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/BLH
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
• Breaker Type : Shunt Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 783643268647
• GTIN : 00783643268647
• Country of Origin : Mexico
• Dimensions : 2.563 x 2.00 x 3.122 inch
• Weight : 0.617
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
