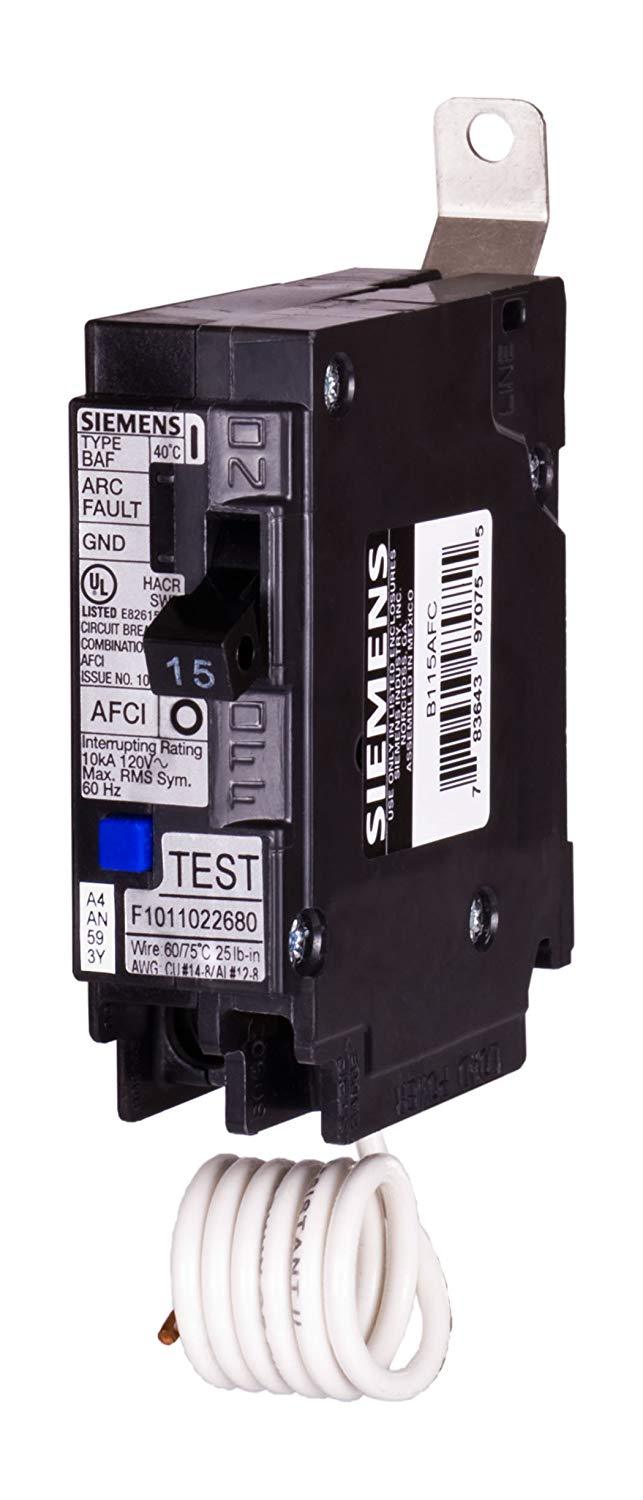

B115AFC - Siemens 15A 1 Pole Combination AFCI Circuit Breaker 120V 10kA Interrupt Bolt-On

B115AFC

B115AFC is a Siemens 1-pole combination arc fault circuit breaker rated for 15 amps at 120 volts with bolt-on mounting for panel board installation. This molded case breaker features non-interchangeable fixed thermal-magnetic trip protection and provides reliable overload and short-circuit protection for residential and light commercial applications. The breaker is UL listed, CSA certified, and NOM certified for safe operation in Siemens load centers and compatible panel boards.

• Amperage Rating: 15 A
• Voltage Rating: 120 V
• Number of Poles: 1
• Mounting Type: Bolt-On
• Interrupt Rating: 10 kA
• Series: BL
• Trip Type: Non-Interchangeable Fixed Thermal Magnetic
• Protection: Overload and Short Circuit
• Wire Size: 14-10 AWG Copper, 12-10 AWG Aluminum
• Terminal Type: Load Lug-In/Lug-Out
• Certifications: UL Listed, CSA Certified, NOM Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: B115AFC
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : BAF
• Voltage : 120
• Amperage : 15
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 783643970755
• Country of Origin : Philippines
• Dimensions : 5.906 x 3.937 x 0.787 inch
• Weight : 0.397
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
