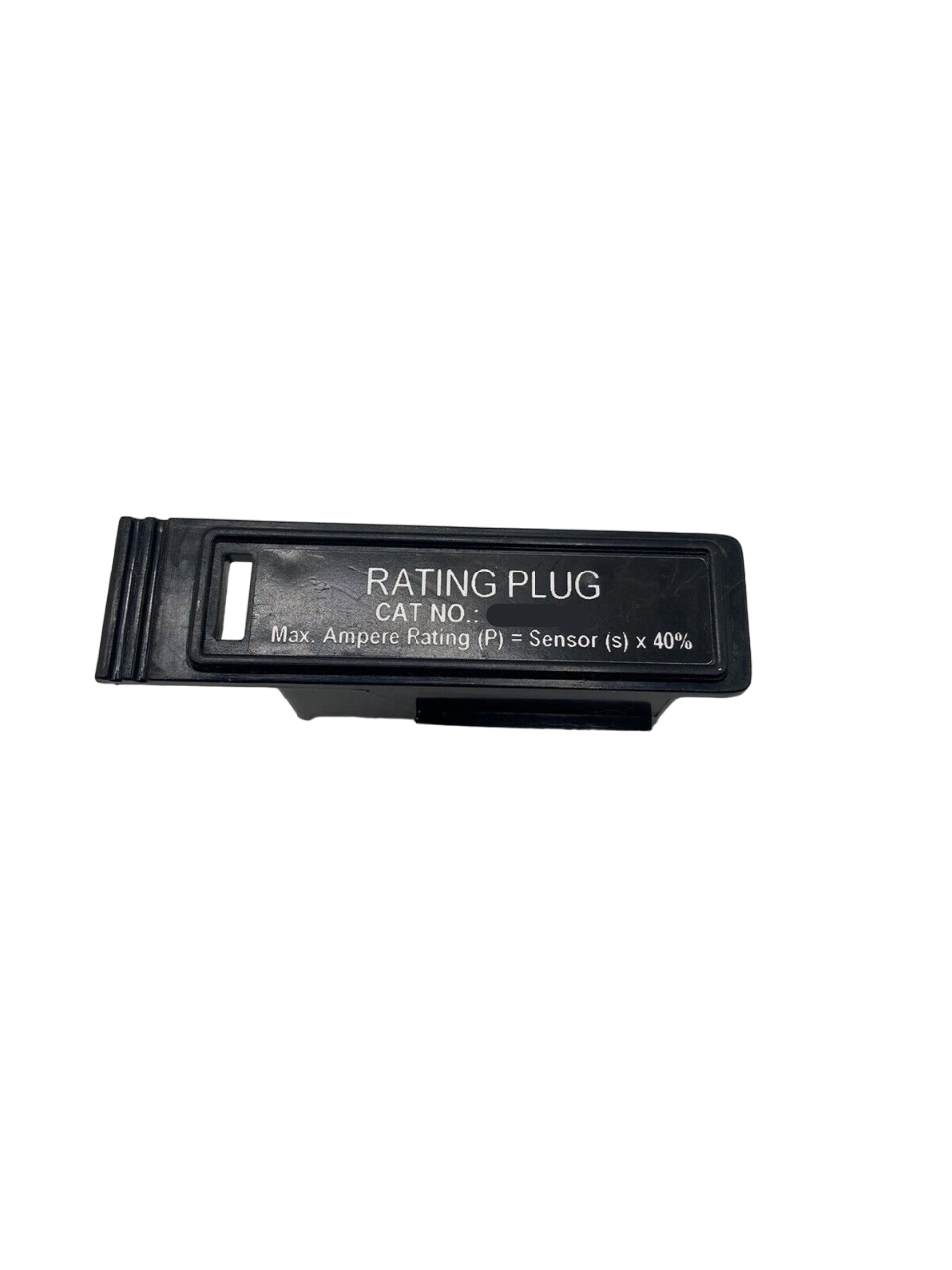

ARP090 Schneider Electric Circuit Breaker Rating Plugs - Essential Electric Supply

Description

ARP090


ARP090 is a Schneider Electric Square D circuit breaker rating plug designed for precise amperage adjustment in industrial power distribution systems.

This rating plug is compatible with Micrologic LX, LXP, LXL, LXF, LE, LEP, LEL, LEF, and MX trip units, enabling flexible current settings from 100A up to 4000A. It is engineered for use in 600VAC systems and is a critical component for customizing the protection characteristics of Square D electronic trip circuit breakers. The ARP090 does not include poles or a specific mounting type, as it is an accessory that inserts into the trip unit of compatible breakers.

    Key Specifications
  • Part Number: ARP090
  • Manufacturer: Schneider Electric / Square D
  • Category: Circuit Breaker Rating Plug
  • Amperage: 100–4000A (adjustable via compatible trip unit)
  • Voltage: 600VAC
  • Poles: N/A (accessory for multi-pole breakers)
  • Mounting Type: N/A (inserts into trip unit)
  • Interrupt Rating: N/A (determined by host breaker)
  • Series/Frame: Compatible with Micrologic LX, LXP, LXL, LXF, LE, LEP, LEL, LEF, MX
  • Trip Unit: For use with electronic trip units (see compatibility above)
  • Certifications: UL Listed, CSA Certified (host breaker dependent)
  • Application: Industrial power distribution, panelboards, switchgear

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

  • Part Number: ARP090
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Rating Plug
  • Family : Micrologic
  • Type : ARP
  • Amperage : 4000
  • Frame Size : 4000
  • Amperage Maximum : 4000
  • Amperage Minimum : 100
  • Compatible Frames : LX,LXP,LXL,LXF,LE,LEP,LEL,LEF,MX,MXP,MXL,MXF,ME,MEP,MEL,MEF,NX,NXL,NXP,NXF,NE,NEL,NEP,NEF,PX,PXF,PXL,PXP,PE,PEL,PEP,PEF,SED,SEHD,SEF,SEHF
  • Trip Type : Micrologic

Product Data

  • UPC : 785901062523
  • GTIN : 785901062523
  • Weight : 1
