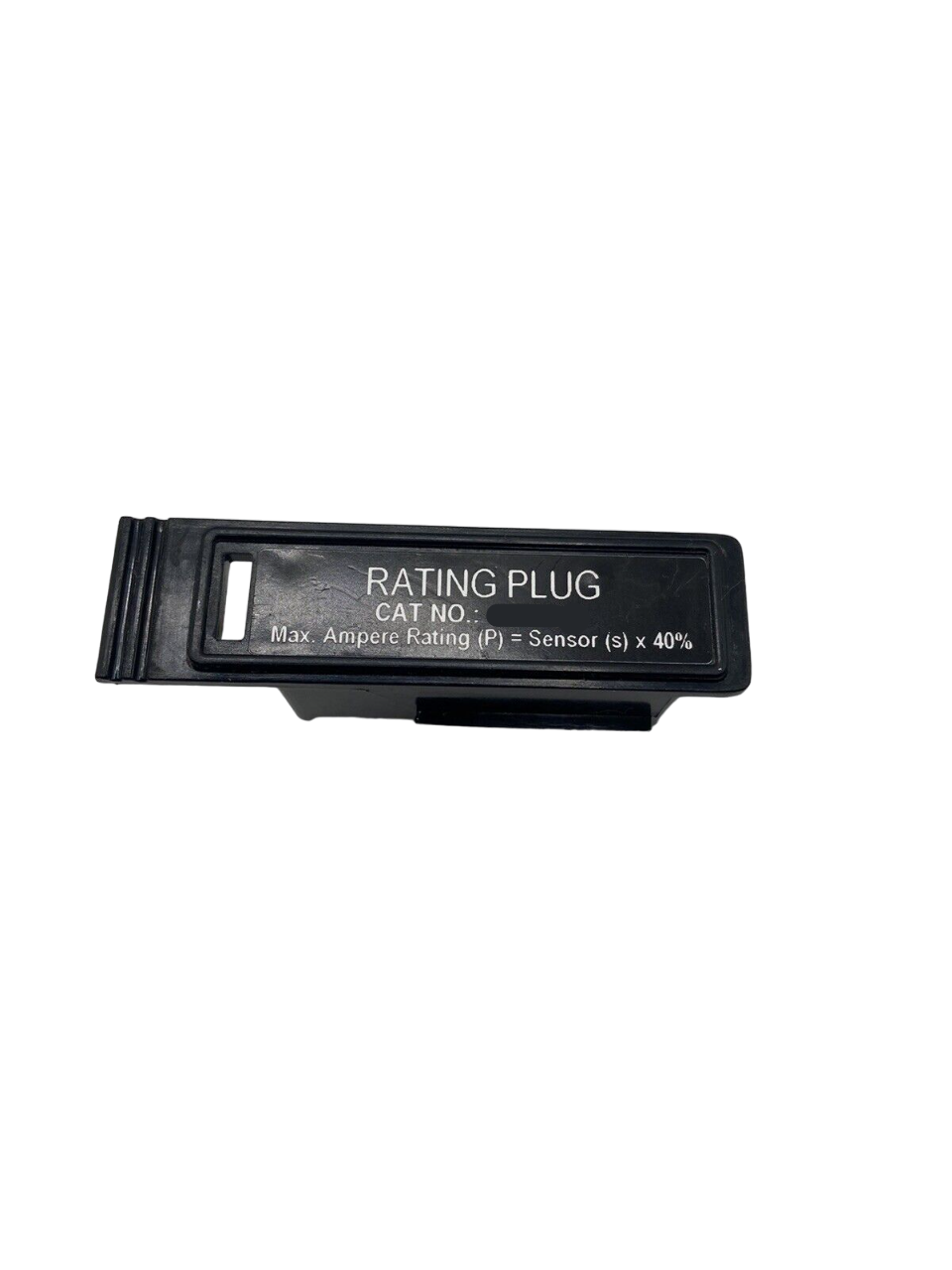

ARP088 - Schneider Electric Square D Circuit Breaker Rating Plug 4000A Compatible with Micrologic Trip Units

ARP088

ARP088 is a Schneider Electric Square D circuit breaker rating plug designed for use with Micrologic trip units, rated for 4000A. This accessory enhances circuit breaker performance by applying a multiplier to sensor size for accurate current rating.ARP088 is compatible with all Micrologic LX, LXP, LXL, LXF, LE, LEP, LEL, LEF, MX, MXP, MXL, and MXF series trip units. It is used to adjust the continuous current carrying capacity of the circuit breaker by multiplying the sensor size by the rating plug multiplier and the trip unit long-time pickup setting. The rating plug multiplier value is printed on the plug face for easy identification.

Key Specifications
• Part Number: ARP088
• Manufacturer: Schneider Electric (Square D)
• Type: Circuit Breaker Rating Plug
• Rated Current: 4000 Amperes
• Compatible Trip Units: Micrologic LX, LXP, LXL, LXF, LE, LEP, LEL, LEF, MX, MXP, MXL, MXF
• Function: Applies multiplier to sensor size for current rating adjustment
• Interrupt Rating: Per associated circuit breaker rating
• Mounting Type: Accessory for compatible breakers
• Weight: Approximately 0.05 lbs
• Certifications: UL Listed (as part of circuit breaker system)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: ARP088
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Rating Plug
• Family : Micrologic
• Type : ARP
• Amperage : 4000
• Frame Size : 4000
• Amperage Maximum : 4000
• Amperage Minimum : 100
• Compatible Frames : LX,LXP,LXL,LXF,LE,LEP,LEL,LEF,MX,MXP,MXL,MXF,ME,MEP,MEL,MEF,NX,NXL,NXP,NXF,NE,NEL,NEP,NEF,PX,PXF,PXL,PXP,PE,PEL,PEP,PEF,SED,SEHD,SEF,SEHF
• Trip Type : Micrologic



Product Data

• UPC : 785901062516
• Weight : 1
