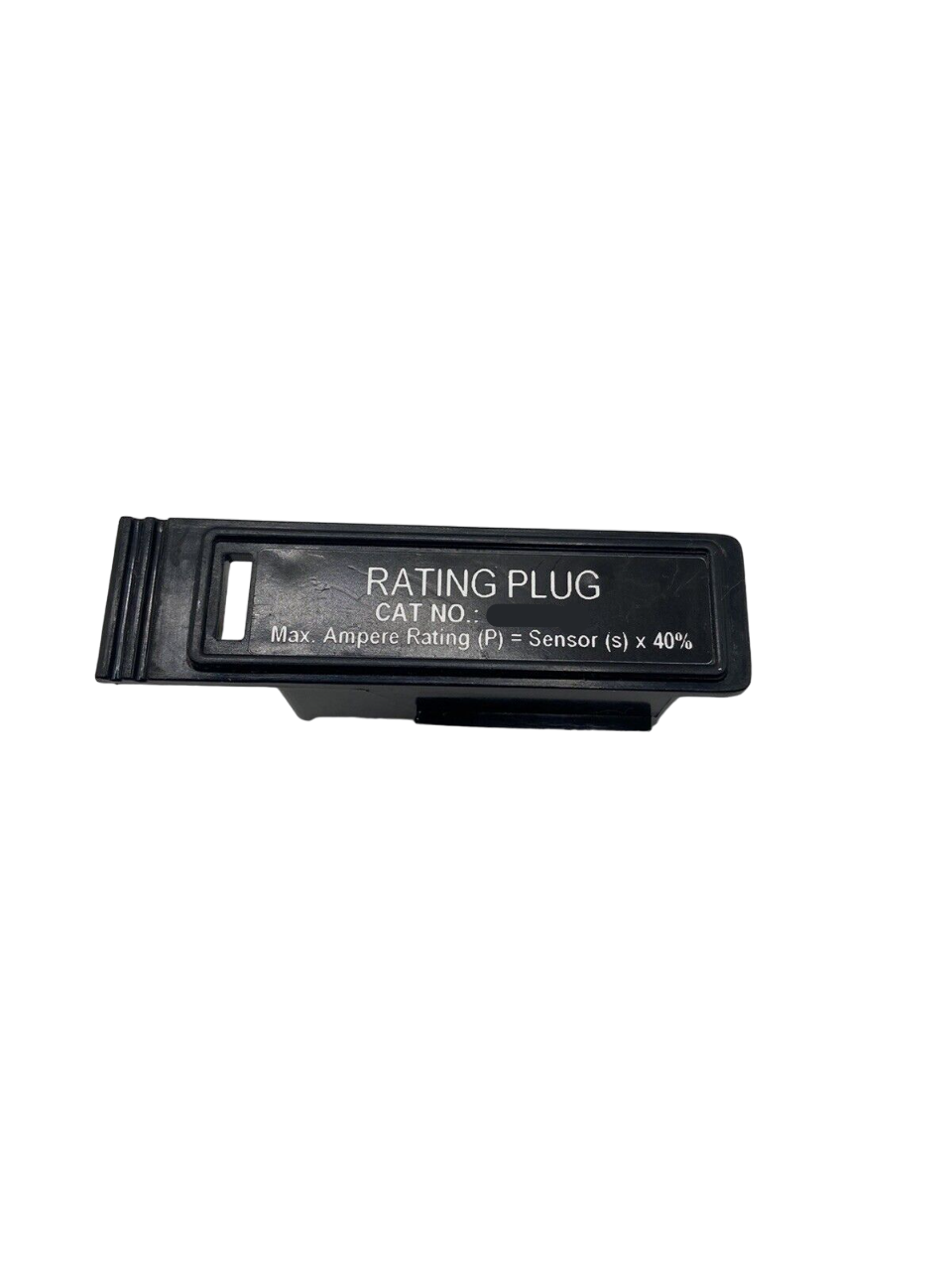

ARP050 - Schneider Electric Square D 600A Circuit Breaker Rating Plug for Micrologic Trip System

ARP050

ARP050 is a Schneider Electric Square D circuit breaker rating plug designed for use with Micrologic trip systems, providing precise trip current sensing.This rating plug kit is rated for 600 amperes and compatible with all Micrologic trip units including LX, LXP, LXL, LXF, LE, LEP, LEL, LEF, and MX series. It features a 250 sensor size and a 0.500 multiplier value, enabling accurate current measurement and trip coordination in electronic trip circuit breakers.

Key Specifications
• Manufacturer: Schneider Electric Square D
• Part Number: ARP050
• Amperage Rating: 600A
• Compatible Trip Units: Micrologic LX, LXP, LXL, LXF, LE, LEP, LEL, LEF, MX
• Sensor Size: 250
• Multiplier Value: 0.500
• Application: Electronic Trip Circuit Breakers
• Mounting Type: Plug-in Rating Plug
• Interrupt Rating: Matches Circuit Breaker Rating
• Certifications: UL Listed (per circuit breaker standards)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ARP050
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Rating Plug
• Family : Micrologic
• Type : ARP
• Amperage : 4000
• Frame Size : 4000
• Amperage Maximum : 4000
• Amperage Minimum : 100
• Compatible Frames : LX,LXP,LXL,LXF,LE,LEP,LEL,LEF,MX,MXP,MXL,MXF,ME,MEP,MEL,MEF,NX,NXL,NXP,NXF,NE,NEL,NEP,NEF,PX,PXF,PXL,PXP,PE,PEL,PEP,PEF,SED,SEHD,SEF,SEHF
• Trip Type : Micrologic

Product Data

• Weight : 1
