Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Appleton
- Sub-Category
- Pin-and-sleeve plug/receptacle system
- Series
- ARC
- Rated current
- 100
- Voltage
- 600/250 600/250 /DC
- Poles
- 4
- UPC
- 781381440516
- GTIN
- 781381440516
- Dimensions
- 16 in L x 4-1/4 in W
- Weight
- 6 lb
Product description & additional details
ARC1034CD

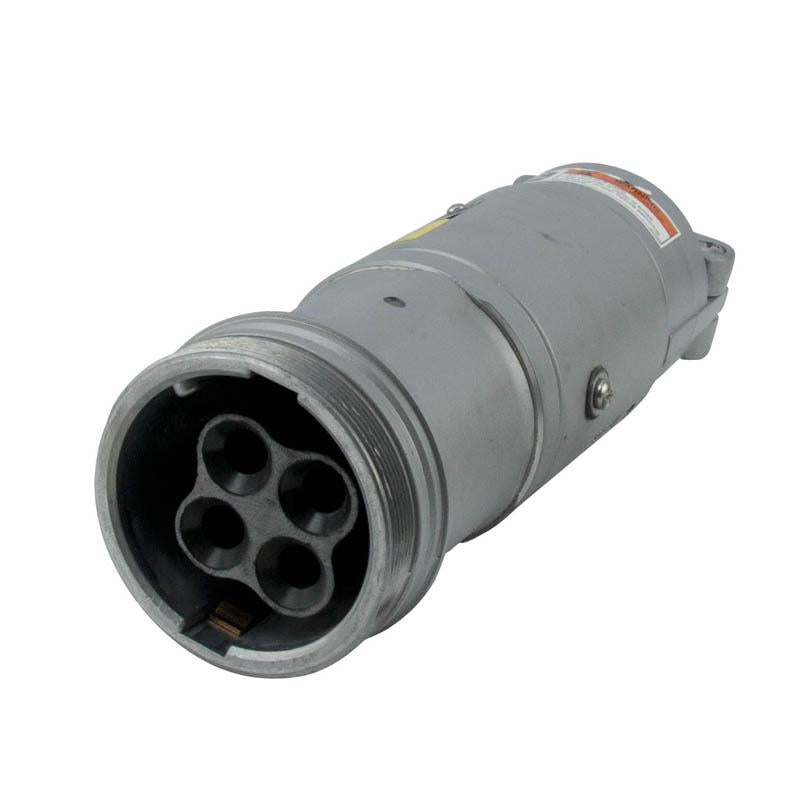

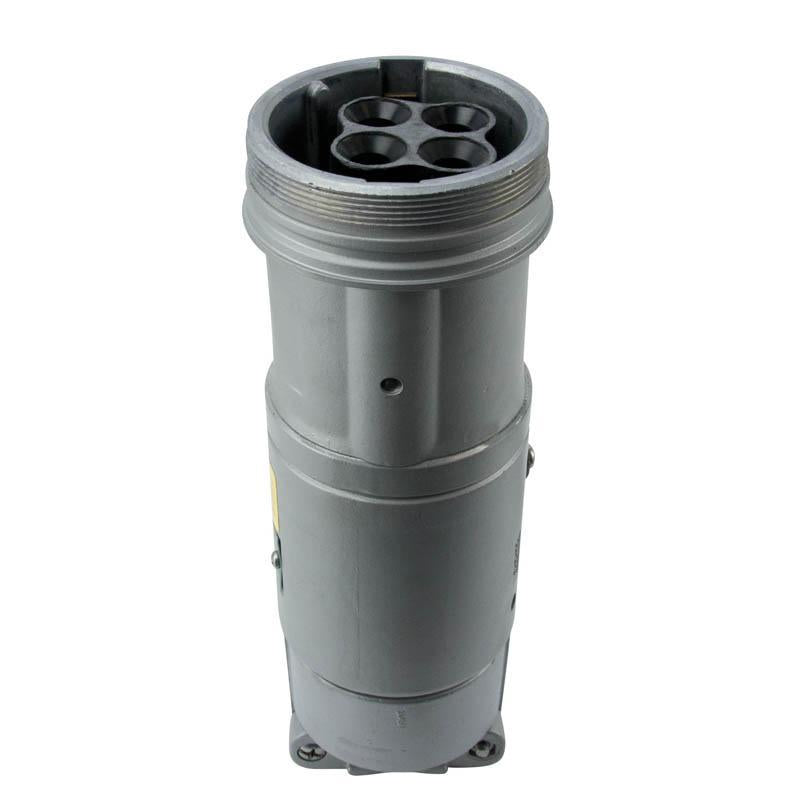

ARC1034CD is a 100A, 600VAC, 4-pole, 3-wire pin and sleeve connector body from Appleton's Powertite series, designed for reliable power distribution in industrial environments.This connector body features a copper-free aluminum housing with epoxy powder coating for durability and corrosion resistance. It is rated NEMA 4X for protection against harsh environments and is suitable for portable and fixed equipment applications such as welders, pumps, and generators. The grounding style 2 design ensures safe and secure connections.
- Part Number: ARC1034CD
- Manufacturer: Appleton
- Series: Powertite
- Amperage Rating: 100A
- Voltage Rating: 600VAC / 250VDC
- Number of Poles: 4
- Number of Wires: 3
- Mounting Type: Pin and Sleeve
- Grounding Style: 2-Shell
- Enclosure Rating: NEMA 4X
- Material: Epoxy Powder Coated Copper-Free Aluminum
- Wire Size: 4 - 1 AWG Building, 4 - 2 AWG Extra Flex
Additional Information
Industrial duty; interlocked/with-switch options
Specifications
- Part Number: ARC1034CD
- Manufacturer : Appleton
- Brand : Appleton
- Category : Wiring Devices
- Item Subcategory : Pin-and-sleeve plug/receptacle system
- Family : ARC
- Voltage : 600/250 600/250 /DC
- Amperage : 100
- Poles : 4
Product Data
- UPC : 781381440516
- GTIN : 781381440516
- Dimensions : 16 in L x 4-1/4 in W
- Weight : 6 lb
