Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Appleton
- Sub-Category
- Electrical protection / accessory
- Rated current
- 400
- Trip functions
- Long Time and Instantaneous Trip
- UPC
- 785901966708
- Dimensions
- 4.12 in H x 1.5 in W x 2.91 in D
- Weight
- 0.9 lb
Product description & additional details
QO260GFI3W

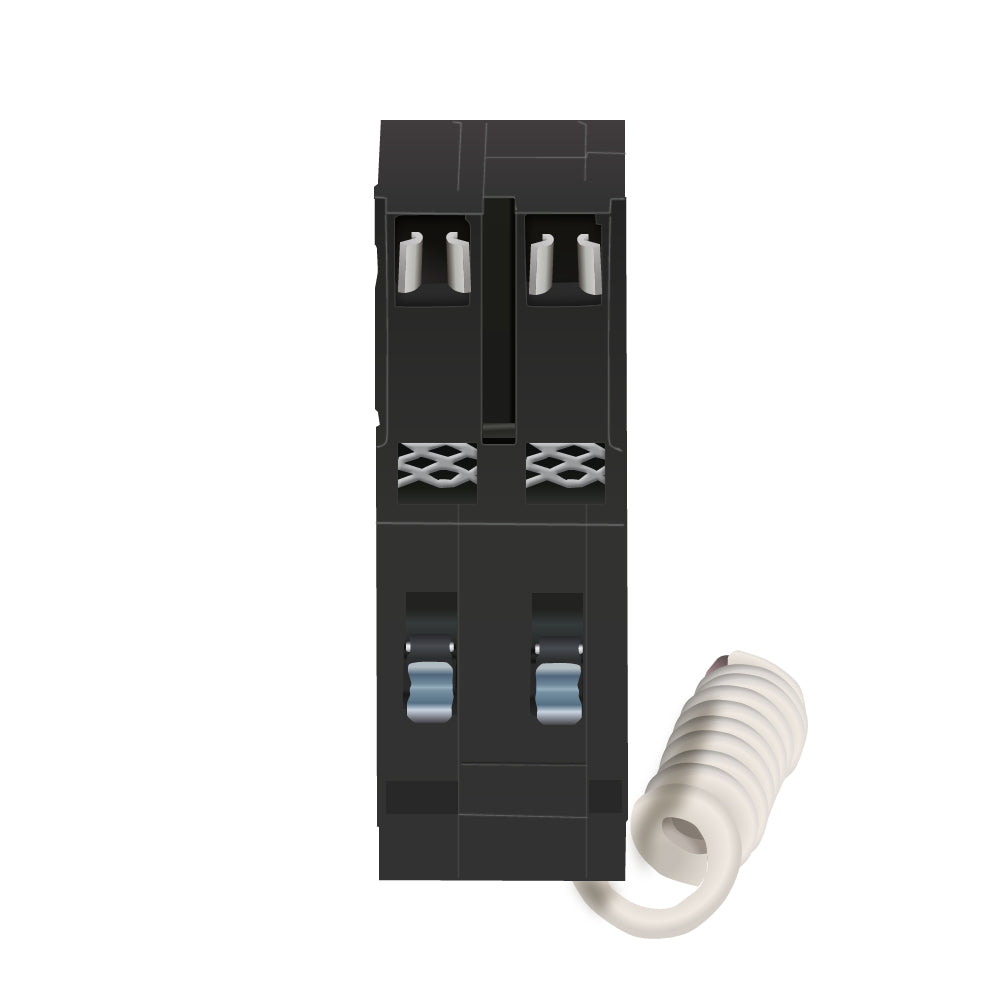

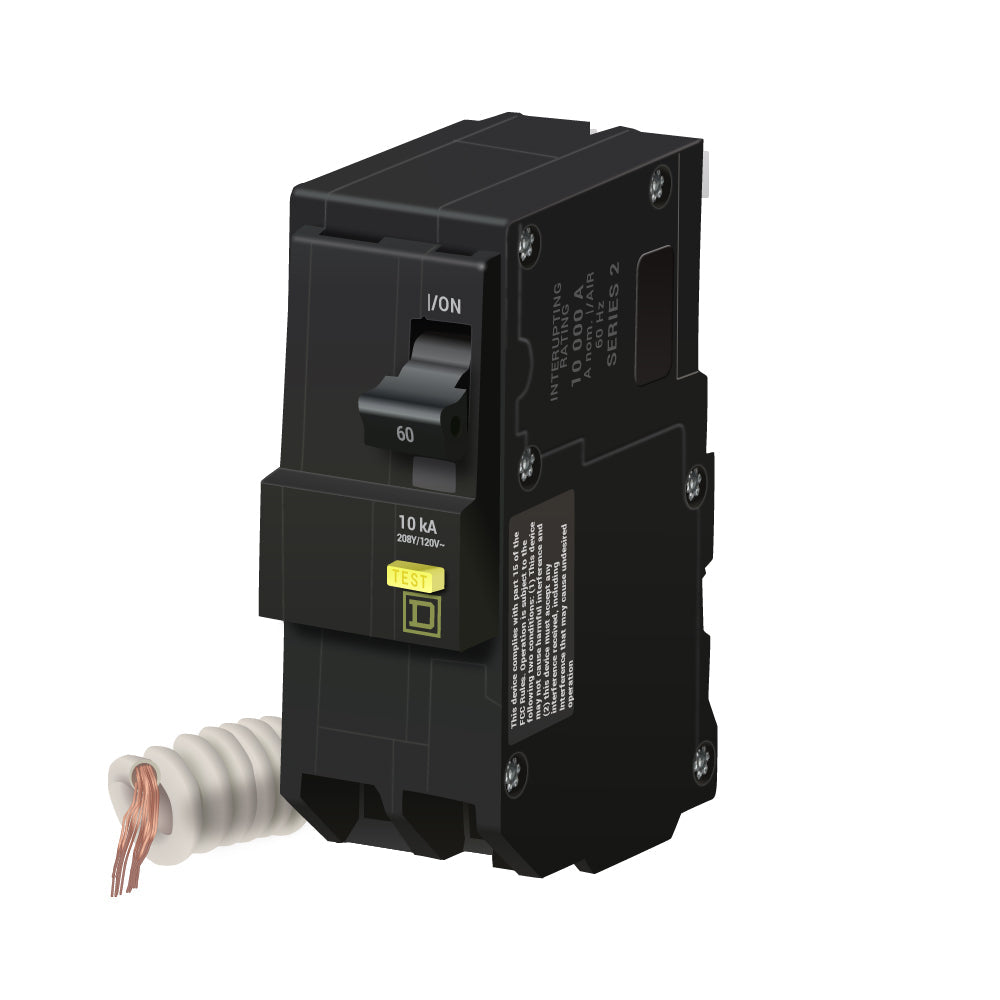

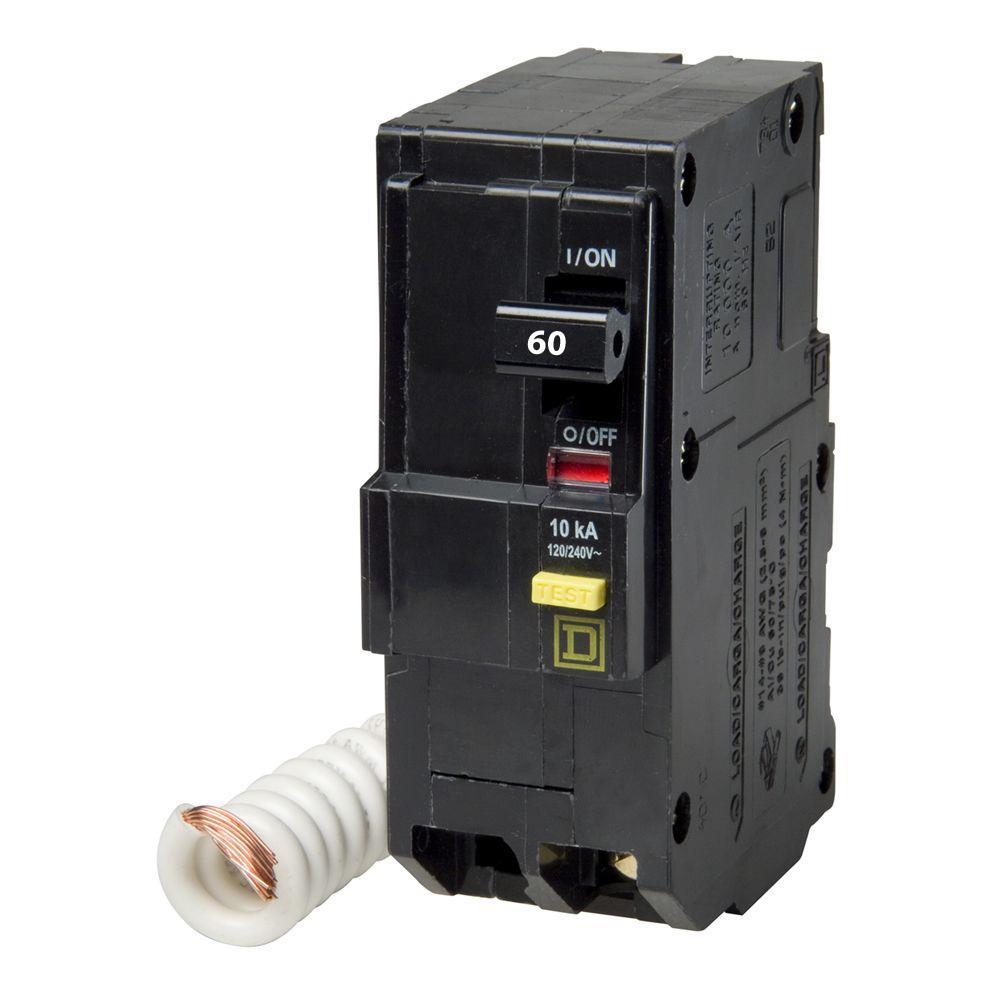

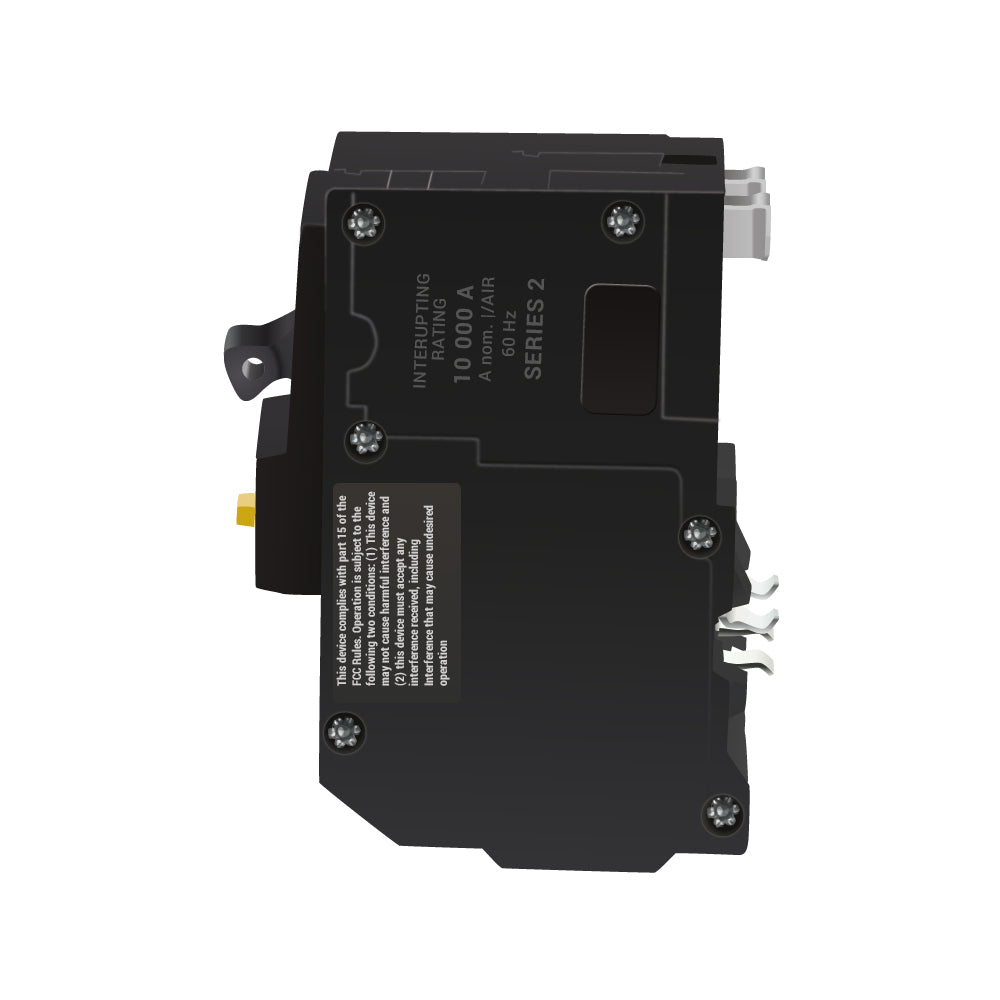

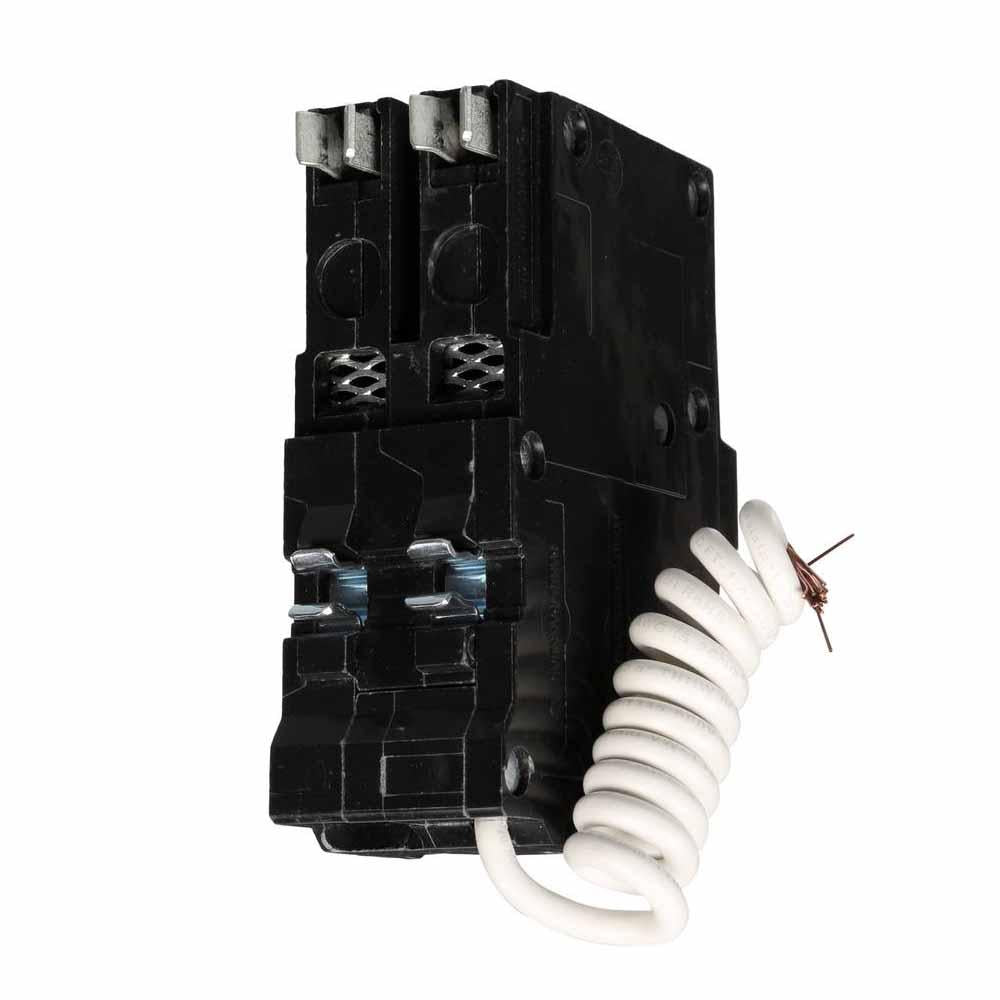

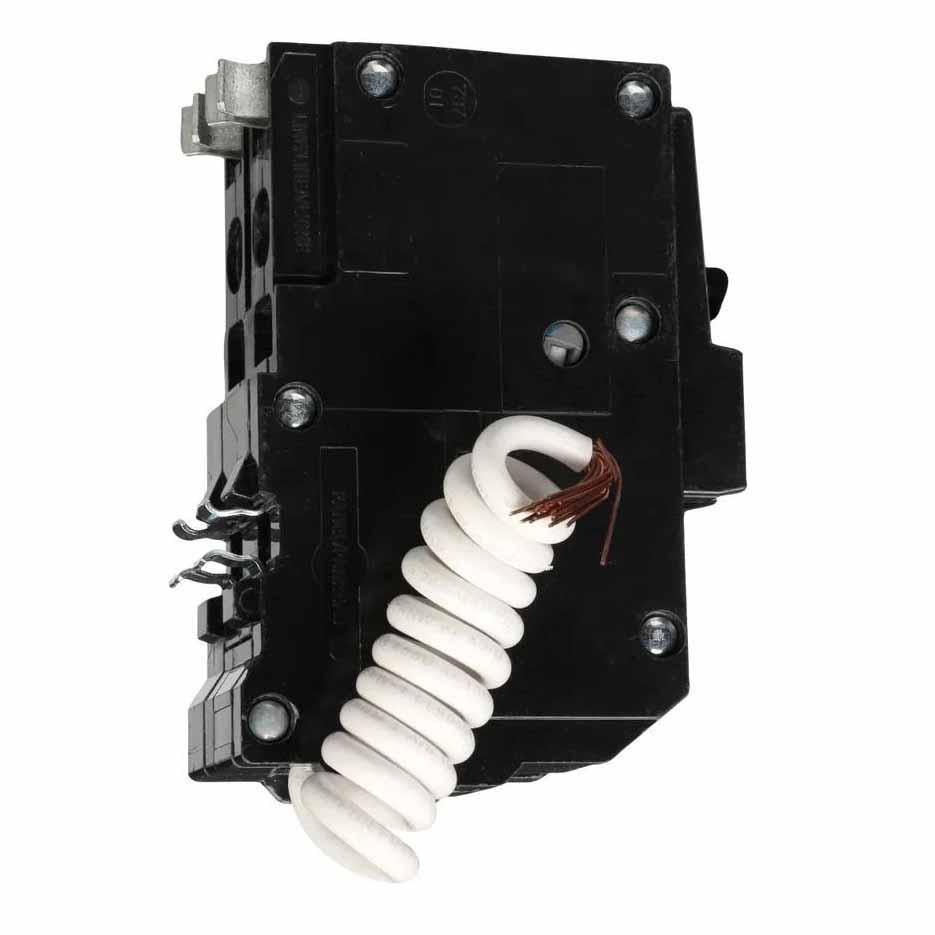

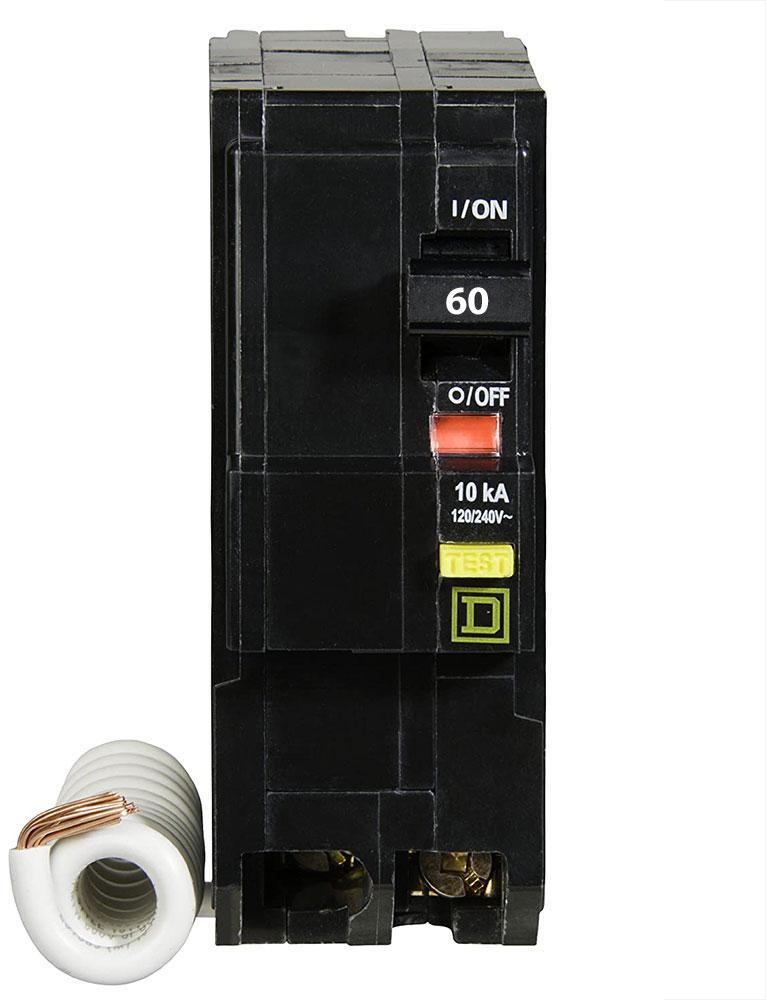

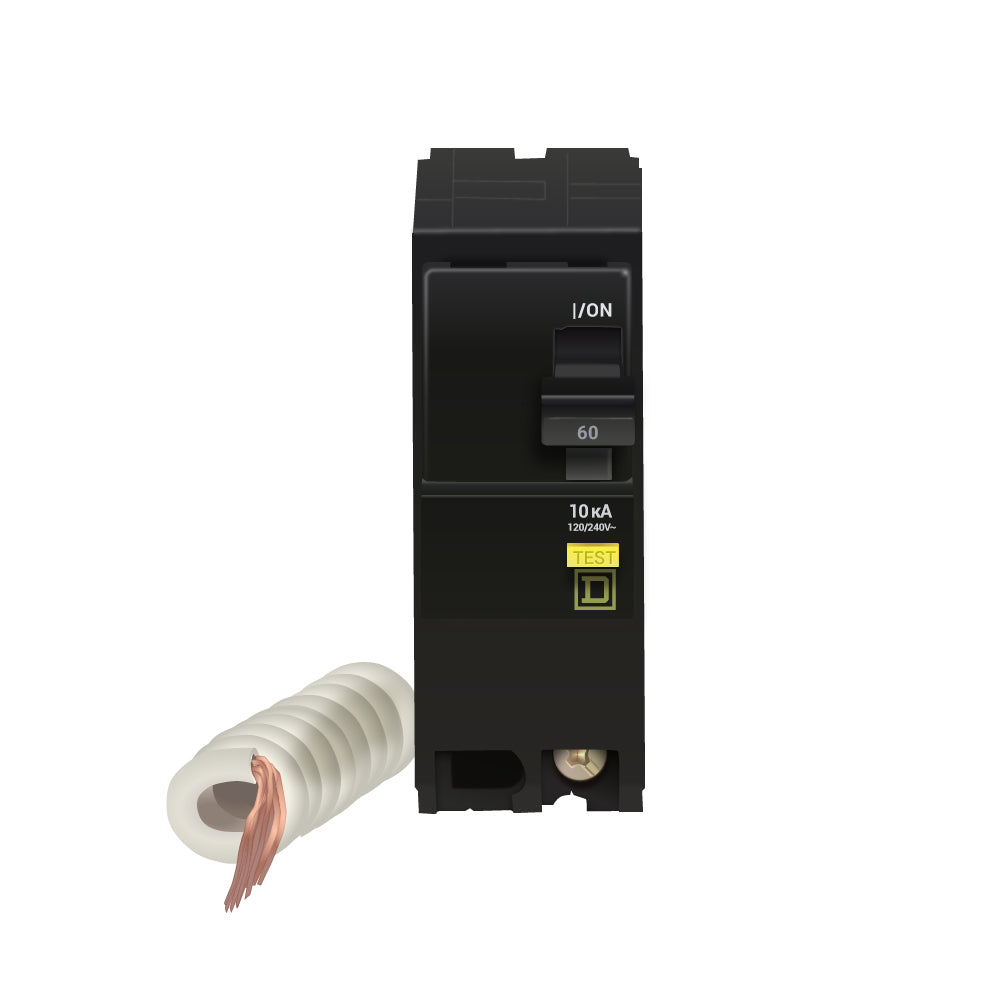

QO260GFI3W Square D 60A 2-Pole QO Series Plug-In GFCI Circuit Breaker, 120/240V, Class A 6mA
The QO260GFI3W is a Square D 60 amp, 2-pole ground fault circuit breaker rated 120/240 VAC with a 10kA interrupting rating at 120V, listed to UL and CSA standards for use in QO Series load centers. Built on the QO plug-in platform, this breaker includes a line neutral connection (3-wire), Class A 6 mA ground fault protection, and a thermal magnetic trip unit with long time and instantaneous trip functions for reliable circuit protection in residential, commercial, and industrial applications.
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Common Applications
- Hot tub and spa circuits requiring a load neutral
- Appliance circuits needing ground fault protection with a neutral connection
- QO Series load center and QOE260GFINM enclosure installations
- Residential, commercial, and industrial branch circuit protection
Key Features
- Line neutral connection: Includes a 3-wire pigtail neutral, unlike the base QO260GFI
- Class A ground fault protection: Trips at 6 mA for personnel protection
- Thermal magnetic trip unit: Long time and instantaneous trip functions
- Visi-Trip indicator: Visual confirmation of a tripped breaker
- Plug-in mounting: Direct fit into compatible QO Series load centers
Specifications
- Manufacturer: Square D (Schneider Electric)
- Catalog Number: QO260GFI3W
- Series/Frame: QO
- Poles: 2
- Amperage: 60A
- Voltage: 120/240 VAC
- Interrupting Rating: 10kA at 120V
- Ground Fault Protection: Class A, 6 mA
- Trip Type: Thermal magnetic
- Mounting: Plug-in
- Neutral Connection: Line neutral included (3-wire, pigtail)
- Certifications: UL Listed, CSA Approved
Product Identification
- Dimensions: 4.12 in H x 1.5 in W x 2.91 in D
- UPC: 785901966708
FAQ
- Q: What does the "3W" in QO260GFI3W mean? A: It indicates a 3-wire design with a line neutral connection, which the base QO260GFI does not include.
- Q: What is the interrupting rating of the QO260GFI3W? A: It is rated 10kA at 120V.
- Q: Can the QO260GFI3W be used without a load neutral? A: Yes. It functions the same as the QO260GFI for circuits without a load neutral; connect both hots and the neutral pigtail, and leave the load neutral screw empty.
- Q: What load centers accept the QO260GFI3W? A: It is designed for QO Series load centers and is the factory-installed breaker in the QOE260GFINM enclosure. <
- Part Number: QO260GFI3W
- Manufacturer : Appleton
- Brand : Appleton
- Category : Distribution Equipment
- Item Subcategory : Electrical protection / accessory
- Functions : Long Time and Instantaneous Trip
- UPC : 785901966708
- Dimensions : 4.12 in H x 1.5 in W x 2.91 in D
- Weight : 0.9 lb
