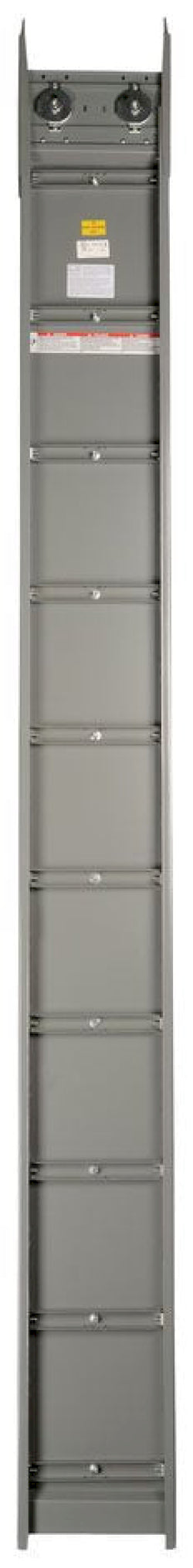

AP2320G10ST - Square D 2000A 600V 3-Phase I-Line II Busway Plug 10ft

AP2320G10ST

AP2320G10ST is a Square D plug-in busway section designed for high-amperage power distribution in industrial and commercial applications. This I-Line II series bus plug delivers reliable performance in three-phase, three-wire configurations with integral ground bus. AP2320G10ST features aluminum bus construction rated for 2000 amperes at 600 volts AC, 50/60 Hz. The 10-foot straight length section is engineered with sandwich-type construction to minimize voltage drop and support 100% continuous current operation. Interrupting rating is 125 kiloamperes at 3 cycles per UL standards.

• Amperage Rating: 2000A
• Voltage: 600VAC, 50/60 Hz
• Phase Configuration: 3-Phase, 3-Wire
• Bus Material: Aluminum
• Length: 10 feet
• Mounting Type: Plug-In
• Interrupting Rating: 125kA (3 Cycle UL)
• Integral Ground Bus: Yes
• Series: I-Line II
• Enclosure Type: IP54

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: AP2320G10ST
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Bus Plug
• Item Subcategory : Busway
• Family : I-Line II
• Type : AP
• Voltage : 600
• Amperage : 2000
• Phase : 3
• Wire : 3

Product Data

• UPC : 078590106141
• GTIN : 00785901061410
• Dimensions : Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
• Weight : 245
• Certification : UL listed file E22182
