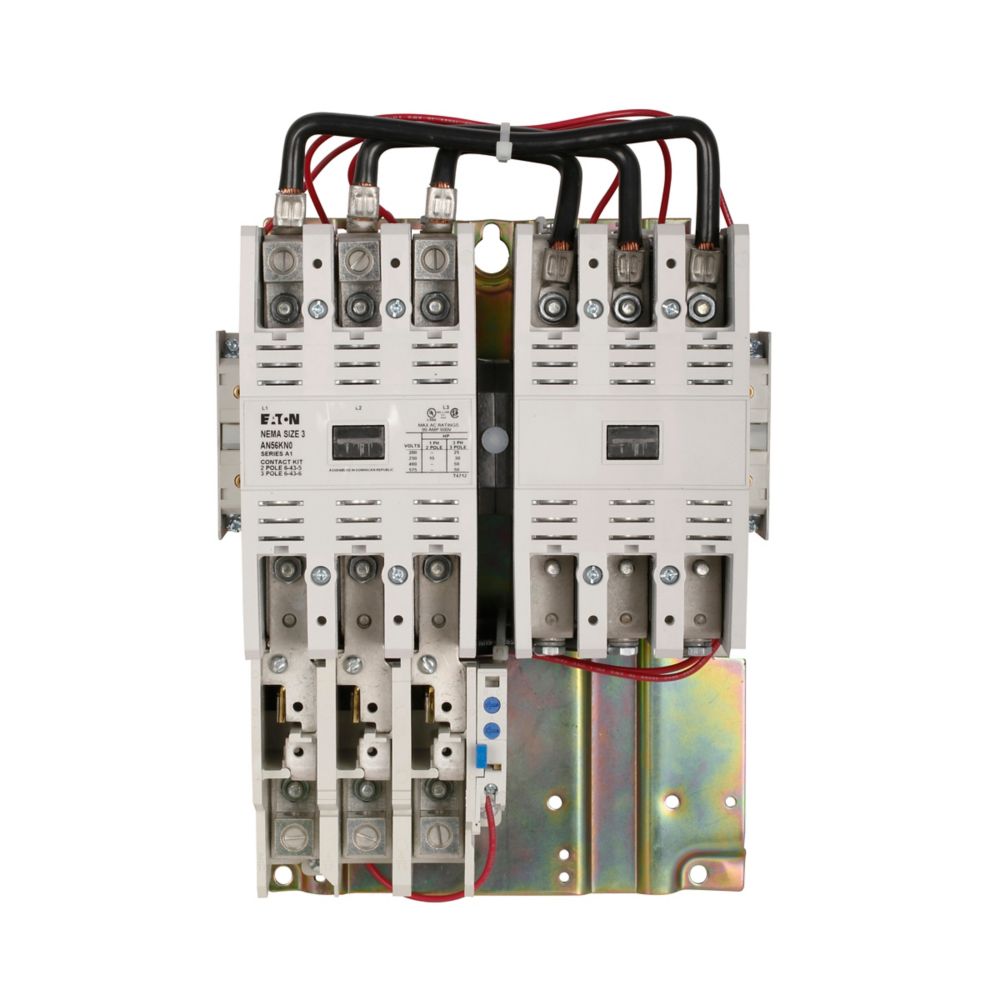

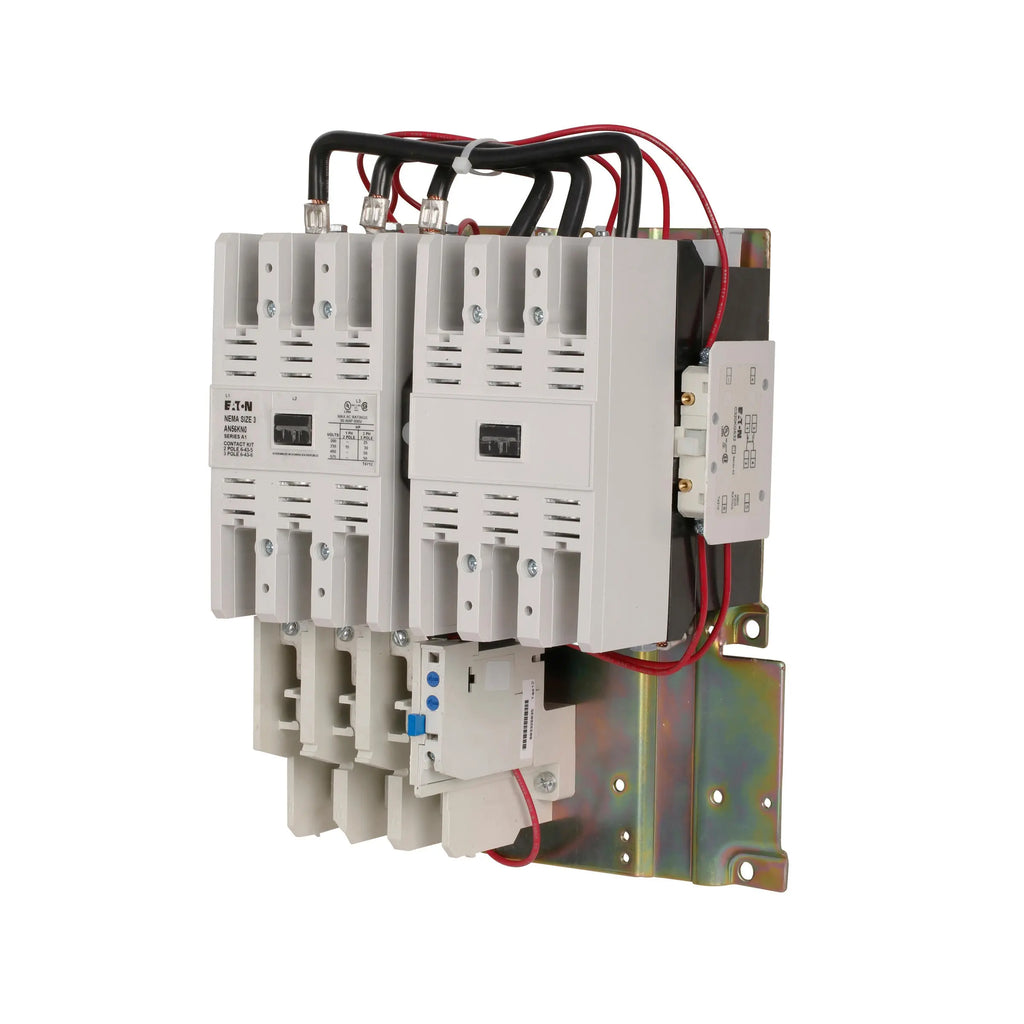

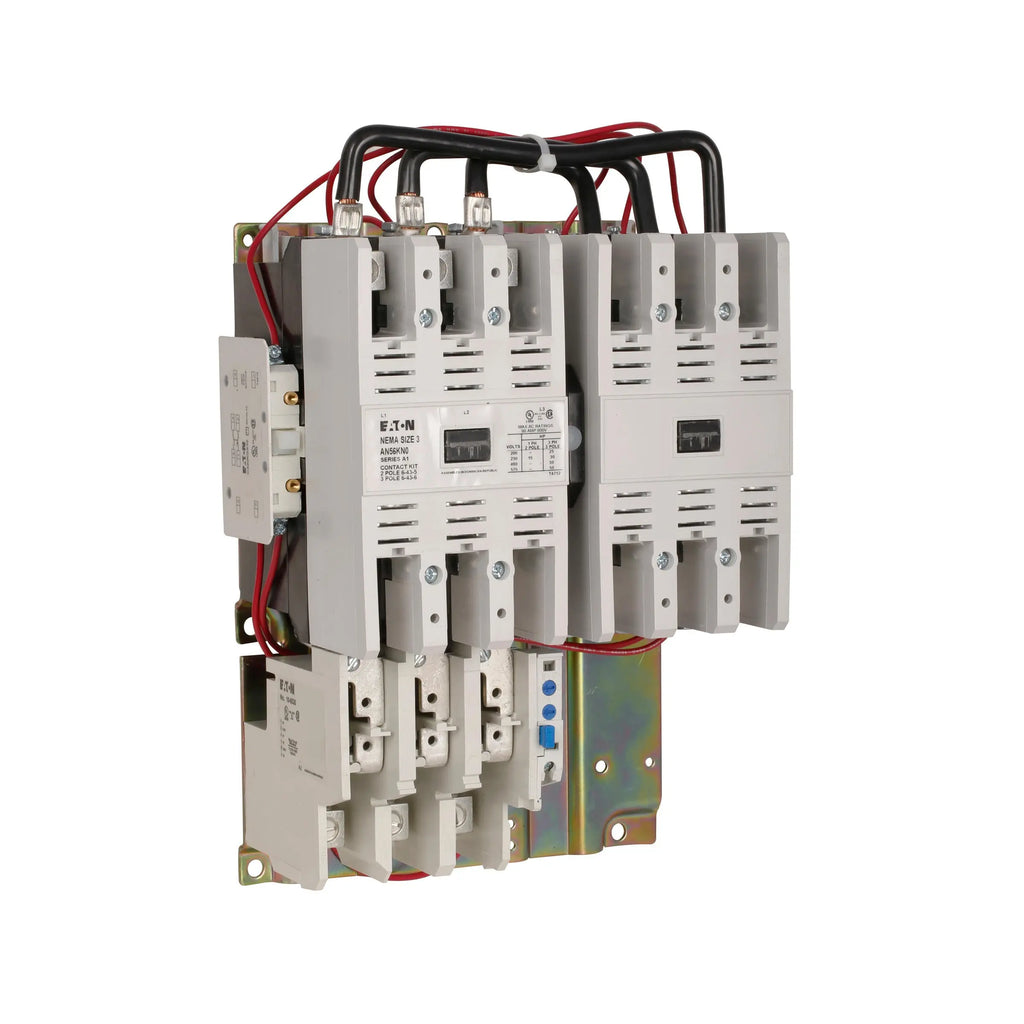

AN56SN0AB - Cutler Hammer 270A 600V 3 Pole NEMA 5 Full Voltage Reversing Motor Starter

AN56SN0AB

AN56SN0AB is a Cutler Hammer full voltage reversing motor starter designed for heavy-duty motor control applications.This Freedom Series motor starter features a 270 amp rating, 3 poles, and supports 3-phase power up to 600 volts. It includes a 110V coil and is sized NEMA 5. The starter is suitable for motors up to 75 HP at 208V, 100 HP at 240V, 150 HP at 380V (50 Hz), and 200 HP at 480/600V. It has an open enclosure and includes bimetallic ambient temperature compensated overloads with automatic/manual reset options. Auxiliary contacts are 1 normally open and 1 normally closed. The starter meets NEMA construction standards and is ideal for reversing motor control.

Key Specifications
• Amperage: 270A
• Voltage: 600V max
• Poles: 3
• Phase: 3-phase
• Horsepower Ratings: 75 HP at 208V, 100 HP at 240V, 150 HP at 380V (50 Hz), 200 HP at 480/600V
• Coil Voltage: 110V at 50 Hz, 120V at 60 Hz
• Size: NEMA 5
• Enclosure: Open
• Overload Type: Bimetallic ambient temperature compensated, Class 10/20
• Auxiliary Contacts: 1 NO, 1 NC
• Mounting Type: NEMA standard
• Series: Freedom Series

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: AN56SN0AB
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Freedom Series
• Type : AN56
• Voltage : 600
• Amperage : 270
• Phase : 3
• Poles : 3
• Coil Voltage Maximum : 120
• Coil Voltage Minimum : 110
• Nema Rating : 00

Product Data

• UPC : 782113972541
• GTIN : 00782113972541
• Country of Origin : Dominican Republic
• Dimensions : 7.75 in x 7.22 in x 12 in (Length/Depth x Height x Width)
• Weight : 25 lb
• Certification : UL Listed,CSA Certified
