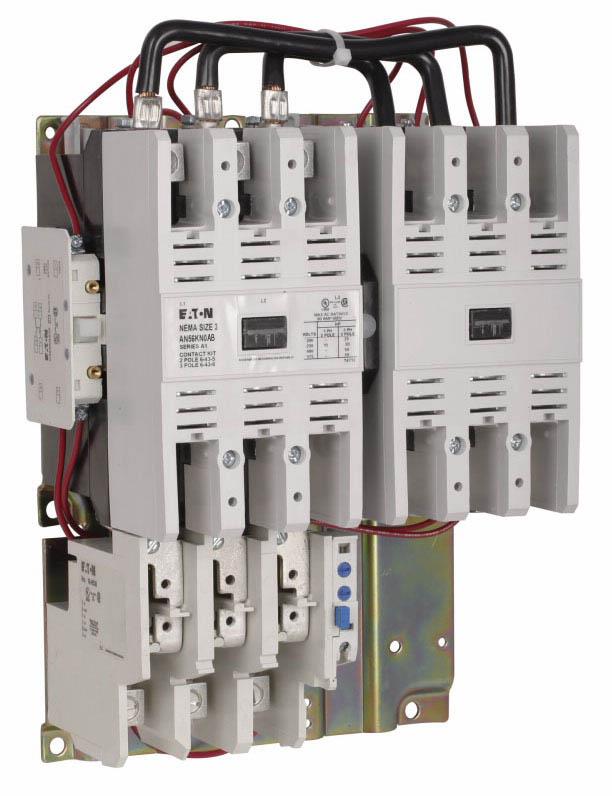

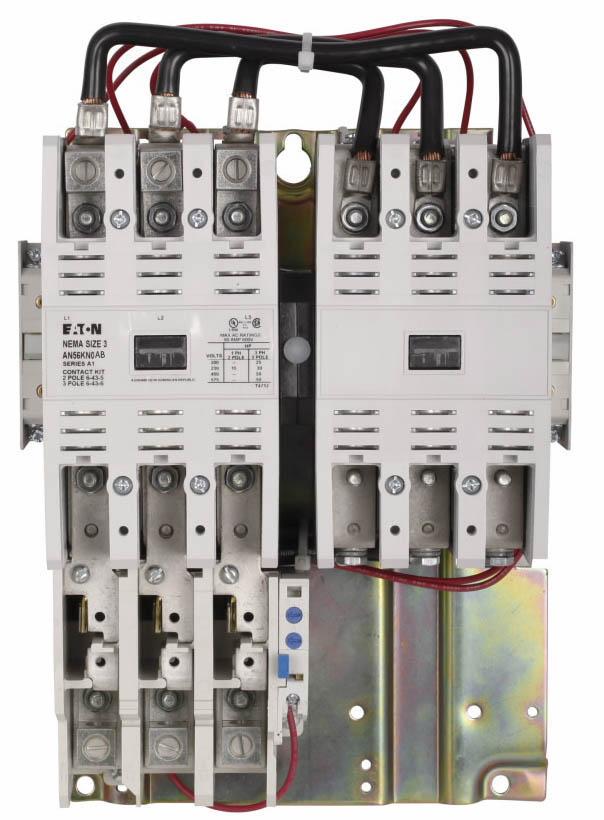

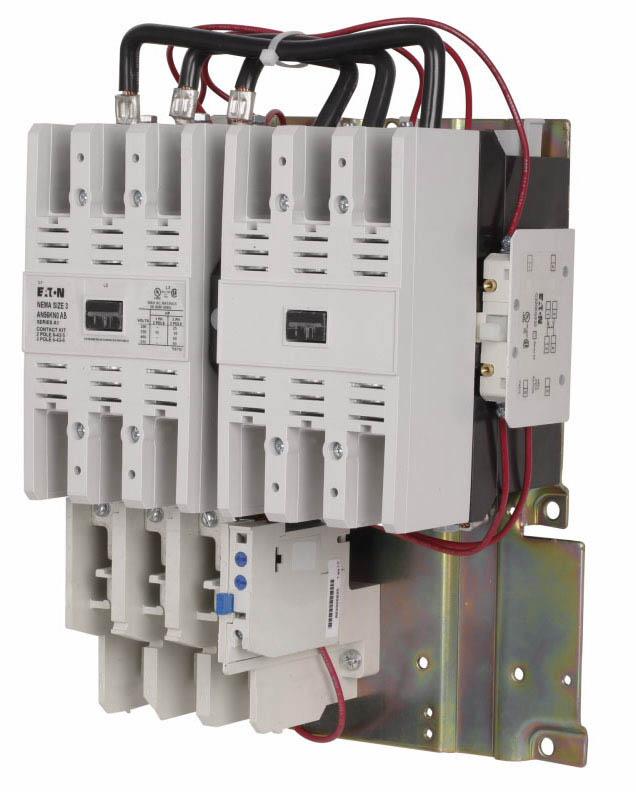

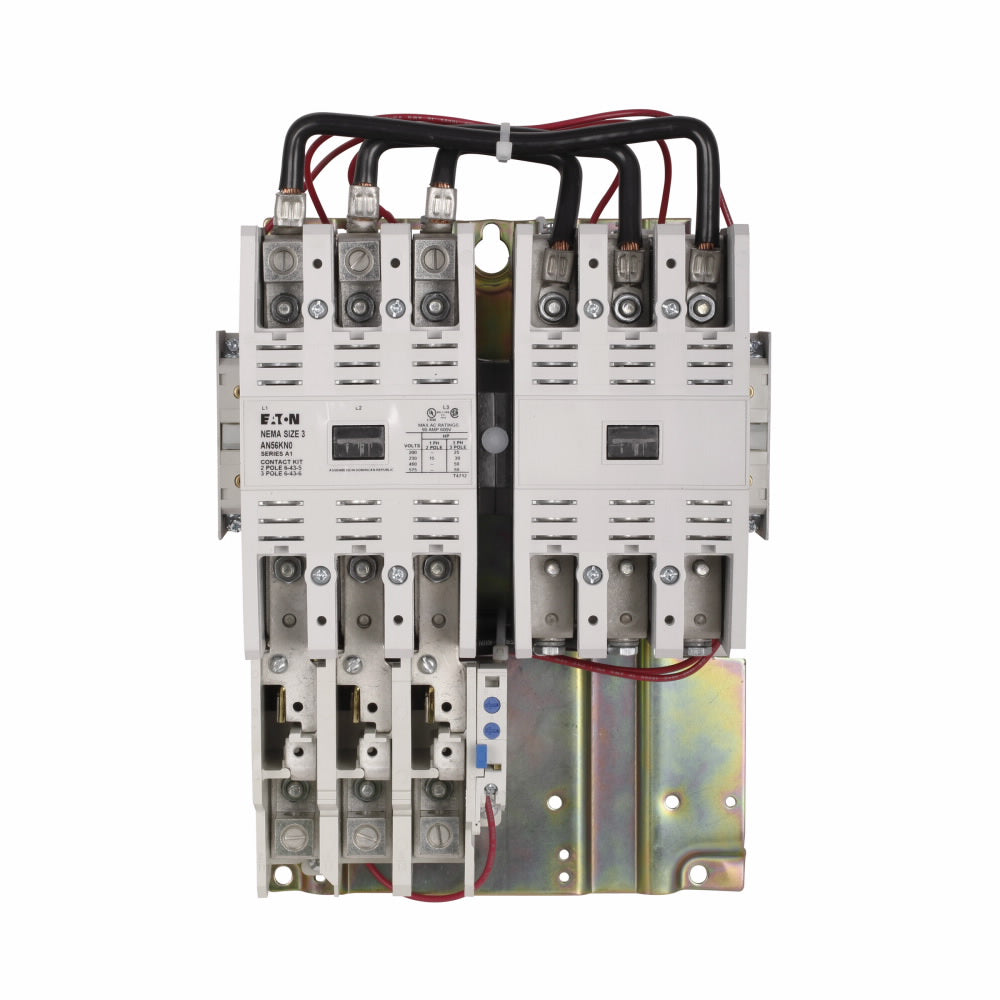

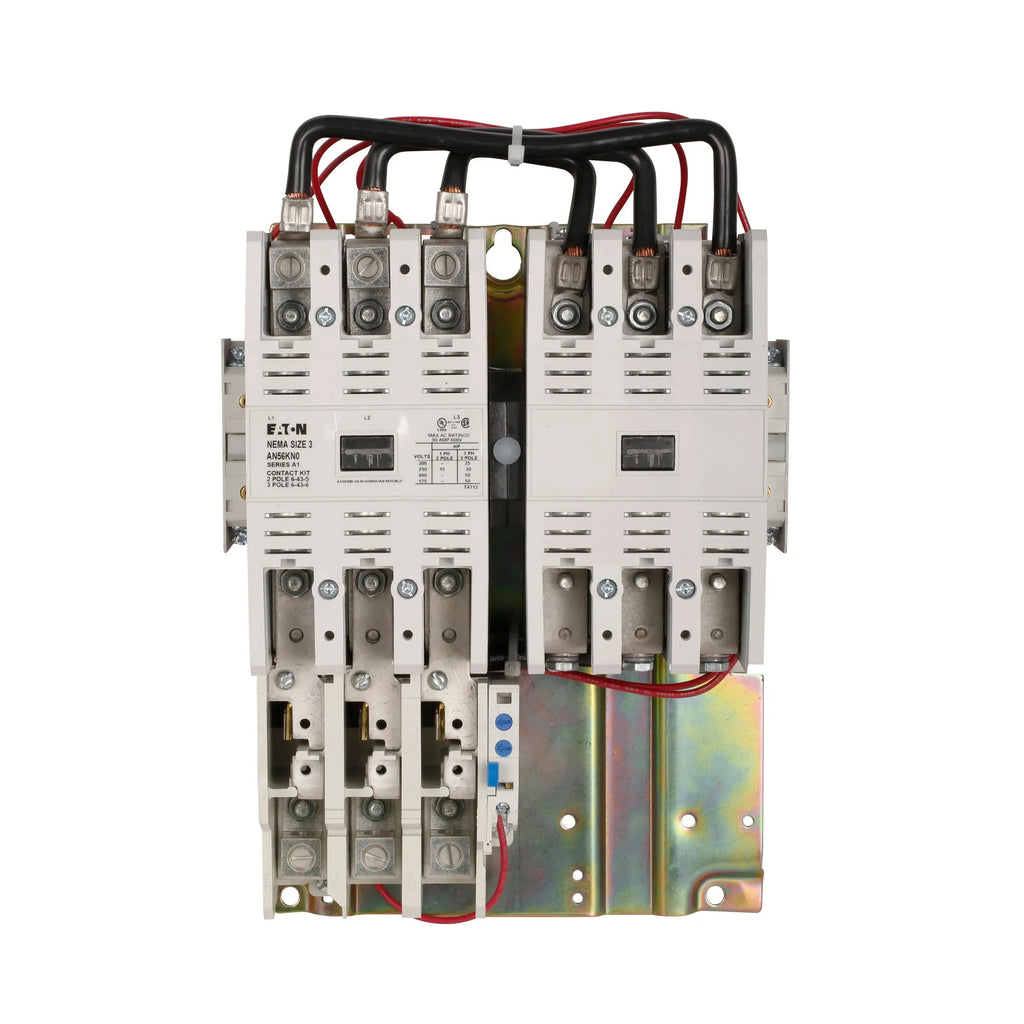

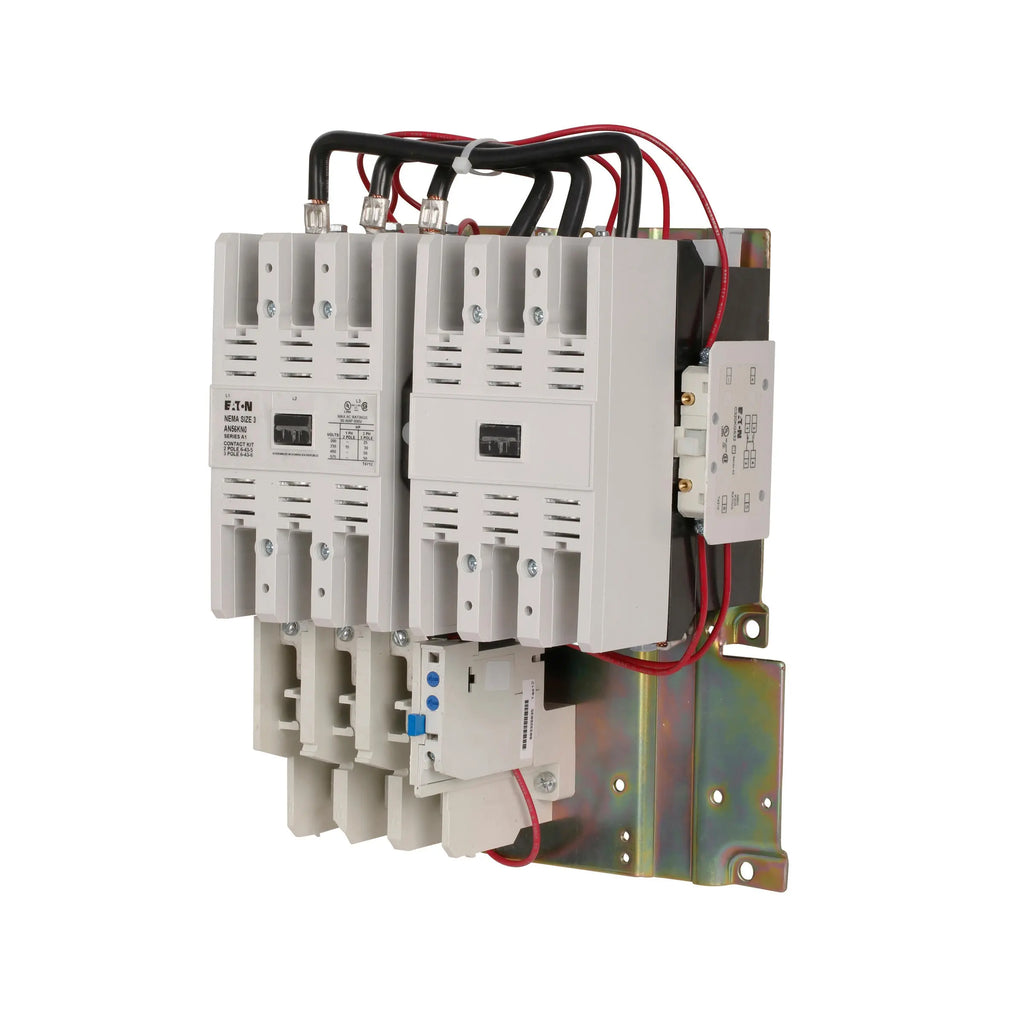

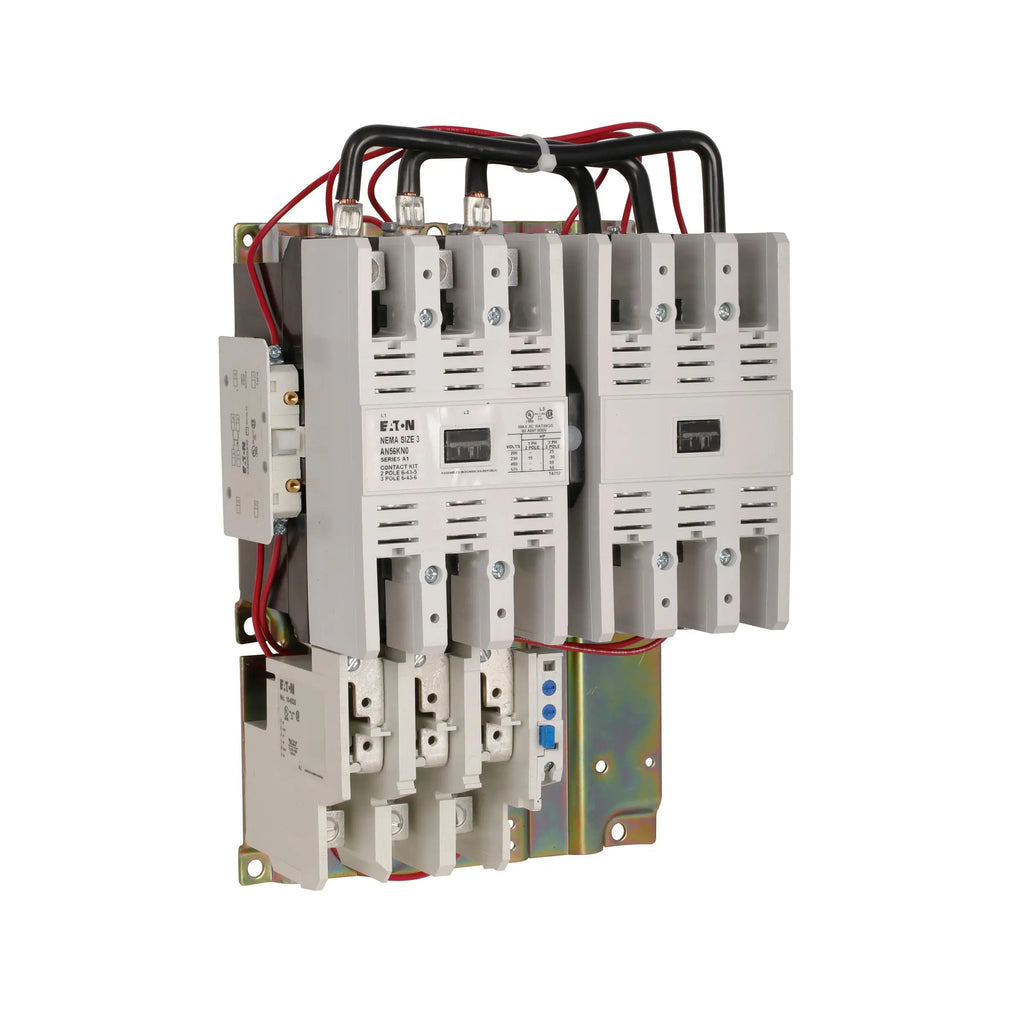

AN56NN0AB - Cutler Hammer Freedom Series 3 Pole 135A 600V NEMA 4 Full Voltage Reversing Motor Starter

AN56NN0AB

AN56NN0AB Cutler Hammer Freedom Series 3 pole, 135A, 600V full voltage reversing motor starter for industrial motor control applications.

This NEMA 4 open enclosure starter features a 110–120V coil, bimetallic ambient temperature compensated overload relay with automatic/manual reset (Class 10/20), and is part of the AN56 model series. Designed for reliable operation in demanding environments, it supports motor control up to 100 HP at 480/600V.

Key Specifications
• Amperage: 135A
• Voltage: 600V AC, 3 phase
• Poles: 3
• Mounting Type: Horizontal, open (NEMA 4)
• Interrupt Rating: Not specified in available data
• Series/Frame: AN56, NEMA 4
• Trip Unit: Bimetallic, ambient temperature compensated, Class 10/20, automatic/manual reset
• Certifications: NEMA construction standard
• Coil Voltage: 110V (50 Hz), 120V (60 Hz)
• Overload Relay: C306 Bimetal
• Auxiliary Contacts: 1NO-1NC
• Application: Motor and power control equipment

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: AN56NN0AB
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Freedom Series
• Type : AN56
• Voltage : 600
• Amperage : 135
• Phase : 3
• Poles : 3
• Coil Voltage Maximum : 120
• Coil Voltage Minimum : 110

Product Data

• UPC : 078211360412
• GTIN : 00782113604121
• Country of Origin : Dominican Republic
• Dimensions : 6.75 in x 4.63 in x 6.63 in (Length/Depth x Height x Width)
• Weight : 9.3 lb
• Certification : CSA Certified,UL Listed
