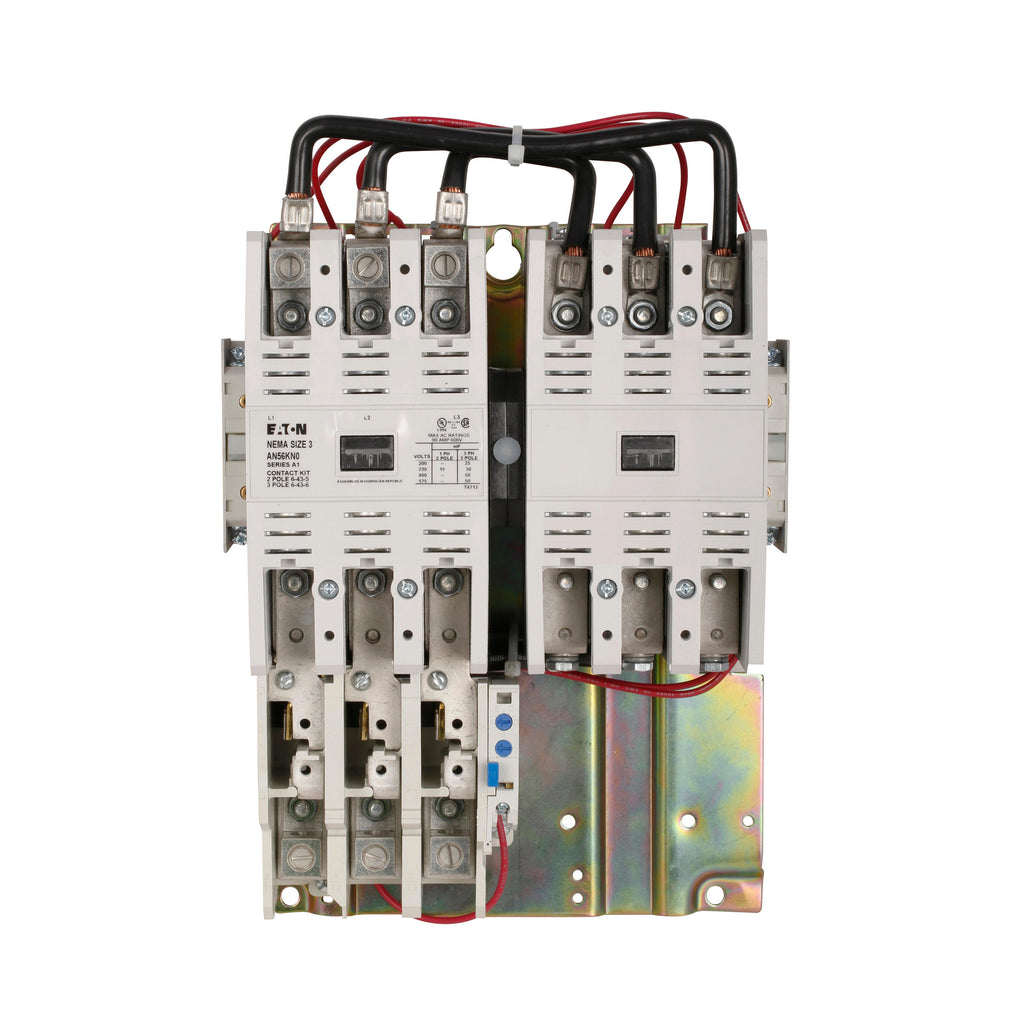

AN56KN0B - Cutler Hammer Freedom Series 90A 600V 3 Pole NEMA Size 3 Reversing Motor Starter 220V Coil

AN56KN0B

This motor starter features a 90 amp rating, 600 volt maximum voltage, and 3 poles with NEMA Size 3 frame. It includes a 220V coil and supports reversing motor control with reset overload relay functionality. The starter is suitable for general duty control with a high electrical and mechanical operation rating, supporting motors up to 25 HP at 208V, 30 HP at 240V, and 50 HP at 480/600V.

Key Specifications
• Manufacturer: Cutler Hammer (Eaton)
• Part Number: AN56KN0B
• Series: Freedom Series
• Amperage: 90 Amps
• Voltage: 600 VAC max
• Poles: 3 Pole
• Coil Voltage: 220V
• Frame Size: NEMA Size 3
• Type: Reversing Motor Starter
• Horsepower Ratings: 25 HP at 208V, 30 HP at 240V, 50 HP at 480/600V
• Overload Relay: Reset type
• Interrupt Rating: Designed for 2,000,000 electrical and 20,000,000 mechanical operations

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.




Specifications

• Part Number: AN56KN0B
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Freedom Series
• Type : AN56
• Voltage : 600
• Amperage : 90
• Phase : 3
• Poles : 3
• Coil Voltage Maximum : 240
• Coil Voltage Minimum : 220



Product Data

• UPC : 782113622460
• GTIN : 00782113622460
• Country of Origin : Dominican Republic
• Dimensions : 6.75 in x 4.63 in x 6.63 in (Length/Depth x Height x Width)
• Weight : 9.3
• Certification : UL Listed,CSA Certified
