2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Motor Starter
Description
AN56GN0AB

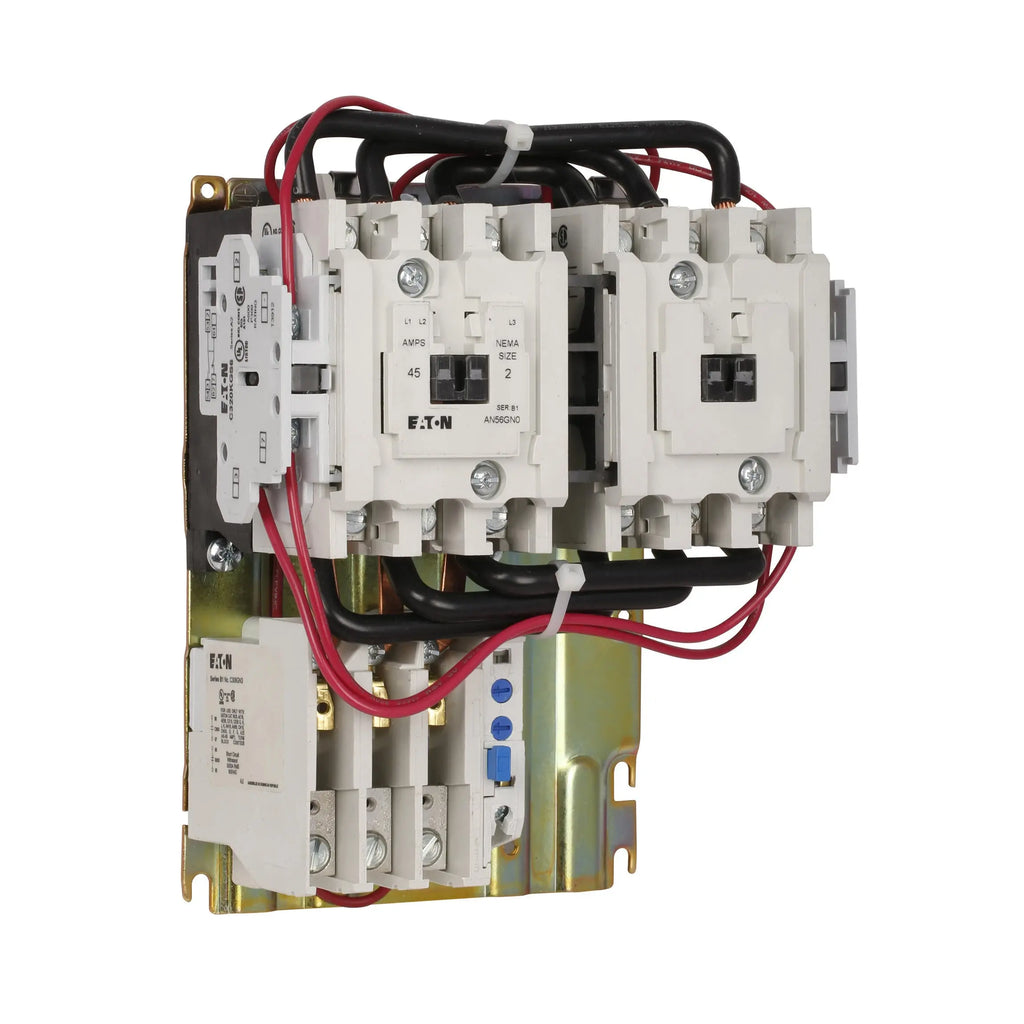

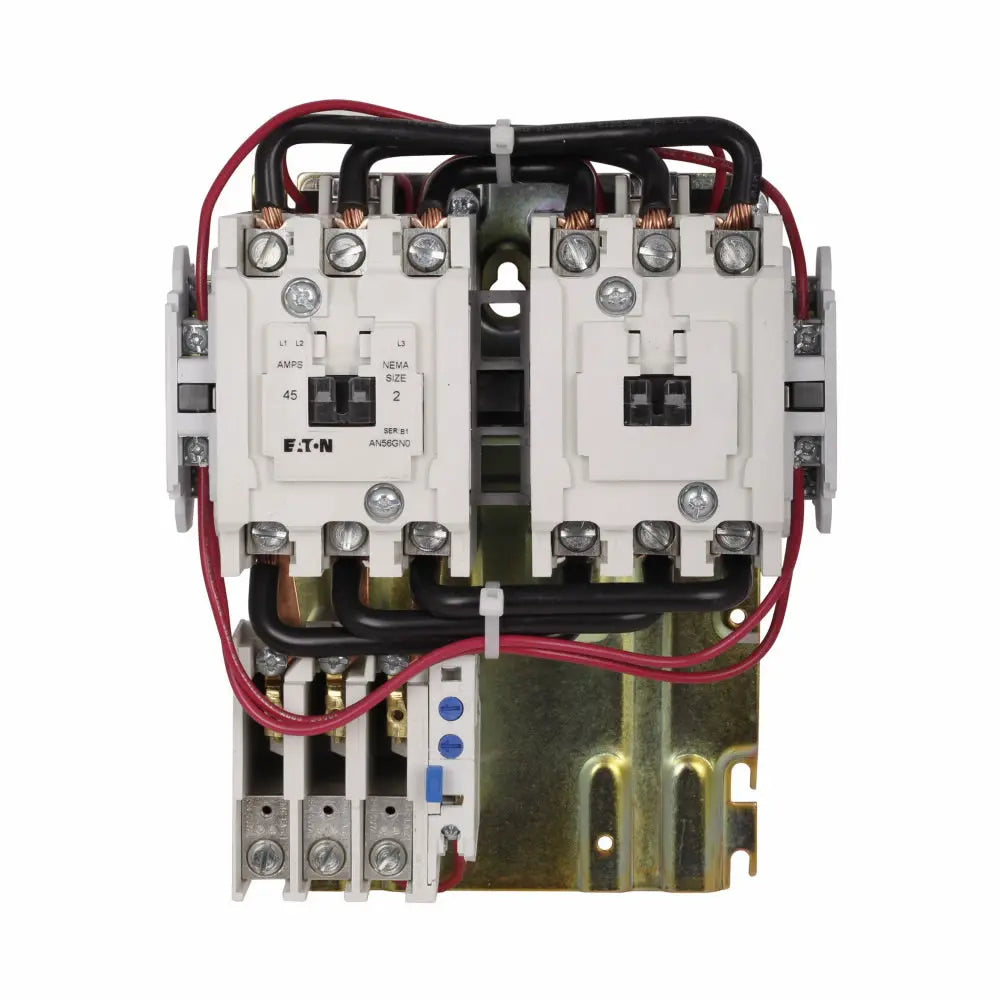

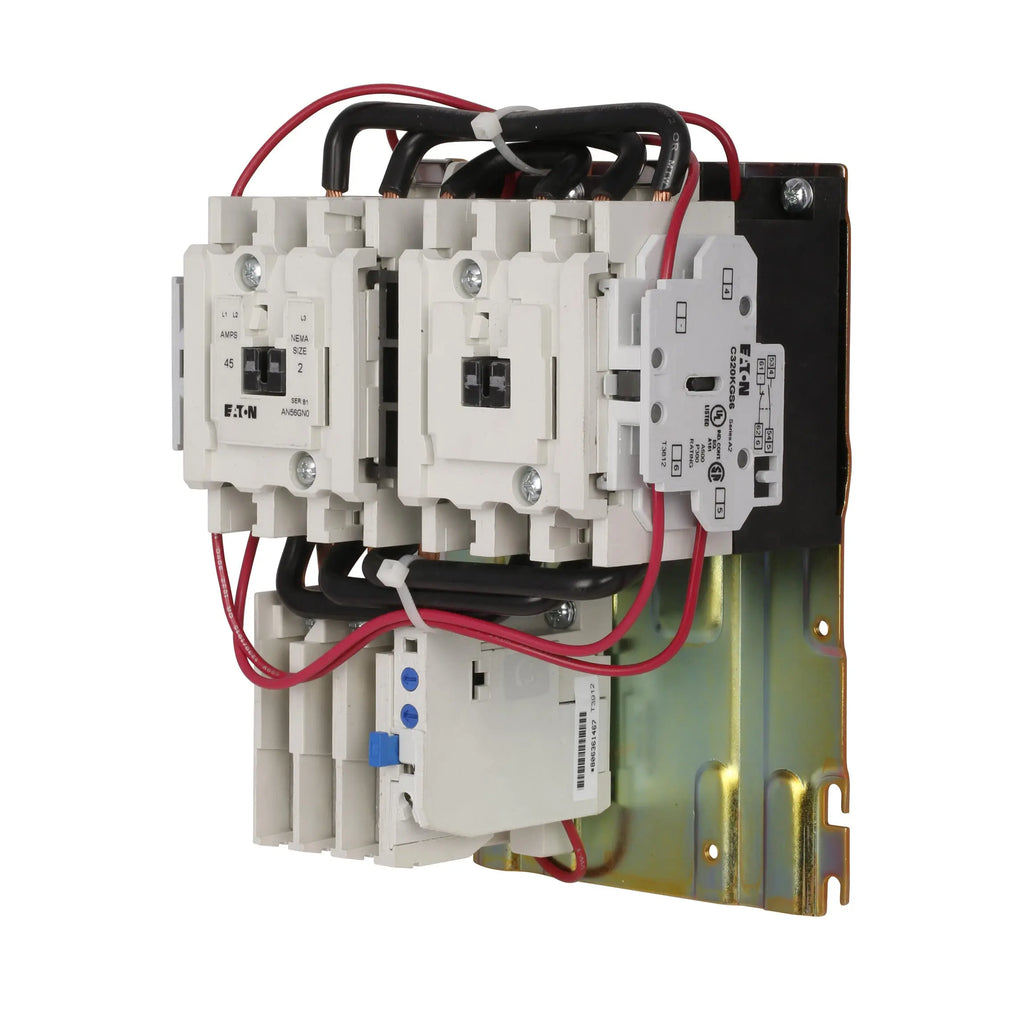

AN56GN0AB is a Cutler Hammer Freedom Series motor starter designed for reliable motor control applications.This motor starter features a 45 amp rating, 600 volt capacity, and three poles. It includes a reversing reset overload relay and is suitable for use with single-phase and three-phase motors. The starter supports motor horsepower ratings up to 25 hp at 480/600V and comes with a 110V coil. Heater packs must be purchased separately. It is UL listed and designed for NEMA open mounting.
- Key Specifications
- Amperage: 45A
- Voltage: 600V
- Number of Poles: 3
- Mounting Type: NEMA Open
- Series/Frame: Freedom Series
- Trip Unit: Reversing Reset Overload Relay
- Coil Voltage: 110V
- Horsepower Ratings: 3 hp at 115V, 7.5 hp at 230V, 10 hp at 208V, 15 hp at 240V, 25 hp at 480/600V
- Certifications: UL Listed
- Frequency: 50/60 Hz
- Part Number: AN56GN0AB
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : Freedom Series
- Type : AN56
- Voltage : 600
- Amperage : 45
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 120
- Coil Voltage Minimum : 110
- Nema Rating : 00
- UPC : 782113972534
- GTIN : 00782113972534
- Country of Origin : Dominican Republic
- Dimensions : 4.44 in x 8.08 in x 5.71 in (Length/Depth x Height x Width)
- Weight : 3.3 lb
- Certification : CSA Certified,UL Listed
