Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Motor Starter
Description
AN56DN0AB

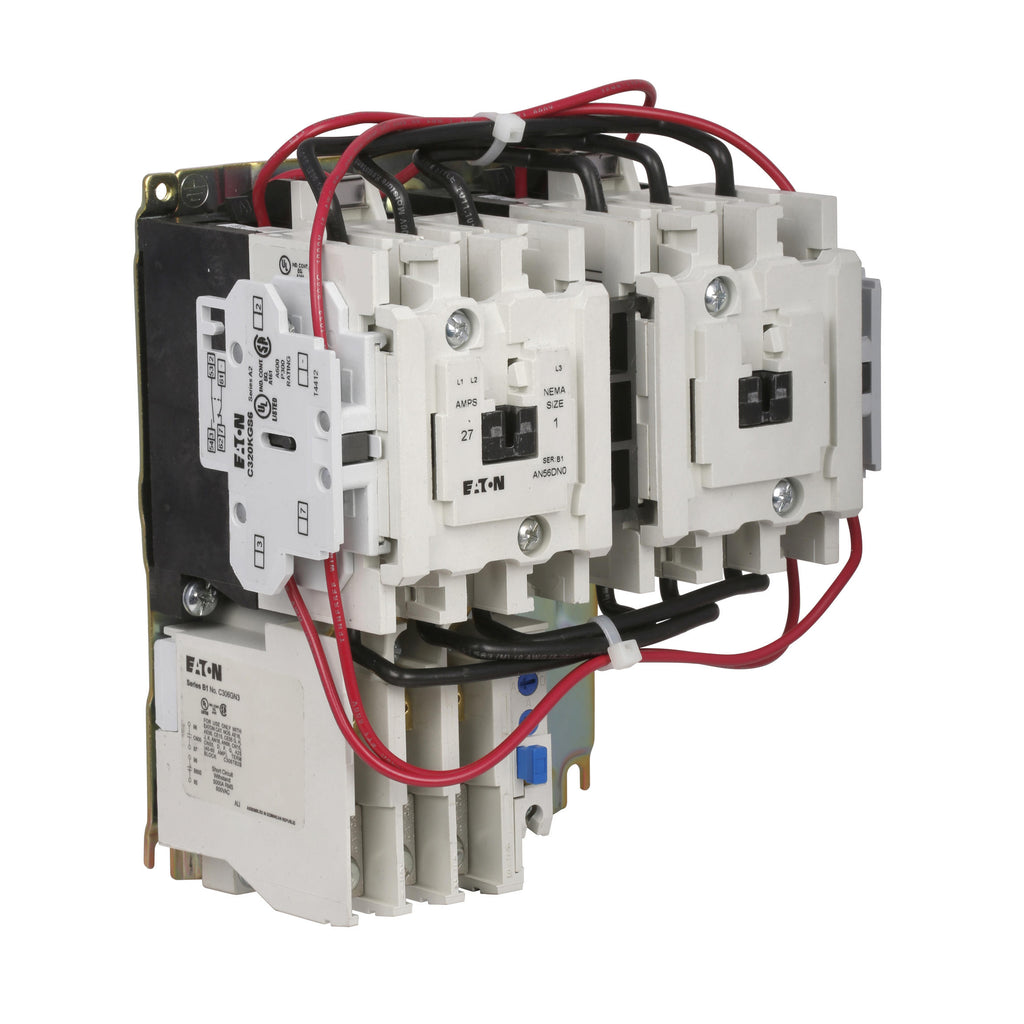

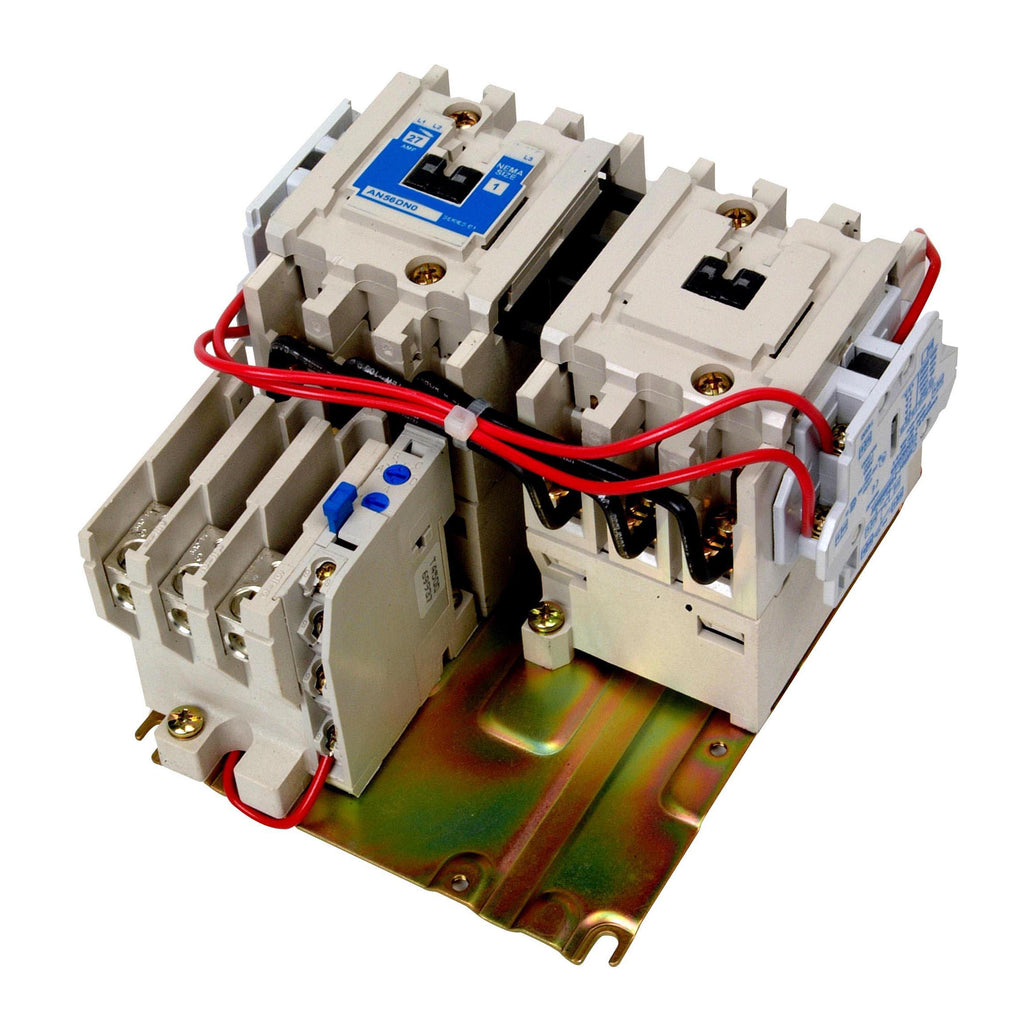

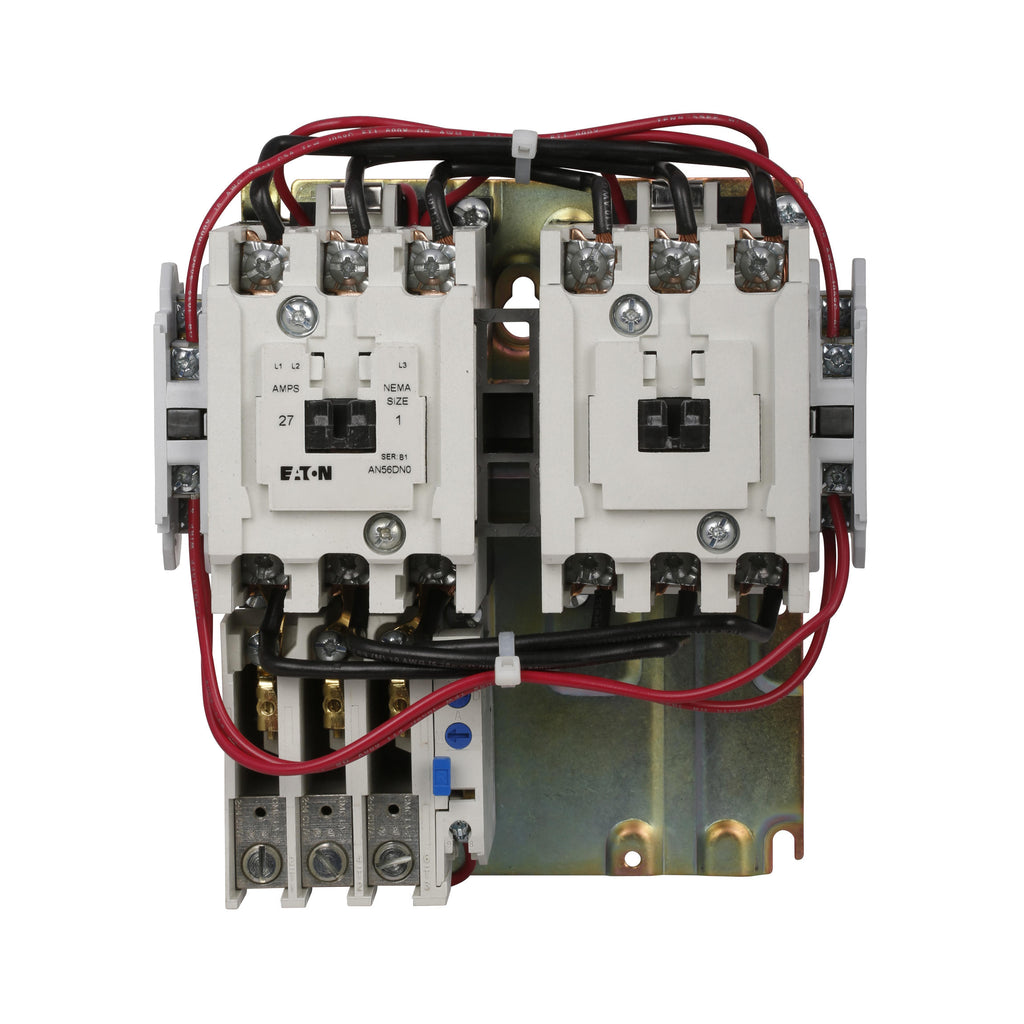

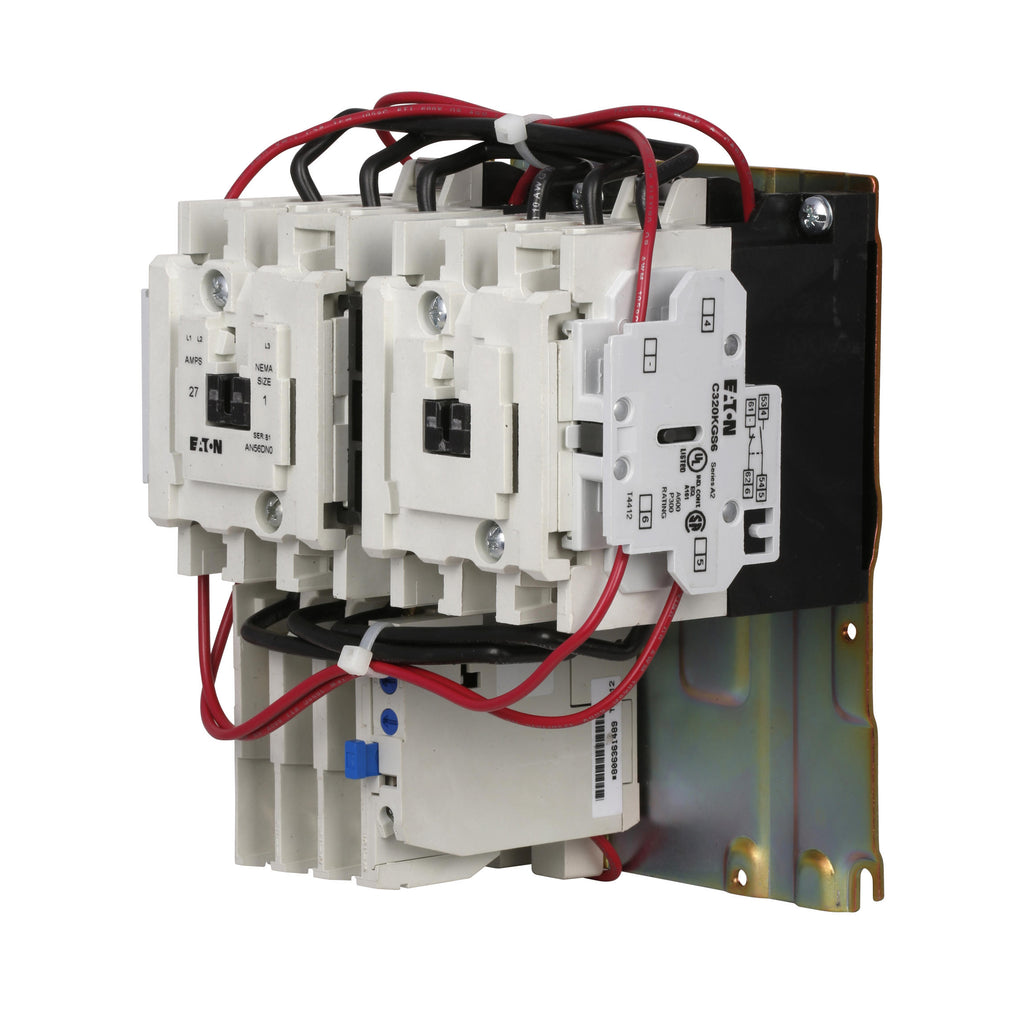

AN56DN0AB is a Cutler Hammer Freedom Series NEMA motor control starter designed for reversing applications with a 27A rating and 120V coil. This three-pole motor starter features a magnetic coil, interchangeable bimetallic overload relay (C306 series), and is suitable for both single-phase and three-phase systems. It is rated for up to 10 hp at 480/600V and includes a 1NO auxiliary contact. Surface mounting is standard, and heater packs must be purchased separately.
- Part Number: AN56DN0AB
- Manufacturer: Cutler Hammer (Eaton)
- Series: Freedom Series
- Frame Size: NEMA Size 1
- Amperage Rating: 27A
- Coil Voltage: 120V/60Hz or 110V/50Hz
- Poles: 3
- Mounting Type: Surface
- Overload Type: Interchangeable Bimetallic (C306)
- Interrupt Rating: 600V
- Phase: Single-phase, Three-phase
- Certifications: UL Listed, CSA Certified
Specifications
- Part Number: AN56DN0AB
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : Freedom Series
- Type : AN56
- Voltage : 600
- Amperage : 27
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 120
- Coil Voltage Minimum : 110
- Nema Rating : 00
Product Data
- UPC : 782113972503
- GTIN : 00782113972503
- Country of Origin : Dominican Republic
- Dimensions : 4.61 in x 3.31 in x 4.38 in (Length/Depth x Height x Width)
- Weight : 2.6 lb
- Certification : CSA Certified,UL Listed
