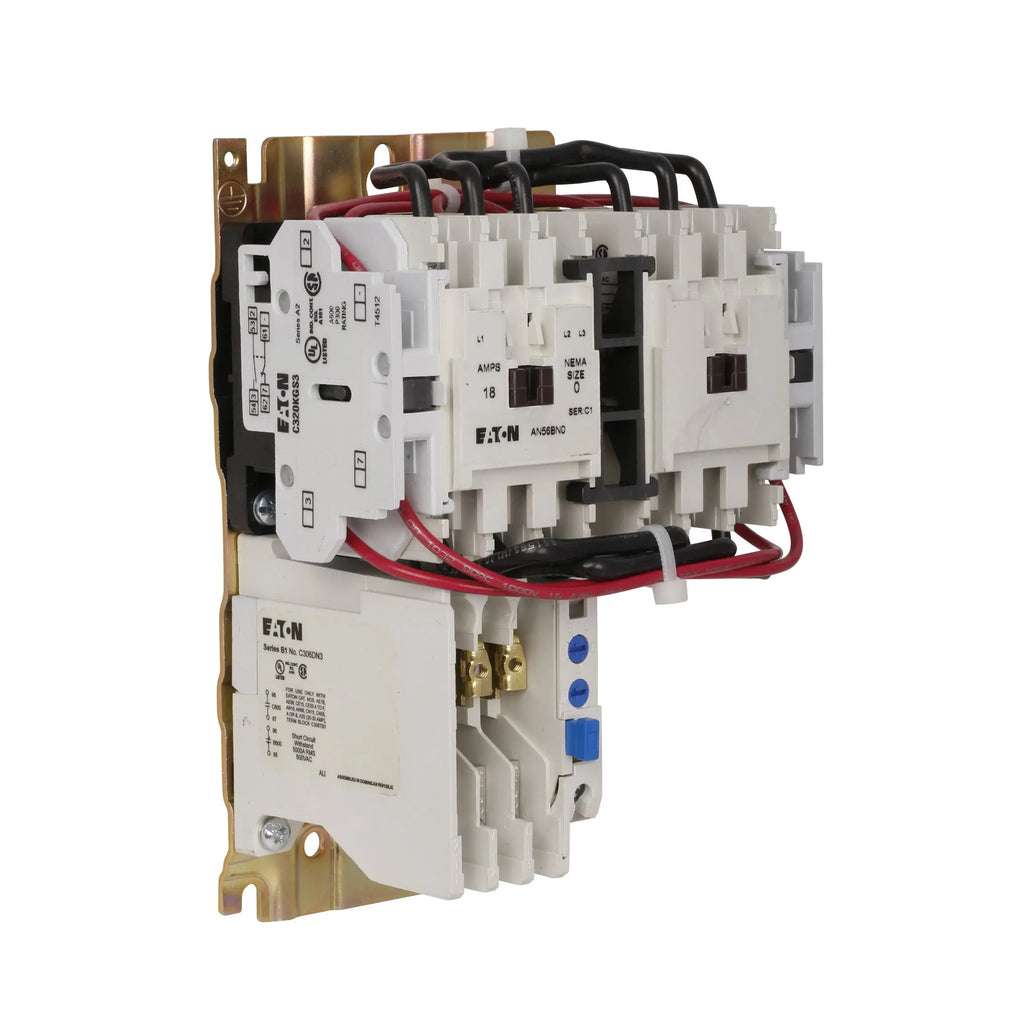

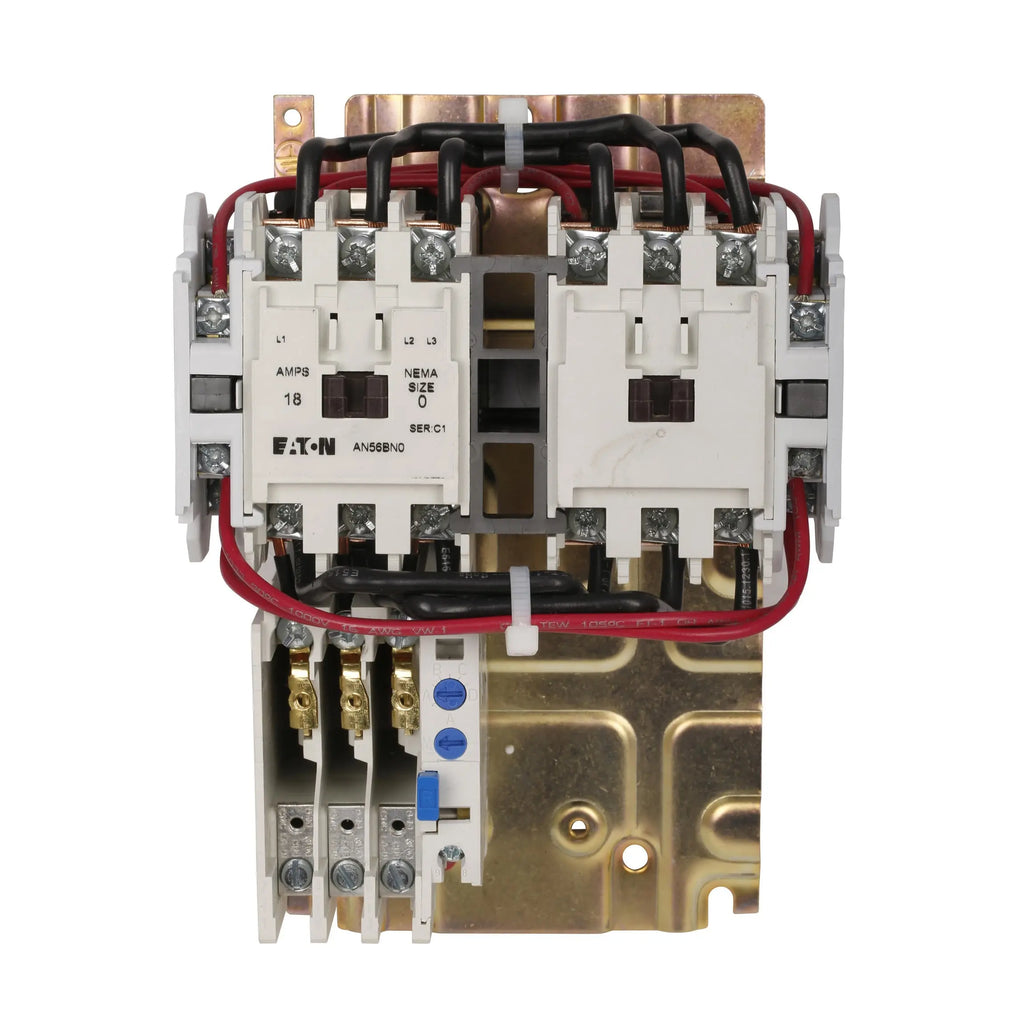

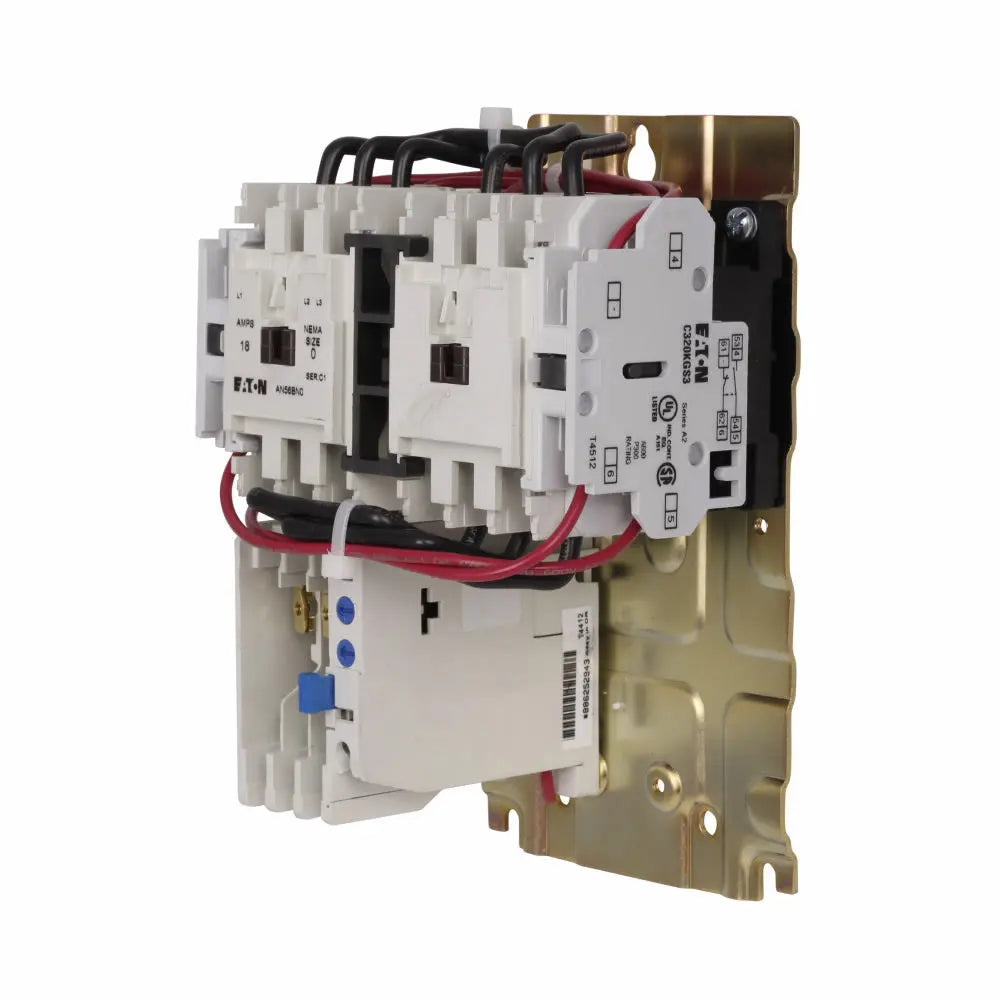

AN56BN0AC - Cutler Hammer (Eaton) 18A 600V 3-Pole NEMA Size 0 Reversing Motor Starter, Freedom Series, 120V Coil, Open Enclosure

AN56BN0AC

AN56BN0AC is a Cutler Hammer (Eaton) NEMA Size 0 reversing motor starter designed for reliable motor control in industrial applications.

This Freedom Series starter features a 3-pole contactor, 18A current rating, and 600VAC voltage rating, with a 120VAC coil. It is rated for motors up to 2 HP at 115V, 3 HP at 230V, 7-1/2 HP at 208/240V, and 10 HP at 480/600V. The open enclosure design is suitable for panel mounting, and the unit includes a reset overload relay for enhanced protection.

Key Specifications
• Part Number: AN56BN0AC
• Manufacturer: Cutler Hammer (Eaton)
• Amperage: 18A
• Voltage: 600VAC
• Poles: 3
• Mounting Type: Open, panel mount
• Interrupt Rating: Not specified in available data
• Series/Frame: Freedom Series, AN56 frame
• Trip Unit: Reset overload relay
• Certifications: NEMA rated
• Coil Voltage: 120VAC
• Enclosure: NEMA Open
• Motor HP Ratings: 2 HP @ 115V, 3 HP @ 230V, 7-1/2 HP @ 208/240V, 10 HP @ 480/600V

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: AN56BN0AC
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Freedom Series
• Type : AN56
• Voltage : 600
• Amperage : 18
• Phase : 3
• Poles : 3
• Coil Voltage Maximum : 120
• Coil Voltage Minimum : 110
• Nema Rating : 00

Product Data

• UPC : 782113972480
• GTIN : 00782113972480
• Country of Origin : Dominican Republic
• Dimensions : 4.61 in x 3.31 in x 4.38 in (Length/Depth x Height x Width)
• Weight : 2.6 lb
• Certification : CSA Certified,UL Listed
