AN56AN0AC - Cutler Hammer Freedom NEMA Motor Control Starter 1/3 HP 115V 1 HP 230V 1-1/2 HP 208/240V 2 HP 480/600V 120V Coil

AN56AN0AC

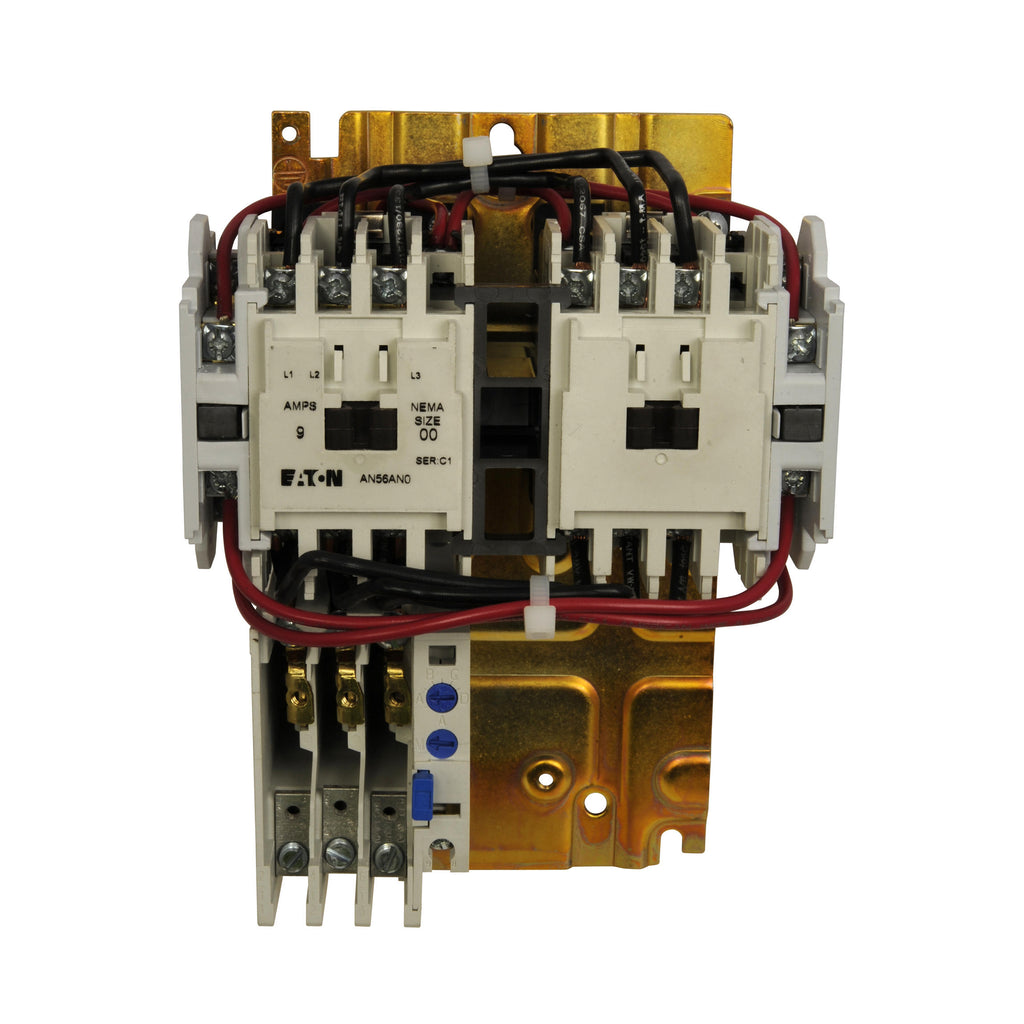

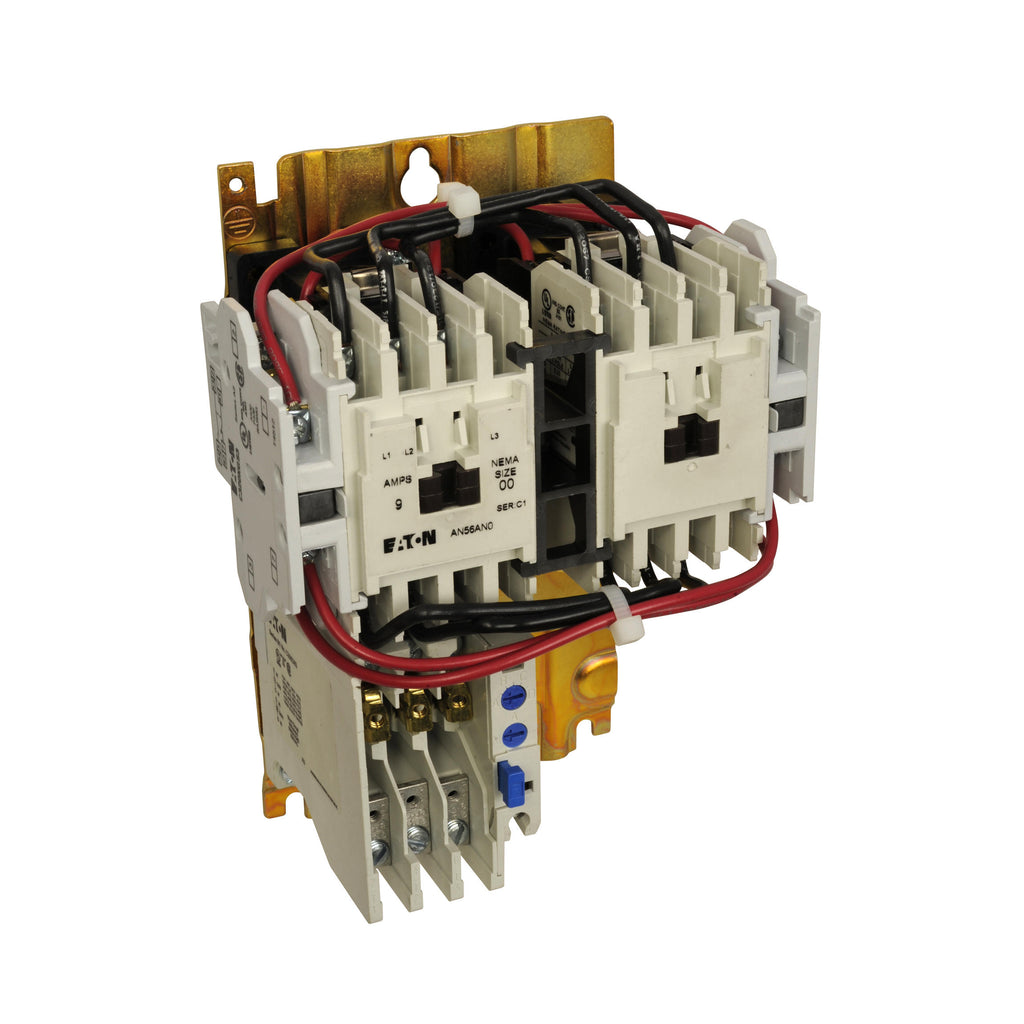

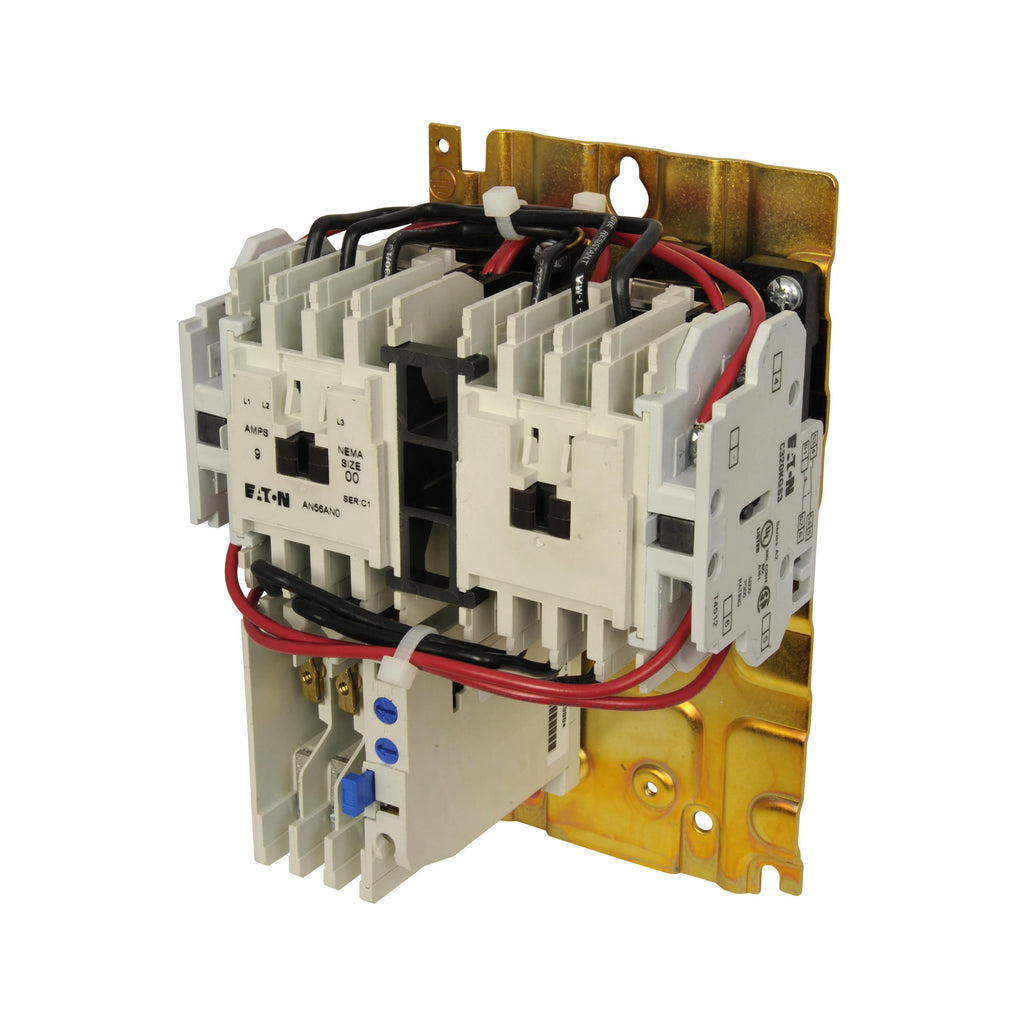

AN56AN0AC is a Cutler Hammer Freedom NEMA motor control starter designed for reliable motor protection and control in a variety of industrial applications. This starter features a 120V coil and is suitable for motors up to 2 HP at 480/600V, 1-1/2 HP at 208/240V, 1 HP at 230V, and 1/3 HP at 115V. It is built for open reversing applications and provides robust performance in demanding environments.Engineered for durability and ease of use, the AN56AN0AC starter is part of the Freedom Series and is designed for NEMA open reversing applications. It offers a compact design for efficient mounting and reliable operation. The starter is compatible with a wide range of motor voltages and horsepower ratings, making it a versatile solution for motor control needs.

• Part Number: AN56AN0AC
• Manufacturer: Cutler Hammer
• Series: Freedom
• Mounting Type: NEMA Open Reversing
• Coil Voltage: 120V/60 Hz or 110V/50 Hz
• Maximum Horsepower: 2 HP at 480/600V
• Maximum Horsepower: 1-1/2 HP at 208/240V
• Maximum Horsepower: 1 HP at 230V
• Maximum Horsepower: 1/3 HP at 115V
• Application: Motor Control Starter
• Frame Size: 00
• Control Type: Reversing

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: AN56AN0AC
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Freedom Series
• Type : AN56
• Voltage : 600
• Amperage : 9
• Phase : 3
• Poles : 3
• Coil Voltage Maximum : 120
• Coil Voltage Minimum : 110
• Nema Rating : 00

Product Data

• UPC : 782113972466
• GTIN : 00782113972466
• Country of Origin : Dominican Republic
• Dimensions : 4.61 in x 3.31 in x 4.38 in (Length/Depth x Height x Width)
• Weight : 2.6 lb
• Certification : CSA Certified,UL Listed
