Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Motor Starter
Description
AN19BN0A5E020

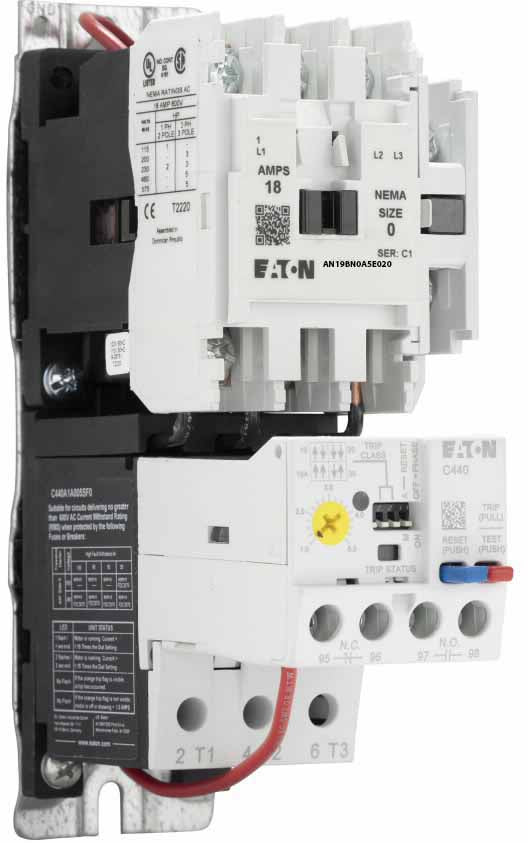

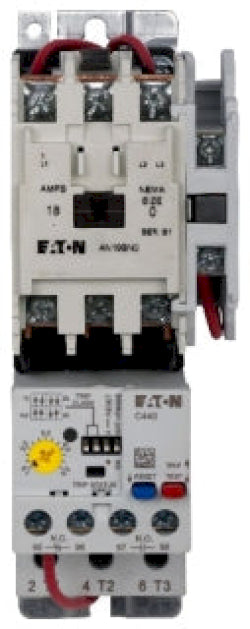

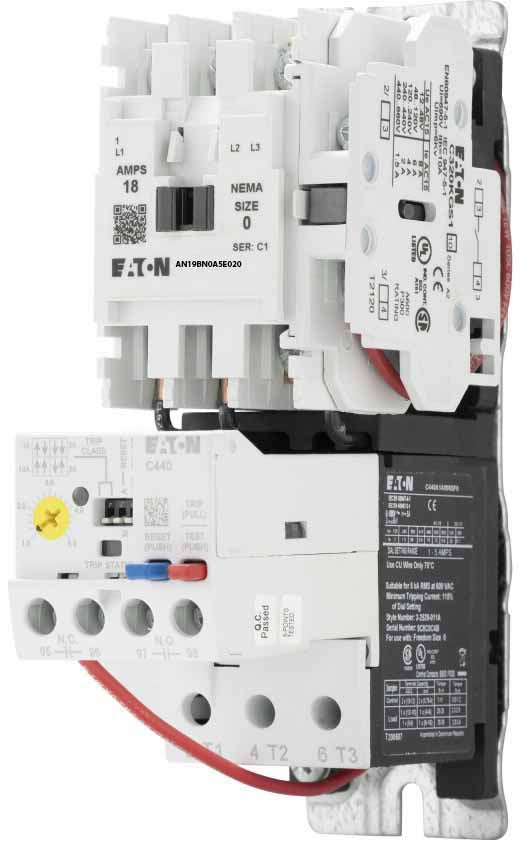

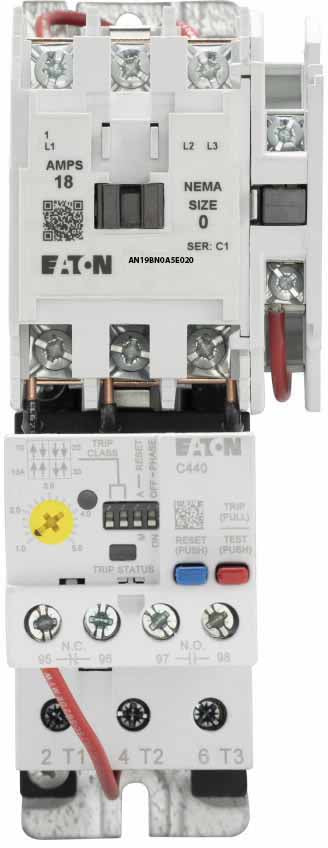

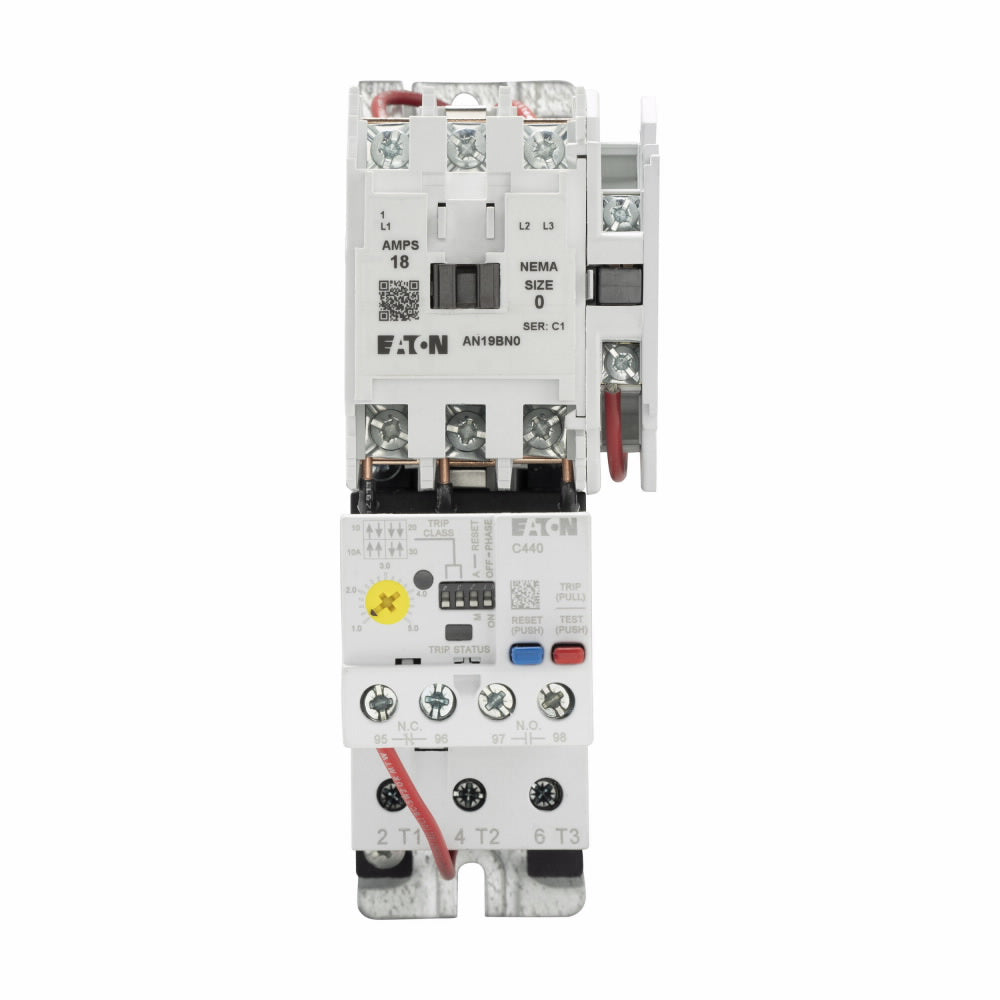

AN19BN0A5E020 is a Cutler Hammer Freedom Series motor starter designed for full voltage non-reversing motor control applications.This Eaton Freedom NEMA Size 0 starter features a 3-pole configuration with an 18 amp rating and 600 VAC voltage capacity. It includes a C440 electronic overload relay with a 4-20A adjustable trip range and is designed for horizontal mounting in an open enclosure.
- Key Specifications
- Manufacturer: Cutler Hammer (Eaton)
- Amperage: 18 Amps
- Voltage: 600 VAC
- Poles: 3
- Mounting Type: Horizontal
- Series/Frame: Freedom Series, NEMA Size 0
- Trip Unit: C440 Electronic Overload Relay (4-20A range)
- Coil Voltage: 120 VAC (50/60 Hz)
- Phase: 3
- Enclosure: Open
- Interrupt Rating: Standard for NEMA Size 0
- Weight: Approx. 1.75 lbs
Specifications
- Part Number: AN19BN0A5E020
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : Freedom Series
- Type : AN19
- Voltage : 2
- Amperage : 18
- Phase : 3
- Poles : 3
- Horse Power : HP @ 3 Phase - 208V 3 hp HP @ 3 Phase - 240V 3 hp HP @ 3 Phase - 480V 5 hp
- Aux Contacts : 1NO
- Coil Voltage Maximum : 120
- Coil Voltage Minimum : 120
Product Data
- UPC : 786685414706
- GTIN : 00786685414706
- Country of Origin : Dominican Republic
- Dimensions : 4.9 in x 6.6 in x 1.97 in (Length/Depth x Height x Width)
- Weight : 1.75 lb
- Certification : CE, CSA, UL Listed
