AN19BN0A5E005 - Eaton Cutler Hammer Freedom Series NEMA Size 0 Motor Starter, 18A, 110/120VAC, 3 Pole, Non-Reversing, C440 Electronic Overload Relay, Horizontal Mount, UL/CSA/CE/NEMA Certified

AN19BN0A5E005

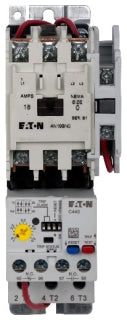

AN19BN0A5E005 is an Eaton Cutler Hammer Freedom Series NEMA Size 0 motor starter designed for reliable three-phase motor control.

This full voltage, non-reversing starter features a C440 electronic overload relay with adjustable trip class (10a, 10, 20, 30), phase loss protection, and optional ground fault and phase unbalance detection. The unit is housed in an open enclosure, suitable for horizontal surface mounting, and is compliant with major industry standards.

Key Specifications
• Amperage: 18A
• Voltage: 110/120VAC (coil), 230/460VAC (motor)
• Poles: 3
• Mounting Type: Horizontal, surface
• Interrupt Rating: Not specified in available data
• Series/Frame: Freedom Series, NEMA Size 0
• Trip Unit: C440 electronic overload relay, adjustable 1–5A, selectable trip class
• Certifications: UL, CSA, CE, NEMA, RoHS compliant
• Horsepower: 3 HP @ 460V, 5 HP @ 230V
• Coil Voltage: 120V/60Hz or 110V/50Hz
• Auxiliary Contacts: 1 NO side-mounted
• Dimensions: 8" L x 6" H x 4" W
• Weight: 2.22 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: AN19BN0A5E005
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Freedom Series
• Type : AN19
• Voltage : 600
• Amperage : 18
• Phase : 3
• Poles : 3
• Horse Power : HP @ 3 Phase - 208V 3 hp HP @ 3 Phase - 240V 3 hp HP @ 3 Phase - 480V 5 hp
• Aux Contacts : 1NO
• Coil Voltage Maximum : 120
• Coil Voltage Minimum : 120

Product Data

• UPC : 78668541466
• GTIN : 00786685414669
• Country of Origin : Dominican Republic
• Dimensions : 8 in x 6 in x 4 in (Length/Depth x Height x Width)
• Weight : 2.22
• Certification : CE, CSA, UL Listed
