Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Motor Starter
Description
AN16SN0CB

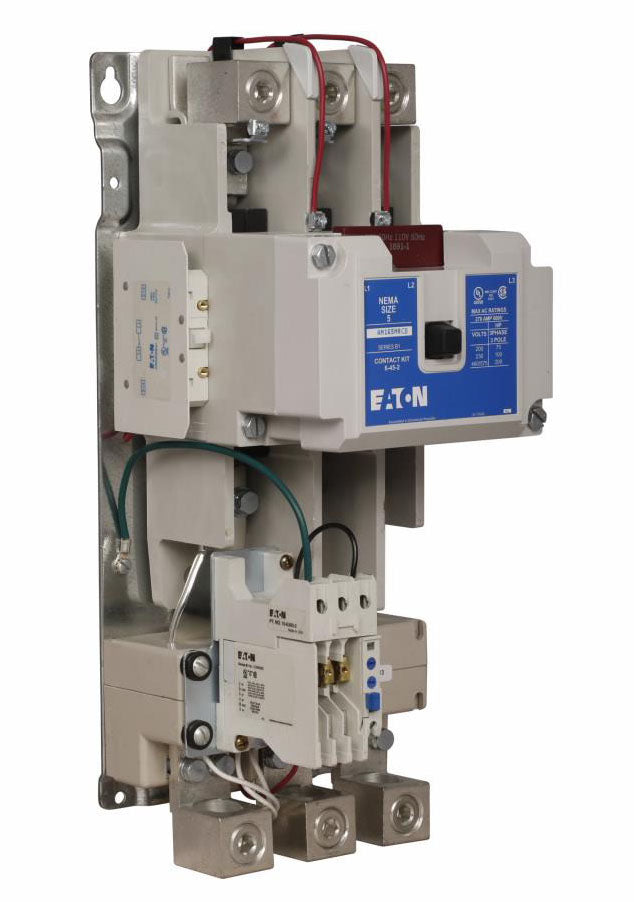

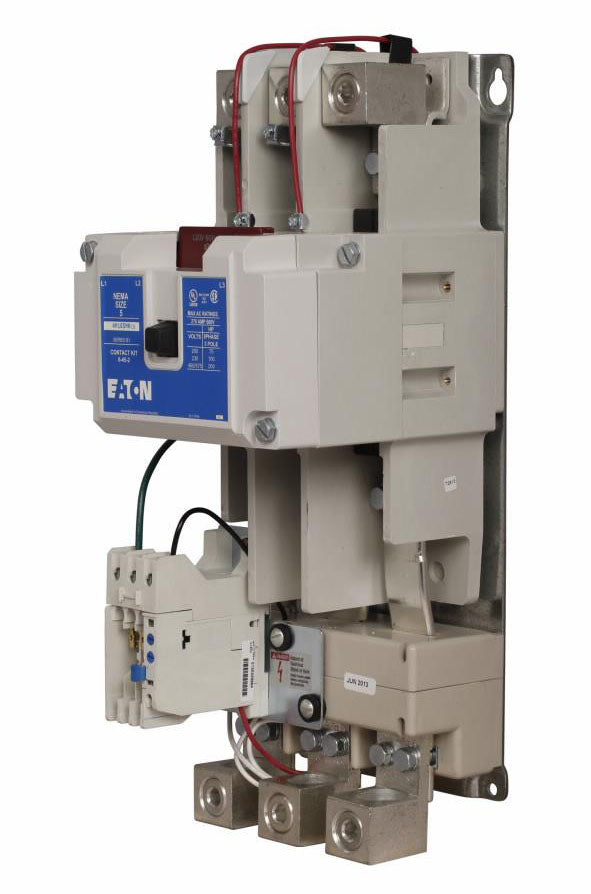

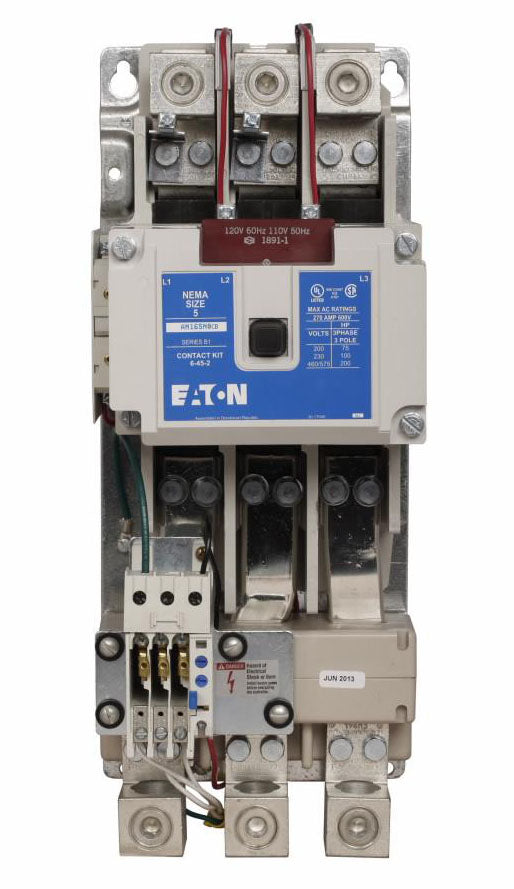

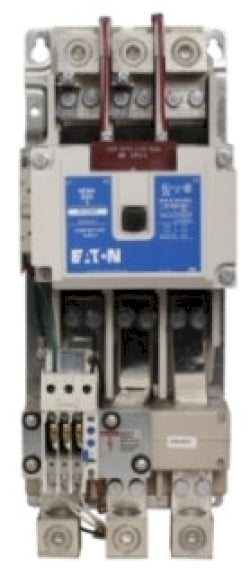

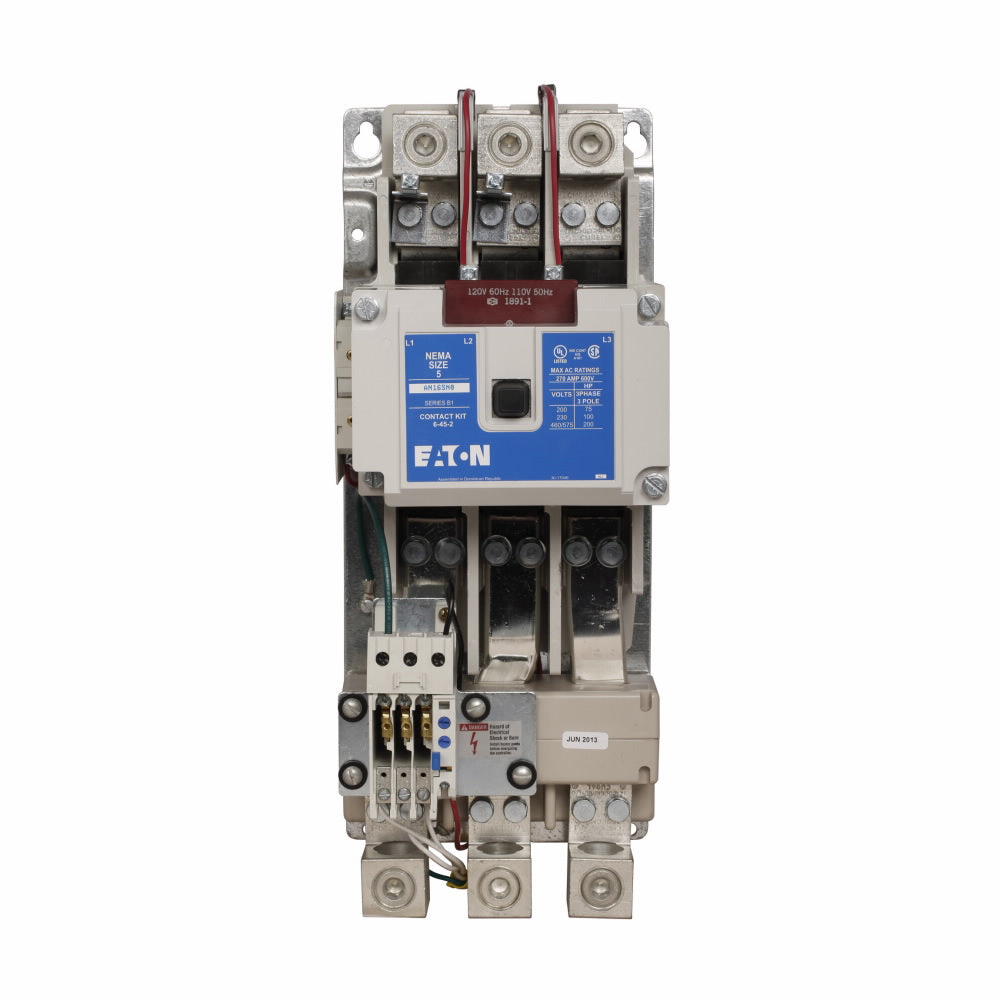

AN16SN0CB is a Cutler Hammer Freedom Series motor starter designed for reliable motor control applications.This motor starter features a 270 amp rating, 600 volt full voltage capacity, and 3 poles. It includes a 440V coil suitable for 50/60 Hz operation and is built to NEMA Size 5 standards. The starter is non-reversing with a reset overload relay, designed for general duty motor control with a robust mechanical and electrical life. It supports up to 200 HP at 480/600V and is housed in an open style enclosure.
- Key Specifications
- Amperage: 270A
- Voltage: 600V full voltage
- Poles: 3
- Coil Voltage: 440V AC (50Hz), 480V AC (60Hz)
- Series/Frame: Freedom Series, NEMA Size 5
- Type: Non-Reversing Reset Overload Relay Starter
- Horsepower Rating: Up to 200 HP at 480/600V
- Mounting Type: Open style enclosure
- Interrupt Rating: Standard for NEMA Size 5
- Phase: 3-phase
- Certifications: Meets NEMA standards
Specifications
- Part Number: AN16SN0CB
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : Freedom Series
- Type : AN16
- Voltage : 600
- Amperage : 270
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 480
- Coil Voltage Minimum : 440
- Nema Rating : 5
Product Data
- UPC : 782113971896
- GTIN : 00782113971896
- Country of Origin : United States
- Dimensions : 7.75 in x 7.22 in x 12 in (Length/Depth x Height x Width)
- Weight : 25 lb
- Certification : CSA Certified,UL Listed
