Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Motor Starter
Description
AN16GN0EB

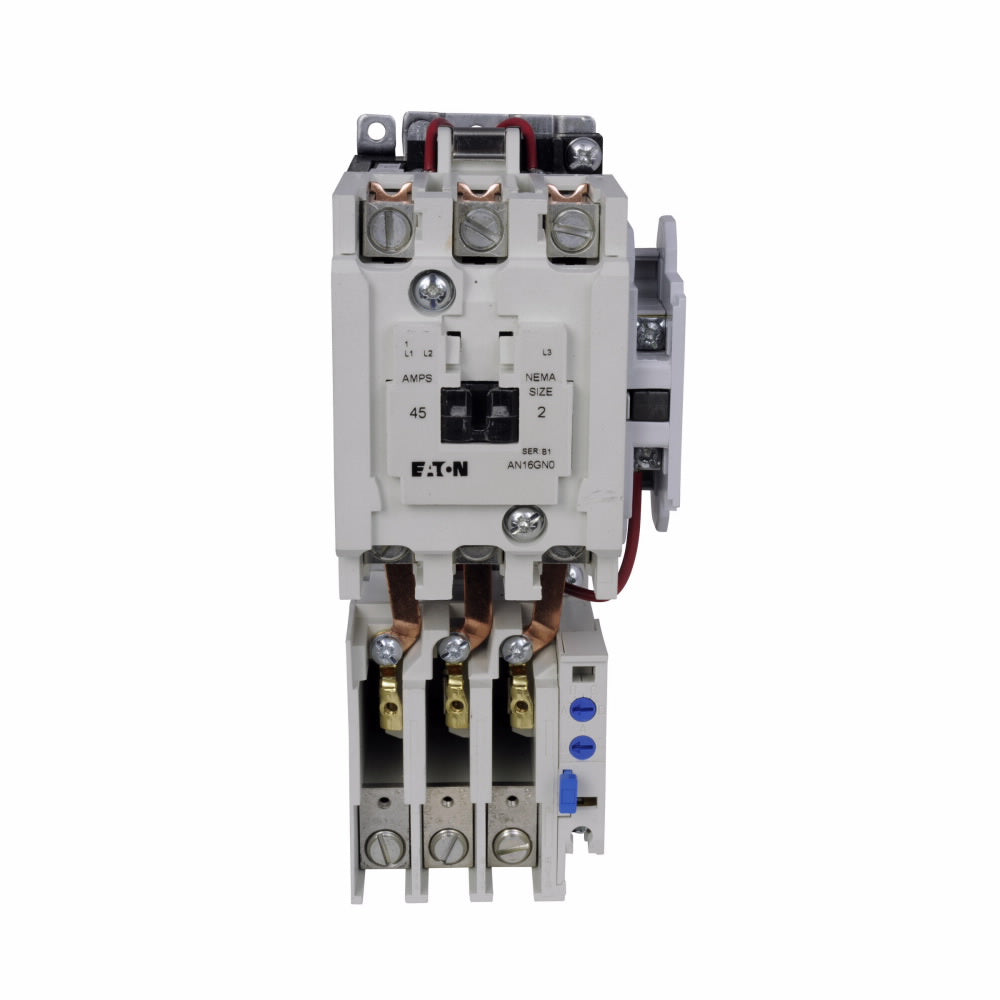

AN16GN0EB is a Cutler Hammer Freedom Series motor starter designed for 3-phase motor control applications.This 3 pole, 45 amp motor starter operates at up to 600 volts and includes a 208V coil. It features a non-reversing magnetic contactor with a reset overload relay, suitable for NEMA Size 2 applications. The starter supports horsepower ratings up to 10 hp at 208V and 25 hp at 480/600V. It is built for open type horizontal mounting and complies with UL and CSA certifications.
- Amperage: 45A
- Voltage: 600VAC maximum
- Coil Voltage: 208VAC at 60Hz
- Poles: 3
- Phase: 3
- Mounting Type: Horizontal Open NEMA Size 2
- Interrupt Rating: Standard for Freedom Series
- Trip Unit: Reset Overload Relay (C306 Bi-metal OLR)
- Horsepower Ratings: 3 hp @ 115V, 7.5 hp @ 230V, 10 hp @ 208V, 15 hp @ 240V, 25 hp @ 480/600V
- Certifications: UL, CSA
- Weight: Approx. 3.3 lb
Specifications
- Part Number: AN16GN0EB
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : Freedom Series
- Type : AN16
- Voltage : 600
- Amperage : 45
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 208
- Coil Voltage Minimum : 208
Product Data
- UPC : 782113025759
- GTIN : 00782113025759
- Country of Origin : Dominican Republic
- Dimensions : 4.94 in x 3.31 in x 4.38 in (Length/Depth x Height x Width)
- Weight : 3.3 lb
- Certification : UL Listed,CSA Certified
