AL600LS52K3 - Square D 600 Amp 600V 3-Pole PowerPact L Mechanical Lug Kit

AL600LS52K3

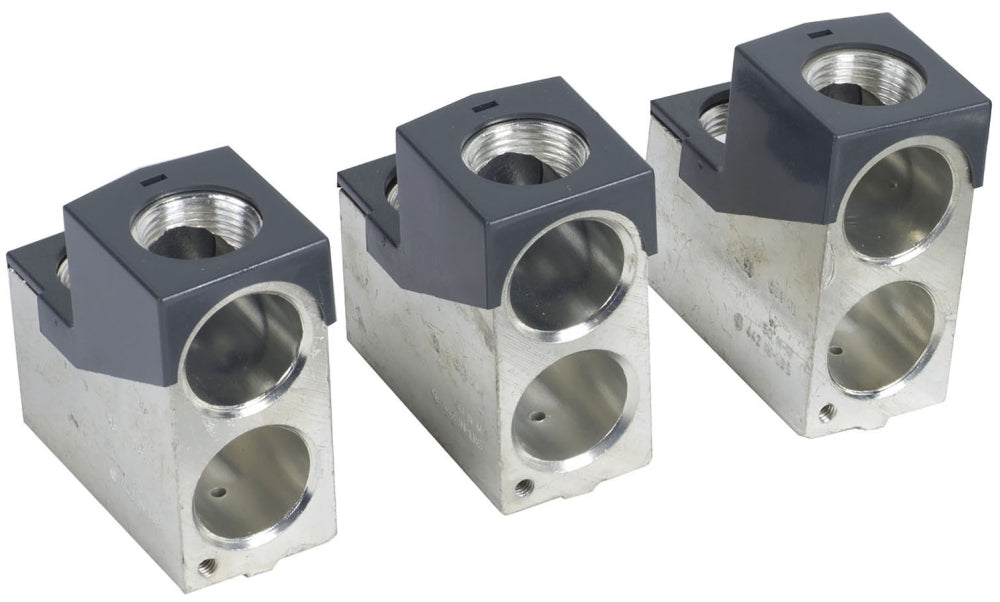

AL600LS52K3 is a Square D mechanical lug kit designed for PowerPact L-frame circuit breakers, rated for 600 amps and 600 volts with 3 poles.This lug kit supports aluminum or copper wire connections and includes three mechanical lugs per kit. It is compatible with PowerPact L-frame circuit breakers and mounts by screws. The kit is UL 489 listed, CSA certified, and meets ANSI standards, ensuring reliable and safe electrical connections.

• Manufacturer: Square D
• Part Number: AL600LS52K3
• Amperage Rating: 400 to 600 Amps
• Voltage Rating: 600 VAC
• Number of Poles: 3
• Mounting Type: Screw Mount
• Material: Aluminum
• Compatible with PowerPact L-frame breakers
• Wire Size Capacity: 2/0 AWG to 500 kcmil Aluminum/Copper
• Certifications: UL 489, CSA, ANSI

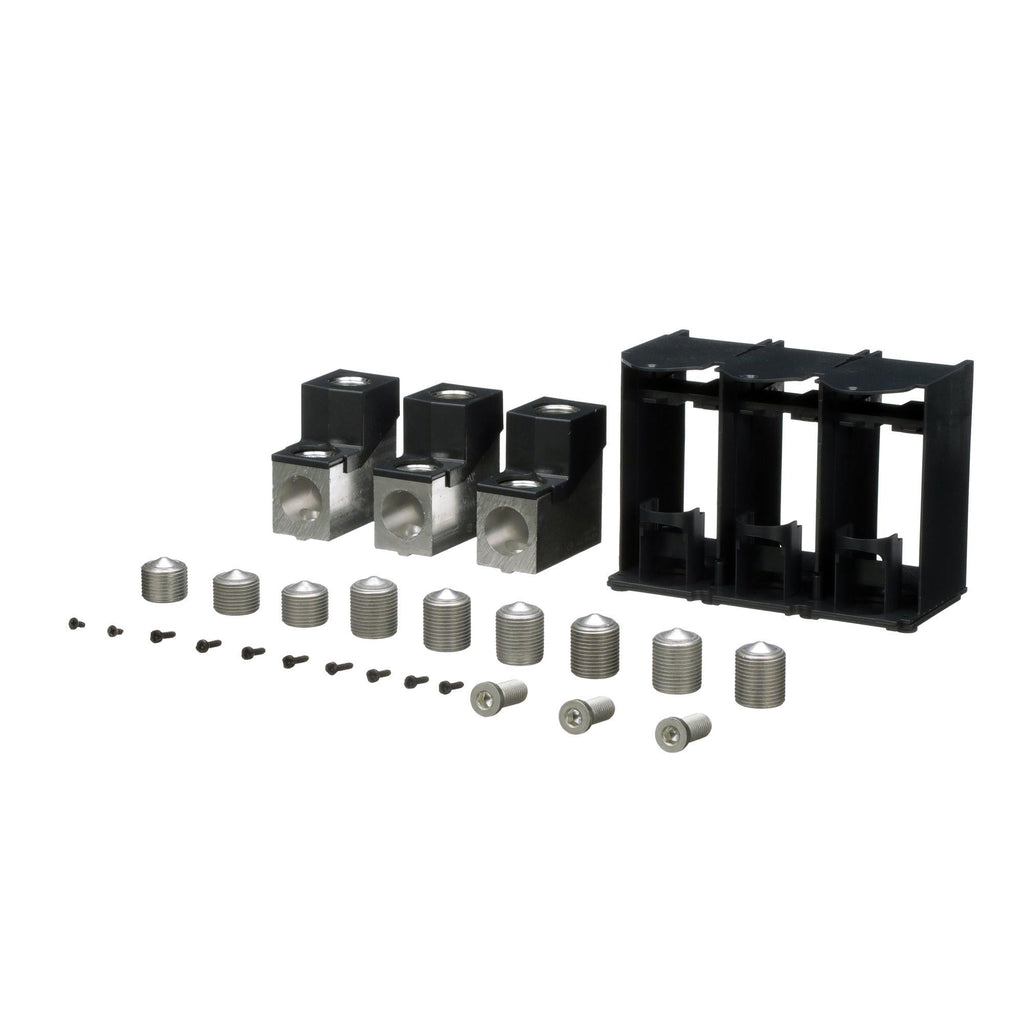

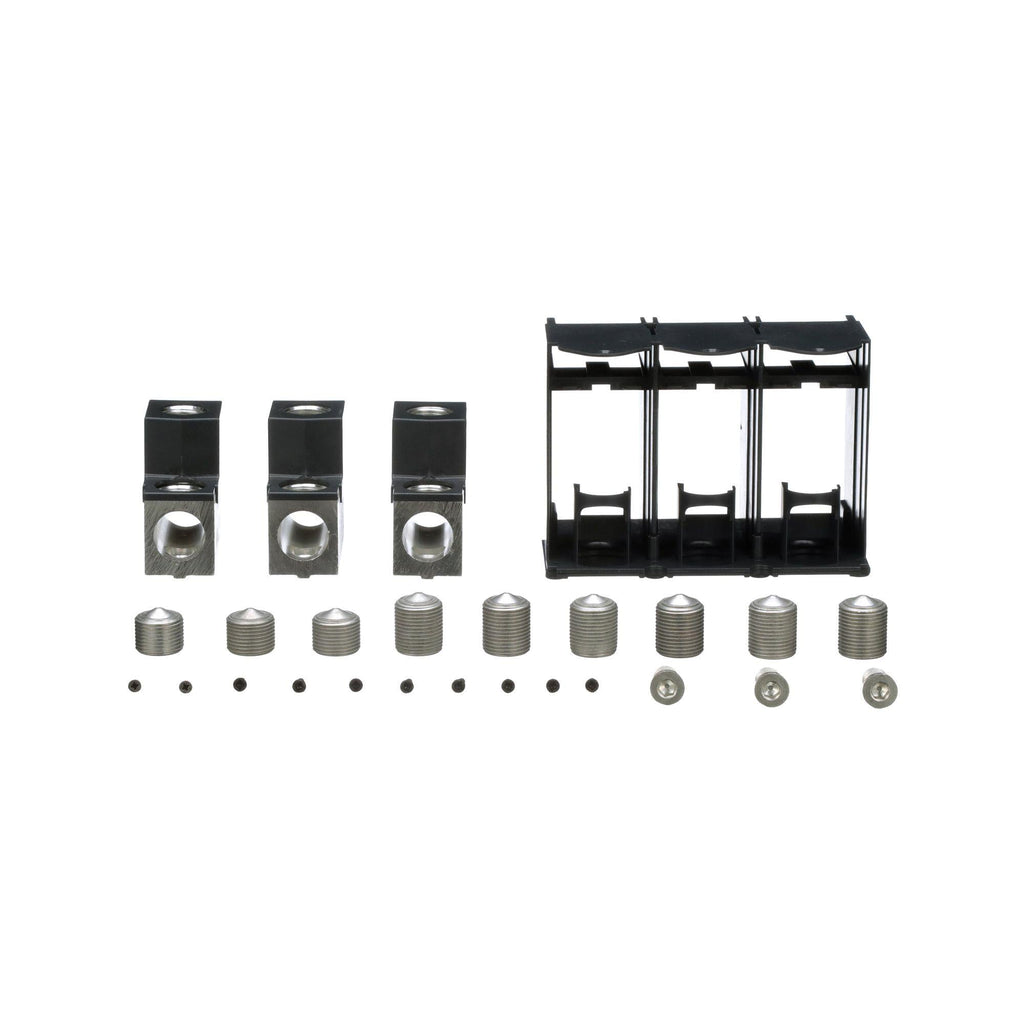

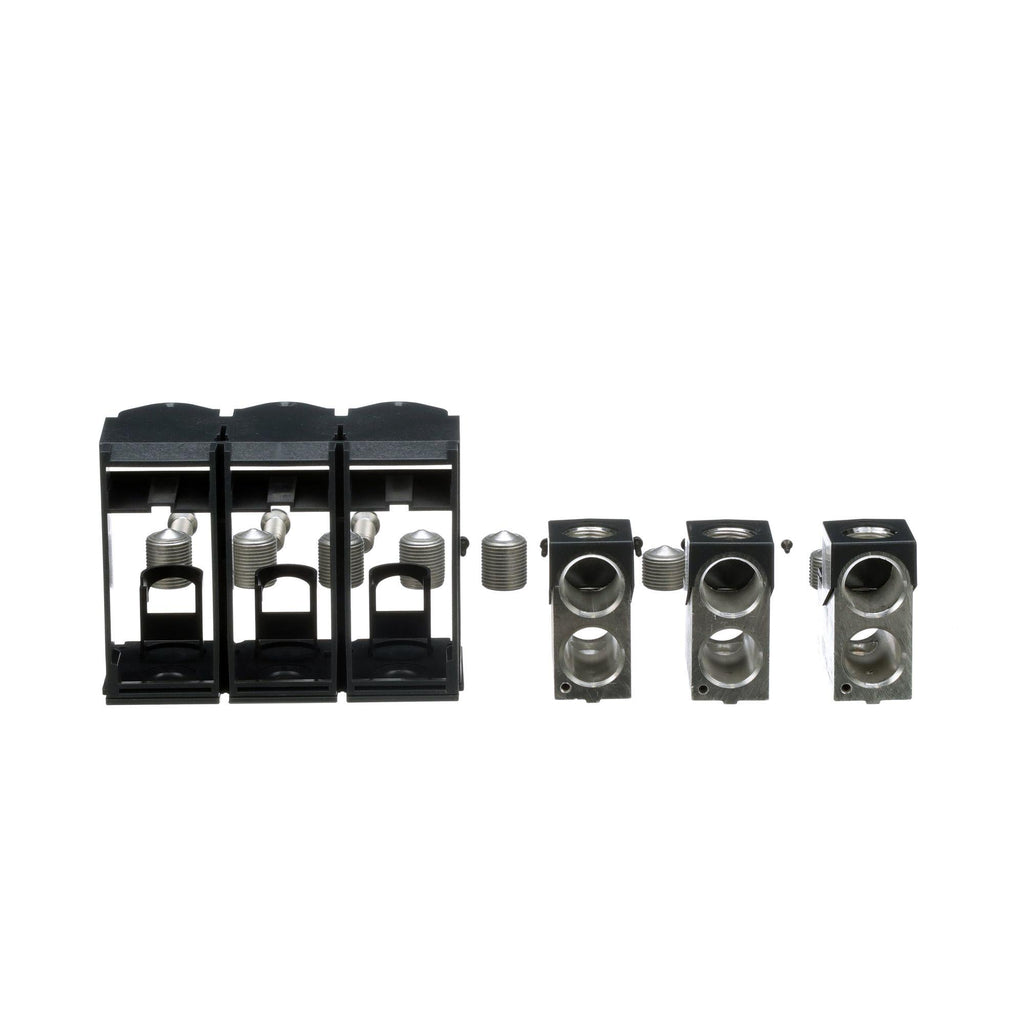

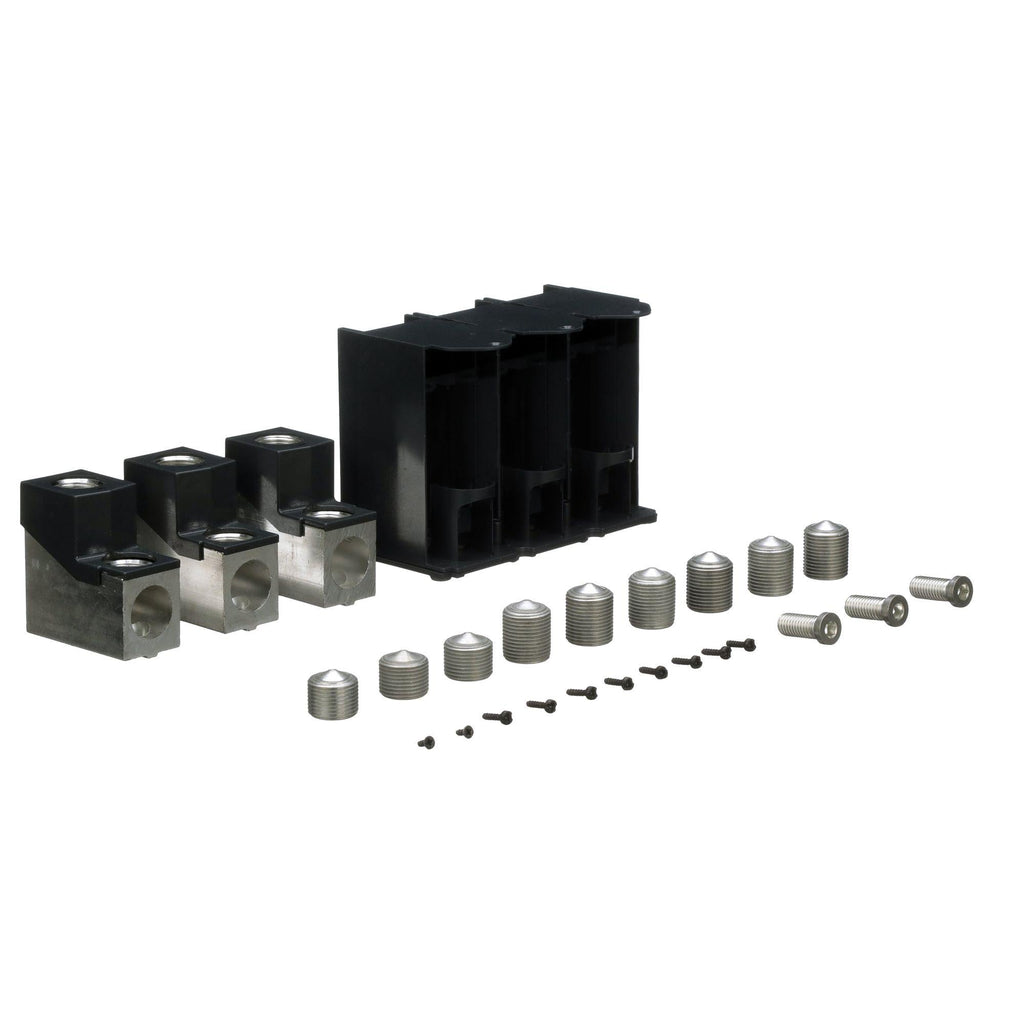

• Includes 3 mechanical lugs per kit

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: AL600LS52K3
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Lug Terminal Kit
• Family : Powerpact
• Type : AL
• Voltage : 600VAC
• Amperage : 400 to 600
• Poles : 3
• AIC rating : 18 to 200kAIC at 480VAC
• MCM Size : 500
• Barrels : 2
• Metal Type : Aluminum
• Compatible Frames : LDA,LDF,LDL,LDM,LDP,LDN,LDD,LDS,LGA,LGF,LGL,LGM,LGP,LGN,LGD,LGS,LJA,LJF,LJM,LJP,LJN,LJS,LLA,LLF,LLL,LLM,LLP,LLN,LLD,LLS,LRA,LRL,LRM,LRP,LRF

Product Data

• UPC : 78590116342
• GTIN : 00785901163428
• Country of Origin : United States
• Dimensions : Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
• Weight : 2.061
• Panel Type : PowerPact L-Frame
• Standards : RoHS, REACh
• Certification : UL, CSA, NOM, IEC, CCC, CE
• Wire Size : AWG 2/0, 500 KCmil, Aluminum/Copper
