AL600LI5 - Square D 600A Mechanical Lug Kit for LE/LX Series Circuit Breakers, 2 Pole, Accepts 4/0 to 500 kcmil Aluminum or Copper

AL600LI5

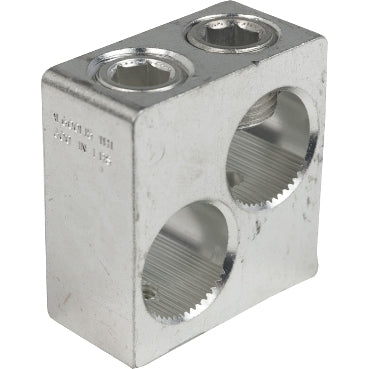

AL600LI5 is a Square D mechanical lug kit designed for use with LE/LX series circuit breakers, providing a secure and reliable connection for large conductors.

This lug kit includes one mechanical lug per set, compatible with LE/LX series circuit breakers, and accepts two 4/0 AWG to 500 kcmil aluminum or copper conductors per lug. The lugs are made of tin-plated aluminum, suitable for both aluminum and copper conductors, and are rated for a maximum breaker current of 600A.

Key Specifications
• Manufacturer: Square D
• Part Number: AL600LI5
• Amperage: 600A max
• Poles: 2
• Conductor Size: 4/0 AWG min, 500 kcmil max
• Mounting Type: Mechanical lug (for LE/LX series circuit breakers)
• Series/Frame: LE/LX
• Material: Tin-plated aluminum
• Conductor Type: Accepts aluminum or copper
• Quantity: 1 lug per kit
• Certifications: Not specified in available data
• Voltage, Interrupt Rating, Trip Unit: Not specified in available data

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: AL600LI5
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Lug Terminal Kit
• Family : Micrologic
• Type : AL
• MCM Size : 500
• Barrels : 2
• Metal Type : Aluminum
• Compatible Frames : LE,LEL,LEP,LX,LXL,LXP,LXI,LXIL,LXIP

Product Data

• UPC : 785901060932
• GTIN : 00785901060932
• Country of Origin : United States
• Dimensions : Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
• Weight : 0.28
• Wire Size : AWG 12...AWG 4 aluminium
  AWG 4/0...500 kcmil aluminium/copper
