2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Motor Starter
Description
AE16KNS0AB

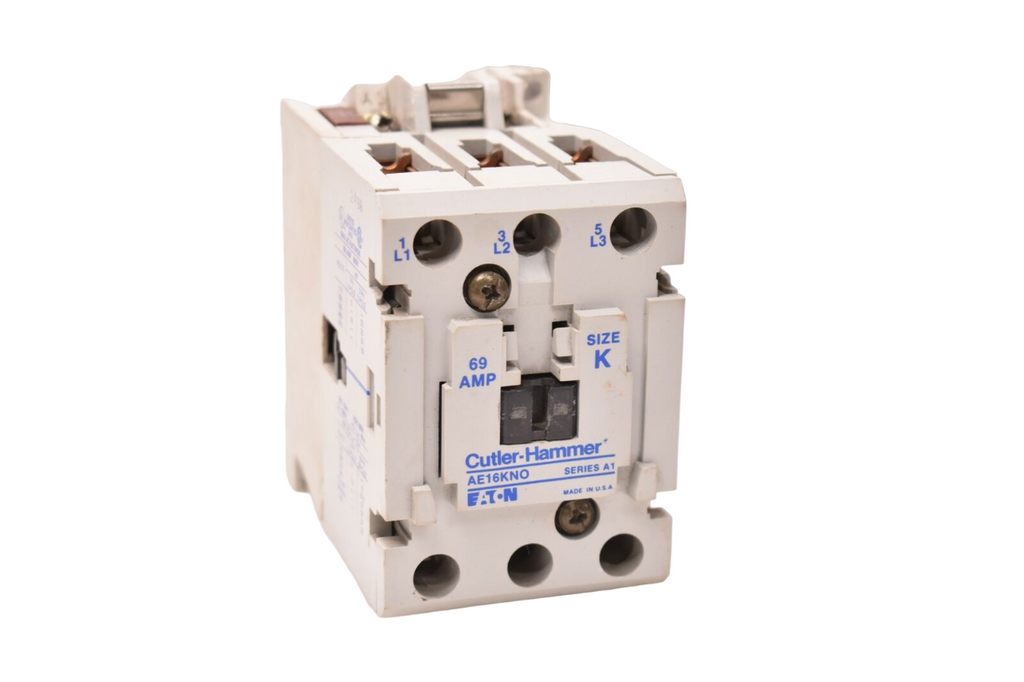

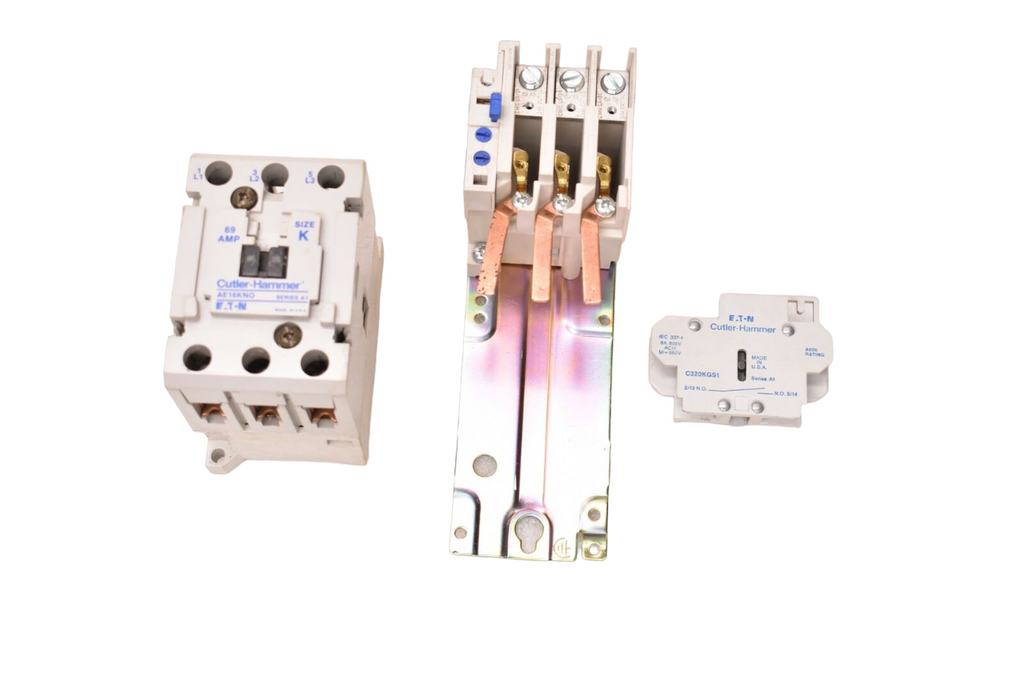

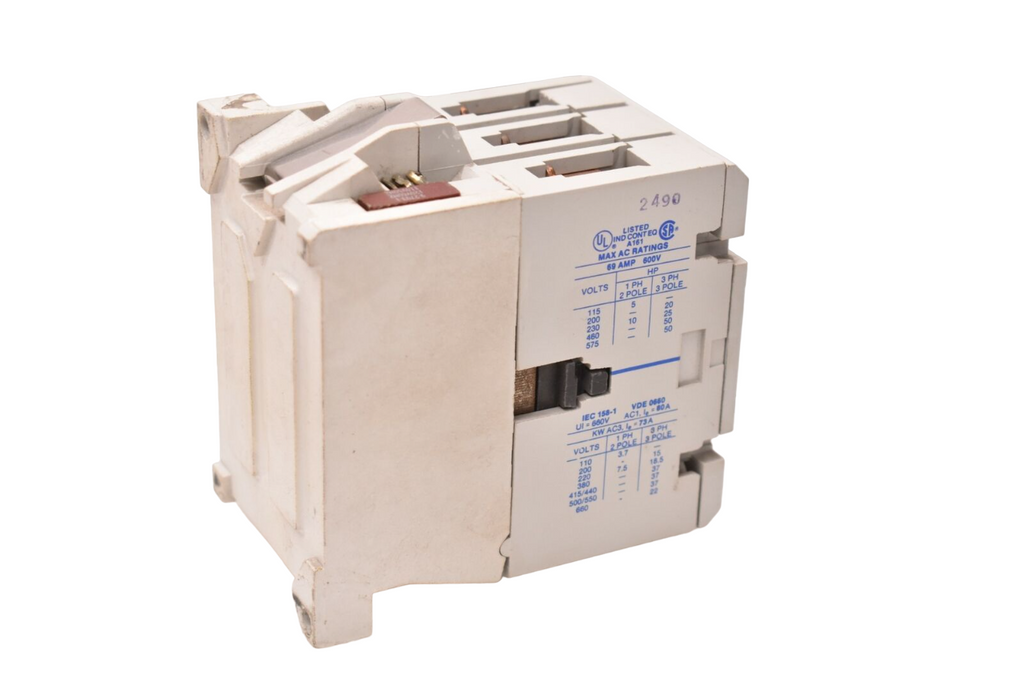

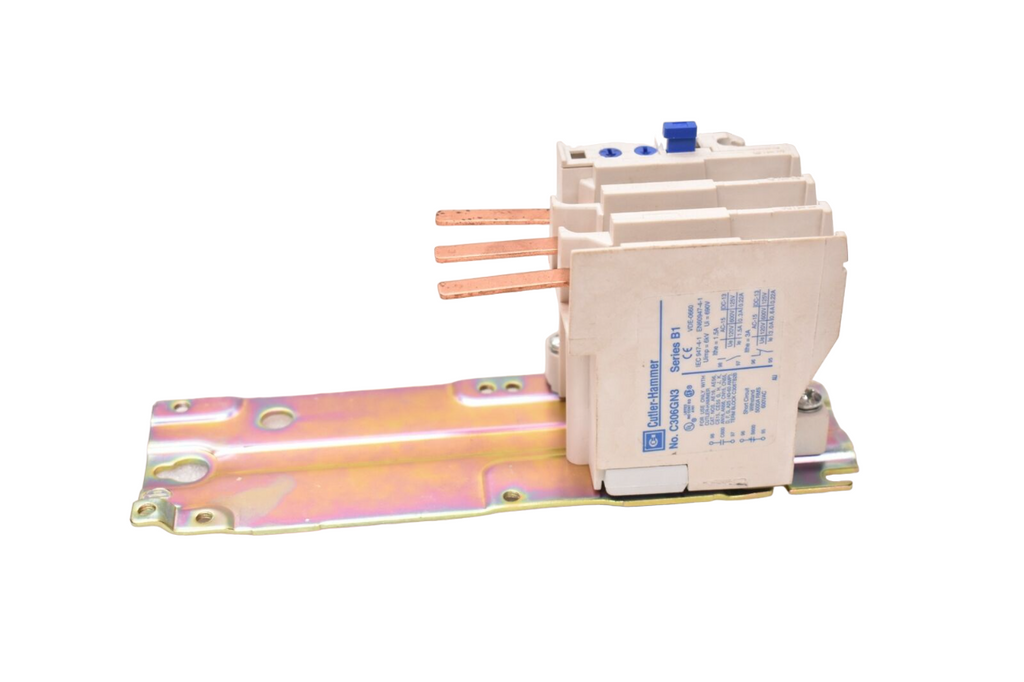

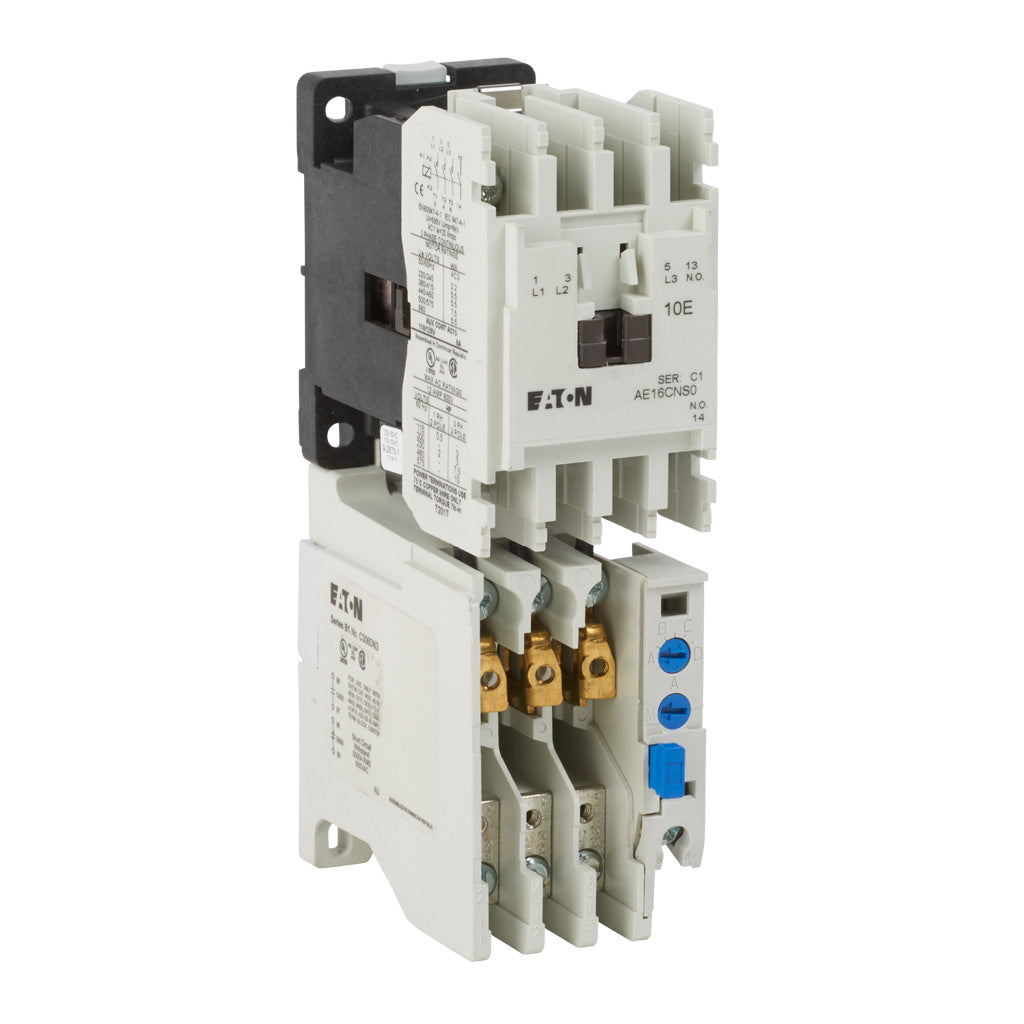

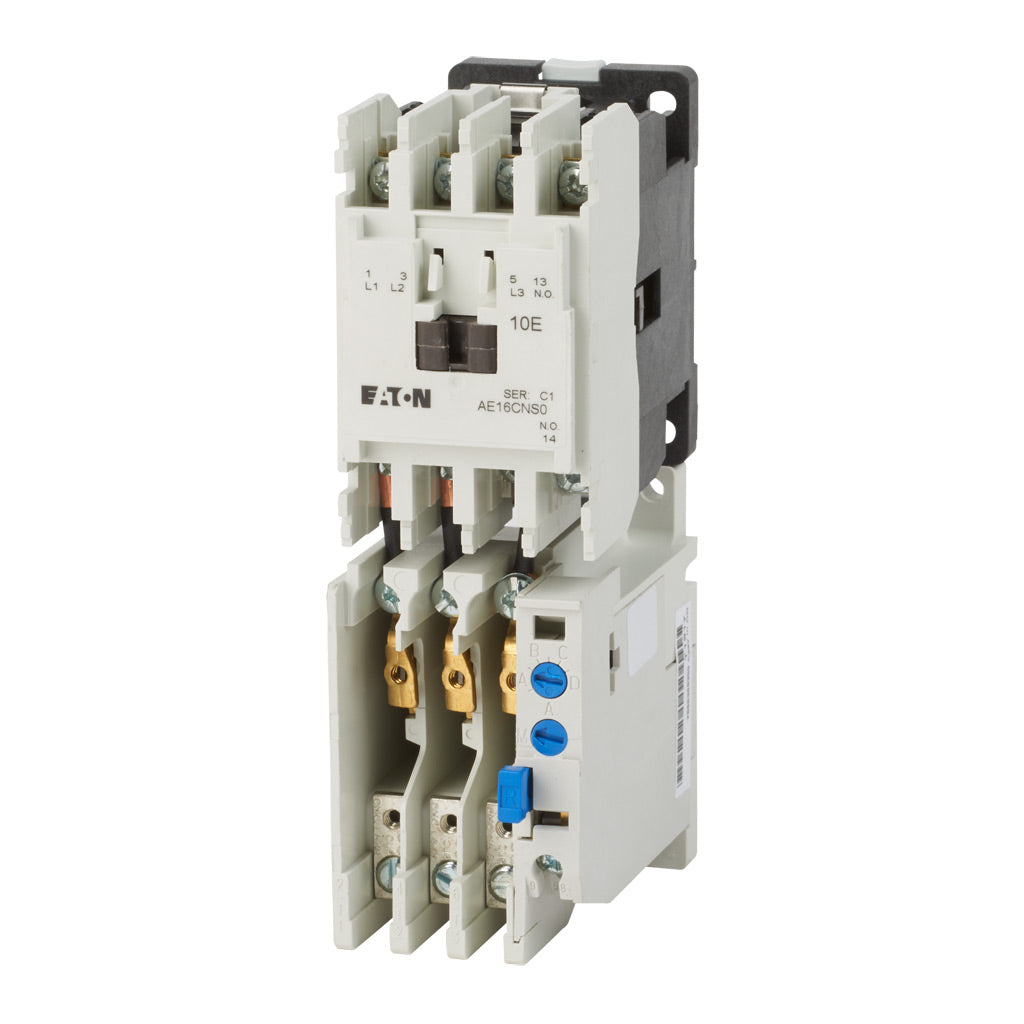

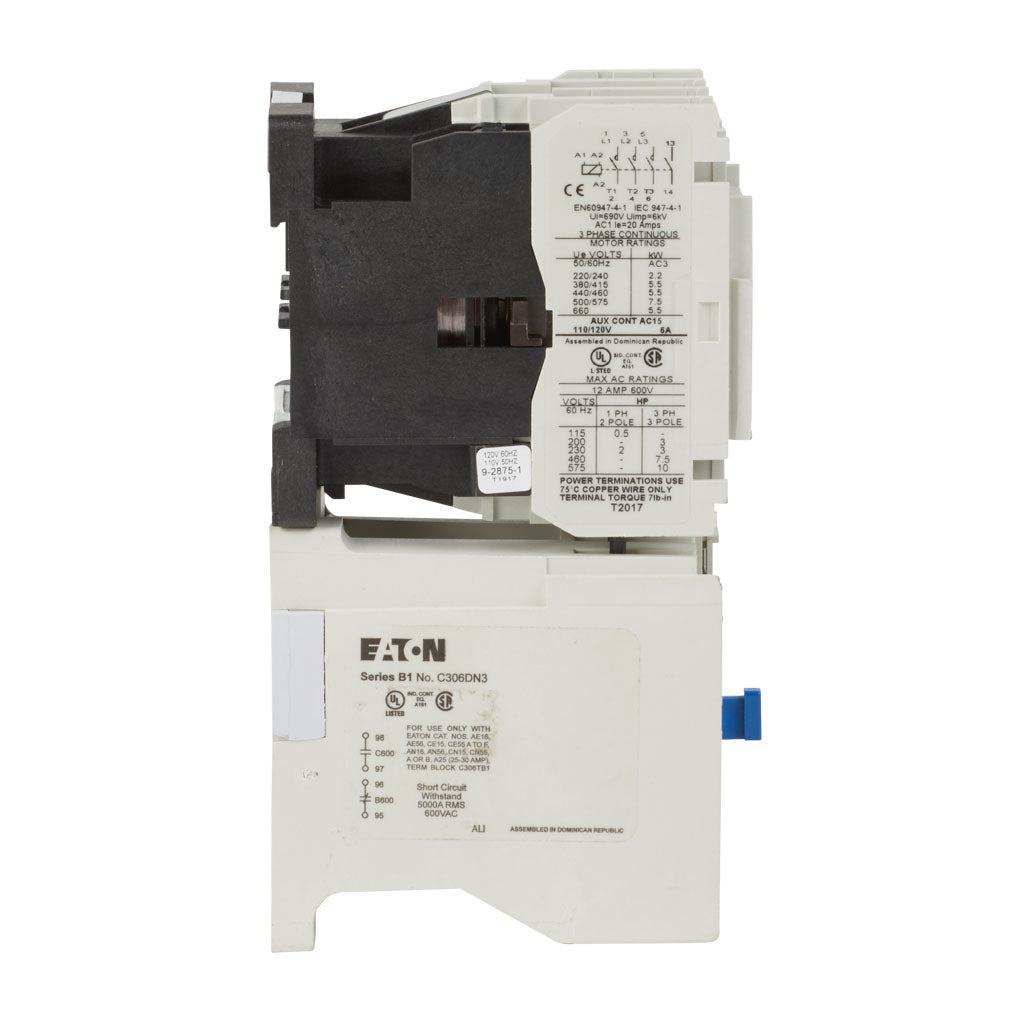

AE16KNS0AB is a Cutler Hammer Freedom Series motor starter designed for 73 ampere current at 600 volts with a 3 pole configuration and a 110V coil.This motor starter supports full voltage non-reversing operation and is rated for up to 25 HP at 240V 3 phase and 50 HP at 480/600V 3 phase. It features adjustable heater packs, bimetallic ambient temperature compensated overloads with automatic/manual reset, and a side-mounted auxiliary contact. The starter meets UL and CSA certifications and is designed for open enclosure mounting with IEC K frame size.
- Key Specifications
- Amperage: 73 Amps
- Voltage: 600 VAC
- Poles: 3
- Coil Voltage: 110 VAC at 50 Hz, 120 VAC at 60 Hz
- Horsepower Ratings: Up to 50 HP at 480/600V 3 phase
- Overload Type: Bimetallic, ambient temperature compensated
- Auxiliary Contact: 1 NO, right mount
- Series/Frame: Freedom Series, IEC K size
- Trip Unit: Adjustable heater packs, Class 10/20
- Interrupt Rating: Designed for 3,000,000 electrical operations
- Certifications: UL, CSA
- Mounting Type: Open enclosure
Specifications
- Part Number: AE16KNS0AB
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : Freedom Series
- Type : AE16
- Voltage : 600
- Amperage : 73
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 120
- Coil Voltage Minimum : 110
- Nema Rating : 3
Product Data
- UPC : 078211398075
- GTIN : 00782113980751
- Country of Origin : Dominican Republic
- Weight : 15 lb
- Certification : UL/CUL listed
