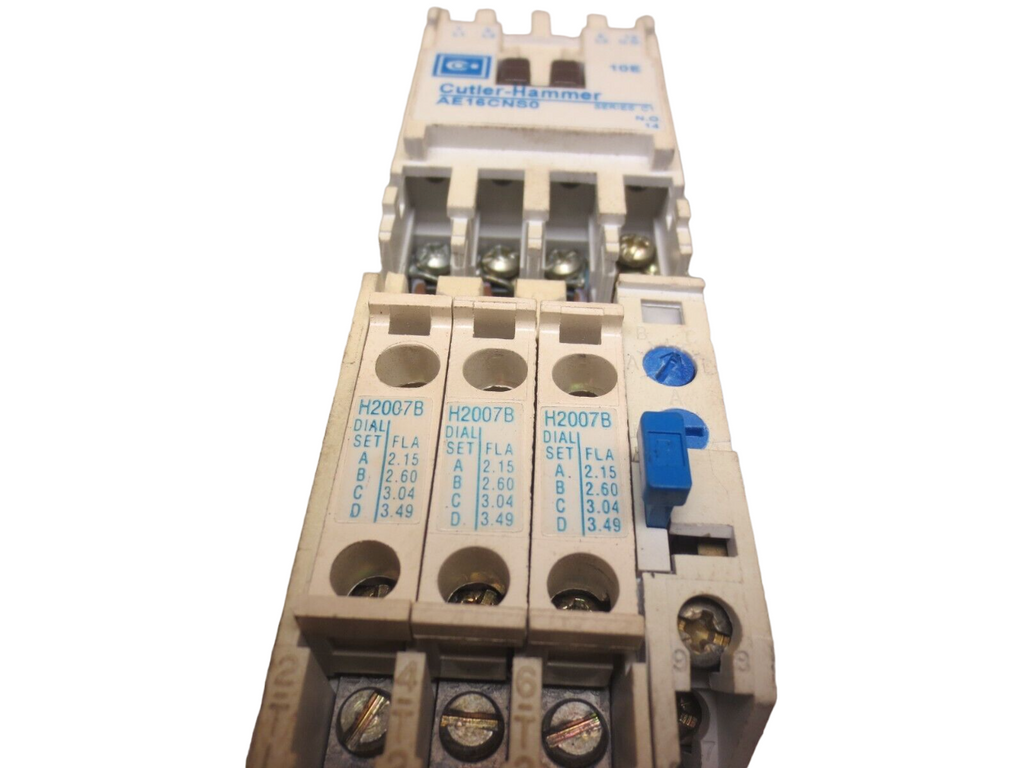

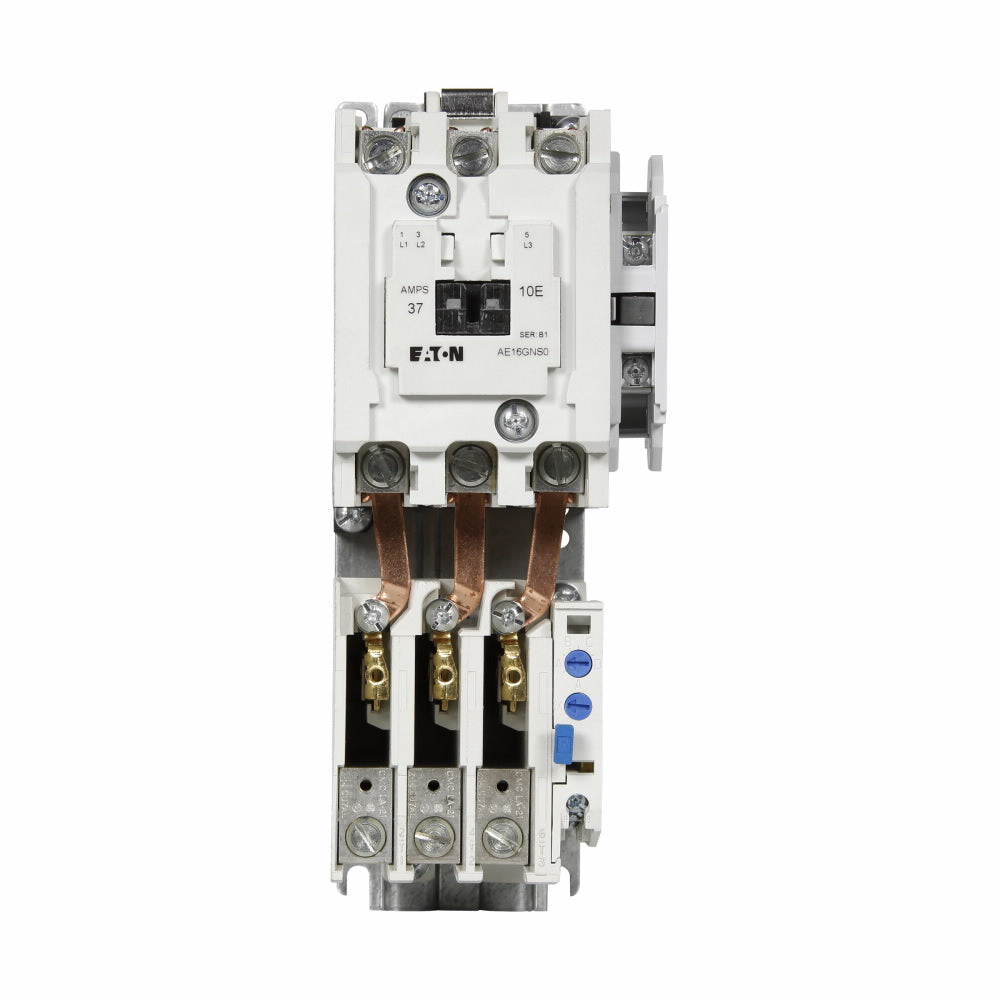

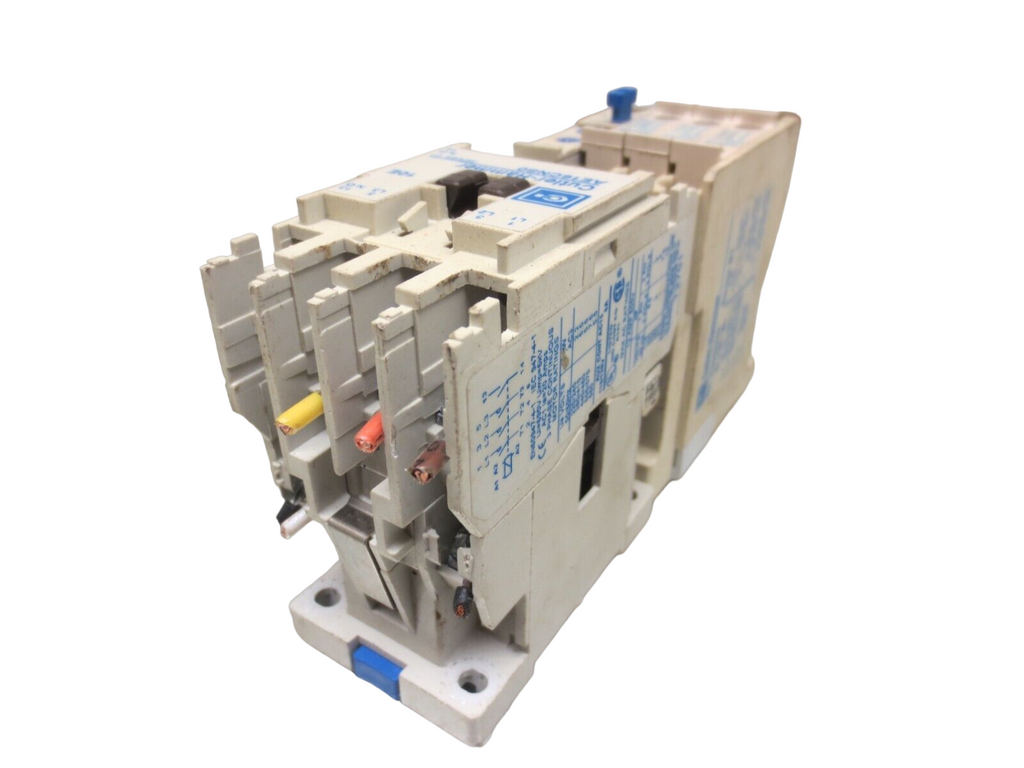

AE16GNS0AB - Cutler Hammer Freedom Series Motor Starter, 37A, 3 Pole, 600V, IEC Frame, Open, 120V Coil, UL/CSA Certified

AE16GNS0AB

AE16GNS0AB is a Cutler Hammer Freedom Series motor starter designed for reliable motor control in demanding industrial applications.

This 3-pole, full voltage non-reversing starter features a 120V coil, adjustable bimetallic overloads with ambient temperature compensation, and is rated for up to 37A (UL) / 50A (IEC thermal current). It supports both 1-phase and 3-phase motors, with maximum horsepower ratings up to 25 HP at 480V and 30 HP at 600V. The AE16GNS0AB is built to IEC construction standards, comes in an open enclosure, and is certified for safety and performance.

Key Specifications

• Amperage: 37A (UL), 50A (IEC thermal current)
• Voltage: 600V AC, coil voltage 120V (60Hz)
• Poles: 3
• Mounting Type: Open enclosure
• Interrupt Rating: Not specified in available data
• Series/Frame: Freedom Series, IEC Frame Size G
• Trip Unit: Bimetallic, ambient temperature compensated, Class 10/20, automatic/manual reset
• Certifications: UL, CSA
• Auxiliary Contact: 1NO
• Phase: 1/3-phase compatible
• Maximum HP: 25 HP at 480V, 30 HP at 600V
• Construction Standard: IEC

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: AE16GNS0AB
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Freedom Series
• Type : AE16
• Voltage : 600
• Amperage : 37
• Phase : 3
• Poles : 3
• Coil Voltage Maximum : 120
• Coil Voltage Minimum : 110
• Nema Rating : 2

Product Data

• UPC : 782113980669
• GTIN : 00782113980669
• Country of Origin : Dominican Republic
• Weight : 10 lb
• Certification : UL/CUL listed
