2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:General Electric
- Sub-Category:Panel Mount
Description
ADS36200HS

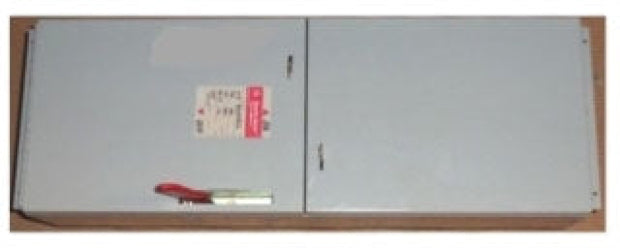

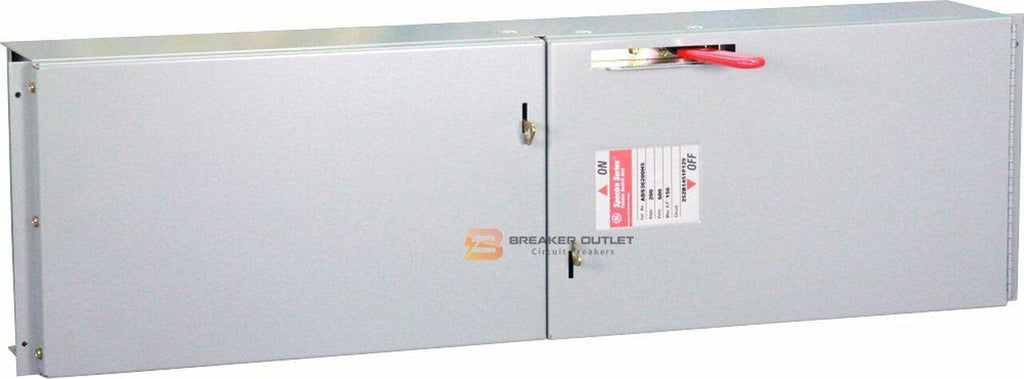

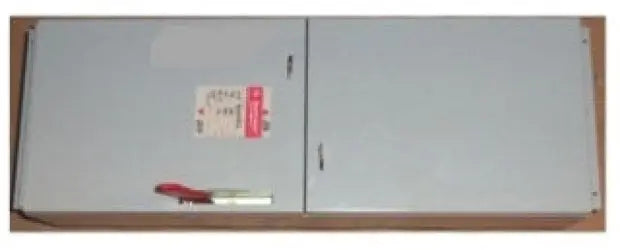

ADS36200HS is a General Electric 200 Amp, 600 Volt, 3-Pole Fusible Panelboard Disconnect Switch from the Spectra Series.This ADS36200HS switch is designed for panel mount applications with a NEMA 1 rating and a 200kA interrupt rating. It supports 3-phase power and features a plug-in type installation that requires no additional mounting hardware for bus connections, simplifying and speeding up installation. The switch is fusible with Class H/R/K fuses and supports up to 150 HP motor load. It includes 1NC-1NO auxiliary contacts and is part of the reliable Spectra Series by GE.
- Key Specifications
- Amperage: 200A
- Voltage: 600V
- Poles: 3
- Mounting Type: Panel Mount, Plug-in
- Interrupt Rating: 200kA
- Series/Frame: Spectra ADS Series
- Trip Unit: Fusible (Class H/R/K)
- Horsepower Rating: 150 HP
- Auxiliary Contacts: 1NC-1NO
- NEMA Rating: 1
- Phase: 3-Phase
Specifications
- Part Number: ADS36200HS
- Manufacturer : General Electric
- Brand : General Electric
- Category : Switch
- Item Subcategory : Panel Mount
- Family : Spectra Series
- Type : ADS
- Voltage : 600
- Amperage : 200
- Phase : 3
- Poles : 3
- AIC rating : 200kA@480V
- Fuse Class : H,R,K
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : 1
- Compatible Frames : ED
Product Data
- UPC : 078316424389
- GTIN : 00783164243895
- Weight : 40
