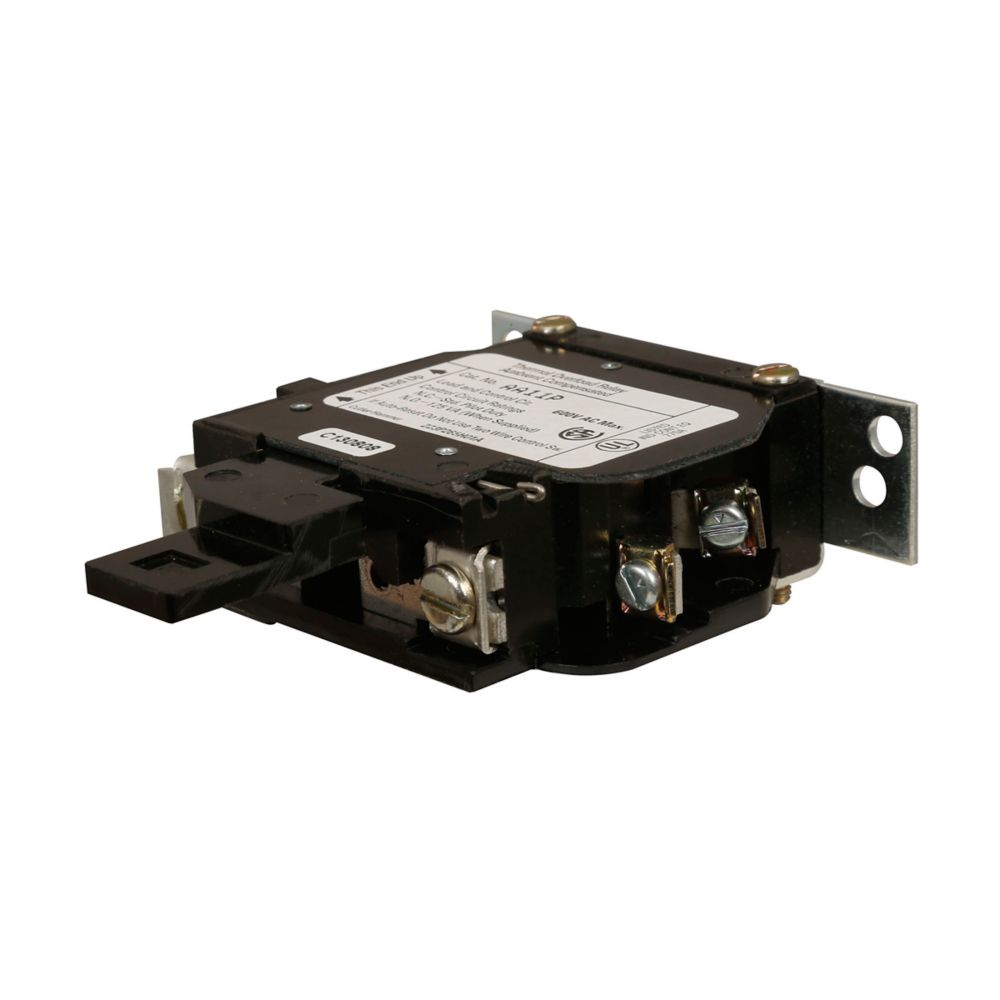

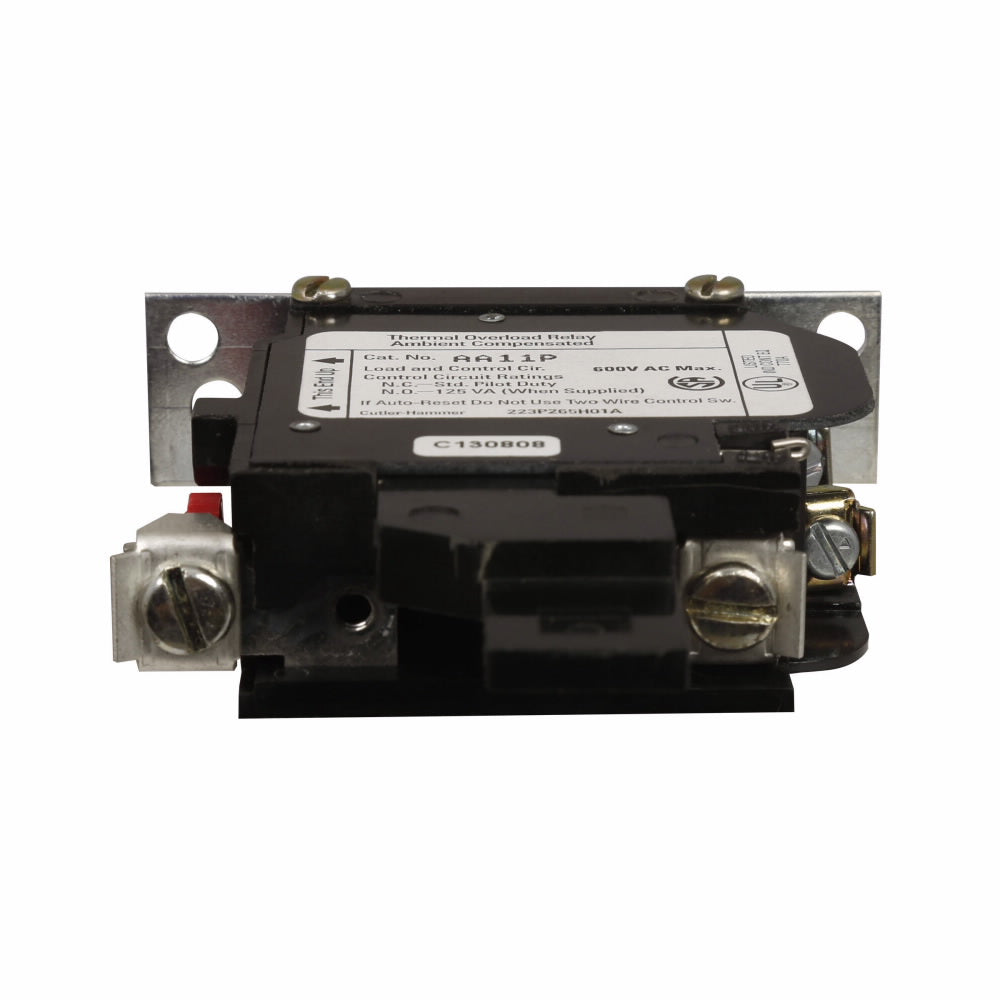

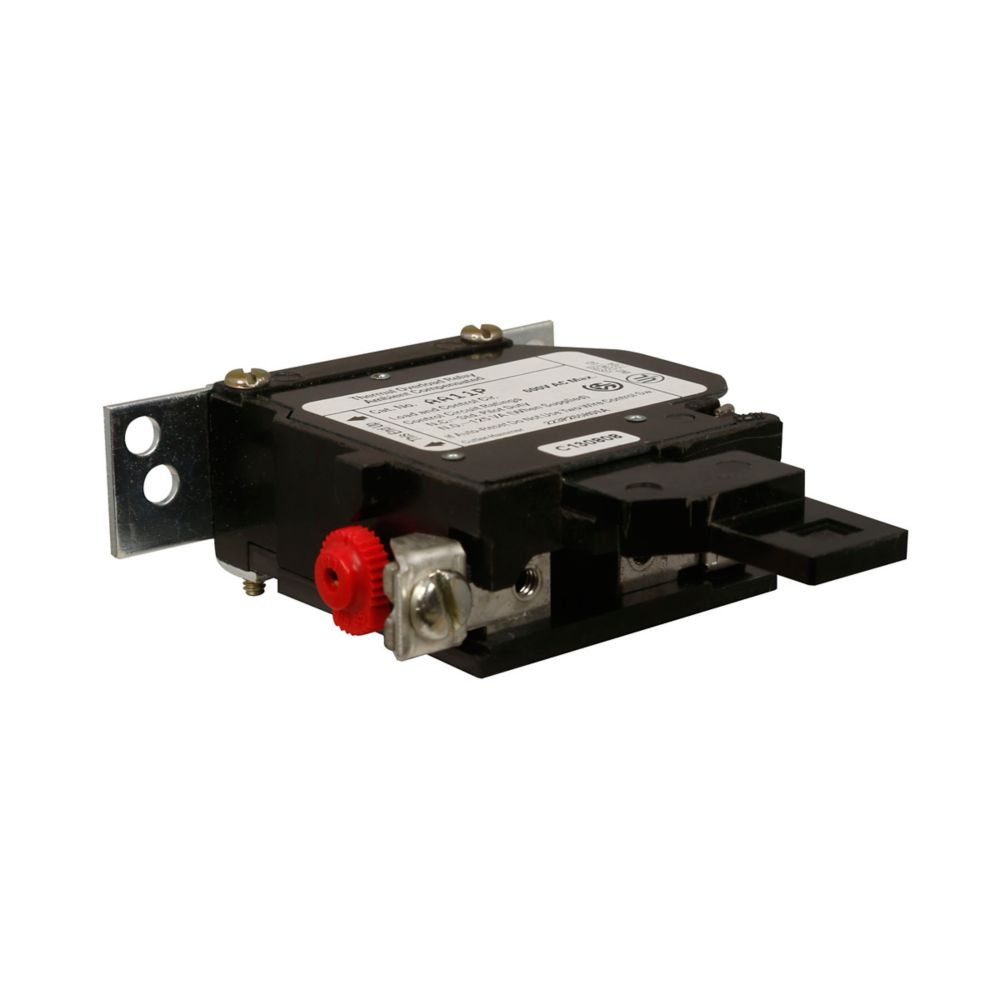

AA31P - Cutler Hammer NEMA A200 Thermal Overload Relay 19-90A, One-Pole, Ambient Compensated, Class 20, Panel Mount

AA31P

AA31P is a NEMA A200 Thermal Overload Relay designed for reliable motor protection in industrial applications. This one-pole, panel-mounted relay features ambient compensation, a 1NC auxiliary contact, and an adjustable amperage range from 19A to 90A. It is engineered for use with Cutler Hammer motor starters and provides dependable thermal overload protection for motors. This overload relay offers field-selectable manual or auto reset, inverse time delay trip, and a color-coded reset rod for easy identification. The AA31P is ambient compensated and built to meet Class 20 standards, ensuring consistent performance in varying temperature environments. It is suitable for use in a wide range of motor control circuits and is designed for quick and easy installation.

• Part Number: AA31P
• Manufacturer: Cutler Hammer
• Series/Frame: NEMA A200
• Thermal Type: Type A
• Class: 20
• Poles: One-pole
• Amperage Range: 19A - 90A
• Mounting Type: Panel Mount
• Auxiliary Contact: 1NC
• Ambient Compensation: Yes
• Reset Type: Manual/Auto (Field Selectable)
• Interrupt Rating: NEMA Standard

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: AA31P
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Overload Relay
• Family : A200 Series
• Type : A
• Relay Style : Thermal
• Amperage Maximum : 90
• Amperage Minimum : 19

Product Data

• UPC : 786678225296
• GTIN : 00786678225296
• Country of Origin : United States
• Dimensions : 6.3 in x 2.3 in x 5.8 in (Length/Depth x Height x Width)
• Weight : 1.05 lb
• Certification : UL Listed,CSA Certified
