Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Overload Relay
Description
AA13P

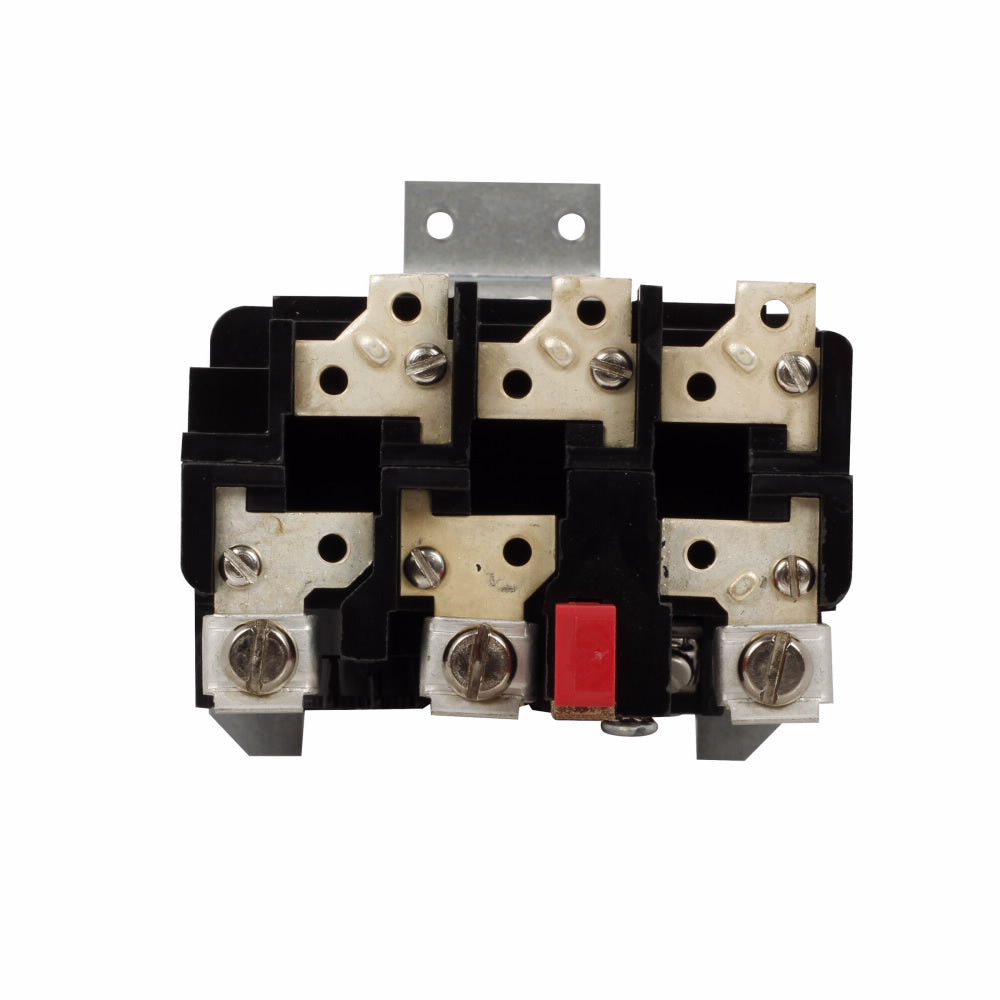

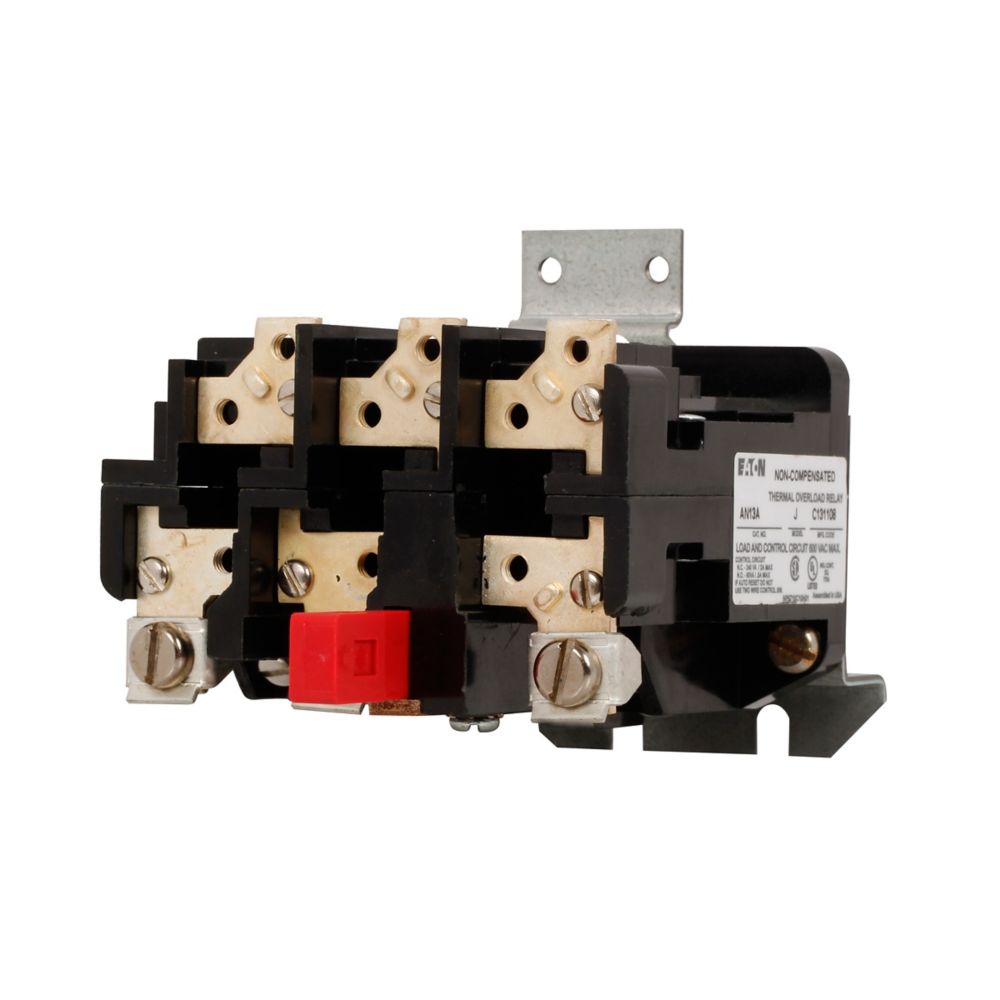

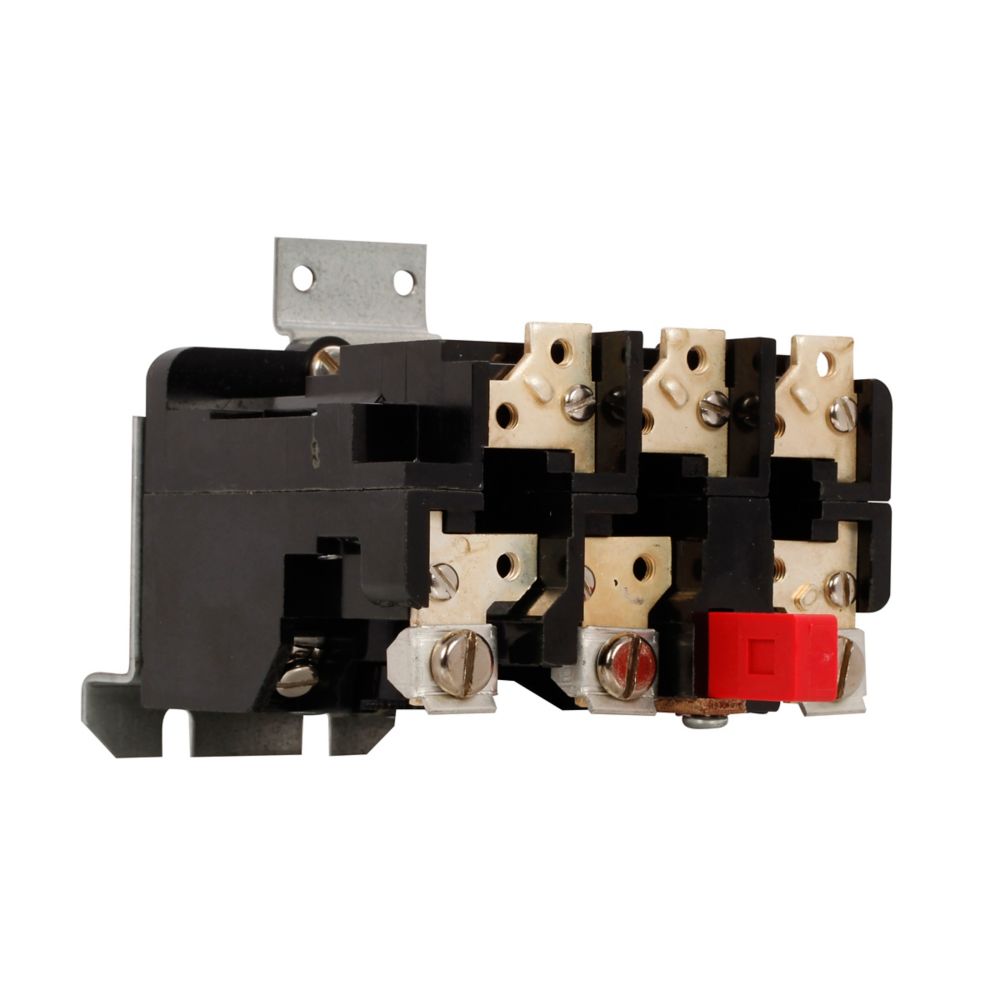

AA13P is a Cutler Hammer (Eaton) 3-pole, NEMA A200 thermal overload relay designed for motor protection in panel-mounted applications.
This ambient-compensated, Class 20 overload relay features a field-selectable manual/auto reset, inverse time delay trip, and a full load current range of 0.25 to 26.2A. It includes a 1NC auxiliary contact and is certified for safety and reliability.
-
Key Specifications
- Amperage: 0.25–26.2A
- Voltage: 600VAC
- Poles: 3
- Mounting Type: Panel
- Interrupt Rating: Not specified
- Series/Frame: A200, NEMA Size 0-1
- Trip Unit: Thermal Type A, Class 20, ambient compensated
- Reset: Field-selectable manual/auto
- Auxiliary Contact: 1NC
- Certifications: UL Listed, CSA Certified
- Connection: Screw terminals
- Heaters: Required (not included)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: AA13P
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Overload Relay
- Family : A200 Series
- Type : A
- Relay Style : Thermal
- Amperage Maximum : 26.2
- Amperage Minimum : 0.25
Product Data
- UPC : 786678223940
- GTIN : 00786678223940
- Country of Origin : United States
- Dimensions : 3.6 in x 4.8 in x 3.4 in (Length/Depth x Height x Width)
- Weight : 0.95 lb
- Certification : UL Listed,CSA Certified
