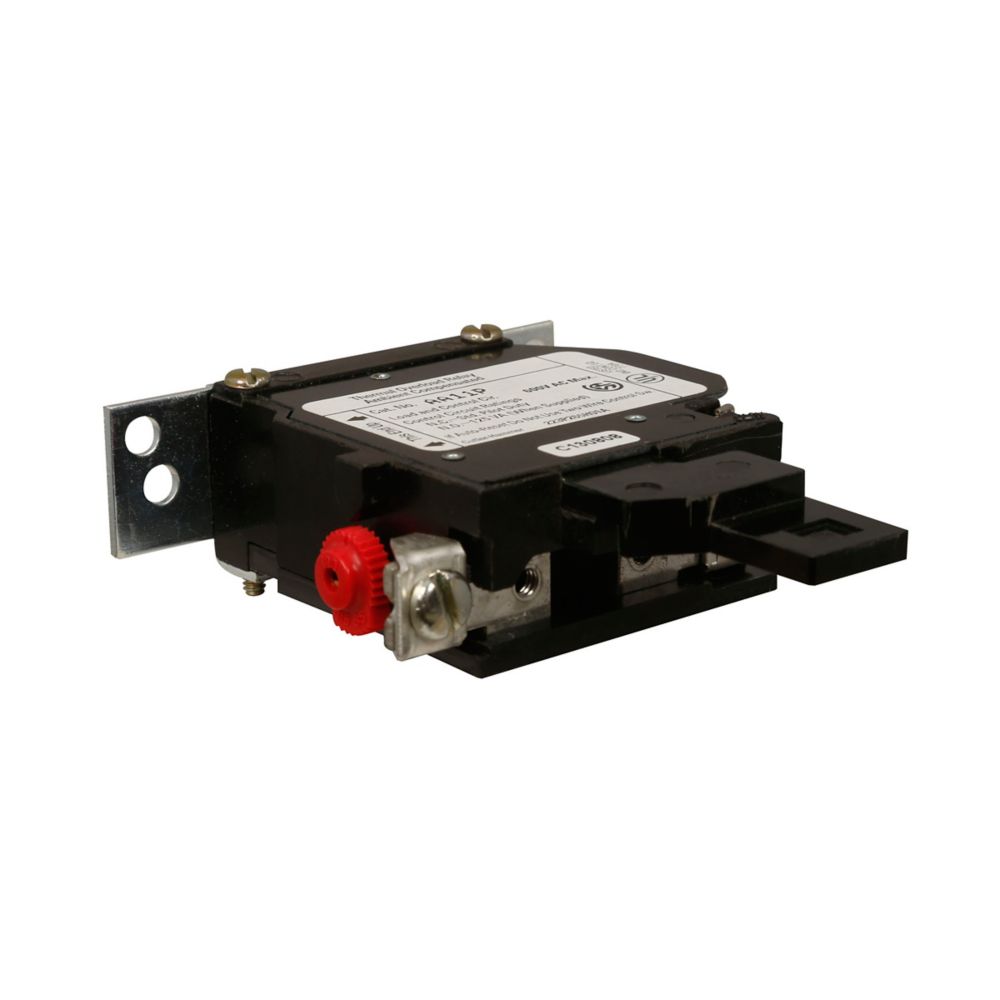

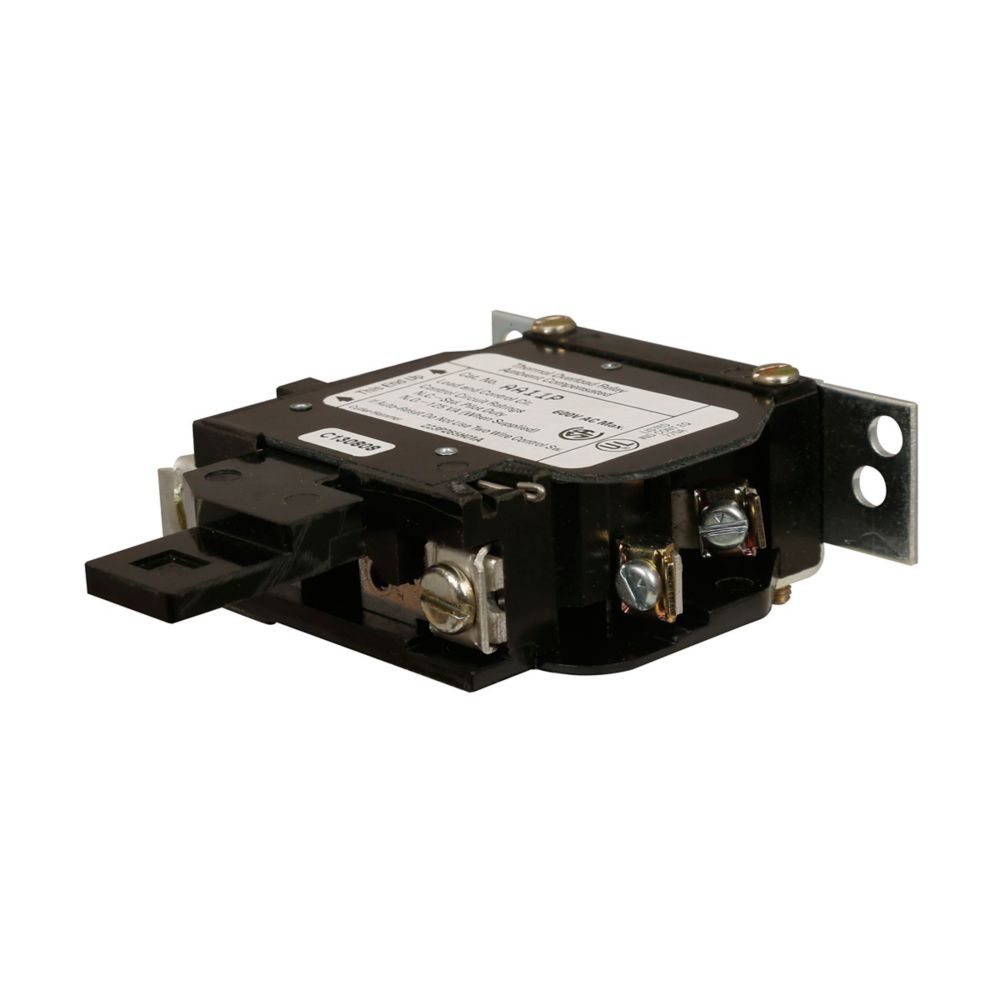

AA23A - Cutler Hammer 26.3-45A 600VAC 3-Pole Thermal Overload Relay NEMA A200 Series

AA23A

AA23A is a Cutler Hammer thermal overload relay designed for motor control applications with adjustable amperage from 26.3 to 45 amps.AA23A features a 3-pole configuration, NEMA A200 frame size, and is starter mounted. It includes ambient temperature compensation, a Class 20 trip unit, and a 1NC auxiliary contact rated for 600 VAC. This relay supports manual or automatic reset and is UL Listed and CSA Certified.

• Adjustable current range: 26.3-45 Amps
• Voltage rating: up to 600 VAC
• 3 poles for three-phase motor protection
• NEMA A200 frame size
• Class 20 thermal trip unit
• Ambient temperature compensated
• 1NC auxiliary contact
• Starter mounted design
• Manual or automatic reset selectable
• UL Listed and CSA Certified
• Control circuit rating: NC 240VA/2A max, NO 60VA/0.5A max

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: AA23A
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Overload Relay
• Family : A200 Series
• Type : A
• Relay Style : Thermal
• Amperage Maximum : 45
• Amperage Minimum : 26.3

Product Data

• UPC : 786678224909
• GTIN : 00786678224909
• Country of Origin : United States
• Dimensions : 6.2 in x 5.1 in x 5.5 in (Length/Depth x Height x Width)
• Weight : 1.25 lb
• Certification : UL Listed,CSA Certified
