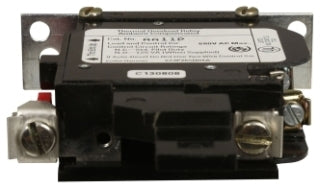

AA21P - Cutler Hammer 1-Pole 26.3-45A Thermal Overload Relay NEMA A200 Class 20 Panel Mount

AA21P

AA21P is a Cutler Hammer 1-pole thermal overload relay designed for motor control applications with an adjustable amp setting range of 26.3 to 45 amps.This NEMA A200 series overload relay features a Class 20 trip unit with ambient temperature compensation, manual or automatic reset options, and a 1NC auxiliary contact. It is panel mounted and uses screw terminals for connection, suitable for protecting motors by providing thermal overload protection with a trip class 20 rating.

• Manufacturer: Cutler Hammer (Eaton)
• Part Number: AA21P
• Poles: 1
• Amp Setting Range: 26.3 to 45 Amps
• Series/Frame: NEMA A200
• Trip Class: 20
• Mounting Type: Panel Mounted
• Output Contacts: 1 Normally Closed (1NC) Auxiliary Contact
• Reset Type: Manual or Automatic
• Connection Type: Screw Terminals
• Thermal Type: Type A, Ambient Compensated
• Dimensions: 2.1 in H x 3.8 in W x 5 in D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: AA21P
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Overload Relay
• Relay Style : Thermal
• Amperage Maximum : 45
• Amperage Minimum : 263

Product Data

• UPC : 786678224244
• GTIN : 00078667822424
• Country of Origin : United States
• Dimensions : 5 in x 2.1 in x 3.8 in (Length/Depth x Height x Width)
• Weight : 0.5
• Certification : UL Listed,CSA Certified
