AA11P - Cutler Hammer NEMA A200 Thermal Overload Relay, 0.25-26.2A, 1 Pole, Panel Mount, Class 20, Ambient Compensated, 1NC Auxiliary Contact, CSA/UL Listed

AA11P

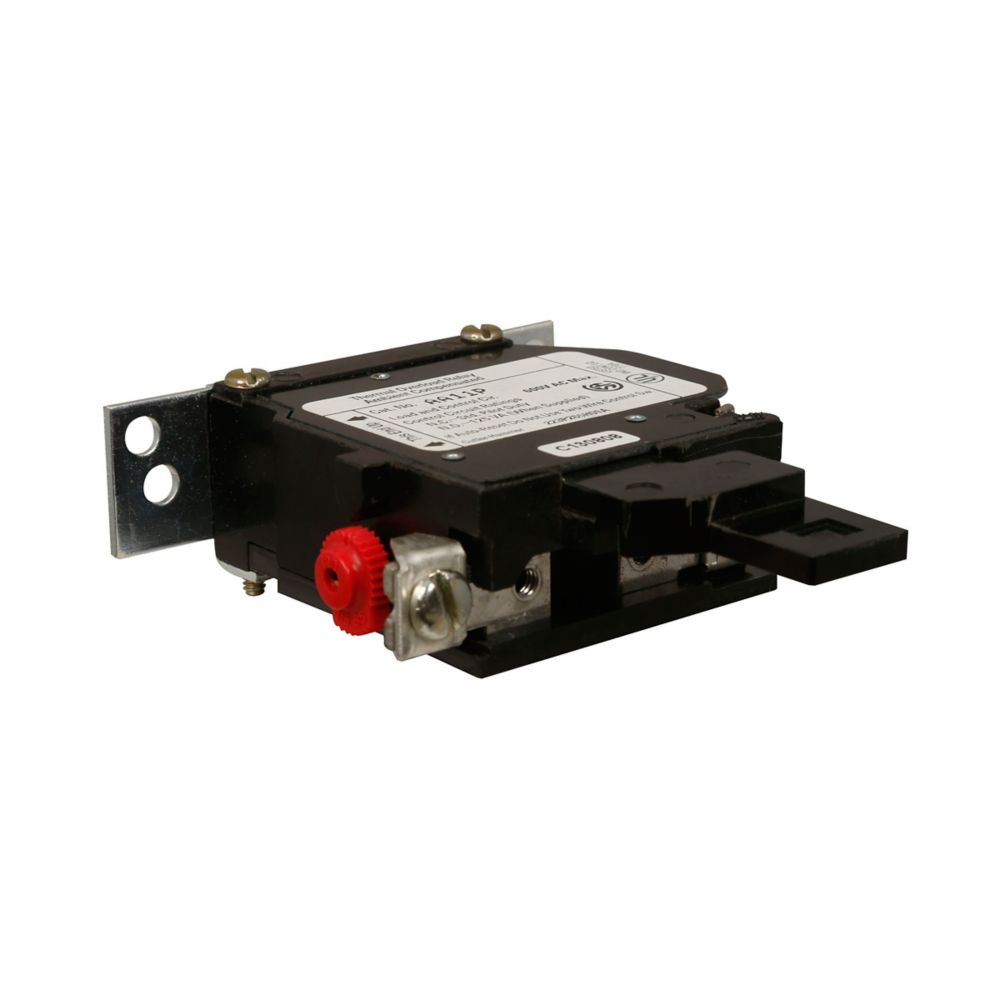

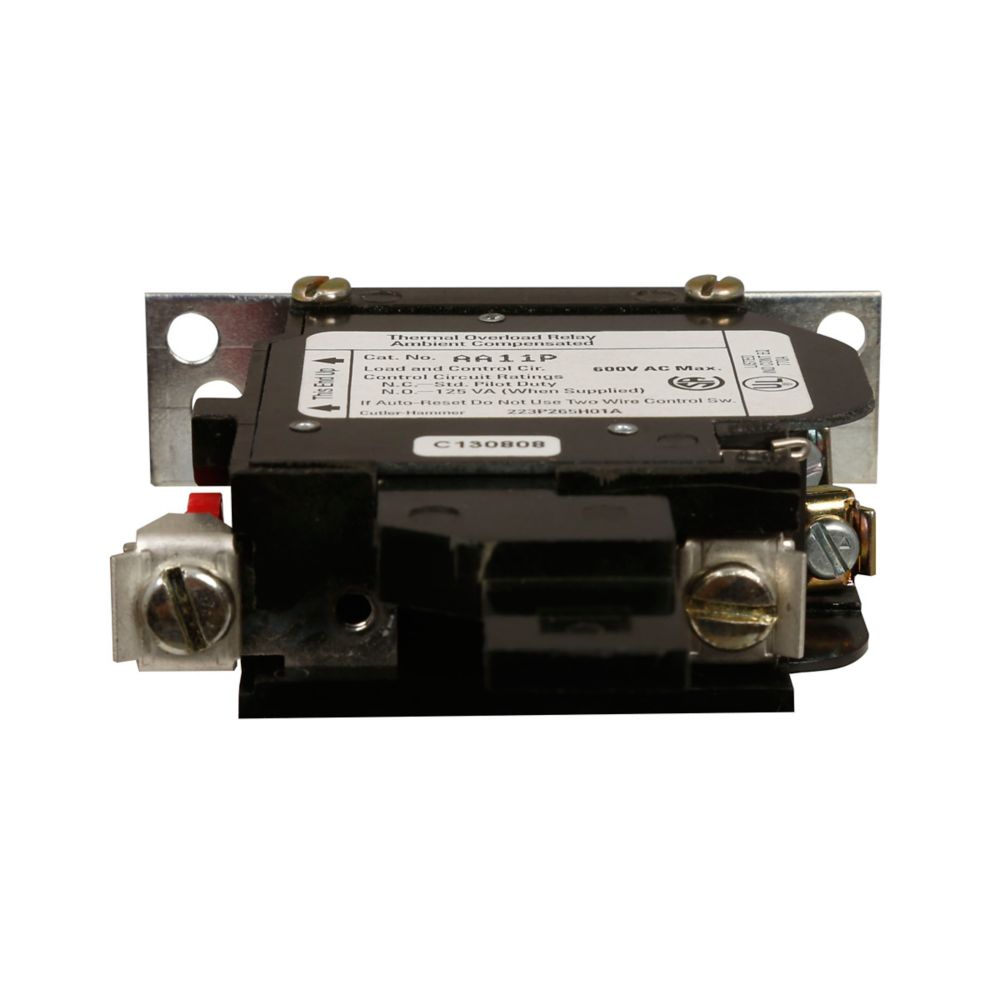

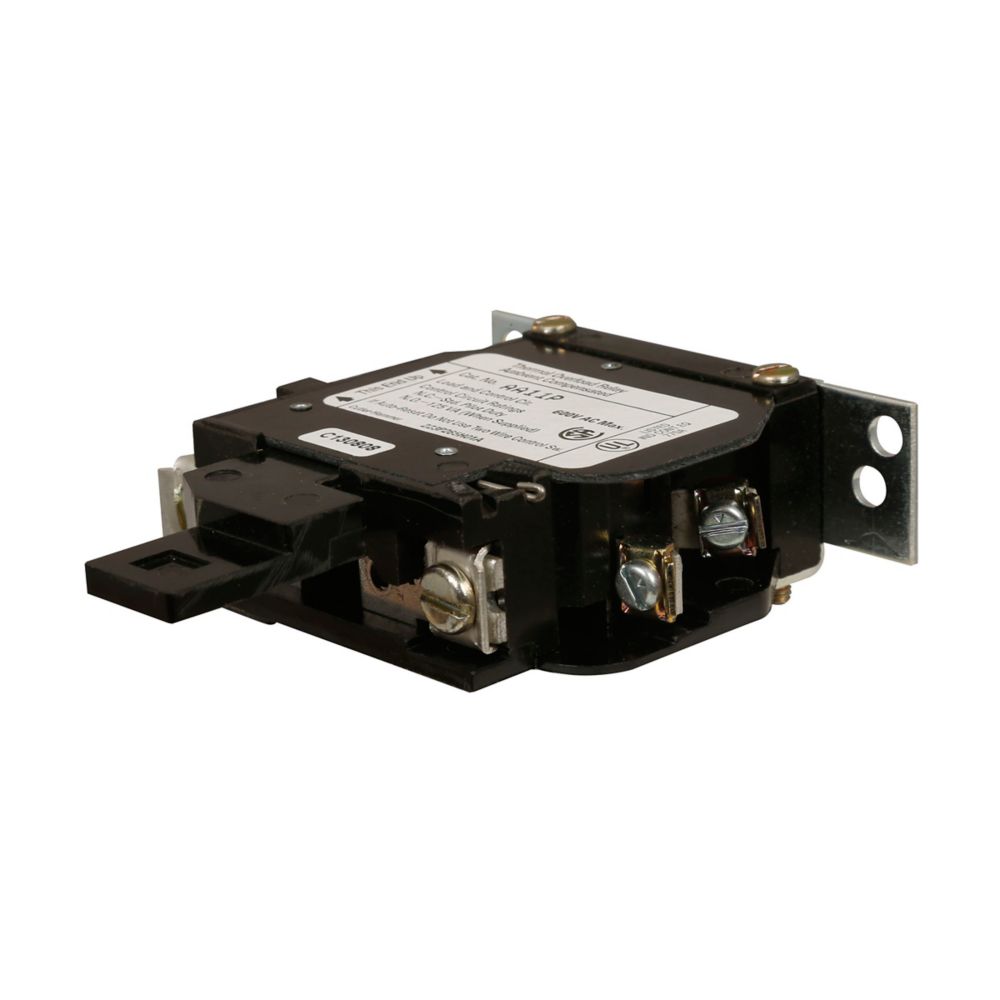

AA11P is a Cutler Hammer NEMA A200 thermal overload relay designed for reliable motor protection in industrial applications.

This single-pole, panel-mounted relay features an adjustable full load current range of 0.25–26.2A, ambient compensation, and a 1NC (normally closed) auxiliary contact. It uses a modern block-type, bi-metallic design to provide Class 20 trip characteristics, suitable for use in both single- and three-phase applications. The AA11P is field-selectable for manual or automatic reset and offers an inverse time delay trip function with adjustable trip settings.

Key Specifications

• Manufacturer: Cutler Hammer (Eaton)
• Part Number: AA11P
• Series/Frame: NEMA A200
• Amperage Range: 0.25–26.2A (adjustable)
• Number of Poles: 1
• Mounting Type: Panel
• Trip Unit: Thermal Type A, Class 20
• Reset: Field-selectable manual/auto
• Auxiliary Contact: 1NC
• Ambient Compensation: Yes
• Certifications: CSA Certified, UL Listed
• Warranty: 1 year from installation or 18 months from shipment
• Dimensions: 5" L x 2" H x 3.8" W
• Weight: 0.45 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: AA11P
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Overload Relay
• Family : A200 Series
• Type : A
• Relay Style : Thermal
• Amperage Maximum : 26.2
• Amperage Minimum : 0.25

Product Data

• UPC : 786678222981
• GTIN : 00786678222981
• Country of Origin : United States
• Dimensions : 5 in x 2 in x 3.8 in (Length/Depth x Height x Width)
• Weight : 0.45 lb
• Certification : CSA Certified,UL Listed
