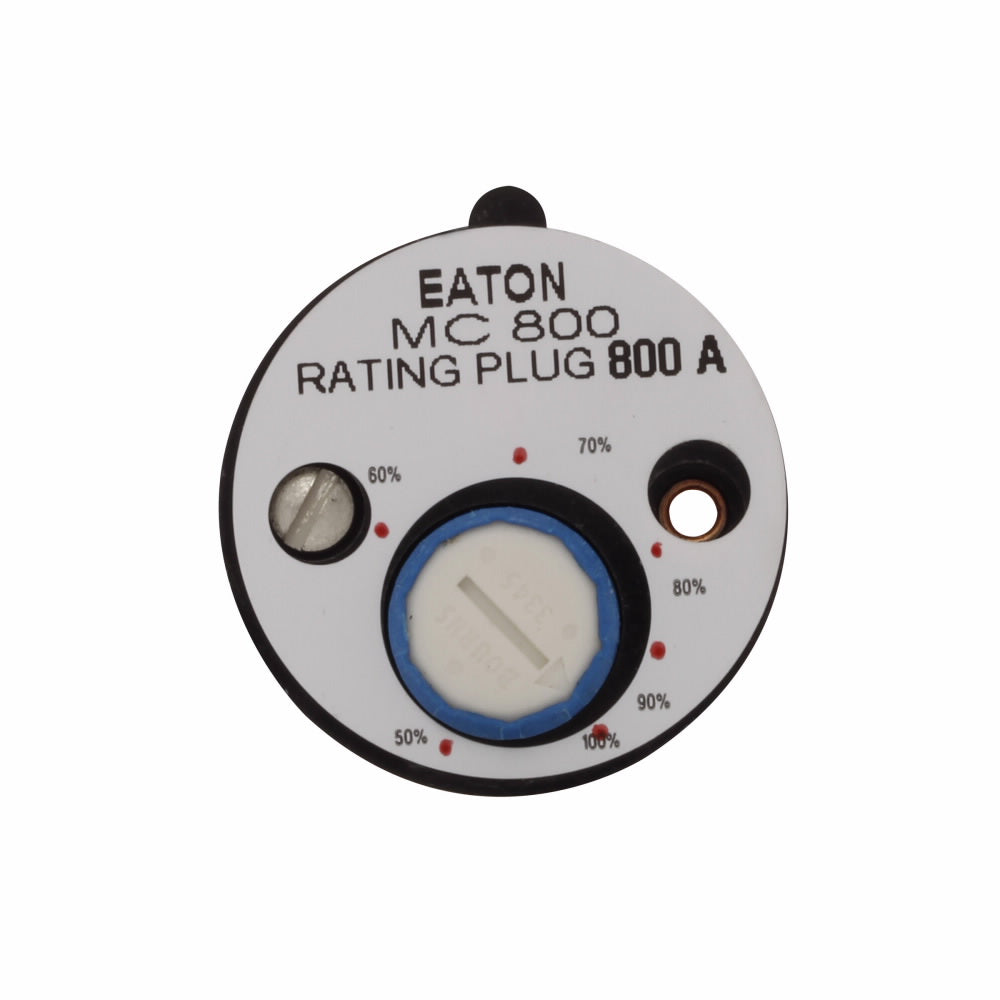

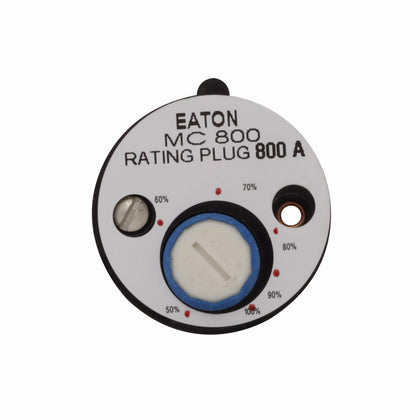

A8MC800 - Westinghouse 800A Adjustable Rating Plug for MC800 Circuit Breaker Frame

A8MC800

A8MC800 is an adjustable rating plug designed for use with Westinghouse MC800 series circuit breakers, providing precise trip unit calibration for 800 ampere frames.This rating plug allows adjustable trip settings for MC800 molded case circuit breakers, supporting two- or three-pole breaker frames. It is compatible with Seltronic trip units and is used to customize the breaker trip characteristics to match specific application requirements. The plug is UL listed and meets applicable electrical safety standards.

• Manufacturer: Westinghouse
• Part Number: A8MC800
• Type: Adjustable Rating Plug
• Compatible Frame: MC800
• Amperage Rating: 800A
• Poles Supported: 2 or 3 Pole Frames
• Trip Unit Type: Seltronic Trip Compatible
• Mounting Type: Plug-in for Molded Case Breakers
• Interrupt Rating: Matches MC800 Frame Breaker Ratings
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: A8MC800
• Manufacturer : Westinghouse
• Brand : Westinghouse
• Category : Circuit Breaker
• Item Subcategory : Rating Plug
• Family : Seltronic, Series C
• Type : A8MC
• Amperage : 800
• Frame Size : 800
• Amperage Maximum : 800
• Amperage Minimum : 800
• Compatible Frames : MC,MCA,MCG,MCGA,HMC,HMCA,HMCG,HMCGA,MCC,MCCA,HMCC,HMCCA,MCCGA,HMCCG,HMCCGA,MDS,MDSY
• Trip Type : Seltronic

Product Data

• UPC : 786679150085
• GTIN : 00786679150085
• Country of Origin : United States
• Dimensions : 2.2 in x 1.4 in x 1.5 in (Length/Depth x Height x Width)
• Weight : 0.03
• Certification : UL Listed
