Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

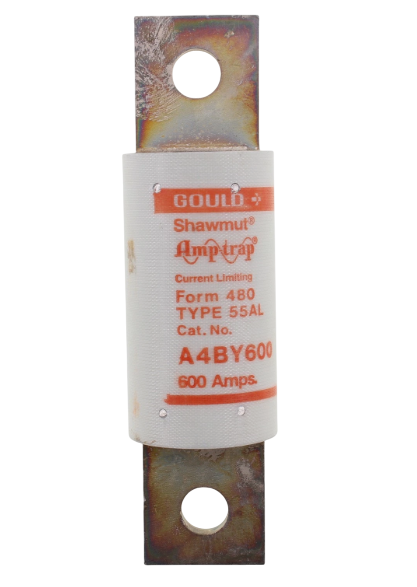

A4BY600-55AL
A4BY600-55AL is a Mersen Class L time-delay blade fuse designed for reliable protection of service entrance equipment, feeder circuits, and circuit breakers.This fuse features a 600 ampere rating with voltage ratings of 600VAC and 300VDC. It provides a 4-second minimum time delay at 500% overload, allowing it to pass normal current surges and coordinate with ground fault relays. The fuse has a bolted mounting type with silver-plated copper blade terminals and a glass melamine body for durability in harsh environments. It offers a high interrupting rating of 200kA at 600VAC and 100kA at 300VDC.
- Key Specifications
- Amperage: 600 A
- Voltage Rating: 600 VAC / 300 VDC
- Fuse Class: Class L
- Speed/Characteristic: Time Delay
- Mounting Type: Bolted
- Connection Type: Silver-plated copper blade terminals
- Interrupting Rating: 200 kA AC / 100 kA DC
- Frequency: 50/60 Hz
- Body Material: Glass melamine
- Product Length: 8.63 in
- Product Diameter: 2 in
Specifications
- Part Number: A4BY600-55AL
- Manufacturer : Mersen
- Brand : Ferraz Shawmut
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : A4BY
- Voltage : 600
- Amperage : 600
Product Data
- UPC : 782001937829
- GTIN : 00782001937829
- Weight : 4
