Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

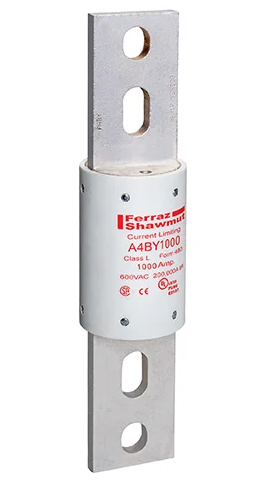

A4BY1000-55AL
A4BY1000-55AL is a Mersen Class L time-delay fuse designed for high-current circuit protection.
This Amp-Trap A4BY fuse features a 1000 ampere rating with voltage ratings of 600VAC and 300VDC. It offers a 4-second minimum time delay at 500% overload, allowing it to handle normal current surges and coordinate with ground fault relays. The fuse has a bolted mounting type with blade terminals made of silver-plated copper, ensuring reliable connection and durability. It has an interrupting rating of 200kA at 600VAC and 100kA at 300VDC, suitable for protecting service entrance equipment, feeders, circuit breakers, and panelboards. The body is made of GMG insulating material and the fuse complies with RoHS standards.
- Amperage: 1000 A
- Voltage: 600 VAC / 300 VDC
- Fuse Class: Class L
- Speed/Characteristic: Time Delay
- Mounting Type: Bolted
- Connection Type: Blade
- Interrupting Rating: 200 kA at 600 VAC, 100 kA at 300 VDC
- Body Material: GMG
- Connection Material: Silver-Plated Copper
- RoHS Compliant: Yes
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: A4BY1000-55AL
- Manufacturer : Mersen
- Brand : Ferraz Shawmut
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : A4BY
- Voltage : 600
- Amperage : 1000
- AIC rating : 200kA@600V
- Connection : Bolt-In
Product Data
- UPC : 782001937614
- GTIN : 00782001937614
- Weight : 5
