Product Info
- Manufacturer:Wadsworth
- Sub-Category:Molded Case
Description
A20NI

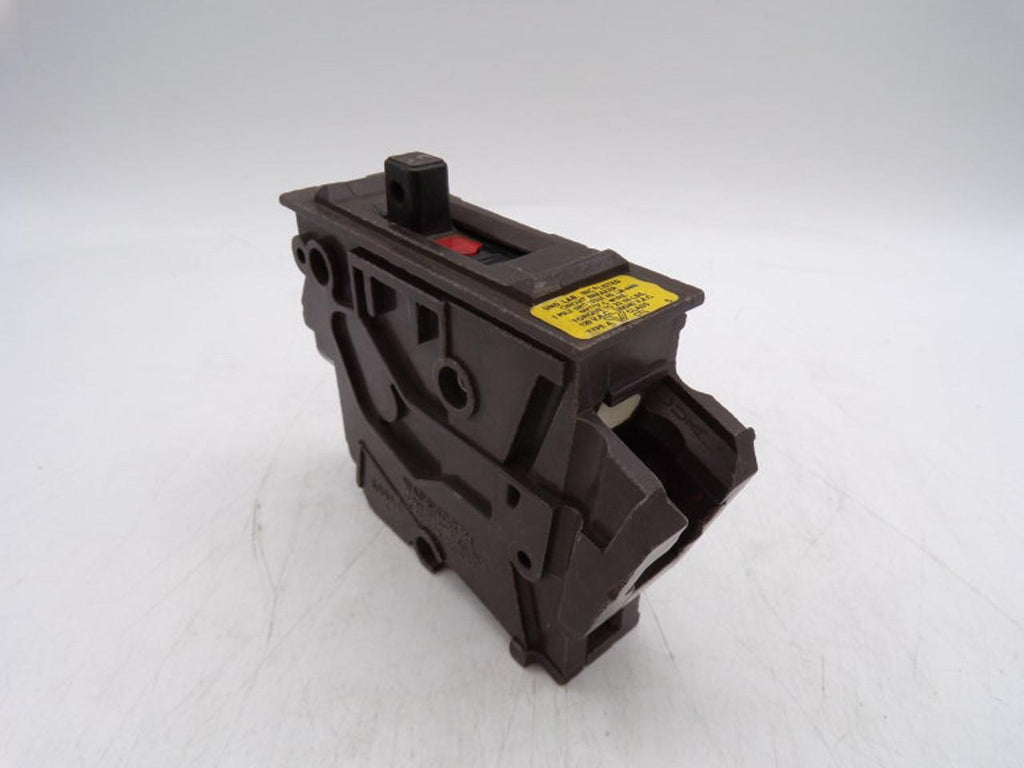

A20NI is a Wadsworth 20 Amp 1-Pole 120 Volt Type A circuit breaker designed for plug-on mounting in UBIA series panels.This molded case circuit breaker features a thermal magnetic trip unit, a 10,000 A interrupting rating at 120V, and is ETL listed for safety and reliability. It is intended for standard trip applications and offers a compact design with dimensions approximately 3 in. height, 0.5 in. width, and 3.25 in. depth.
- Key Specifications
- Amperage: 20 Amps
- Voltage Rating: 120 Volts
- Number of Poles: 1
- Mounting Type: Plug-On
- Interrupt Rating: 10,000 AIC at 120V
- Series/Frame: UBIA
- Trip Unit: Thermal Magnetic
- Certifications: ETL Listed
- Breaker Type: Standard Trip
- Dimensions: 3 in. H x 0.5 in. W x 3.25 in. D
- Manufacturer Warranty: 10 Years
Specifications
- Part Number: A20NI
- Manufacturer : Wadsworth
- Brand : Wadsworth
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : A-Series
- Type : A
- Voltage : 120
- Amperage : 20
- Phase : 1
- Poles : 1
- AIC rating : 10kA@120V
- Connection : Plug-In
- Functions : LI - Long-Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- Weight : 1
