Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Motor Starter
Description
A200M4CW

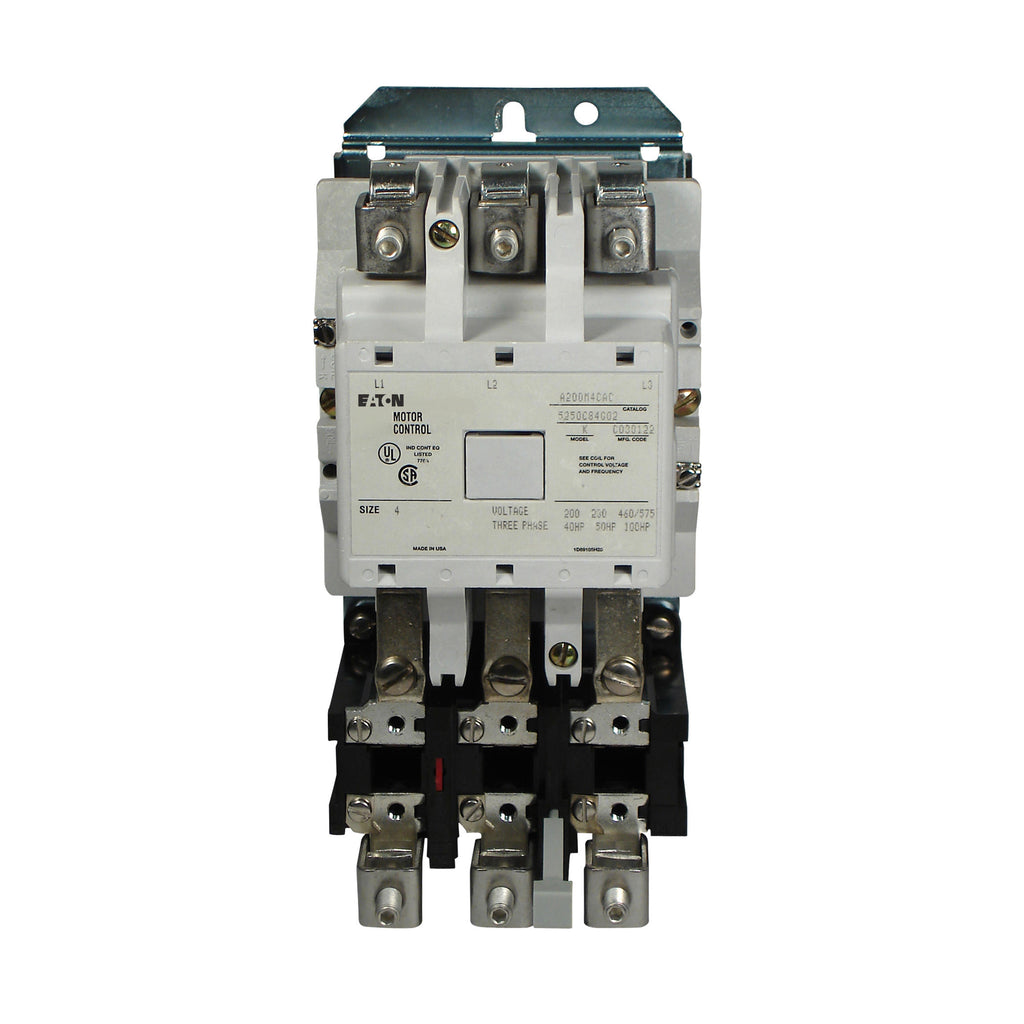

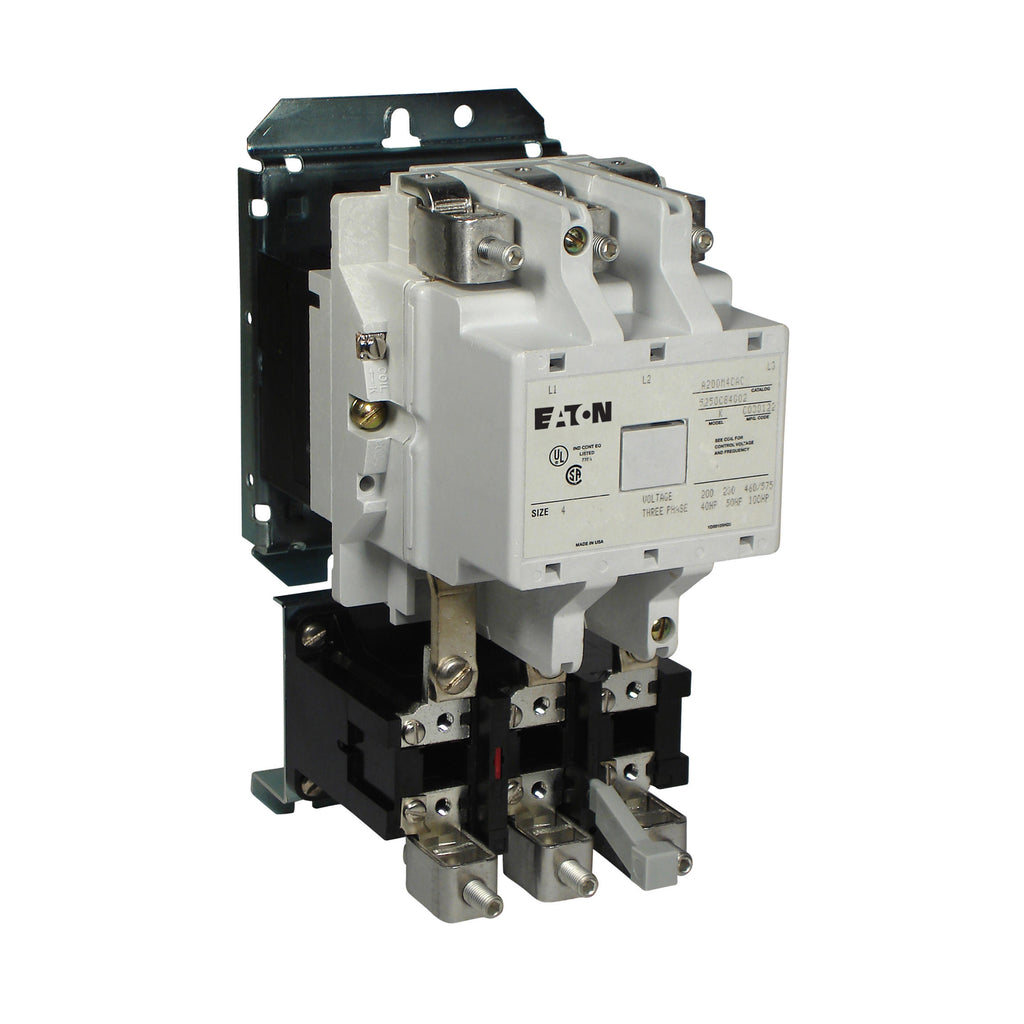

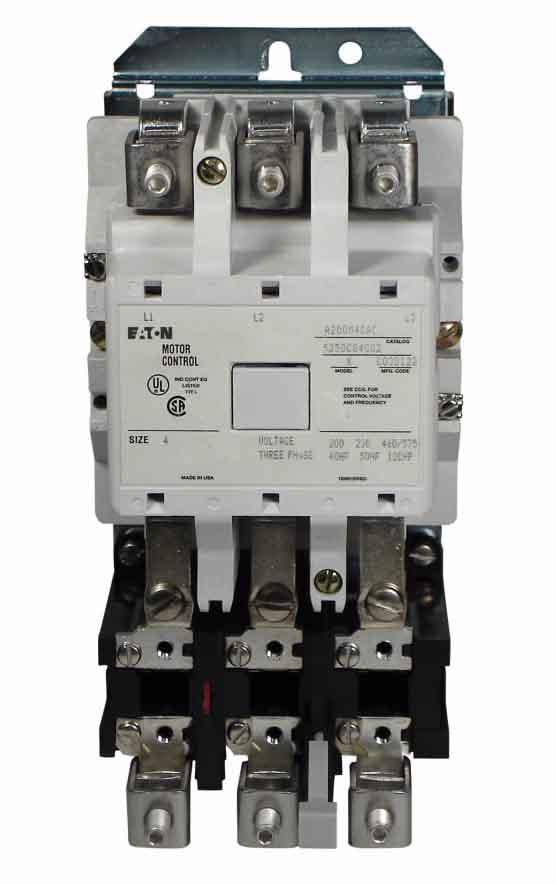

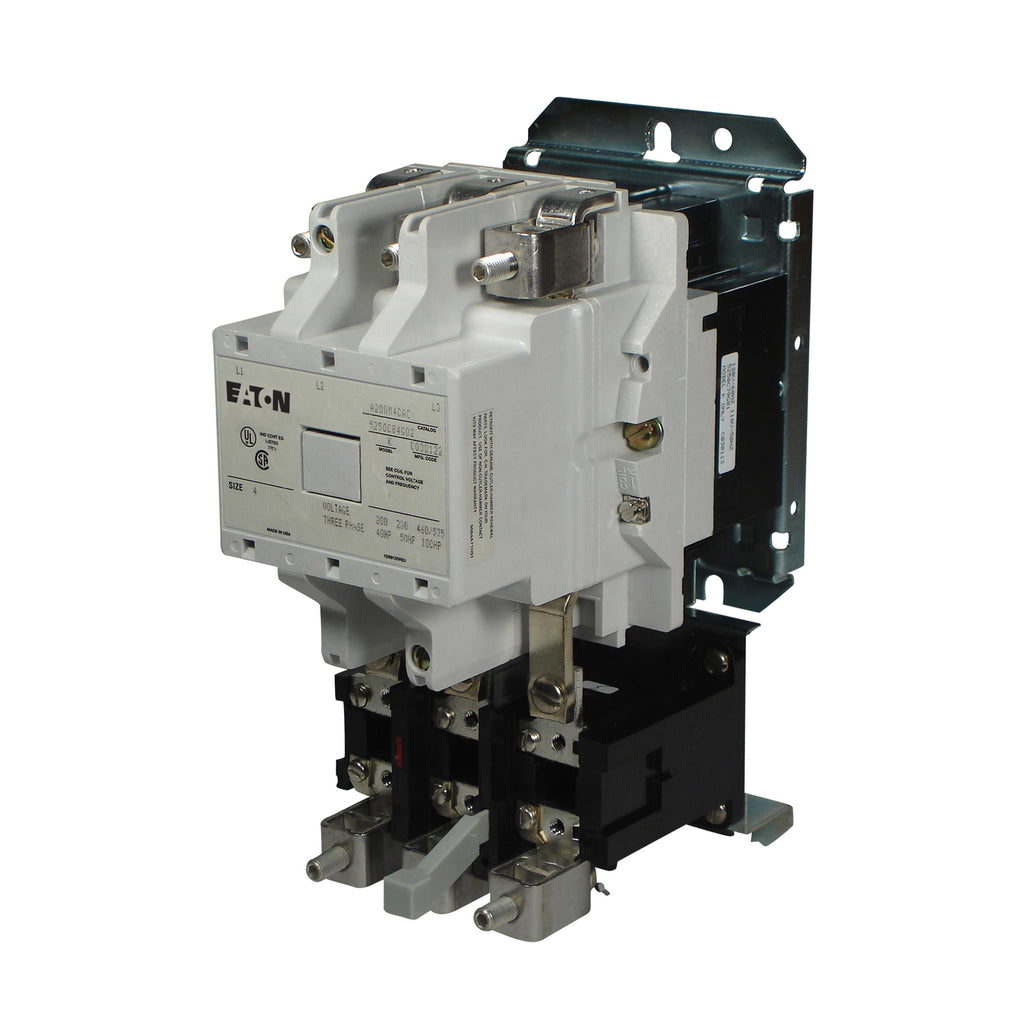

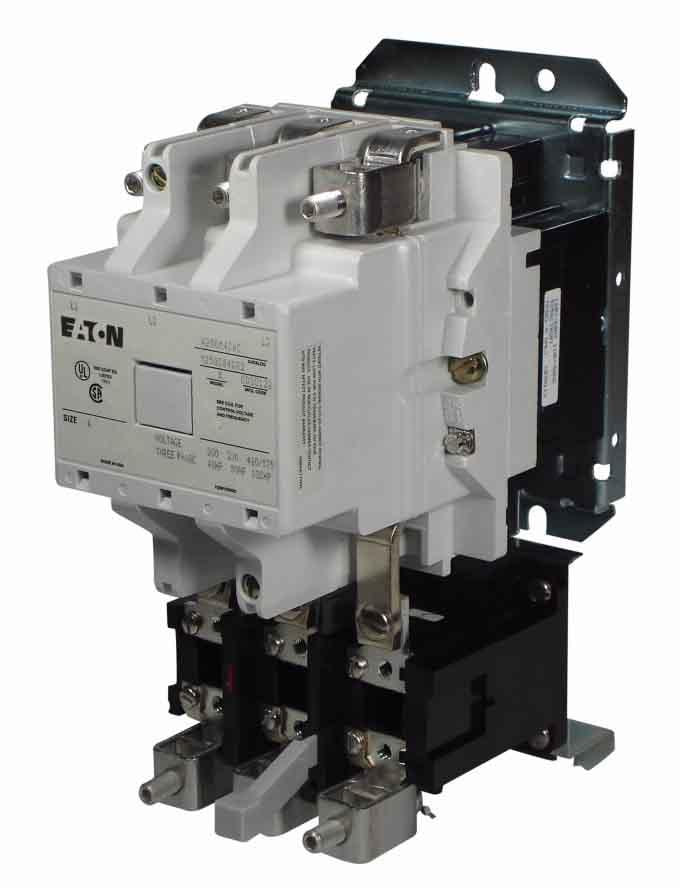

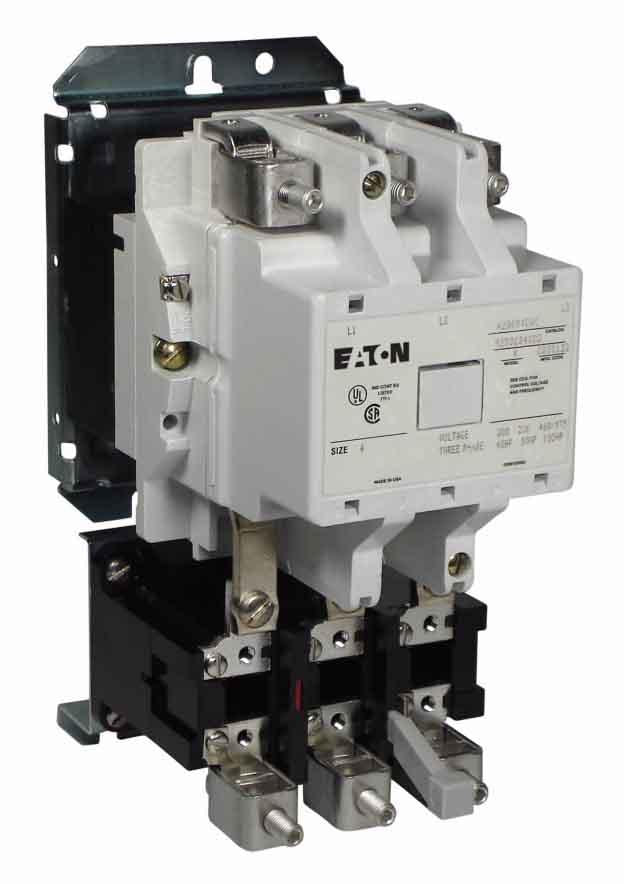

A200M4CW is a Cutler Hammer motor starter designed for 3-phase motor control applications with a 135 amp rating and 600 volt capacity.This A200 series non-reversing starter features a 3-pole configuration, 240V coil voltage, and Size 4 frame, suitable for surface mounting in industrial motor control systems.
- Amperage: 135 Amps
- Voltage: 600 VAC
- Poles: 3
- Coil Voltage: 240V, 60 Hz
- Frame/Series: A200, Size 4
- Mounting Type: Surface mount
- Type: Non-Reversing Starter
- Horsepower Ratings: 40 HP at 208V, 50 HP at 240V, 100 HP at 480/600V
- Certifications: UL Listed, CSA Certified
- Interrupt Rating: Standard for A200 series
Specifications
- Part Number: A200M4CW
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : A200 Series
- Type : A200
- Voltage : 600
- Amperage : 135
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 240
- Coil Voltage Minimum : 240
- Nema Rating : 4
Product Data
- UPC : 786678231334
- GTIN : 00786678231334
- Country of Origin : Dominican Republic
- Dimensions : 1 in x 1 in x 1 in (Length/Depth x Height x Width)
- Weight : 0.1 lb
- Certification : CSA Certified,UL Listed
